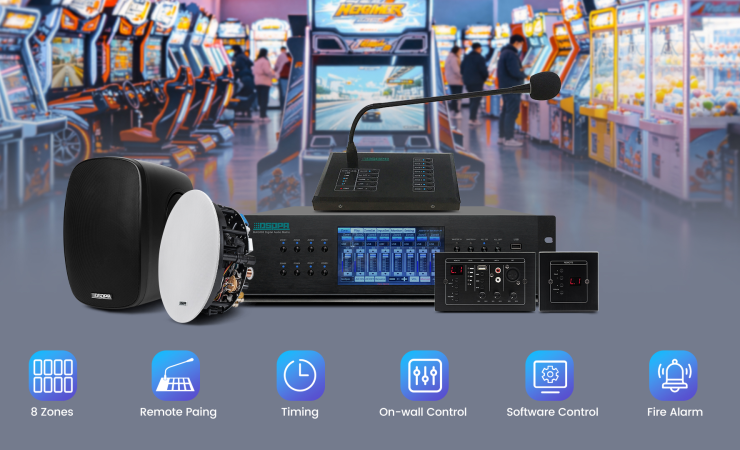

MAG808 Digital Audio Matrix System Solution for Arcade Entertainment Centers


 I. Solution Overview



With the challenges of high ambient noise, diverse zone requirements, and critical emergency communication needs in arcade environments, the MAG808 8-Zone Digital Audio Matrix System provides a proven solution for refined audio management. This solution presents the overall system architecture, zone configuration logic, and core equipment selection.




Project Requirements


● Independent Zone Control: 8 zones can play different audio sources simultaneously with independent volume control, ensuring that each zone operates without interference.

● Noise-Resistant Paging: Enables clear voice announcements to designated areas even in high-noise environments.

● Emergency Override: When a fire alarm signal is triggered, background music is automatically interrupted and emergency evacuation instructions are broadcast immediately.

● Remote Management: Supports remote mode switching and volume adjustment via mobile devices or computers, eliminating the need to access the equipment room.

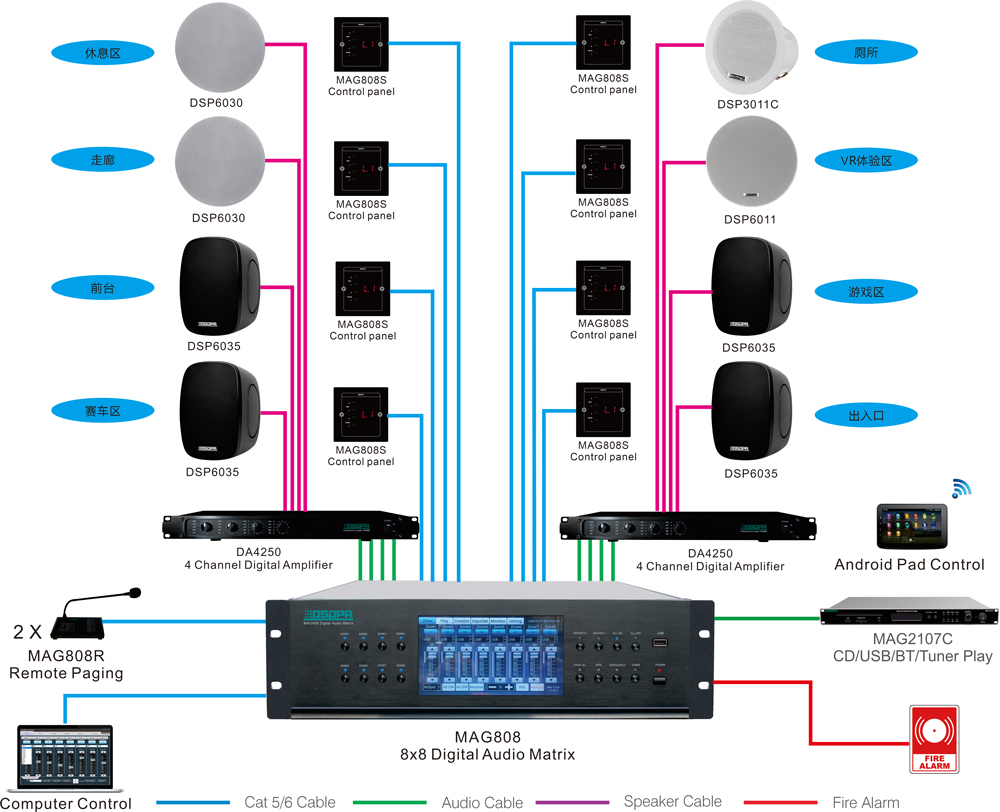

System Connection  & Product List



Note: This solution is for reference only. Please contact us for specific project requirements.


No.

Model

Product Name

Quantity

1

MAG808

8x8 Digital Audio Matrix

1PC

2

MAG808R

Remote Paging Station

2PCS

3

MAG2107C

CD/USB/BT/Tuner Play

1PC

4

MAG800A

Android APP Control

1PC

5

MAG800S

Remote Control Software for MAG808 System (computer)

1PC

6

DA4250

4 Channels Digital Amplifier

2PCS

7

MAG808S

Remote Control Panel

8PCS

8

DSP6035

30W Commercial wall mount speaker

NPCS

9

DSP6030

6.5" Coaxial Ceiling Speaker

NPCS

10

DSP3011C

6W 3" Frameless Waterproof  Ceiling Speaker with Cover

NPCS

11

DSP6011

6.5" 6W  Ceiling Speaker

NPCS

12

PC

Computer Control

1PC



 II. MAG808 Application in Game Arcades – System Design Proposal

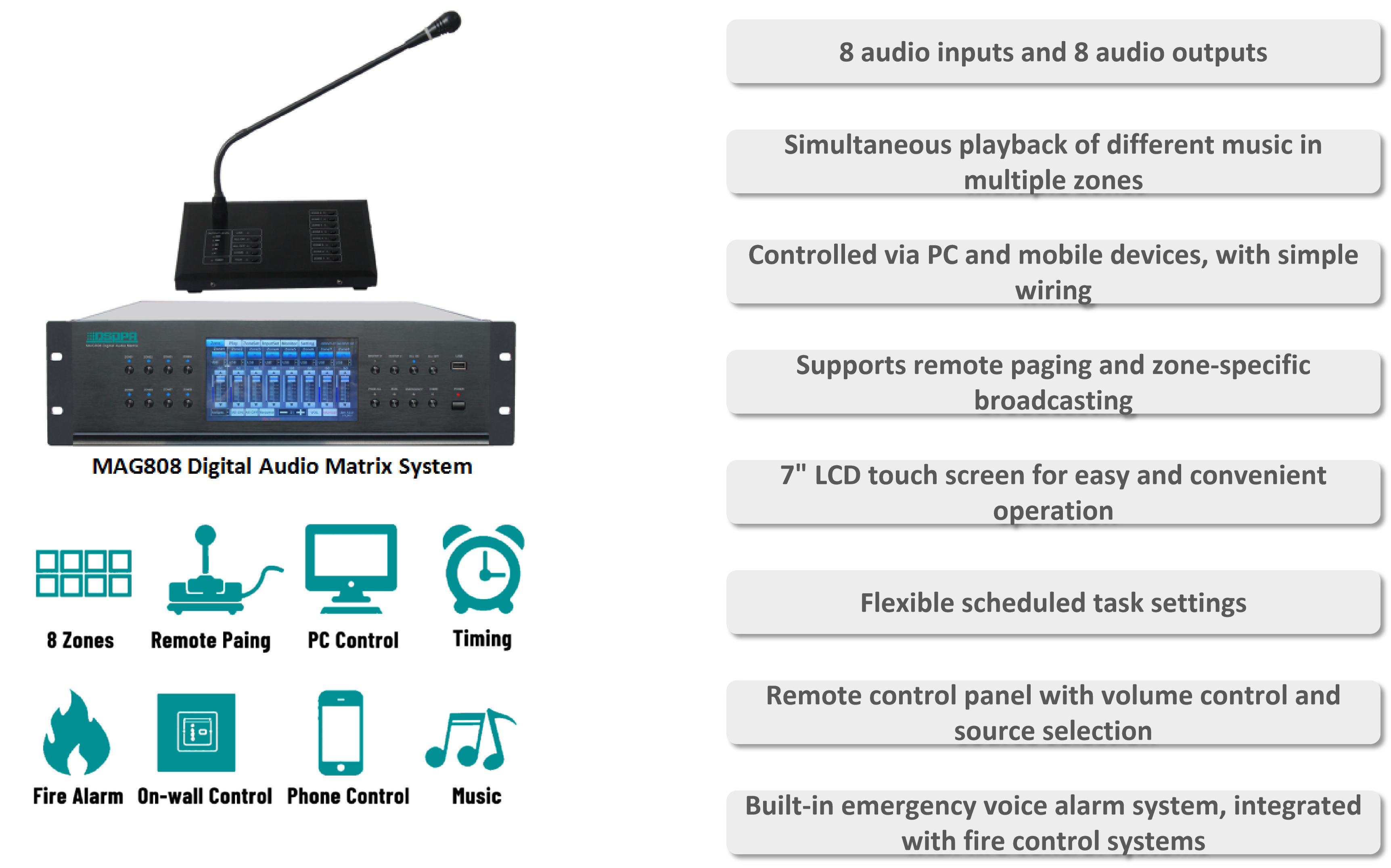

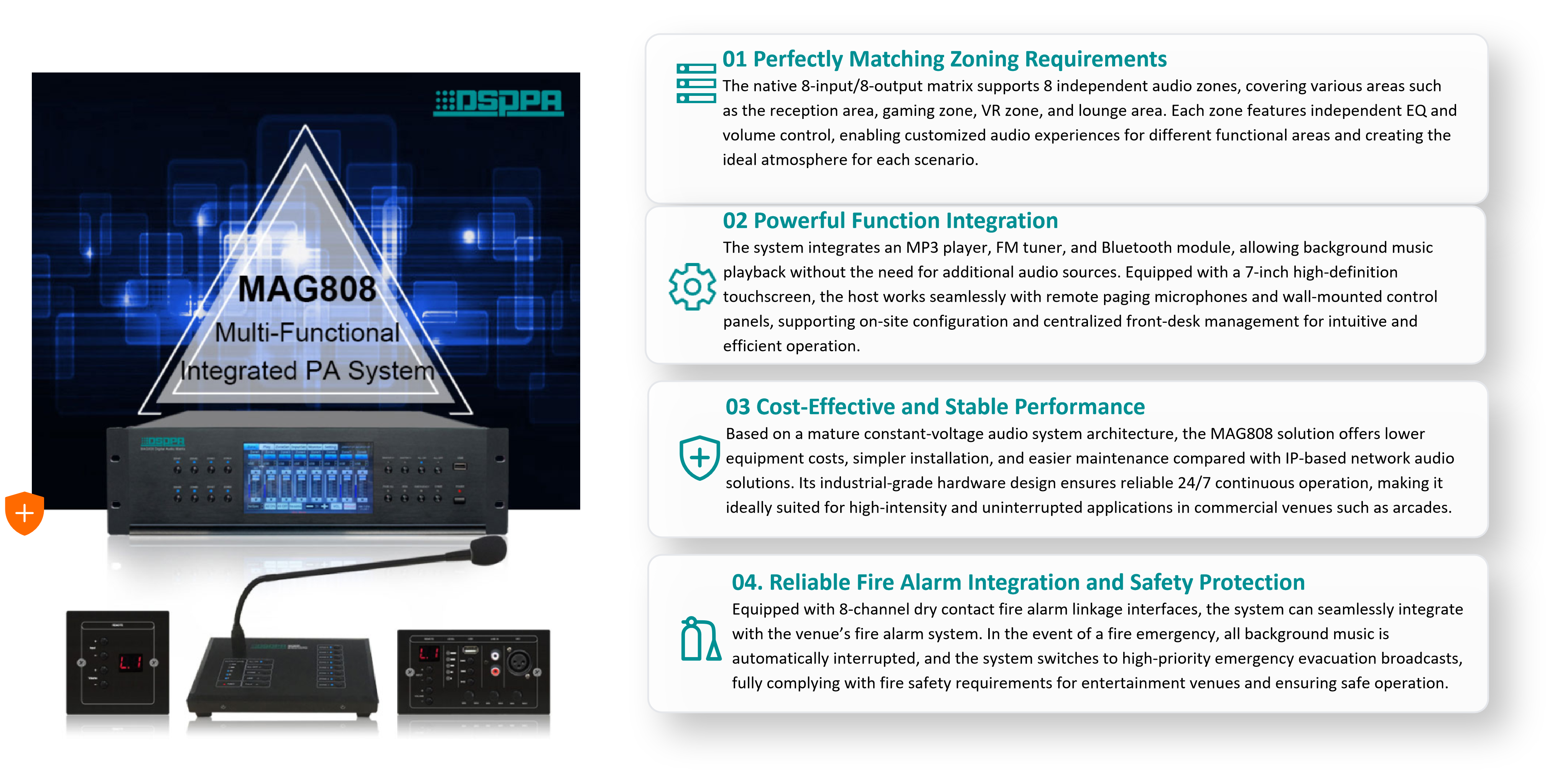

 III. Key Features of the MAG808 Audio Matrix System




 IV. MAG808 System Products Introduction

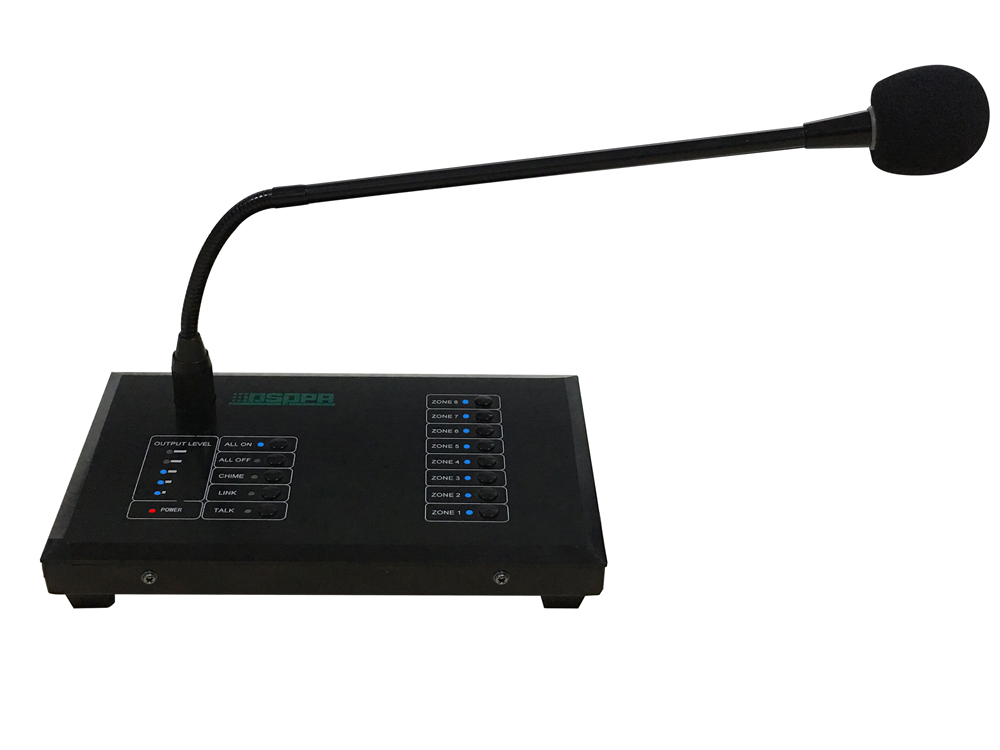

MAG808R 8 Zones Remote Paging Microphone



Features:


● 8 zones control
● Priority of each unit can be set (with 4 different levels)
● Clear signal level indication
● Built-in 2 types of chime signal for paging
● Adjustable volume of MIC and chime
● RJ45 interface, support the cascade linkage

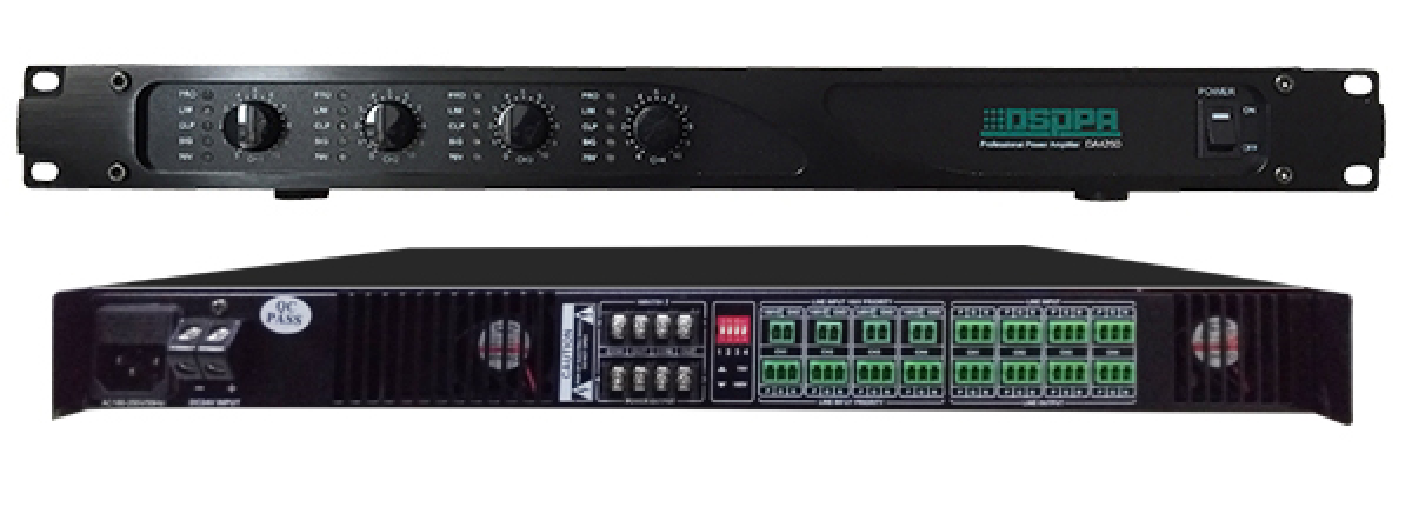

DA4250 4 Channels x250W  Amplifier



Features:


● 4 channel amplifiers within one 1U & 19" case
● Four audio inputs and Four channel speaker outputs
● 5-unit LED for Status
● 70V/100V output switcher, you can select the speaker output for each channel.
● Industrial design for audio project,long term & stable use
● The amplifier will turn into DC power mode when AC power fails. Smoothly change without shutting down.



 V. MAG808 System Introductions

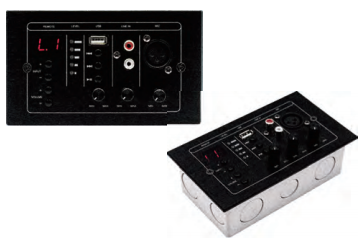

MAG808C  8 Zones Remote Control Panel with Mic




Features:


● RJ45 port power and control interface
● Balanced audio input and output
● Clear audio signal level indicator
● Independent volume control and audio source selection for each zone
● MP3 via USB input with independent volume control
● 1 line input and 1 MIC input with independent volume control
● Bottom box size: 144x80x45mm


MAG808S  8 Zones Mini Remote Control Panel




Features:


● RJ45 port power and control interface
● Balanced audio input and output
● Independent volume control and audio source selection for each zone
● 86 case for in wall installation
● Bottom box size: 86x86x33mm





 VI. Product Application - DSP6030

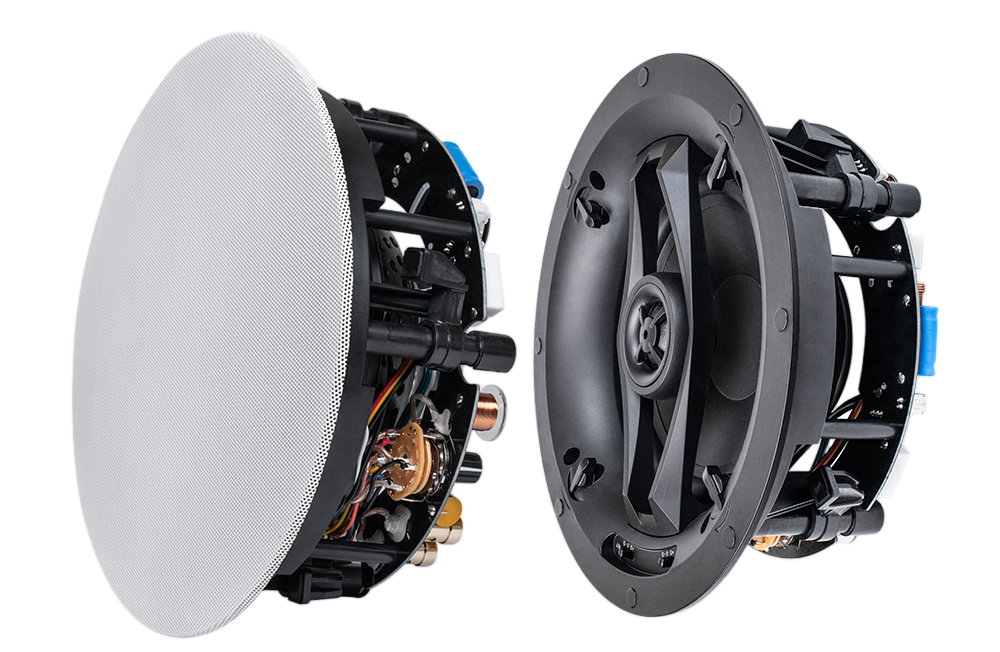

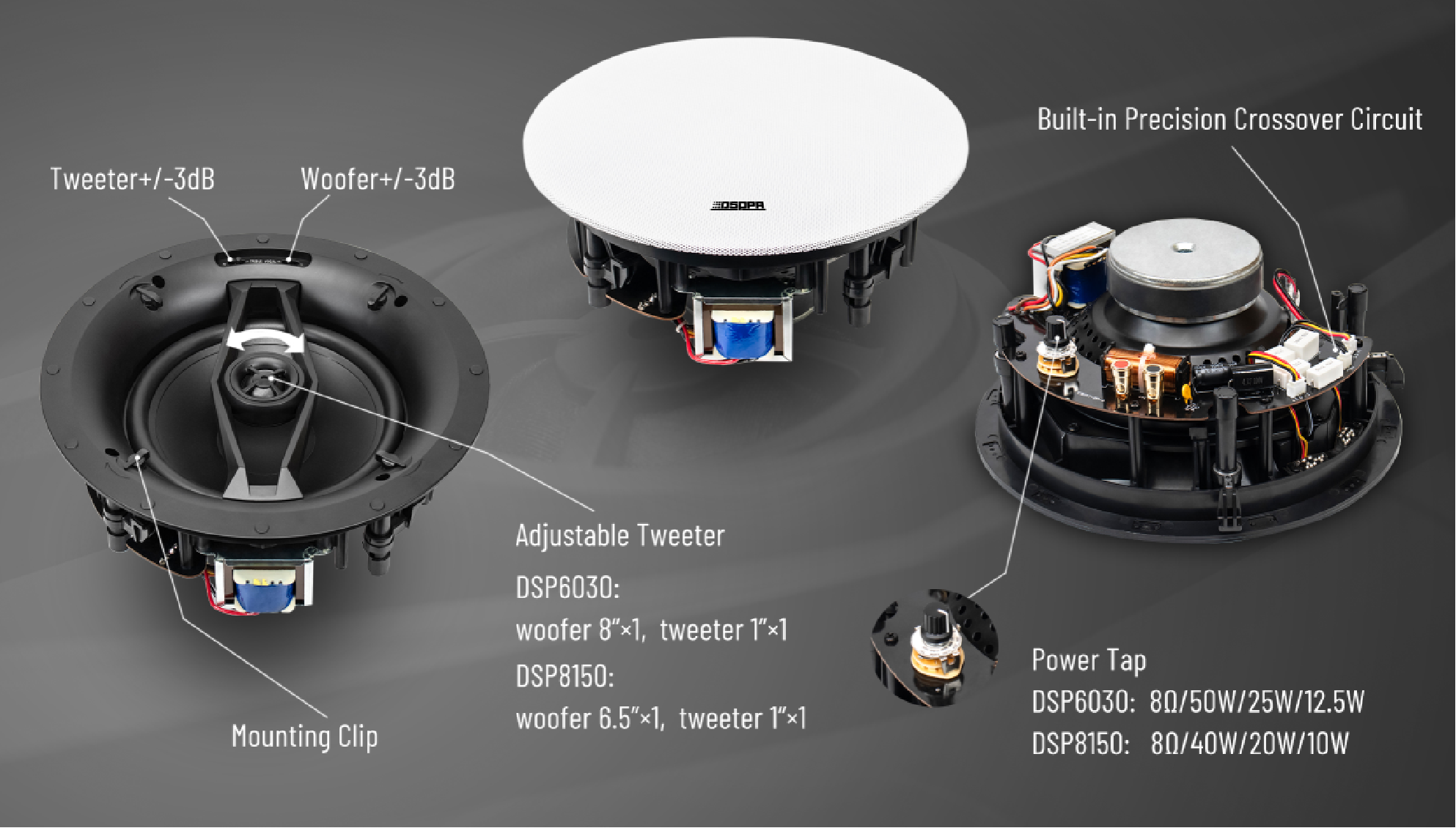

DSP6030 6.5" Coaxial Ceiling Speaker


Features HIFI-grade coaxial sound reproduction, wide frequency response, switchable constant-voltage/constant-impedance operation, refined sound quality, and easy installation.

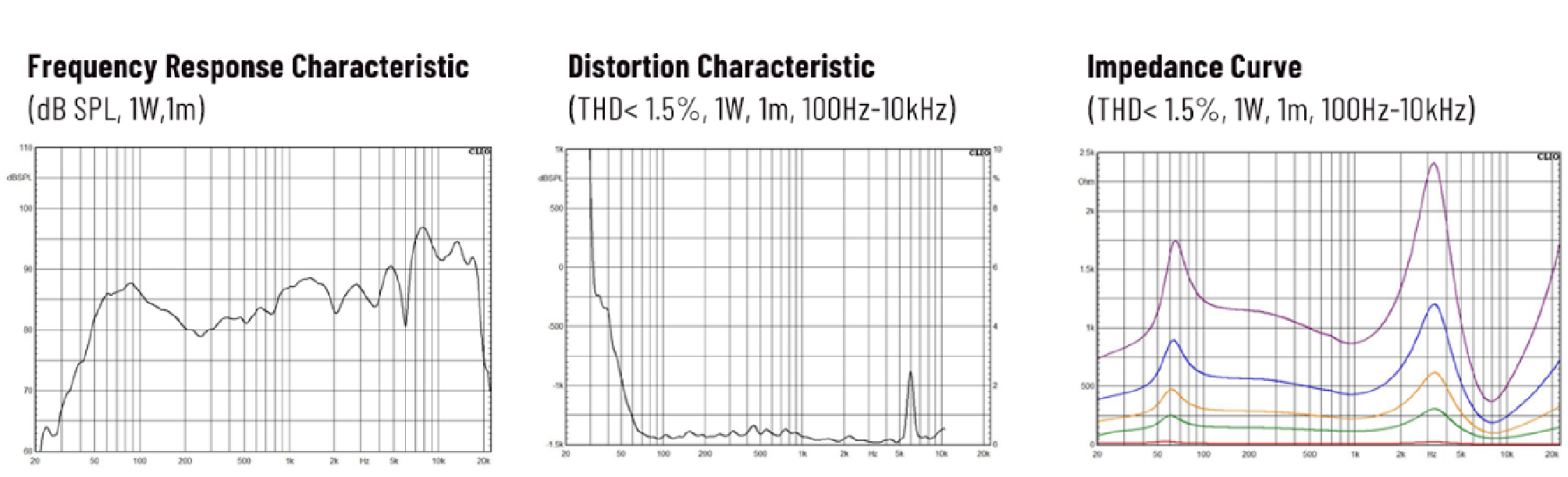

Technical Specifications – Curves

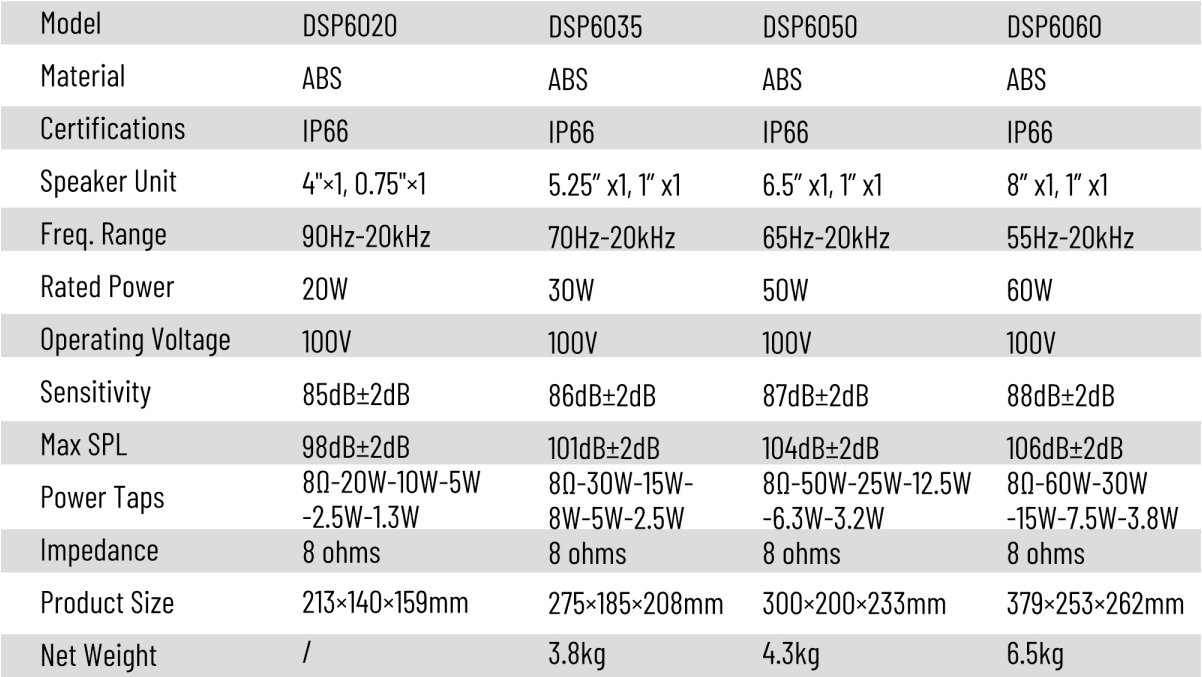

 VII. Product Application - DSP6035

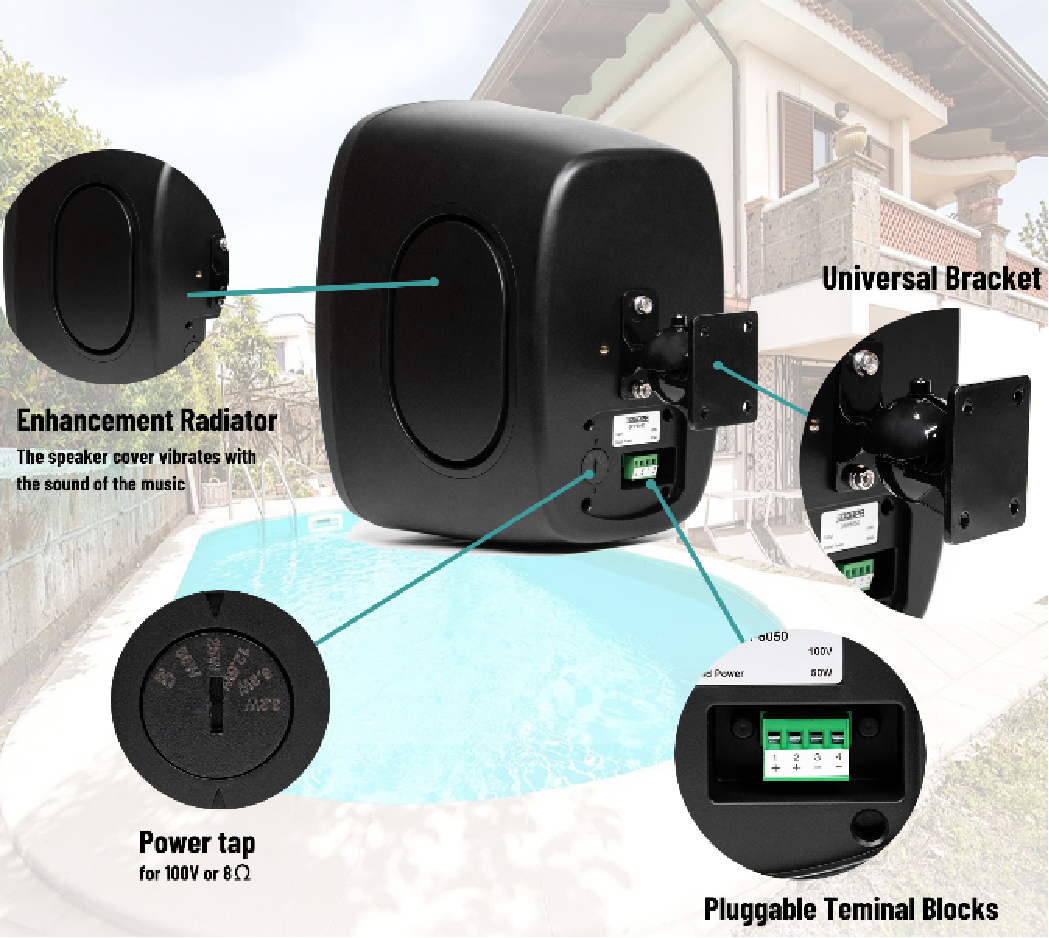

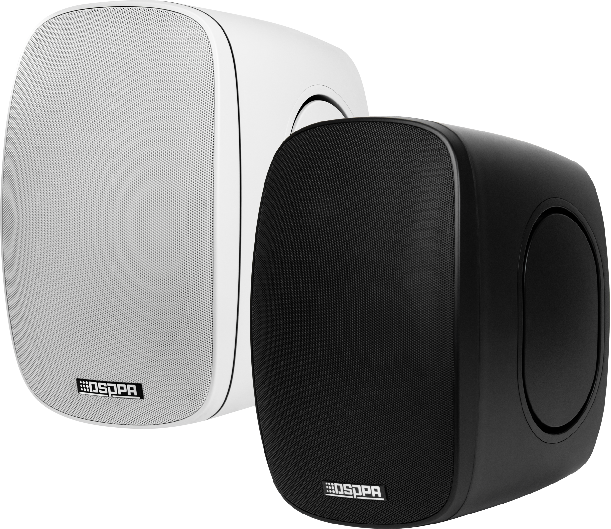

DSP6035 30W Commercial Wall Mount Speaker


Features enhanced low-frequency performance, IP65 all-weather waterproof protection, and dual constant-voltage/8Ω operation modes. With a 2-way speaker design, it delivers clear and transparent sound quality while allowing quick and convenient installation.



A 30W wall-mount speaker engineered for high SPL and long-range sound projection. Featuring excellent acoustic performance and industrial-grade protection, it delivers clear and powerful audio for esports zones, commercial reception areas, and other demanding entertainment environments.





 VIII. Application Scenarios
