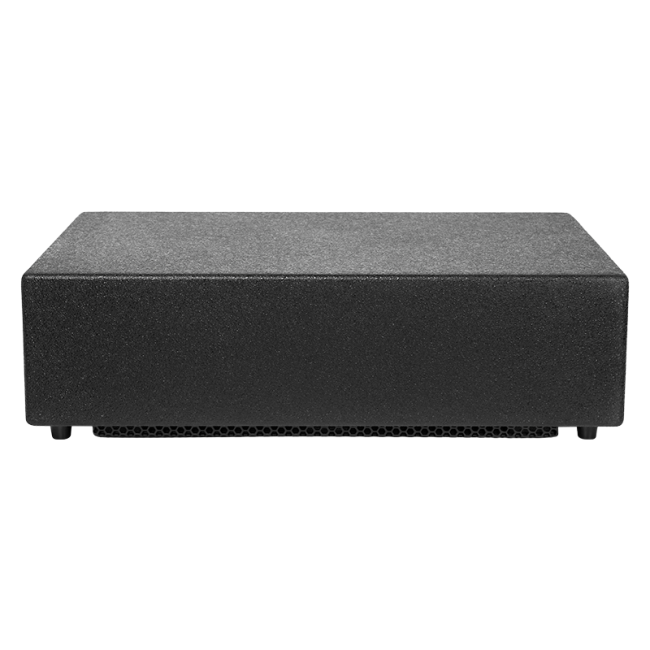

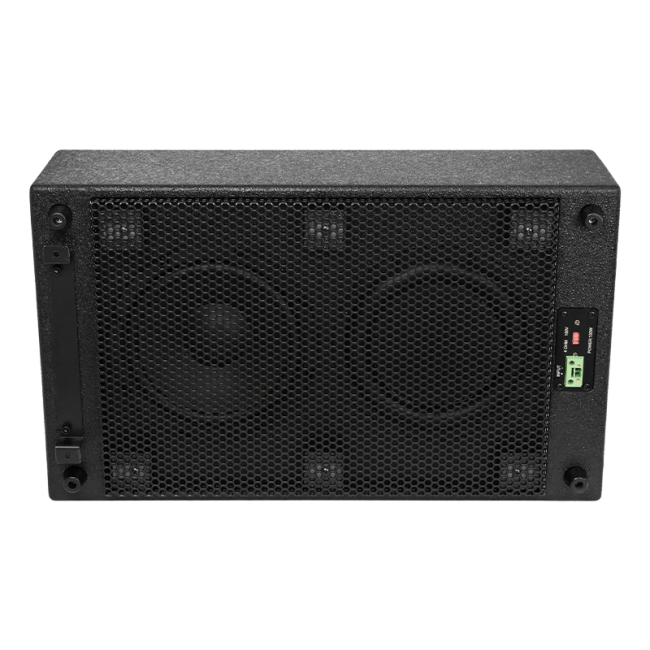

Home ProductsCommercial SpeakerCommercial Subwoofer Speaker 8 Inch 100W 100V / 4Ω Subwoofer DSP26V

4Ω / 100V

8 Inch 100W 100V / 4Ω Subwoofer

DSP26V

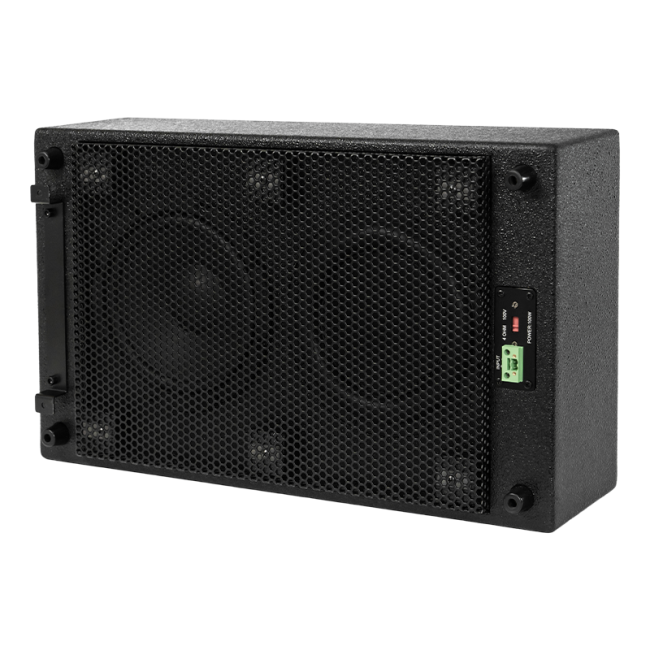

  • 8" direct-driven woofer working with an 8" passive radiator to deliver deeper and more extended bass performance
  • Dual 4Ω / 100V operation for easy adaptation to different system configurations
  • Capable of reaching up to 130 dB peak SPL for powerful sound reinforcement
  • 100W power handling ensures consistent and efficient low-frequency output
  • 12 mm compact plywood cabinet construction provides rigidity and minimizes unwanted resonance
  • Sealed enclosure structure offers tighter bass response with improved control
  • Equipped with dedicated rigging hardware for secure and flexible mounting options
  • Finished with durable black textured coating and protected by a 1.5 mm perforated steel grille

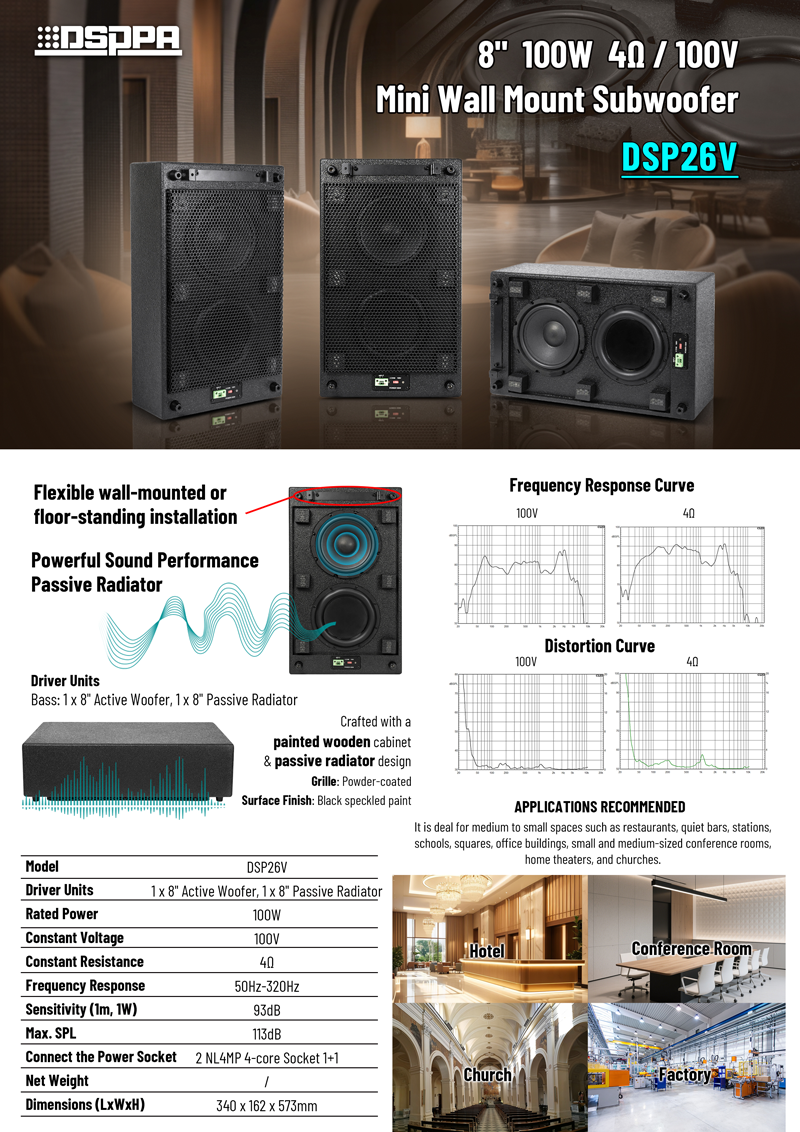

Overview Specifications Brochure Related Products Solutions Latest News & Cases

The DSP26V is a compact subwoofer delivering high-efficiency low-frequency reinforcement for professional sound systems. Its 8-inch direct-driven woofer works alongside a passive radiator to extend bass response with improved depth and control.


Designed for dual-mode operation, it supports both 4Ω and 100V systems to meet varied installation requirements. A solid plywood enclosure provides stable acoustic performance and consistent bass output in fixed installation environments.



Model

DSP26V

Driver Units

1 × 8" Direct-driven Woofer (35mm Voice Coil, 120mm Magnet), 1 × 8" Passive Radiator

Rated Power

100W

Rated Impedance

4Ω

Input Mode

Constant Impedance / Constant Voltage: 4Ω / 100V (Switchable)

Frequency Response

40Hz-300Hz

Sensitivity

93dB

Max. SPL

130dB

Enclosure Materials

Rectangular Structure, 12mm Plywood

Hanging Hardware

Dedicated Suspension Connectors

Surface Finish

Black Textured Paint

Grille

Powder-Coated 1.5mm Perforated Steel Grille

Input Connector

2-pin Phoenix Connector

Dimensions (L×W×H)

340×162×573mm
