Home Professional AudioAudio MixerDigital Audio Mixer 16-Channel Digital Mixing Console CM16

ADSP-21489 400Mhz ; 20Hz-20KHz ±0.5dB

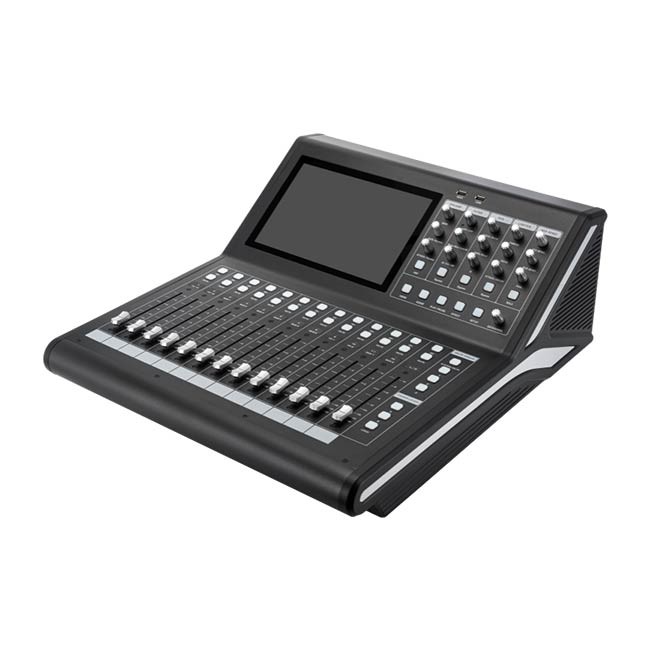

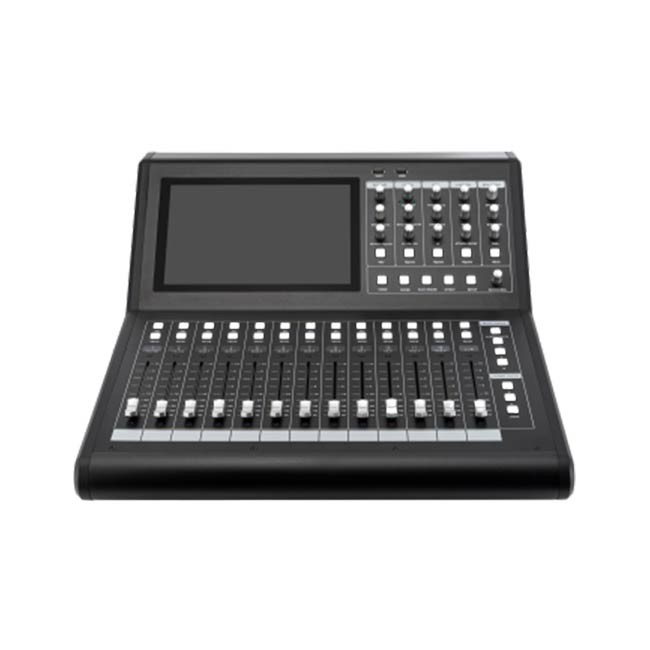

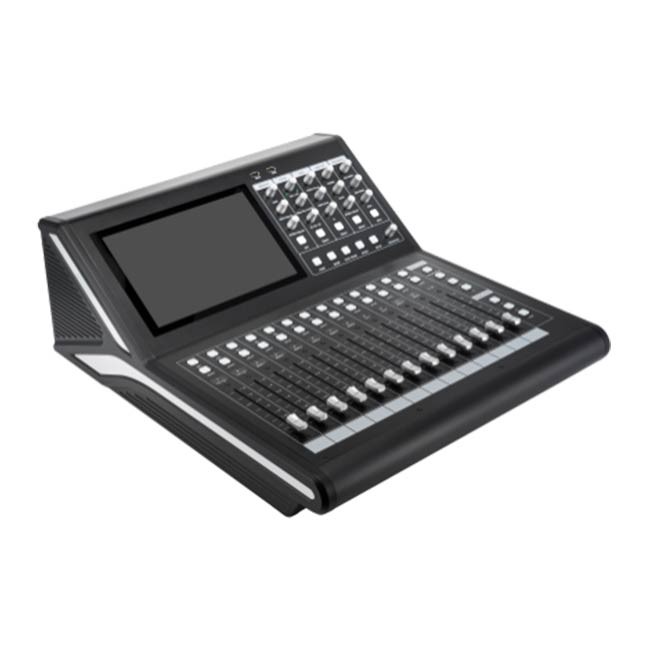

16-Channel Digital Mixing Console

CM16
  • 10.1-inch capacitive touchscreen with 1280×800 resolution.
  • 13 100mm motorized faders.
  • Switchable between Chinese and English interfaces without reboot.
  • Built-in USB recording and playback functions.
  • Supports playback of APE, FLAC, MP3, and WAV lossless audio formats.
  • USB player recognizes Chinese song titles.
  • Built-in 16-channel independent feedback suppressors.
  • 2 DCAs.
  • Supports iPad touchscreen full-featured control with real-time data synchronization.
  • Optional Wi-Fi hotspot.
  • Supports up to 8 terminals for simultaneous control.
  • Built-in 2 independent effect modules.
  • ARM and DSP firmware upgradeable via network or USB drive.
  • Per input channel: 4-band parametric EQ, noise gate, feedback suppressor, high/low-pass filters, compressor, and polarity inversion.
  • Per output channel: 8-band parametric EQ, high/low-pass filters, compressor, and polarity inversion.
  • Output channels: L/R, 6 BUS, 2 AUX, and Headphone (L/R).
  • Selectable pre-fader or post-fader (PRE/POST) for 6 BUS and 2 AUX mix buses.
  • Scene preset function with export/import via USB for data backup.
  • Supports 32 PEQ mode presets.
  • Built-in signal generator: sine wave, pink noise, and white noise.
  • Channel parameter copy function for quick data duplication across identical channels.

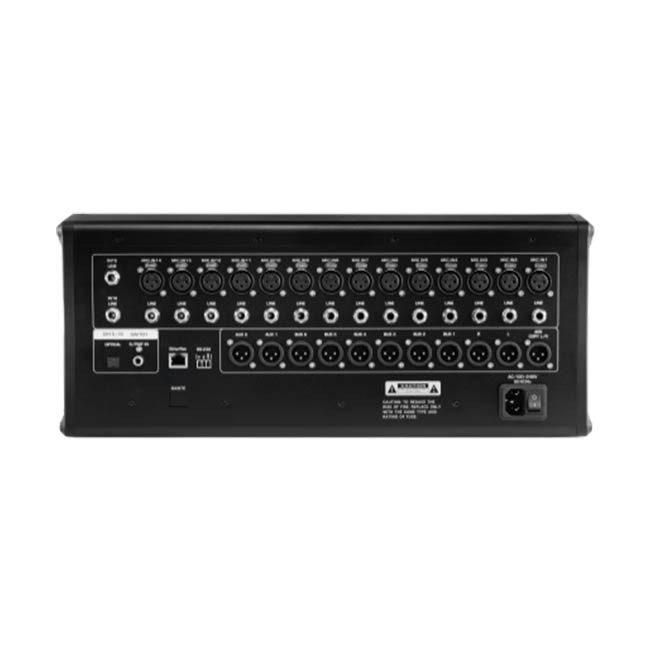

  • Connectivity: balanced XLR inputs and outputs.
  • 8 fader groups, 1 system mute button, and 3 quick mute buttons.
  • Panel lock button to prevent unintended operation.
  • Customizable channel naming.
Overview Specifications Related Products Solutions Latest News & Cases

This master-grade 16-channel digital mixing console features a high-performance DSP processor and advanced touchscreen control, offering 14 digital gain preamplifier channels with low distortion and ultra-low noise. It enables rapid mixing and scene storage, includes built-in effects processors, supports USB playback, and operates on a reliable ARM processor with a Linux-based system, delivering simple operation and robust functionality.


Specifications of 16-Channel Digital Mixing Console CM16


Model

CM16

Screen Size

10.1″

Resolution

1280×800

Touch Control

Capacitive

Resolution

1280×800

Main Control CPU

Samsung 4418 quad-core Cortex™-A9

Boot Speed

22 seconds

Operating System

Linux

DSP

ADSP-21489 400Mhz

Analog Input

16CH ( 14MIC + 2Line )

Digital Input

S/P DIF, optical fiber

Digital Output

AES EBU

USB Playback

APE, FLAC, MP3, WAV playback formats.

USB Recording

Support recording

Analog Output

L/R+6BUS+2AUX+Headphone(L/R)

Output Noise Floor

-90dBu unweighted (AP 515 test AES17-20Khz)

Distortion

0.005% @4dBu 20~20Khz

SNR

-108dB unweighted

Dynamic Range

108dB

Frequency Response

20Hz-20KHz ±0.5dB

Maximum Input & Output Level

18dBu (6.2Vrms) balance

DCA

Support

Chinese and English Interface

Support

Electric Faders

13

iPad Control

Support

Effect

2 effects

Feedback Suppressor

16-channel feedback suppressors

Output Delay

Output delay 1 second

Ethernet

100M

RS-232 Protocol

Support RS232 protocol

WIFI

150M (optional)

USB Mouse

Support

Dimensions (W*D*H)

535×485×205mm

Power Supply

AC 100V-240V; 50/60Hz  55W

Net Weight

10.7kg

Gross Weight

14.9kg

Package Dimensions

635*580*335

Related Digital Audio Mixer

120W × 2 / 8Ω ; 0.01% at +4dBu, 1kHz, Bandwidth 80kHz

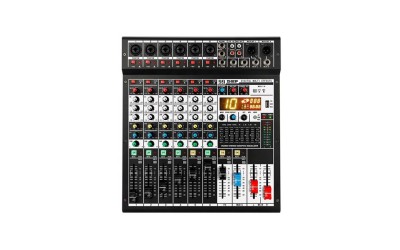

6-Channel Audio Mixer with Built-in Amplifier
