Home Professional AudioAudio MixerAnalog Audio Mixer 12/16/24-Channel 4-Group Bus Mixing Console PM412 PM416 PM424

20Hz~20KHz±0.5dB ;

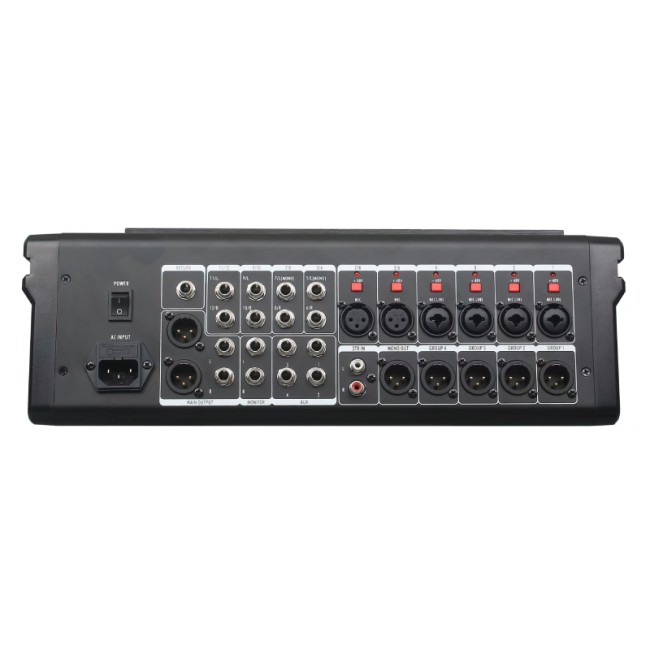

12/16/24-Channel 4-Group Bus Mixing Console

PM412 PM416 PM424
  • 6, 10, or 18 balanced XLR mono inputs and 4 stereo inputs.
  • 6, 10, or 18 independent input channels with 100Hz high-pass filters (HPF).
  • 4, 8, or 16 independent input channels with PAD attenuation switches.
  • 4, 8, or 16 independent input channels with adjustable COMP compressors.
  • Independent +48V phantom power switch for each input channel.
  • 3-band EQ adjustment for all input channels.
  • 4 AUX SEND auxiliary outputs.
  • Built-in DSP with 100 digital effects presets.
  • 8 input channels with independent 10-segment LED level meters for channel-level monitoring.
  • Built-in USB audio playback function supporting a variety of formats, including WAV, WMA, APE, FLAC, and MP3.
  • Dual-channel headphone monitoring.
  • 2 × 10-segment LED level meters.
  • 4 GROUP OUT outputs.
  • Dual-channel MAIN OUT stereo outputs.
  • MONO OUT output.
  • High-reliability 60mm smooth-travel faders.
Overview Specifications Related Products Solutions Latest News & Cases

This series of 4-group mixing consoles is available in 12, 16, and 24-channel models, featuring versatile mono and stereo inputs with balanced XLR and line connections. Built-in effects, 3-band EQ, and compressors provide precise control over each channel. With 4 group buses, AUX/FX sends, PFL monitoring, and intuitive main/group faders, the series delivers professional-quality mixing for live sound, studio recording, and small to medium-sized venue applications.


Specifications of 12/16/24-Channel 4-Group Bus Mixing Console PM412 PM416 PM424


Model

PM412

PM416

PM424

Maximum Output Level

13db

Signal-to-Noise Ratio

≥85dB (1MV IN 1V OUT)

Total Harmonic Distortion

≤0.02% @ 0dB 1KHz

Frequency Response

20Hz~20KHz±0.5dB

Channel Crosstalk

<-75dB @ 1KHz

MIC Input Impedance

600Ω

LINE Input Impedance

10KΩ

Output Impedance

75Ω

MIC IN

-60dB

LINE IN

-40dB

Stereo Input Impedance

10KΩ

Channel Gain Adjustment

-30dB

3-BandEQAdjustment Range

±15dB

HIGHFrequency

12KHz

MIDFrequency

120Hz–4KHz

LOWFrequency

80Hz

Power Output

45W

Power Supply

100V-240V/50Hz

Package Dimensions (1 pc)

510×240×530 (mm)

618×240×530 (mm)

820×240×530 (mm)

Product Dimensions

400×450×130(mm)

500×450×130(mm)

705×450×130(mm)

Gross Weight (1 pc)

8kg

10kg

13kg

Net Weight

5.8kg

7.1kg

9.9kg

Related Analog Audio Mixer

20Hz~20KHz±0.5dB ;

12/16/24-Channel 4-Group Bus Mixing Console

PM412 PM416 PM424

20Hz~20KHz±0.5dB

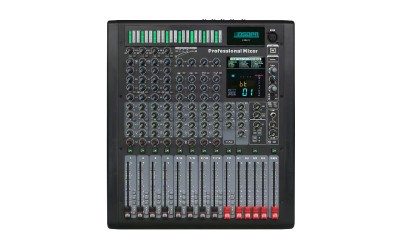

8/12/16-Channel Analog Mixing Console

PM208 PM212 PM216

+28dBu

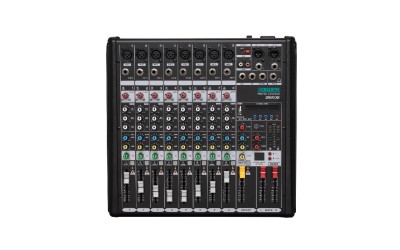

Compact 8-Channel Multi-Functional Mixing Console

CM801

20 Hz-20 kHz +1 dB,-3 dB ®+4 dBu,600 Ω (With gain control at minimum electric level)

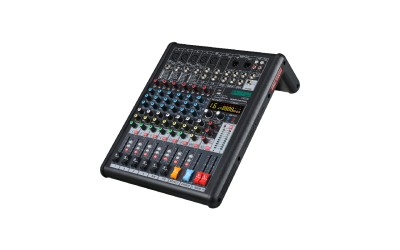

8/12/20-Channel Professional Mixing Console

CM412 CM416 CM424

20Hz-20kHz+1dB, -3dB@+4dBu, 600Ω (With gain control at the minimum level)

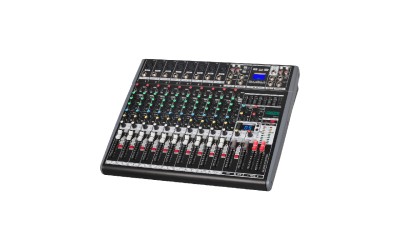

12-Channel Professional Mixing Console

CM212F

20Hz-20kHz+1dB, -3dB@+4dBu, 600Ω (With gain control at the minimum level)

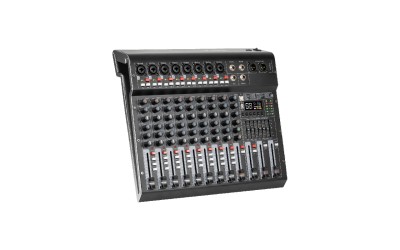

8/12/16/24-Channel Professional Mixing Console
