Home Professional AudioLine Array Speaker SystemOutdoor Line Array Loudspeaker 18-Inch Professional Waterproof Array Subwoofer LA1420SF

18" woofer ×1 ; 43Hz-250Hz ; 1000W

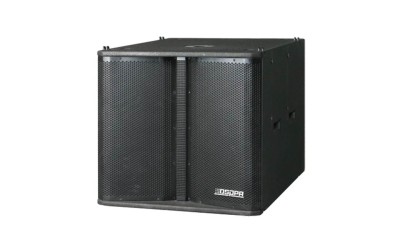

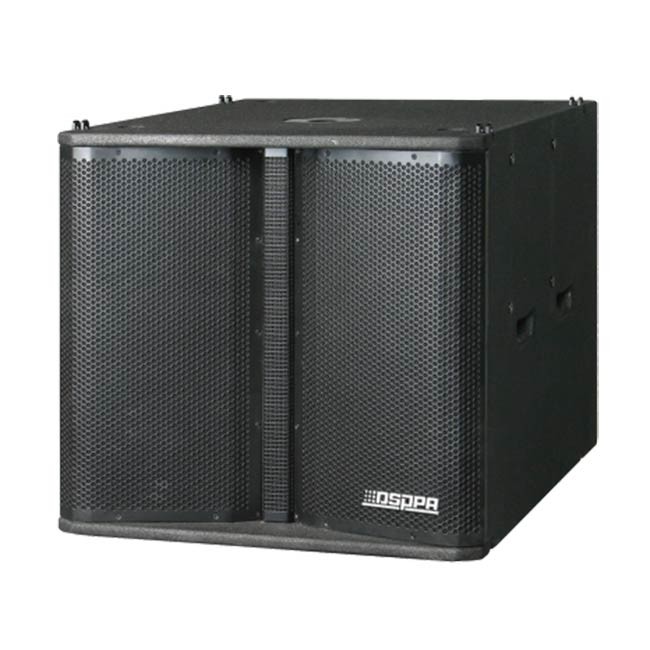

18-Inch Professional Waterproof Array Subwoofer

LA1420SF
  • Enclosure constructed from marine-grade plywood with comprehensive waterproof treatment; all metal hardware fabricated from high-quality aluminum alloy.
  • Equipped with a long-excursion woofer engineered to deliver powerful and impactful bass response.
  • Optimized for mobile and portable applications.
Overview Specifications Related Products Solutions Latest News & Cases

This product is a professional long-excursion array weather-resistant subwoofer engineered for powerful and impactful low-frequency output. The enclosure is constructed from marine-grade plywood, ensuring high reliability and structural integrity, while all metal hardware is fabricated from high-quality aluminum alloy. The system is well suited for a wide range of applications.


Specifications of 18-Inch Professional Waterproof Array Subwoofer LA1420SF


Model

LA1420SF

Unit Structure

18" woofer ×1

Frequency Response

43Hz-250Hz

Speaker Sensitivity (converted to 1m, 1W)

96±2dB

MAX. SPL.

126±2dB

Rated Power

1000W

Rated Impedance

8Ω

Color

Black

Dimensions (W×H×D)

600mm×555mm×760mm

Weight

60kg
