Home Professional AudioActive Line Array SystemActive Line Array Speaker System 15 Inch Active Column Array Speaker with DSP Function LA1715

38–20kHz

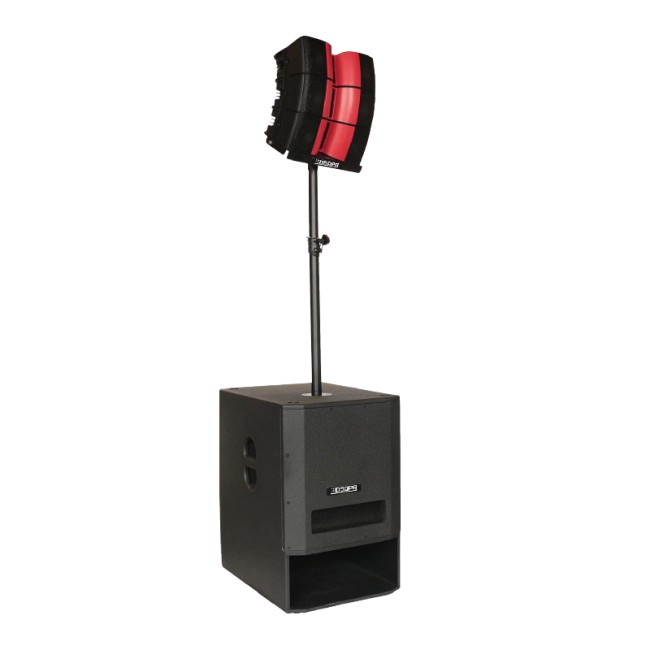

15 Inch Active Column Array Speaker with DSP Function

LA1715

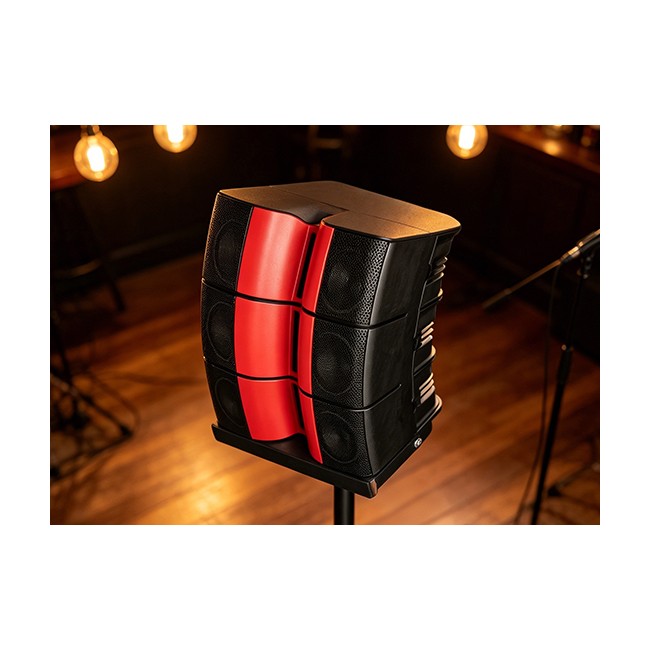

  • 15-inch active column array loudspeaker featuring an integrated subwoofer and six 4-inch full-range drivers.
  • Powered by a 2×500W high-output built-in amplifier module for robust and dynamic audio performance.
  • Extended frequency response ranging from 38Hz to 20kHz, delivering deep bass extension and clear high-frequency reproduction.
  • Maximum SPL rated at 131dB peak, providing ample coverage capability for large-scale spaces.
  • Integrated DSP processing with selectable preset modes: Normal, Monitor, DJ, and Speech.
  • Supports Bluetooth audio streaming and True Wireless Stereo (TWS) pairing functionality.
  • Equipped with multiple input options, including combo MIC/LINE connectors and balanced XLR/TRS jacks.
  • Independent level controls for inputs and Bluetooth signal enable flexible mixing and routing.
  • CH1/CH2 level adjustment with selectable MIX/THRU output routing for system configuration flexibility.
  • Speakon output connector facilitates external satellite speaker system expansion.
  • LED indicators provide real-time monitoring of power, signal, and clip status.
  • Rugged metal grille paired with high-density enclosure construction ensures long-term durability.

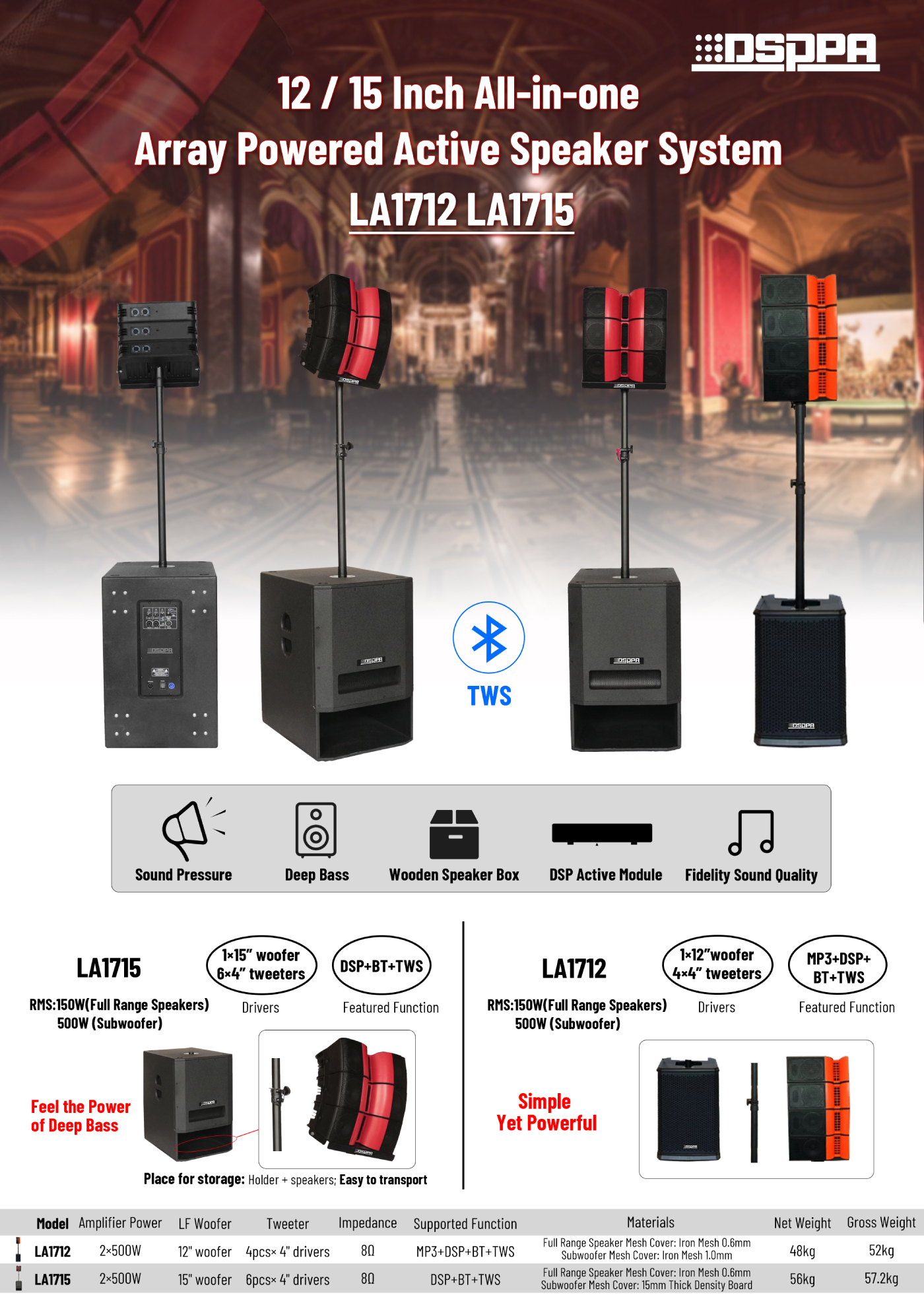

Overview Specifications Brochure Related Products Solutions Latest News & Cases

The LA1715 isa 15-inch active column array speaker powered by a robust 2×500W amplifier module, integrating a 15-inch woofer and six 4-inch tweeters to deliver immersive and high-fidelity sound reproduction. Engineered as a versatile audio solution, the system incorporates comprehensive digital signal processing (DSP), Bluetooth connectivity, and True Wireless Stereo (TWS) technology, significantly expanding its adaptability across a wide range of audio applications. This combination of performance and functionality positions the LA1715 as a compelling choice for premium sound reinforcement in diverse scenarios.



Specifications of 15 Inch Active Column Array Speaker with DSP Function LA1715


Model

LA1715

RMS

150W(Full Range Speakers)+ 500W (Subwoofer)

Amplifier Power

2×500W

Music Power

1300W

Peak Power

2600W

Speaker Driver

1 × 15" Subwoofer Driver + 6 × 4" Full-Range Drivers

Frequency Response

38–20kHz

Sensitivity (1W/1m)

97dB

Peak SPL

131dB

Supported Function

DSP+BT+TWS

Materials


Full Range Speaker Mesh Cover: Iron Mesh 0.6mm
Subwoofer Mesh Cover: 15mm Thick Density Board
