Home Professional AudioLine Array Speaker SystemOutdoor Line Array Loudspeaker 1000W Waterproof Passive Line Array Subwoofer LA1421SF

15” Bass×2 ; 30Hz-230Hz ; 1000W (AES)

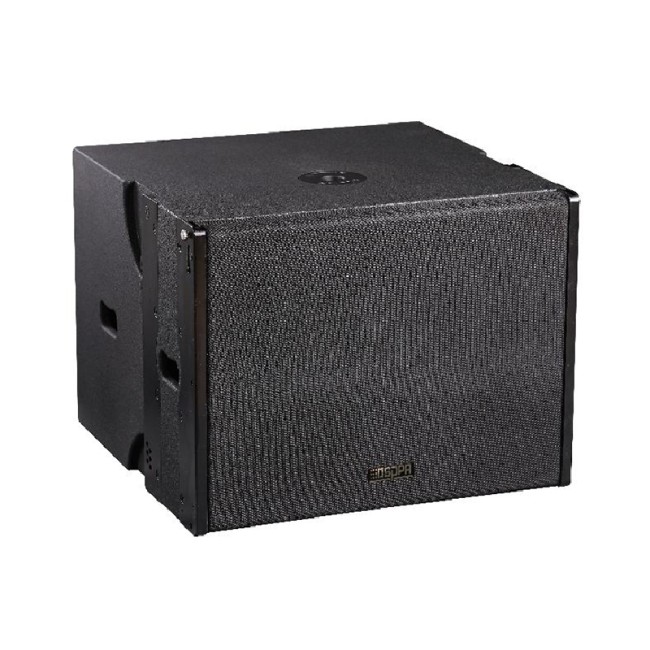

1000W Waterproof Passive Line Array Subwoofer

LA1421SF
  • Enclosure constructed from marine-grade plywood, ensuring high reliability and structural integrity; all metal hardware fabricated from high-quality aluminum alloy.
  • Equipped with a long-excursion woofer engineered to deliver powerful and impactful bass response.
  • All-weather design, optimized for mobile and portable applications.
Overview Specifications Related Products Solutions Latest News & Cases

The LA1421SF is a dependable, weather-resistant passive line array subwoofer engineered for versatile applications. Constructed from durable marine-grade plywood and equipped with high-quality aluminum alloy hardware, it delivers powerful bass response via its long-excursion woofer. Its all-weather design makes it well suited for mobile applications, ensuring superior sound quality in a variety of environments.


Specifications of 1000W Waterproof Passive Line Array Subwoofer LA1421SF


Model

LA1421SF

Drive Unit

15” Bass×2

Frequency Response

30Hz-230Hz

Speaker Sensitivity (1m, 1W)

104±2dB

Max. SPL

134±2dB

Continuous Power

1000W (AES)

Rated Impedance

4Ω

Color

Black

Dimension (W×D×H)

779mm×685mm×521mm

Weight

60kg

Related Outdoor Line Array Loudspeaker

38Hz-160Hz ; 500W (AES)

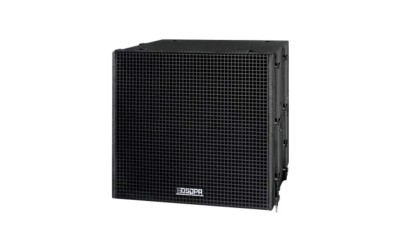

500W 15-Inch Professional Array Woofer
