Home Professional AudioActive Line Array SystemActive Column Line Array Speaker System Professional Line Array Loudspeaker System LA-4241B LA-180SUB

280w+1000w

Professional Line Array Loudspeaker System

LA-4241B LA-180SUB
  • Four 4" full-range speaker units deliver high clarity and balanced sound reproduction across a wide frequency range, ensuring accurate audio for both speech and music.
  • An 18" woofer unit in the subwoofer provides powerful low-frequency output, significantly enhancing bass performance and overall sound impact.
  • Telescoping support pole with integrated cable allows for easy height adjustment and flexible positioning during setup, ensuring ideal sound projection for any venue.
  • Full-range speakers feature aluminum alloy enclosures with waterproof sound meshes, offering exceptional durability and long-term reliability in various environmental conditions.
  • Detachable full-range speakers can be conveniently stored inside the bass reflex port of the subwoofer, enabling compact storage and hassle-free transport.

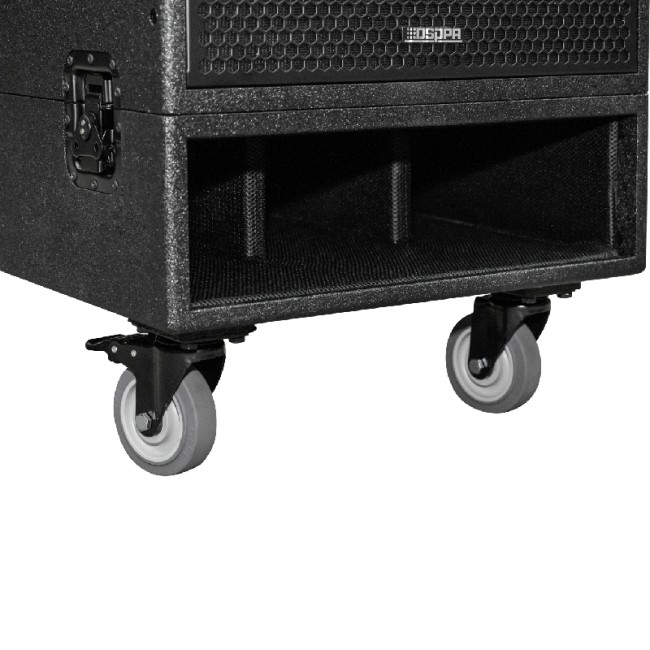

  • Equipped with four 4-inch silent wheels with brakes, the system ensures easy mobility and stable positioning during both setup and operation.
  • The system is suitable for both mobile and fixed installations, making it an ideal choice for banquet halls, conference rooms, outdoor venues, and a wide range of other applications.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

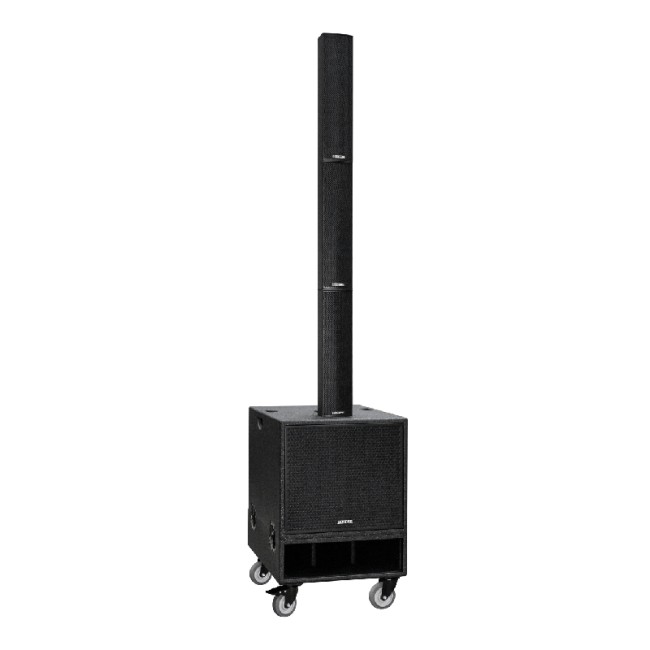

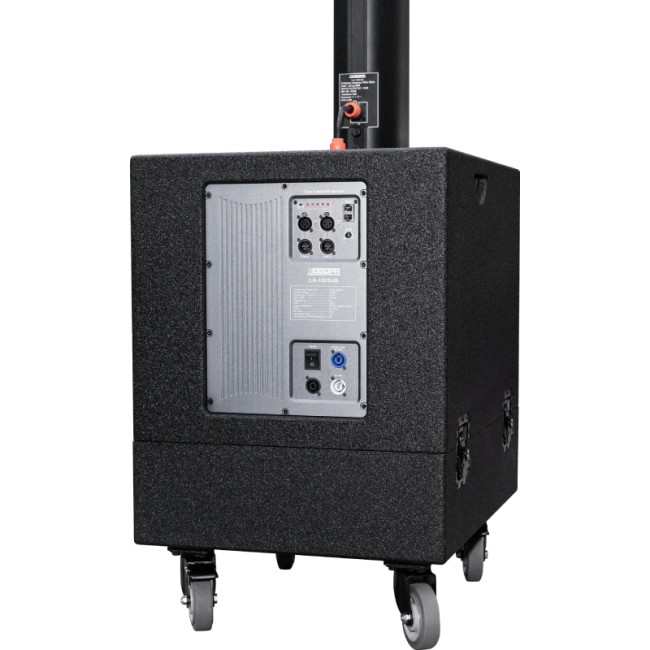

The LA-4241B is a compact line array loudspeaker that houses four 4-inch full-range drivers and is well-suited for both vocal and musical reproduction. Complementing it is the LA-180SUB, an active subwoofer that integrates advanced digital signal processing, a robust 18-inch woofer, and a high-output amplifier module to deliver powerful, reliable low-frequency performance.

For enhanced portability, the full-range units can be disconnected and conveniently stored within the subwoofer’s bass reflex port, significantly reducing the system’s overall footprint during transport.

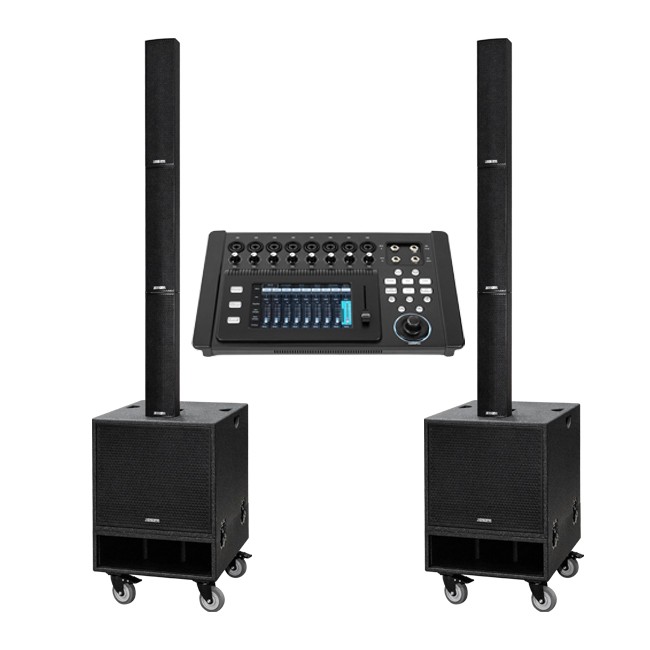

When deployed as a complete system—comprising three LA-4241B units paired with one LA-180SUB—the setup produces articulate, vibrant audio with extended bass response. The system features straightforward installation, achieves high SPL capabilities, and offers output performance that outperforms many competing solutions. Its impressive throw distance makes it especially effective in outdoor environments, while remaining highly adaptable across a broad spectrum of venues, including houses of worship, museums, live music stages, transit hubs, sports arenas, government halls, conference centers, lecture theaters, retail spaces, and AV demonstration rooms.




Specifications of Professional Line Array Loudspeaker System LA-4241B LA-180SUB


Model

LA-4241B

Speaker Unit

4 × 4"Full-rangeDrivers

Rated Power

280W @ 8Ω / 800W (peak)

Frequency Range

100Hz-20kHz

Sensitivity(1W/1m)

98dB

SPL

120dB (Continuous), 130dB (Peak)

Nominal Impedance

16Ω

Nominal Coverage Angle (H × V)

120° × 80°

Crossover Frequency

120Hz

Connectors

Two Neutrik NL4Sockets (1-/1+)

Enclosure Material

AluminumAlloy

Product Dimension(W×H×D)

125 × 500 × 138mm

Product Weight

7.2kg


Model

LA-180SUB

Speaker Unit

1 × 18"Woofer, 220mmMagnet / 100mmVoiceCoil

Rated Power

1000W (Continuous),4000W (Peak)

Frequency Response

28Hz - 300Hz

Sensitivity(1W/1m)

92dB

SPL

131dB (Continuous), 136dB (Peak)

Nominal Impedance

8Ω

Crossover Frequency

120Hz

Connectors

One Neutrik NL4 Socket

Product Dimension(W×H×D)

502 ×608 ×650mm

Product Weight

35kg

Amplifier Module

Power Configuration

1600W + 800W @ 8Ω

Frequency Response

20Hz - 20kHz (-0.5dB at 1/8 Output Power)

SNR

≥101dB (A-Weighted)

Damping Factor

500

Input Sensitivity/Impedance

1.2V / 22kΩ

THD

≤0.05%

Input Voltage

~90V - 270V, 50/60Hz (PFC Power Supply)

Output Circuit Type

Class D

Protection Features

Overload Protection, Overvoltage Protection, Undervoltage Protection, Overheat Protection, Short Circuit Protection, DC Protection, etc.

DSP Decoder Chip

96kHz Sampling Rate
