Home Professional AudioActive Line Array SystemActive Column Line Array Speaker System Professional Active Line Array Loudspeaker System DSP1580

75Hz-20KHz (±3dB), 30Hz-200Hz (±3dB)

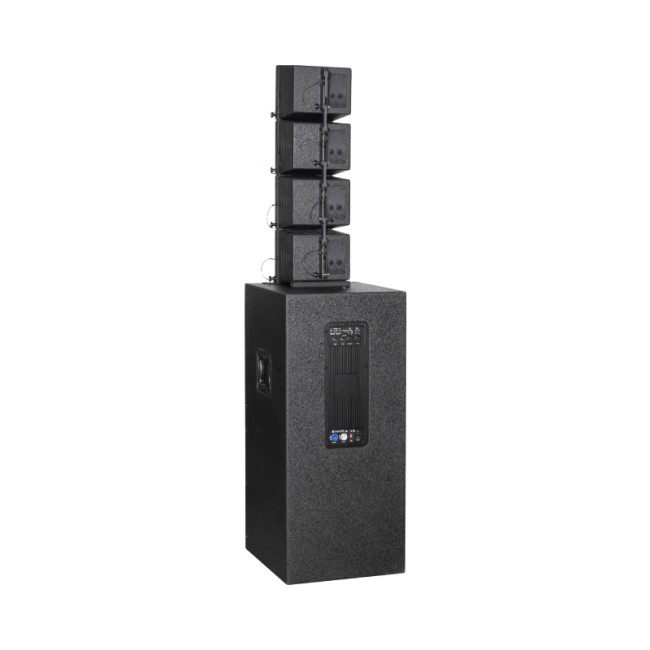

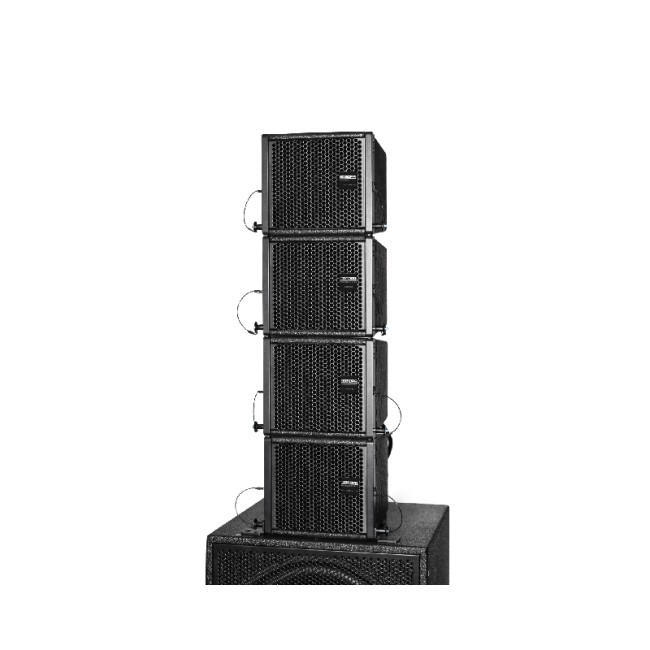

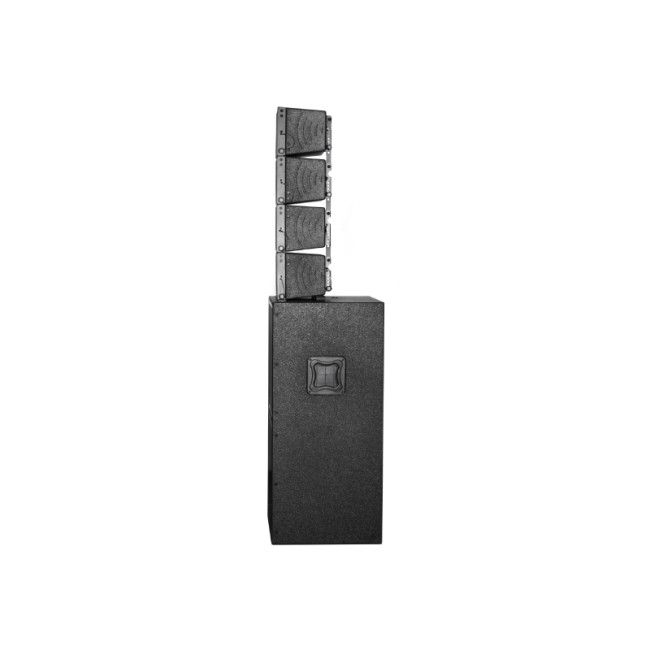

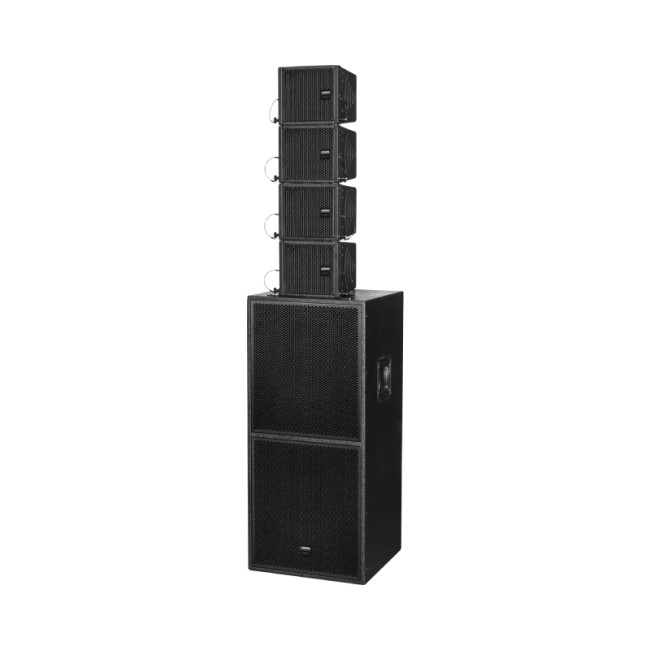

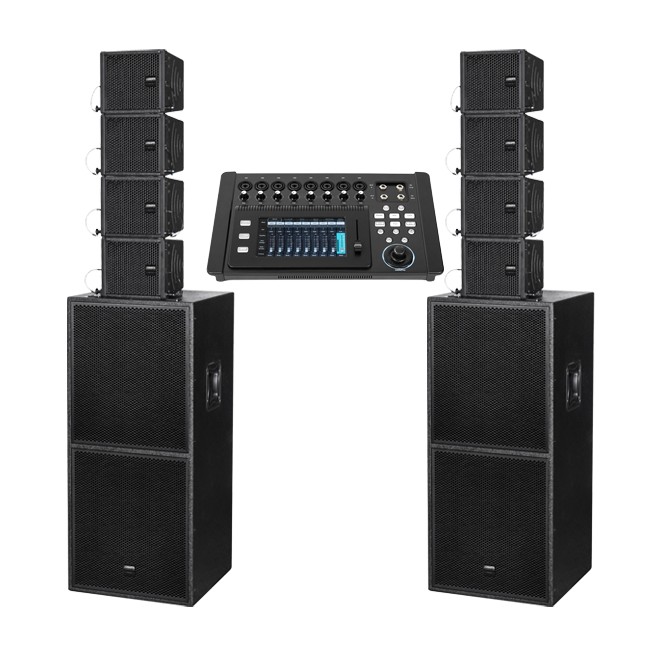

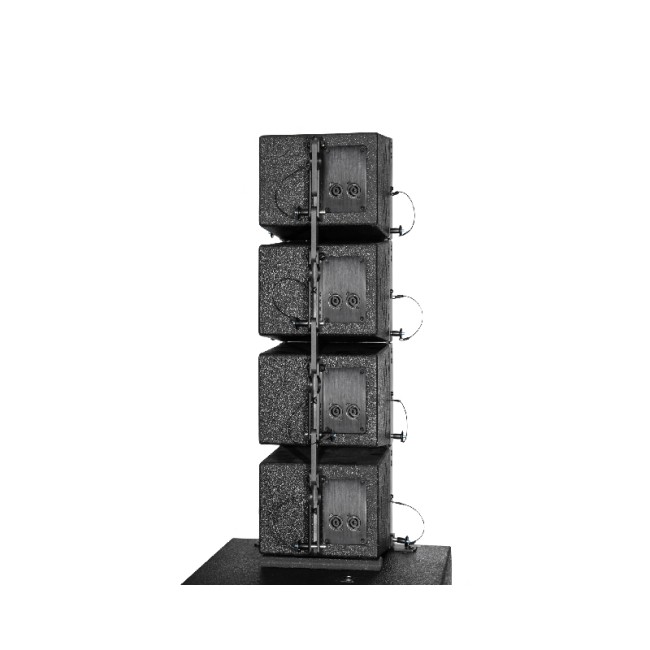

Professional Active Line Array Loudspeaker System

DSP1580
  • Compact coaxial design enables precise point-source sound reproduction with accurate imaging.
  • Built-in 2 kHz crossover ensures a seamless, natural transition between HF and MF drivers.
  • High acoustic efficiency with 140°×30° dispersion pattern for optimal coverage across a wide listening area.
  • Features one 1.5" HF driver, one 6.5" MF driver, and two 15" subwoofers for clear, balanced sound with extended low-end punch.
  • Delivers a maximum SPL of 132 dB with a sensitivity of 98 dB, providing powerful, dynamic output for any application.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

This professional active line array system delivers outstanding audio performance, leveraging unique advantages in acoustic architecture and phase response. Its point-source design with an integrated crossover ensures natural, refined sound reproduction. The HF driver is coaxially nested at the axis of the LF driver, enabling sound waves to radiate from a single physical point—eliminating phase distortion and image shift common in conventional designs. Even at20°off-axis, frequency response deviation remains within ±1.5 dB, ensuring precise instrument localization, a well-defined soundstage, and stable stereo imaging.

The system also incorporates a coaxial driver with a linear horn, achieving high acoustic efficiency and precise directivity control. The horn narrows HF diffusion to a controlled 60°–90° range, focusing energy forward while minimizing stray reflections and scattering losses.



Specifications of Professional Active Line Array Loudspeaker System DSP1580


Model

DSP1580

Whole System

MAX. SPL.

132dB

Sensitivity

98dB

Full-RangeSpeaker

Frequency Response

75Hz-20KHz (±3dB)

Sensitivity

95dB/W (lm)

MAX. SPL.

120dB MAX.

Nominal Impedance

8Ω

Nominal Power

200W

Peak Power

800W Peak

Dispersion (H×V)

140°×30°

Crossover Point

Built-in crossover 2KHz

System Type

Passive 2-way coaxial line array

HF drivers

1×1.5" HF driver (38mm voice coil)

MF drivers

1×6.5" MF driver (38mm voice coil)

Paint

Scratch-resistant black speckled paint

Dimensions (H×W×D)

230×270×230 mm

Net Weight

5.5kg

Dual 15-Inch Subwoofer

Frequency Response

30Hz-200Hz (±3dB)

Sensitivity

95dB/W (lm)

MAX. SPL.

125dB MAX.

Nominal Impedance

8Ω

Nominal Power

1200W

Peak Power

4800W

Amplifier Power

1200W+800W+800W (3 channels)

LF Drivers

2×15" LF drivers (75mm voice coil)

Dimensions (H×W×D)

1000×445×455 mm

Net Weight

44kg
