Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker 1000W Passive Line Array Full-Range Loudspeaker PL212

2×12" LF, 2×3" HF ; 65Hz–18kHz ; 1000W

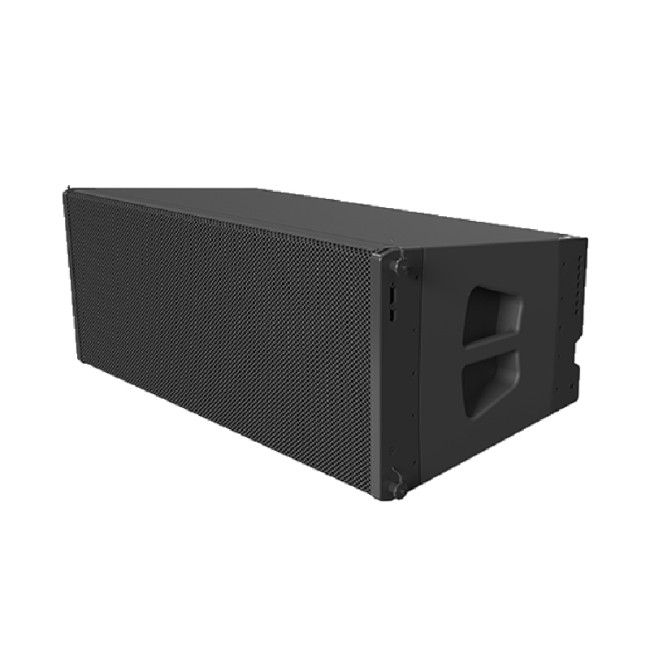

1000W Passive Line Array Full-Range Loudspeaker

PL212
  • Features dual high-power 12-inch woofers and dual 75mm compression drivers, integrated with a precision-engineered crossover network for optimized acoustic performance.
  • Enclosure constructed from professional-grade high-density plywood and finished with a durable polyurea coating, making it well suited for a variety of indoor venues including auditoriums and multi-purpose halls.
  • Quick-release angle-adjustment mechanisms on both sides of the enclosure enable rapid flying or stacking of multiple units, facilitating continuous array coverage with extended throw and uniform sound distribution.
Overview Specifications Related Products Solutions Latest News & Cases

The PL212 is a passive line array loudspeaker featuring dual 12-inch woofers and dual 3-inch compression drivers, delivering powerful output with a maximum SPL of up to 134dB. Engineered for clear, long-throw sound coverage, it offers a wide 90°horizontal dispersion and supports flexible array configurations. With its durable plywood enclosure and integrated rigging system, the PL212 is well suited for auditoriums, theaters, multi-purpose halls, and other professional venues.


Specifications of 1000W Passive Line Array Full-Range Loudspeaker PL212


Model

PL212

System Configuration

2×12" LF, 2×3" HF

Frequency Response (±3dB)

65Hz–18kHz

Sensitivity

104±2dB

MAX. SPL

134±2dB

Input Impedance

8Ω

Rated Power

1000W

Coverage (H×V)

90°×20°

Dimensions (H×W×D)

353×880×461 mm

Net Weight

47 kg
