Home Professional AudioAudio MixerDigital Audio Mixer 2 Group 8-Channel Professional Audio Mixer CM208Y

20Hz-20kHz ±3dB

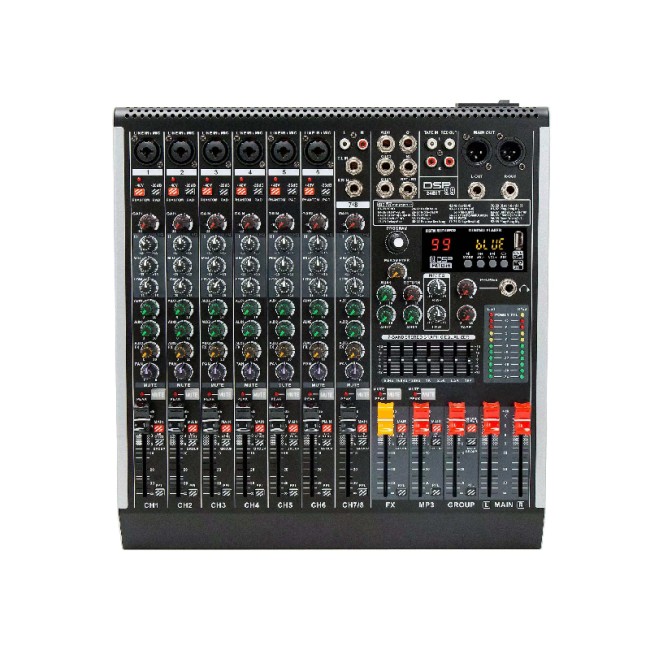

2 Group 8-Channel Professional Audio Mixer

CM208Y
  • 8-channel professional mixing console with compact and practical design.
  • Mic/Line combo inputs with balanced XLR and TRS connectors.
  • Independent 48V phantom power switch for each mono channel.
  • 26dB input attenuation per channel for high-level signal control.
  • Gain control and 3-band EQ (treble, mid, bass) on each channel.
  • Three AUX sends (AUX1, AUX2, and AUX3/FX) for monitors and effects.
  • Flexible routing to Main L/R or G1–G2 group buses.
  • PFL (Pre-Fader Listen) monitoring for precise signal checking.
  • Peak indicators and mute control on each channel.
  • Dual 7-band stereo graphic equalizer for accurate tonal shaping.
  • Built-in digital effects processor with 99 selectable effect presets.
  • Dedicated FX channel with routing, mute, PFL, and level fader.
  • Integrated USB MP3 playback with full-color display.
  • Independent MP3 EQ, routing, mute, and fader control.
  • Output level meters for Main L/R and G1–G2 buses.
  • Headphone monitoring with selectable main or group signals.
  • TAPE/REC recording interface for external recording devices.
  • Stable audio performance with low distortion and high S/N ratio.
  • Wide frequency response for clear and natural sound reproduction.
Overview Specifications Related Products Solutions Latest News & Cases

The CM208Y is an 8-channel professional audio mixer offering flexible and professional mixing capabilities, designed for live sound reinforcement, conferences, education, and small to medium-scale events. It combines high-quality microphone inputs, flexible signal routing, and integrated digital effects to deliver clear, stable, and professional audio performance.

Equipped with Mic/Line combo inputs, independent 48V phantom power, three AUX sends, group and main bus routing, a dual 7-band graphic equalizer, and a built-in USB MP3 player, the CM208Y provides precise control over every signal channel. Its intuitive front-panel layout and reliable audio processing make it an ideal solution for users requiring professional sound quality with straightforward operation.


Specifications of 2 Group 8-Channel Professional Audio Mixer CM208Y


Model

CM208Y

Input Sensitivity

-60dBm~-40dBm

Nominal Input Level

Mic-60dBm,  Line-20dBm, Effect Return（Eff Ret）-20dB,

AuxIn-20dB,Tape in 10dB

Nominal Output Level

Effect Send（Eff Send）-10dB, Aux Send 0dB

Common Mode
Rejection

-17dB

Output Voltage
(Mixr Part)

4V Max

S/N Ratio

≥80dB

THD

(1KHz Full Power)

Less than 0.03%(at 1 KHz)

Frequency Response

20Hz-20kHz ±3dB

Headphone

7V / 220Ω

Parametric CQ

Hi +15dB/12KHZ
Mid +15dB/2.5K
Low +15dB/80KHz

Power Consumption

30W

Power Supply

AC 110-245V / 50-60Hz

Product Dimension

350×375×100mm
