Home Professional AudioProfessional Amplifier2 Channels Class-D Amplifier Digital Amplifier with a Display Screen D5213 D5214 D5411 D5412 D5413 D5414 D5415 D5491D D5492D D5493D D5494D D5495D

2x1300W ; 2x1500W ; 4x600W ; 4x800W ; 4x1000W ; 4x1300W ; 4x1500W

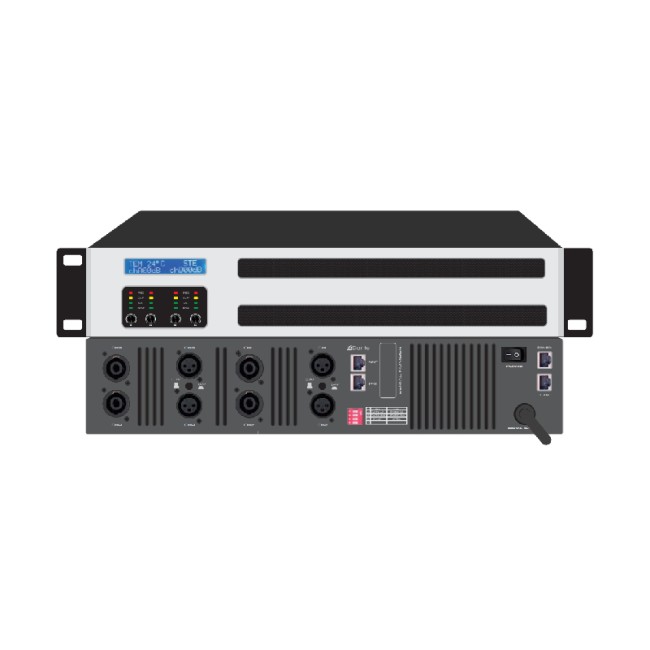

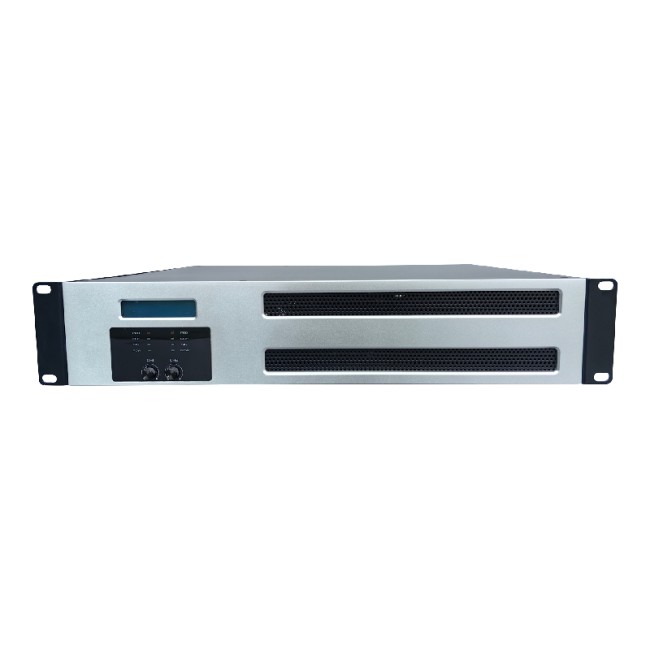

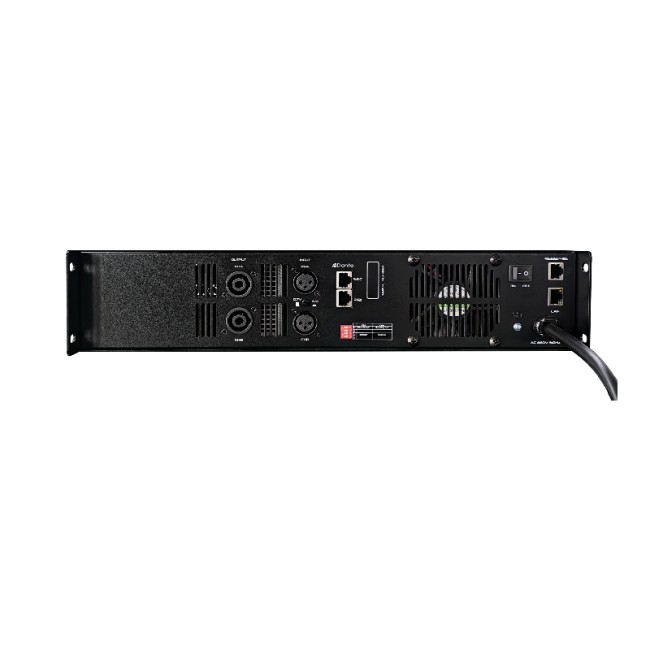

Digital Amplifier with a Display Screen

D5213 D5214 D5411 D5412 D5413 D5414 D5415 D5491D D5492D D5493D D5494D D5495D
  • Equipped with a built-in display screen.
  • Supports expansion of 2- or 4-channel Dante digital inputs.
  • Features built-in 2- or 4-channel analog inputs.
  • Employs PWM ultra-high-power amplifier design.
  • Offers selectable input sensitivity: 0.7V and 1.4V.
  • Suitable for conference rooms, medium to large conference venues, courtrooms, auditoriums, and multi-purpose halls.
Overview Specifications Related Products Solutions Latest News & Cases

This digital power amplifier utilizes advanced digital chip processing technology and a high-fidelity digital modulation circuit, delivering fuller sound output with enhanced midrange transparency. It serves as an ideal companion component for high-end sound reinforcement systems. The D5213 and D5214 are 2-channel digital amplifiers; the D5411, D5412, D5413, D5414, and D5415 are 4-channel digital amplifiers; and the D5491D, D5492D, D5493D, D5494D, and D5495D are 4-channel digital amplifiers with integrated Dante functionality.


Specifications of 2x1300W 2x1500W Digital Amplifier with a Display Screen D5213 D5214 D5411 D5412 D5413 D5414 D5415  D5491D D5492D D5493D D5494D D5495D


Model

D5213

D5214

D5411/
D5491D

D5412/
D5492D

D5413/
D5493D

D5414/
D5494D

D5415/
D5495D

Rated Power (8Ω)

2x1300W

2x1500W

4x600W

4x800W

4x1000W

4x1300W

4x1500W

Input Level

0.77V & 1.44V

Input Connector

XLR female

Input Impedance

20KΩ balanced

Input CMRR

＞80dB

Output Connector

Speakon

SNR

＞112dB

Damping Factor

> 1000 @ 8Ω

THD

<0.1%(20Hz-20kHz 1W)

Frequency Response

20Hz-20kHz(+0/-0.3dB,1W/8Ω)

Cooling Method

Continuously variable fan, air flow from front to back

Protection

Short circuit, open circuit, DC voltage, overheating, overvoltage, RF, VLF protection

Power Supply

AC180-240V 50-60Hz

Machine Dimensions (W×L×H)

483x419x88mm

483x419x88mm

483x419x88mm

483x419x88mm

483x419x88mm

483x419x88mm

483x419x88mm

Package Dimensions (W×L×H)

595x545x145mm

595x545x145mm

595x545x145mm

595x545x145mm

595x545x145mm

595x545x145mm

595x545x145mm

Net Weight (kg)

10.45

10.5

12.2

12.4

12.8

13

13.2

Gross Weight (kg)

14.15

14.2

16.2

16.4

16.8

17

17.2
