Home Professional AudioAudio MixerAnalog Audio Mixer 8/12/16-Channel Analog Mixing Console PM208 PM212 PM216

20Hz~20KHz±0.5dB

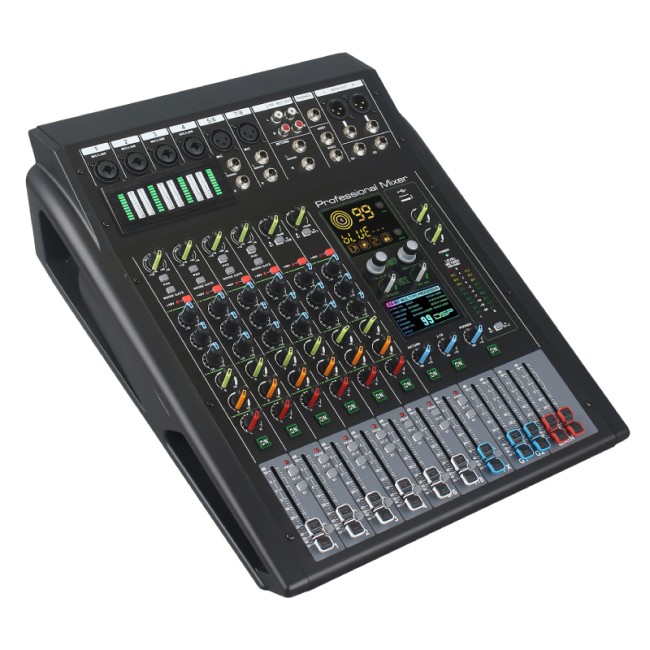

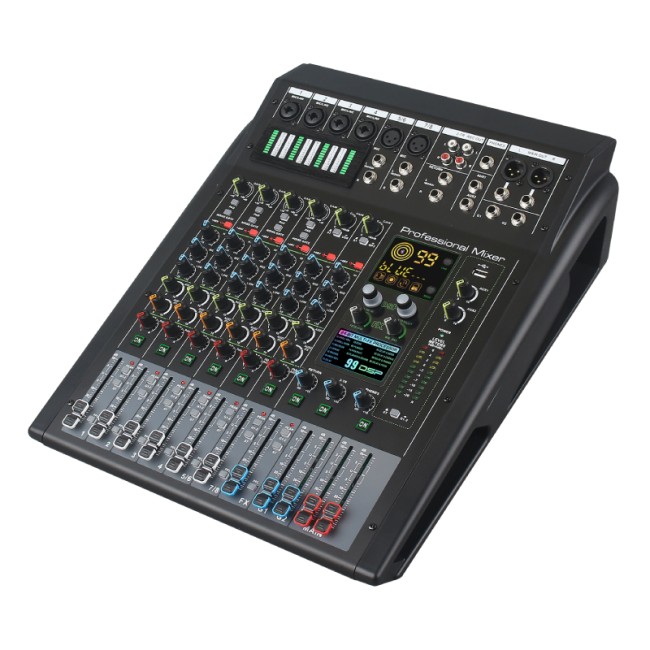

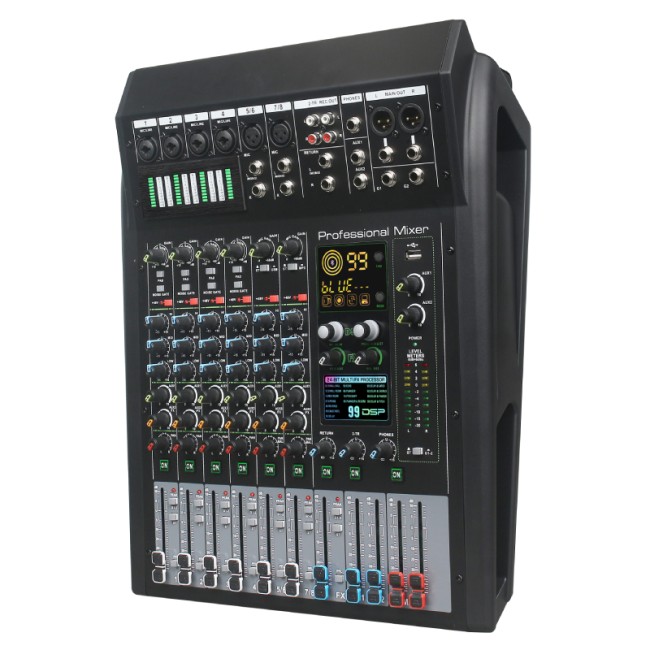

8/12/16-Channel Analog Mixing Console

PM208 PM212 PM216
  • 6, 10, or 14 XLR balanced mono inputs and 2 stereo inputs.
  • 4, 8, or 12 independent PAD attenuation switches.
  • Independent noise gate switch for each input channel.
  • Independent 48V phantom power switch for each input channel.
  • 3-band equalizer control for each input channel.
  • 2 AUX SEND outputs.
  • Built-in DSP effects processor with 100 presets.
  • 4, 8, or 12 microphone input channels with independent 10-segment LED level meters for channel-level monitoring.
  • Built-in USB audio playback function supporting a variety of formats, including WAV, WMA, APE, FLAC, and MP3.
  • Dual-channel headphone monitoring.
  • 2 × 10-segment LED level meters with pre-monitoring levels: [-20, -15, -10, -7, -4, -2, -0, +2, +4, +6 dB].
  • 2 GROUP OUT outputs.
  • Dual-channel MAIN OUT stereo output.
  • High-reliability 60mm smooth-travel faders.
Overview Specifications Related Products Solutions Latest News & Cases

Engineered for professional sound reinforcement, this series offers flexible input and output configurations, per-channel level control with noise gate and phantom power, studio-grade DSP effects, and reliable 60mm faders to ensure exceptional audio quality and operational stability. Available in 8, 12, and 16-channel configurations, the series delivers versatile solutions tailored to a wide range of professional applications.


Specifications of 8/12/16-Channel Analog Mixing Console PM208 PM212 PM216


Model

PM208

PM212

PM216

Maximum Output Level

12dB

S/N Ratio

≥83dB (1MV IN 1V OUT)

THD

≤0.02% @ 0dB 1KHz

Frequency Response

20Hz~20KHz±0.5dB

Channel Crosstalk

<-75dB @ 1KHz

MIC IN Impedance

600Ω

LINE IN Impedance

10KΩ

Output Impedance

100Ω

MIC IN

-60dB

LINE IN

-40dB

Stereo IN Impedance

10KΩ

Channel Gain Control

-30dB

3-Band Equalizer Adjustment Range

±15dB

HIGH

12KHz

MID

4KHz

LOW

80Hz

Power Supply Output Power

30W

Power Supply Voltage

100V-240V/50Hz

Package Dimensions (1 pc)

424×176×526(mm)

538×176×526(mm)

648×176×526(mm)

Product Dimensions

370×450×125(mm)

480×450×125(mm)

590×450×125(mm)

Gross Weight (1 pc)

6.5KG

7.2KG

8.5KG

Net Weight

4.35KG

5.6KG

6.9KG
