Home Professional AudioAudio MixerAnalog Audio Mixer Professional Mixing Console DMX08 DMX12 DMX16

≤0.02% @0dB 1KHz ; 20Hz~20KHz±0.5dB

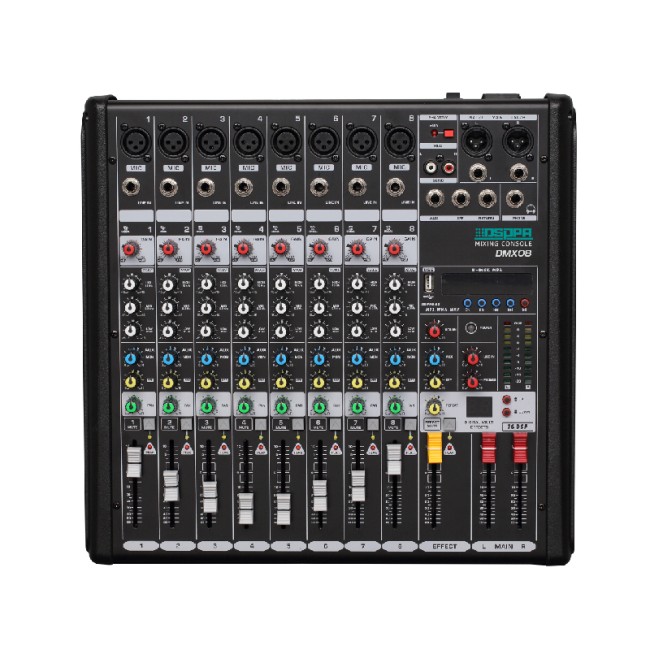

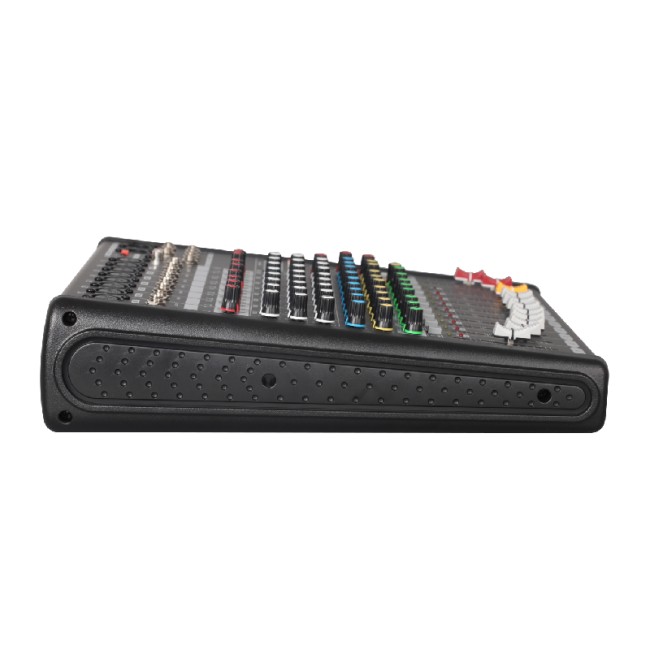

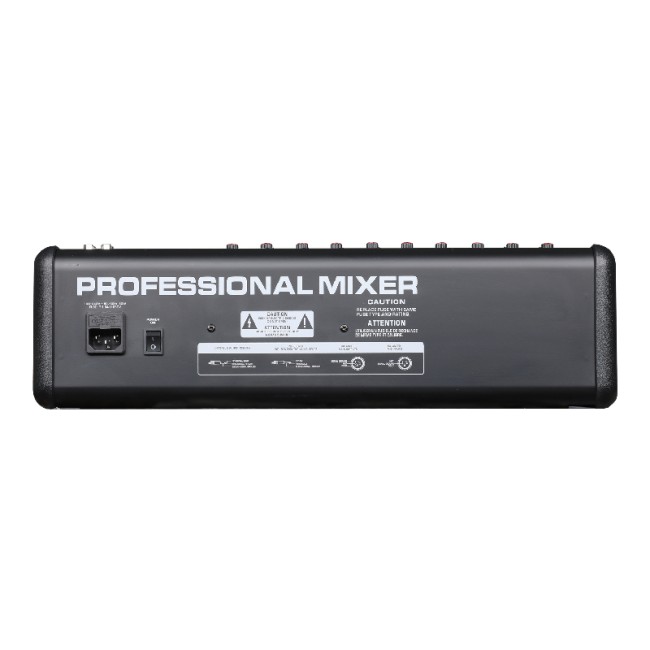

Professional Mixing Console

DMX08 DMX12 DMX16
  • 8, 12, or 16 XLR balanced mono input channels with ultra-low noise circuit design and ample dynamic headroom.
  • Each channel features 3-band EQ adjustment, MUTE switch, and 60mm fader attenuator.
  • 1 stereo bus output and 2 AUX bus outputs (including FX).
  • 1 RETURN and 1 RCA output.
  • Built-in 48V phantom power supply.
  • Built-in 16 DSP digital effects presets.
  • Supports USB audio playback and USB recording.
  • Built-in Bluetooth for MP3 playback.
  • LED display for playback status indication.
  • 10-band three-color level meter display.
  • 30W universal power supply compatible with global voltages; flexible operation with low noise, excellent transient response, and low power consumption.
Overview Specifications Related Products Solutions Latest News & Cases

This mixing console is designed for straightforward operation and is suitable for a wide range of environments, making it an ideal choice for various installation systems and diverse applications.

It offers multiple input channels, with the ability to mix signals into stereo and group outputs. The built-in digital effects processor delivers high-quality, impactful effects directly, while a dedicated SEND socket allows connection to external effect units. The monitoring section includes a convenient phones socket for monitoring the main stereo output, PEL signal, or group 1–2 signals.

The console is also equipped with an AUX SEND socket and a RETURN socket, enabling signal routing to external effect processors and monitoring systems via the AUX bus. A built-in phantom power supply facilitates direct connection of condenser microphones requiring external power. Mono input channels feature XLR microphone inputs and TRS line inputs, while stereo input channels are equipped with TRS line inputs and RCA line inputs. This comprehensive connectivity allows the console to interface with a wide variety of source devices, including microphones, line-level equipment, stereo synthesizers, and more.


Specifications of Professional Mixing Console DMX08 DMX12 DMX16



Model

DMX08

DMX12

DMX16

MAX. Output Level

18dB

S/N

≥83dB

THD

≤0.02% @0dB 1KHz

Frequency Response

20Hz~20KHz±0.5dB

Channel Crosstalk

＜-75dB @ 1KHz

Input Impedance MIC

600Ω

LINE

10KΩ

Output Impedance

100Ω

MIC IN

-60dB

LINE IN

-40dB

Stereo Input Impedance

10KΩ

/

Channel Gain

-30dB

/

3-band EQ

±15dB

/

HI

12KHz 15dB ±3dB

/

MID

2.5KHz 15dB ±3dB

/

LOW

80Hz 15dB ±3dB

/

Output Power

30W

/

Power Supply

100V-240V/50Hz

/

Package Dimensions

440×440×165mm

555×440×165mm

670×440×165mm

Product Dimensions

385×367×100mm

505×367×100mm

620×367×100mm

Gross Weight

5kg

6kg

7.5kg

Net Weight

4kg

5kg

6.2kg
