Home Professional AudioAudio MixerAnalog Audio Mixer 8/12/16/24-Channel Professional Mixing Console CM208 CM212 CM216 CM224

20Hz-20kHz+1dB, -3dB@+4dBu, 600Ω (With gain control at the minimum level)

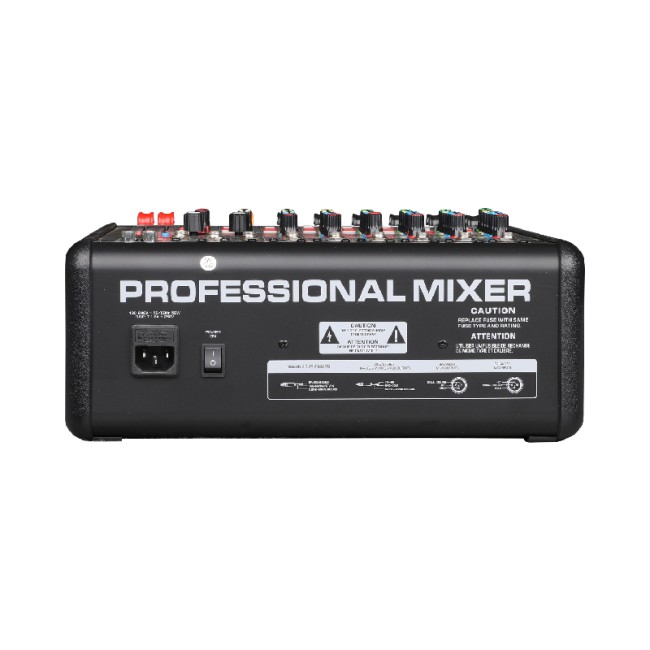

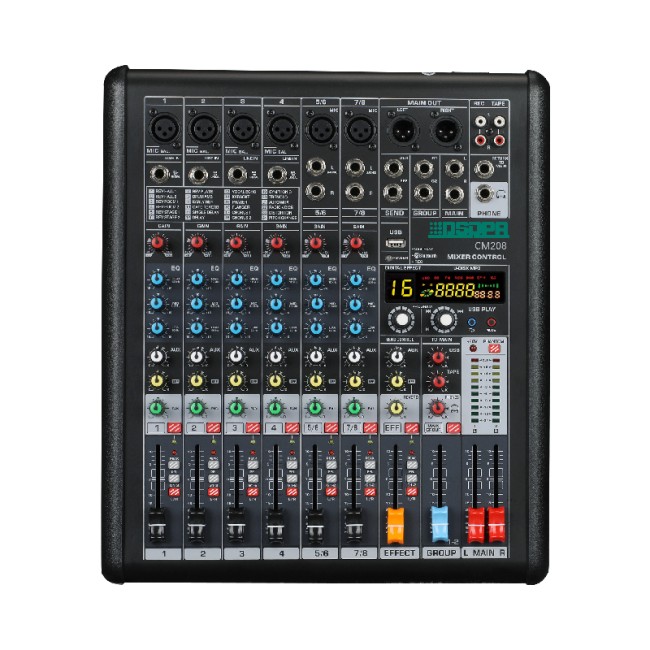

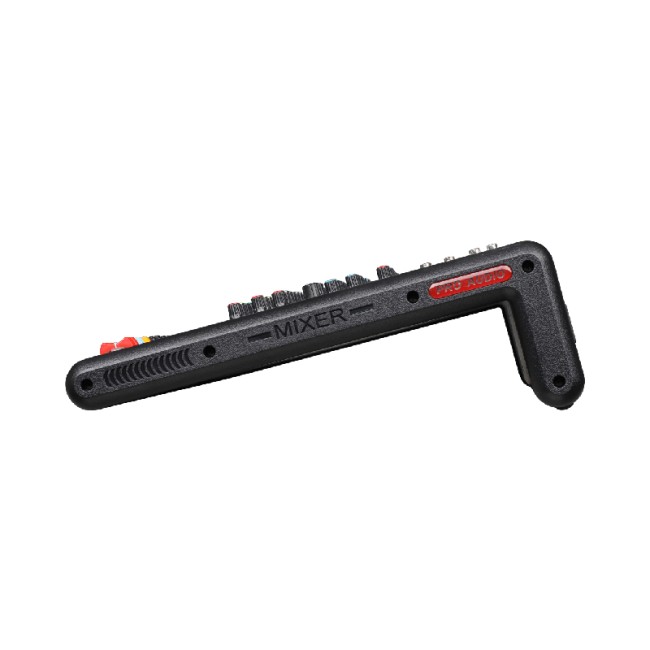

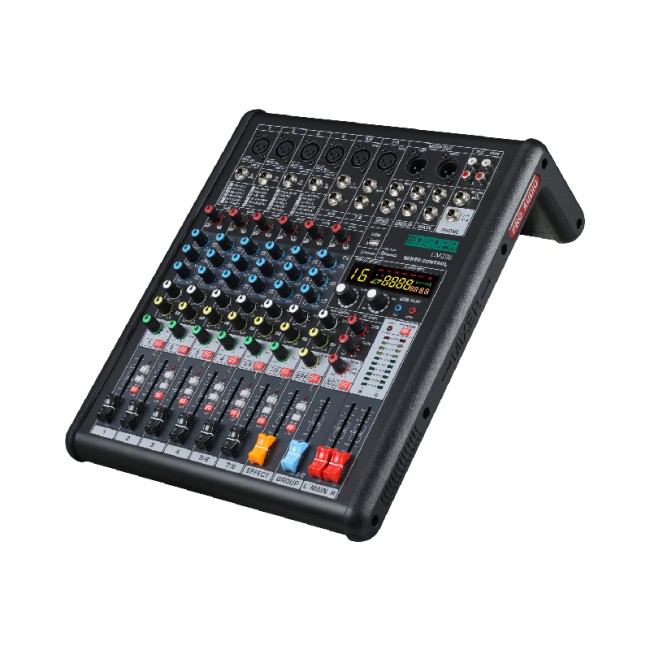

8/12/16/24-Channel Professional Mixing Console

CM208 CM212 CM216 CM224
  • Supports 4, 8, 12, or 20 XLR mono input channels plus 2 stereo input channels.
  • Each channel features 3-band EQ adjustment, MUTE switch, and PFL switch.
  • Built-in 48V phantom power for condenser microphones.
  • Built-in 24-preset DSP digital effects processor.
  • Built-in USB port for recording and music playback.
  • LED screen for status display.
  • Multiple input channels allow mixing to stereo and group outputs.
  • High-quality built-in digital effects deliver a wide range of impact effects directly; a SEND socket also enables connection to external effect units.
  • Monitoring section includes a convenient phones socket for monitoring main stereo output, PEL signal, or group 1–2 signals.
  • AUX SEND and RETURN sockets enable signal routing to external effect processors and monitoring systems via the AUX bus.
  • Built-in phantom power facilitates direct connection of condenser microphones requiring external power.
  • Mono input channels feature XLR microphone inputs and TRS line inputs, while stereo input channels are equipped with TRS line inputs and RCA line inputs. This comprehensive connectivity allows the console to interface with a wide variety of source devices, including microphones, line-level equipment, stereo synthesizers, and more.
Overview Specifications Related Products Solutions Latest News & Cases

The CM208, CM212, CM216, and CM224 are 8, 12, 16, and 24-channel professional mixing consoles respectively, engineered to meet the demands of audio professionals, music producers, and performers. Available with 4, 8, 12, or 20 XLR mono input channels (depending on model) plus 2 stereo input channels, the series features 48V phantom power, a 24-preset DSP effects processor, USB recording capability, and an LED status display. Each channel offers precise control with 3-band EQ, mute, and PFL switches, delivering exceptional sound quality and flexible operation.


Specifications of 8/12/16/24-Channel Professional Mixing Console CM208 CM212 CM216 CM224


Model

CM208

CM212

CM216

CM224

Frequency Characteristics (MAIN OUT)

20Hz-20kHz+1dB, -3dB@+4dBu, 600Ω (With gain control at the minimum level)

Total Harmonic Distortion (MAIN OUT)

0.1%(THD+N)@+4dBu, 20Hz-20kHz, 600Ω (With gain control at the maximum level)

Hum & Noise

-128dBu Equivalent input noise (Channel 1-8)



-100dBu Residual output noise (ST OUT)



-88dBu (92dB S/N) ST & GROUP main attenuator at nominal level; set all channel sending switches to OFF.



-81dBu (85dB S/N) AUX & EFFECT main control at nominal level; all channel mixer controls at the minimum level.



-64dBu (68dB S/N) ST & GROUP main attenuator and a channel attenuator at nominal level. (Channel 1-8)

Crosstalk (1kHz)

-70dB, among each input channel

-70dB, among input / output channel (CH INPUT)

Channel Input Equalization: ±15dB

HIGH 10kHz slope; MID 2.5kHz slope; LOW 100Hz slope

Maximum Amplitude of Variation

of Graphical Equalizer ±12dB

Seven bands (125, 250, 500, 1k, 2k, 4k, 8k)

Internal Digital Effect

16 types of programs, parameter control

Mono / Stereo Input Peak Indicator

In each channel: When the post EQ signal (In ST sound channel, when the post EQ signal or post microphone amplifier signal) enters the range of the cutoff level value of 3dB, the indicator will be red.

Virtual DC+48V Power (Balanced Input)

When the virtual +48V switch is turned on, the virtual power will be provided.

Power Consumption

51W

Package Dimensions (mm)

405×175×490

520×175×490

640×175×490

895×205×510

Product Dimensions (mm)

340×400×135

460×400×135

570×400×135

800×400×135

Gross Weight

5.3kg

6.5kg

7.5kg

11.6kg

Net Weight

4.2kg

5.4kg

6.3kg

8.7kg
