Home Professional AudioProfessional Amplifier4 Channels Class-D Amplifier Digital Amplifier with a Display Screen PZ4701 PZ4901 PZ4132 PZ4152 PZ4182

4*600W ; 4*800W ; 4*1000W ; 4*1300W ; 4*1500W

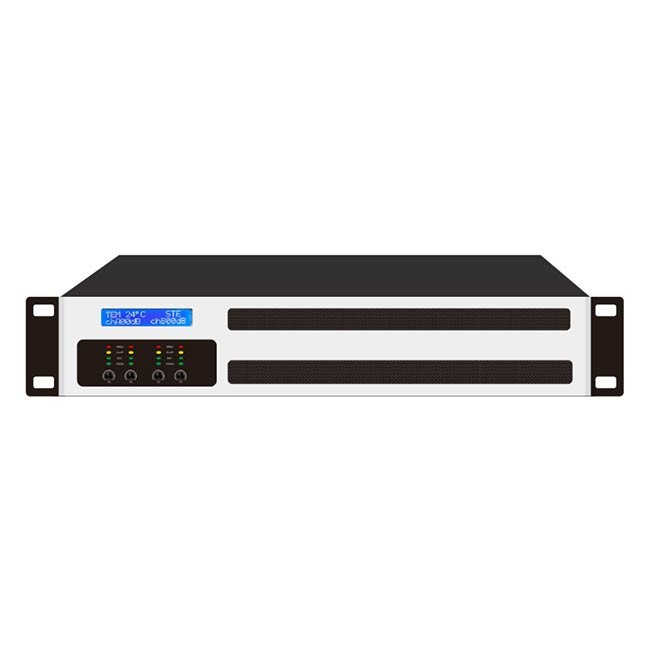

Digital Amplifier with a Display Screen

PZ4701 PZ4901 PZ4132 PZ4152 PZ4182
  • Equipped with a built-in display screen.
  • Supports expansion of 4-channel digital inputs.
  • Features built-in 4-channel analog inputs.
  • Employs PWM ultra-high-power amplifier design.
  • Offers selectable input sensitivity: 0.7V and 1.4V.
Overview Specifications Related Products Solutions Latest News & Cases

This digital power amplifier utilizes advanced digital chip processing technology and a high-fidelity digital modulation circuit, delivering fuller sound output with enhanced midrange transparency. It serves as an ideal companion component for high-end sound reinforcement systems.


Specifications of Digital Amplifier with a Display Screen PZ4701 PZ4901 PZ4132 PZ4152 PZ4182


Model

PZ4701

PZ4901

PZ4132

PZ4152

PZ4182

Rated Power (8Ω)

4*600W

4*800W

4*1000W

4*1300W

4*1500W

Input Level

0.77V & 1.44V

Input Connector

XLR female

Input Impedance

20KΩ balanced

Input CMRR

＞80dB

Output Connector

Speakon

SNR

＞112dB

Damping Factor

> 1000 @ 8Ω

THD

<0.1% (20Hz-20kHz 1W)

Frequency Response

20Hz-20kHz (+0/-0.3dB, 1W/8Ω)

Cooling Method

Continuously variable fan, air flow from front to back

Protection

Short circuit, open circuit, DC voltage, overheating, overvoltage, RF, VLF protection

Power Supply

AC180-240V 50-60Hz

Product Dimensions (W×L×H)

483mm×419mm×88mm

Package Dimensions (W×L×H)

595mm×545mm×145mm
