Home Professional AudioProfessional SpeakerActive Professional Speaker 250W Active 10-Inch Full-Range Professional Loudspeaker D6534A

10" bass×1, 1.3” tweeter x1 ; 65Hz –18,000Hz ; 250W（AES）

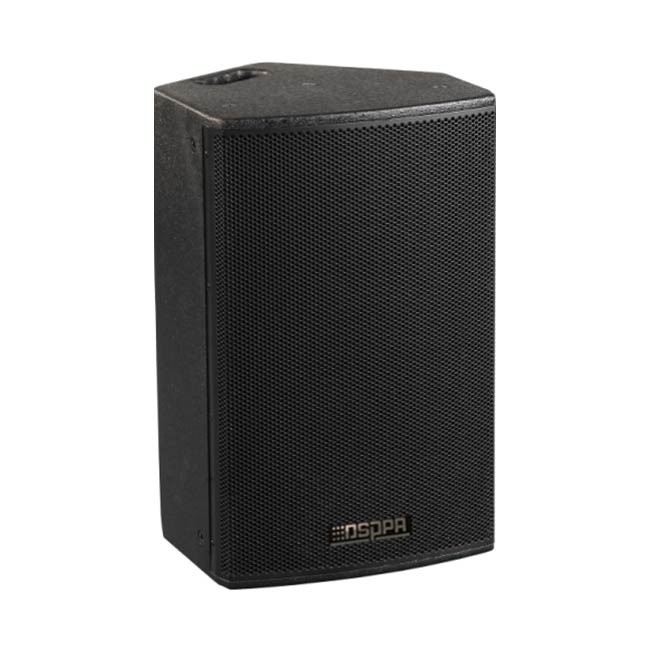

250W Active 10-Inch Full-Range Professional Loudspeaker

D6534A
  • Rated Power: 250W
  • Driver Configuration: 10" woofer × 1, 1.3" tweeter × 1
  • Frequency Response: 65Hz – 18kHz
  • Sensitivity: 96±2dB
  • Maximum SPL: 120±2dB
  • High-peak-capacity switch-mode power supply (SMPS)
  • Class-D independent power amplifier module
  • Equipped with one XLR input and one XLR output
  • Qualcomm filter with selectable range: 20Hz–400Hz
  • Optimized for mobile applications
  • Dual professional power interface
Overview Specifications Related Products Solutions Latest News & Cases

The D6534A is a professional active conference loudspeaker powered by a high-peak-capacity switch-mode power supply (SMPS) coupled with a dedicated Class-D power amplifier module. The system delivers rich even-order harmonics and mellow tonal quality, with pure and natural sound reproduction. It is well suited for performances, conferences, public squares, shopping malls, and similar applications.


Specifications of 250W Active 10-Inch Full-Range Professional Loudspeaker D6534A


Model

D6534A

DriveUnit

10" bass×1, 1.3” tweeter x1

Freq.Response

65Hz –18,000Hz

SpeakerSensitivity

96±2dB

Max. SPL

120±2dB

Active Signal InputImpedance

20 kΩ

AmplifierPower

350W

Speaker Continuous Power

250W（AES）

Directivity (HxV)

100°×50°

AmplifierDistortion

＜0.05%

Damping Coefficient

＞400

Working Voltage

AC220V/50Hz

Dimensions (Height ×Width ×Depth)

505mm×320mm×313mm

Weight

15kg
