Home Professional AudioProfessional SpeakerActive Professional Speaker 180W Active 8-Inch Full-Range Professional Loudspeaker D6533A

8" bass×1, 1.3” tweeter x1 ; 70Hz –18,000Hz ; 180W（AES）

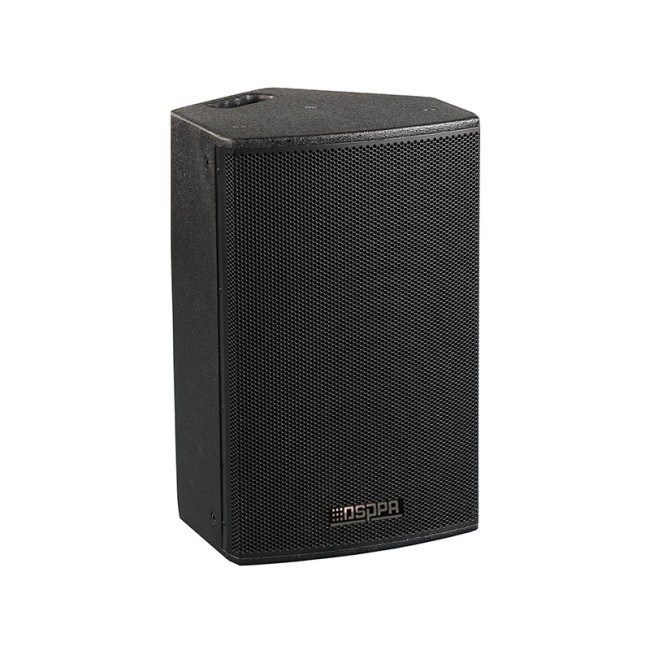

180W Active 8-Inch Full-Range Professional Loudspeaker

D6533A
  • Rated Power: 180W
  • Driver Configuration: 8" woofer×1, 1.3" tweeter×1
  • Frequency Response: 70Hz-18kHz
  • Sensitivity: 95±2dB
  • Maximum SPL: 118±2dB
  • High-peak-capacity switch-mode power supply (SMPS)
  • Class-D independent power amplifier module
  • Equipped with one XLR input and one XLR output
  • Qualcomm filter with selectable range: 20Hz~400Hz
  • Optimized for mobile applications
  • Dual professional power interface
Overview Specifications Related Products Solutions Latest News & Cases

The D6533A is a professional active conference loudspeaker powered by a high-peak-capacity switch-mode power supply (SMPS) coupled with a dedicated Class-D power amplifier module. The system delivers rich even-order harmonics and mellow tonal quality, with pure and natural sound reproduction. It is well suited for performances, conferences, public squares, shopping malls, and similar applications.


Specifications of 180W Active 8-Inch Full-Range Professional LoudspeakerD6533A


Model

D6533A

DriveUnit

8" bass×1, 1.3” tweeter x1

Freq.Response

70Hz –18,000Hz

SpeakerSensitivity

95±2dB

Max. SPL

118±2dB

Active Signal InputImpedance

20 kΩ

AmplifierPower

300W

Speaker Continuous Power

180W（AES）

Directivity (HxV)

100°×50°

Amplifier Distortion

＜0.05%

Damping Coefficient

＞400

Working Voltage

AC220V/50Hz

Dimensions (Height ×Width ×Depth)

465mm×282mm×275mm

Weight

12kg
