Home Professional AudioActive Line Array SystemActive Column Line Array Speaker System 160W+300W Professional Active Line Array Loudspeaker System LA0316

160W+300W

160W+300W Professional Active Line Array Loudspeaker System

LA0316
  • Eight 3-inch full-range drivers deliver transparent and naturally balanced mid-high frequency reproduction.
  • A 12-inch subwoofer provides deep, authoritative low-frequency extension with high impact.
  • Integrated DSP engine with FIR filtering enables precise acoustic optimization and system alignment.
  • Offers comprehensive adjustment parameters including PEQ, crossover, delay, limiter, phase, and gain control.
  • Capable of high SPL output, meeting the demands of professional sound reinforcement scenarios.
  • Accommodates both XLR and TRS line-level audio inputs for flexible signal integration.
  • Built-in USB media playback module supports MP3 file formats.
  • Embedded Bluetooth connectivity facilitates wireless audio streaming from mobile devices.
  • TWS (True Wireless Stereo) functionality enables seamless stereo pairing between two units.
  • PC-based DSP management software allows full configuration of all processing parameters.
  • Provides real-time metering of input/output levels and overall system status.
  • Supports preset management functions including saving, recalling, uploading, and downloading.
  • Dual-voltage power supply (110V/220V) ensures global compatibility with diverse mains standards.
  • Integrated limiter protection circuitry safeguards drivers and electronics for reliable continuous operation.
  • Slim-profile column enclosure designed for wide horizontal dispersion and optimal coverage.
  • Compact, lightweight form factor streamlines transportation, handling, and on-site installation.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

LA0316 Professional Active Line Array Speaker System is a compact, high-output audio platform engineered to address a broad spectrum of sound reinforcement requirements, ranging from small- to medium-sized venues and mobile performance applications to conference systems and commercial fixed installations.

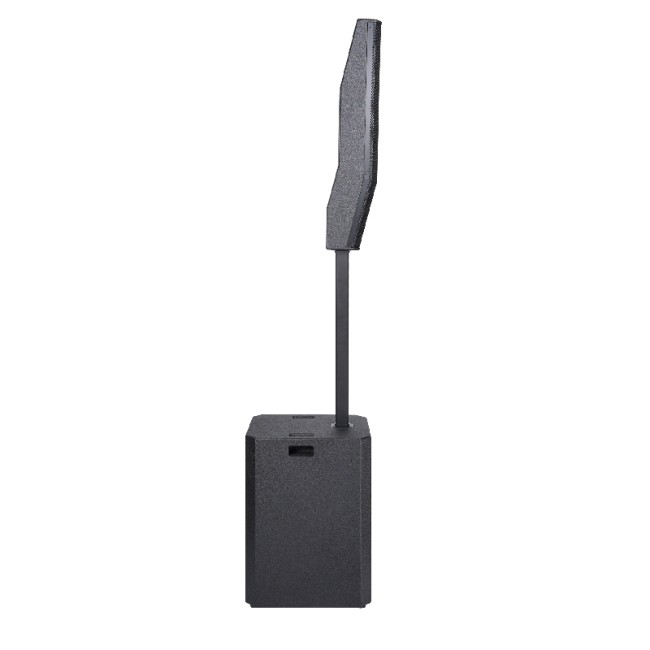

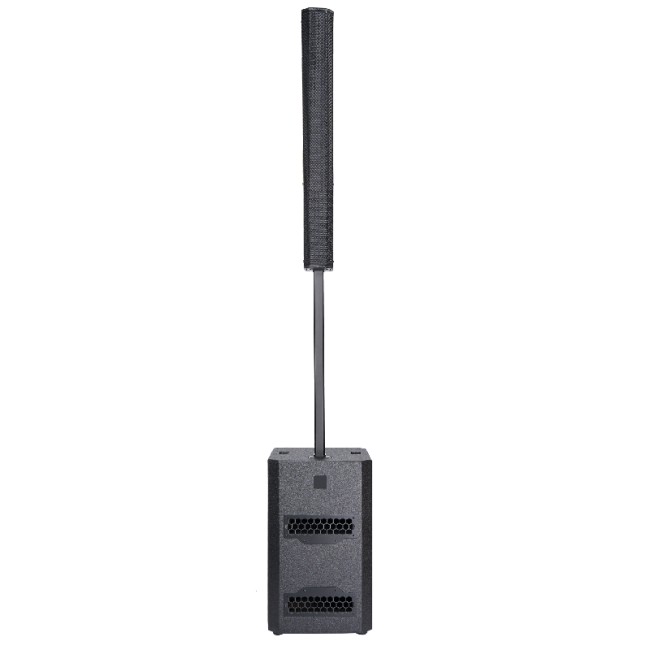

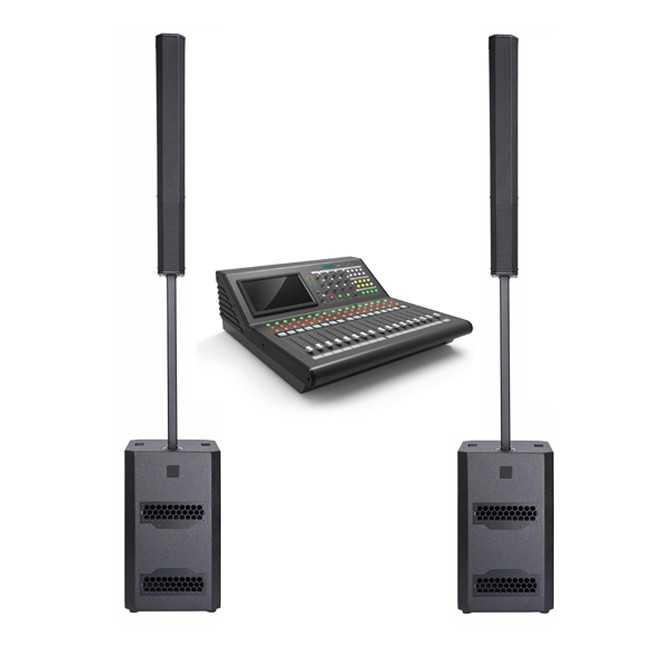

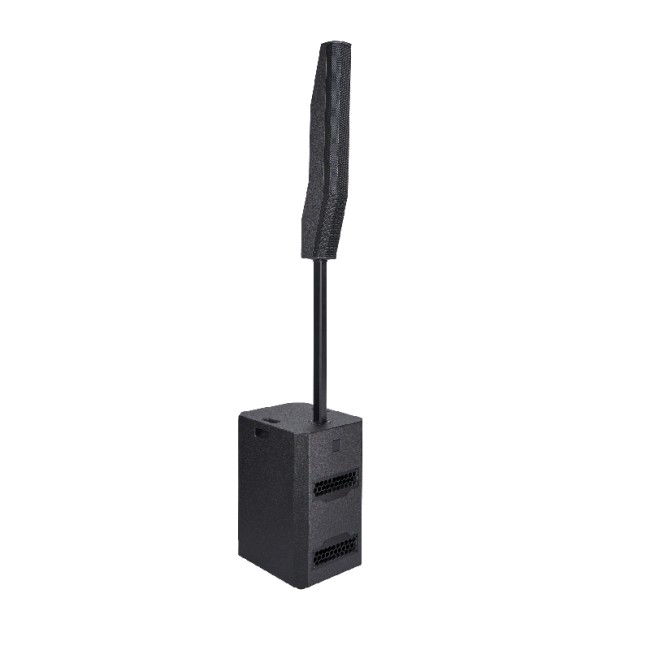

The system comprises an 8×3" line-array column and a 12" high-power subwoofer, delivering articulate, detailed mids and highs alongside deep, impactful low-frequency extension.

At the core of the system lies an integrated DSP-equipped amplifier module, supporting advanced signal processing functions including FIR filtering, crossover management, delay compensation, parametric equalization, and peak limiting—enabling precise acoustic calibration and consistent performance across varied deployment environments.

The LA0316 further offers versatile connectivity with built-in Bluetooth audio streaming, USB media playback, and TWS true wireless stereo pairing. Complemented by the FIR Active Speaker Editor software, users gain intuitive access to preset configuration, storage, and recall, streamlining system setup and operational management with enhanced efficiency and flexibility.



Specifications of 160W+300W Professional Active Line Array Loudspeaker System LA0316


Model

LA0316

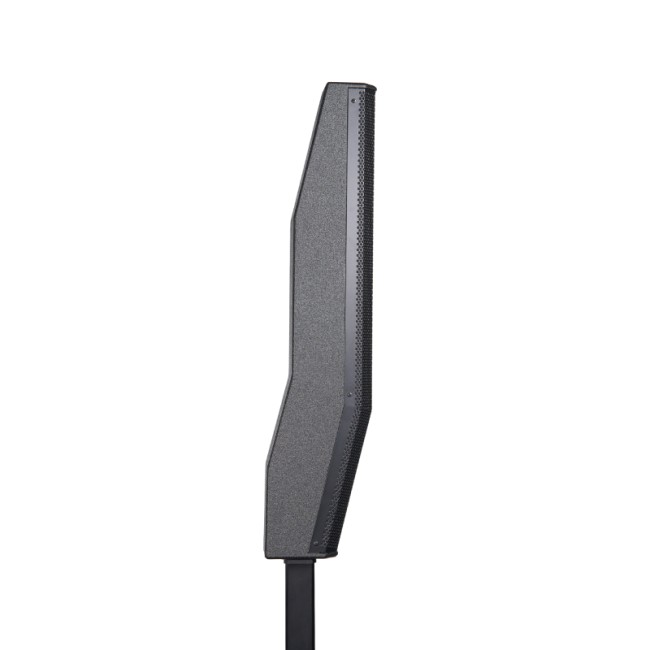

3”×8-Column-Speaker

Drive-Unit

MF:-3”×8-(25mm-Voice-Coil)

Rated-Power

160W

Program-Power

320W

Peak-Power

640W

Impedance

4Ω

Frequency-Response

98Hz~16kHz

Sensitivity

96dB

Max.-SPL

118dB

Signal-Input

Dedicated-Link-Connector

Directivity-Angle

100°(H)×20°(V)

Product-Dimensions-(H×W×D)

810×105×140mm

Package-Dimensions-(H×W×D)

860×360×240mm-(2PCS/CTN)

Net-Weight

6.5kg

Gross-Weight

18kg

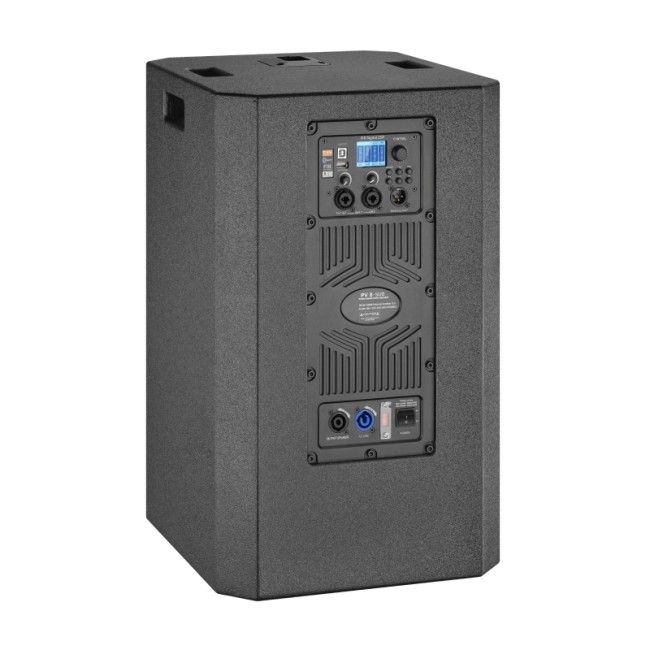

Single-12”-Subwoofer

Drive-Unit

LF:-12”×1-(75mm-Voice-Coil)

Rated-Power

300W

Program-Power

600W

Peak-Power

1200W

Impedance

4Ω

Frequency-Response

38Hz~200Hz

Sensitivity

96dB

Max.-SPL

121dB

Signal-Input

2×XLR-/-TRS

Supported-Function

BT-/-USB-/-MP3-/-TWS

Product-Dimensions-(H×W×D)

600×365×450mm

Package-Dimensions-(H×W×D)

686×435×520mm

Net-Weight

21kg

Gross-Weight

24kg
