Home Professional AudioAudio ProcessorHot Sale Audio Processor DSP Matrix Audio Processor DP7008 DP1580 DP1586

-90dB(@17dBu, 1kHz, A-wt)/Line ; -90dB(@-6dBu, 1kHz, A-wt)/Mic, 20dB gain sensitivity

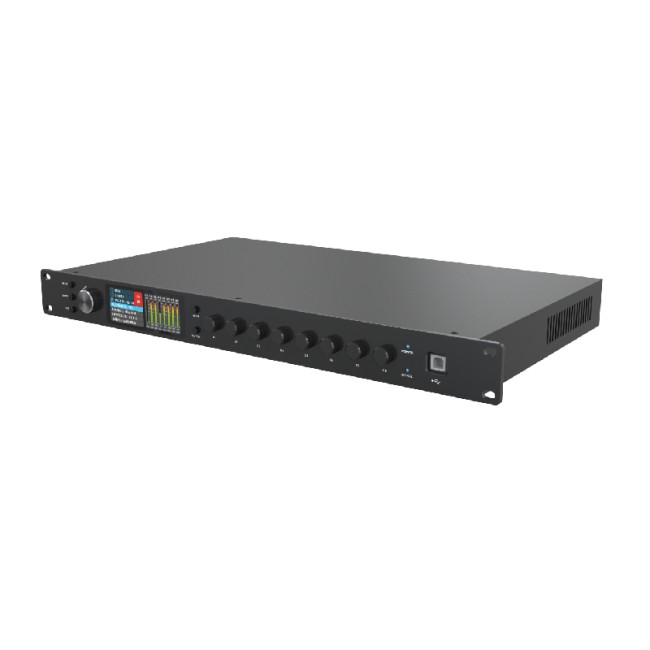

DSP Matrix Audio Processor

DP7008 DP1580 DP1586
  • 8 or 16 analog inputs and 8 or 16 analog outputs, with selectable Line level and Mic level per channel.
  • Optional Dante network audio with 16×16 channels.
  • 48V phantom power available for each Mic-level input, with 40 sensitivity levels (1dB per step).
  • Built-in AFC (feedback cancellation) with 2 selectable levels.
  • Built-in AEC (echo cancellation) for remote video conferencing systems.
  • Built-in ANC (noise cancellation) for optimizing local meeting systems.
  • Built-in AGC (automatic gain control) for optimizing microphone signals in complex scenarios.
  • 8-band PEQ for inputs and 8-band PEQ for outputs. Supports LSLV, HSLV, ALL-PASS, PHASE, ELLIPTIC, LOW PASS, and HIGH PASS filters. HPF and LPF with Butterworth, Bessel, or Linkwitz-Riley characteristics.
  • Supports auto mix and matrix mix.
  • Supports camera tracking with most camera control protocols.
  • Preset archiving and locking function to help hide parameter settings for project security.
  • Control interfaces: USB or TCP/IP. Equipped with RS232 and RS485 for central control integration, and GPIO for external control.
  • User-friendly GUI software MConsole for Windows 7/8/10/11.
  • Optional touchscreen wall control panel (RS485 wired control).
Overview Specifications Related Products Solutions Latest News & Cases

The DP7008, DP1580, and DP1586 are DSP matrix audio processors available in 8-input/8-output and 16-input/16-output configurations, designed for conference and professional audio systems. They feature advanced voice algorithms including AFC, AEC, and ANC, along with comprehensive DSP functions such as auto mix, matrix mixing, noise gate, crossover, parametric EQ, delay, compressor, and limiter. Optional Dante network audio with 16×16 channels is supported, making them suitable for professional applications.

The DP7008 offers 8 channels, the DP1580 provides 16 channels, and the DP1586 features 16 channels with integrated Dante functionality. This series is ideal for meeting rooms, multi-purpose halls, auditoriums, and sports stadiums.


Specifications of DSP Matrix Audio Processor DP7008 DP1580 DP1586


Model

DP7008 DP1580 DP1586

1. DSP Process

Process

32bit float point DSP 400MHz

SystemDelay

<3ms

AD/DA

24-bit 48KHz

2. Analog Audio Inputs and Outputs

Input

8/16 channels balanced. Line/Mic level to switch

InputInterface

3.81mm phoenix, 12-pin

InputImpedance

16KΩ

MaxInputLevel

17dBu/Line;

-3dBu/Mic@20dB sensitivity

PhantomSupply

+48V DC, 5.5mA in each input channel

Output

8/16 channels balanced. Line level

OutputInterface

3.81mm phoenix, 12-pin

OutputImpedance

150Ω

3. Audio Performance Specifications

FrequencyResponse

20Hz-20kHz(+-0.5dB)/Line, input 0dBu;

20Hz-20kHz(+-1.5dB)/Mic, 20dB gain sensitivity, input -10dBu

THD+N

-90dB(@17dBu, 1kHz, A-wt)/Line

-90dB(@-6dBu, 1kHz, A-wt)/Mic, 20dB gain sensitivity

SNR

110dB(@17dBu, 1kHz, A-wt)/Line

100dB(@-6dBu, 1kHz, A-wt)/Mic, 20dB gain sensitivity

4. Connect Ports and Indicators

USB

Type A-B, free driver

RS232

Serial port communication

TCP/IPInterface

RJ-45

IndicatorLight

Input signal, +48V, Link, Output signal

5. Electrical and Physical

Supply

AC 90V～264V 50/60 Hz

ProductDimensions

483mmx265mmx44.5mm

PackageDimensions

540mmx390mmx80mm

Net Weight

3.3kg

PackageWeight

4.4kg

OperatingTemperature

-20℃～80℃
