Home ProductsCommercial Amplifier & ControllerDante / DSP Amplifier Surface-Mount 2-Input / 2-Output Dante / AES67 Network Audio Interface DT2002

2-Input 2-Output

Surface-Mount 2-Input / 2-Output Dante / AES67 Network Audio Interface

DT2002
  • Dual analog input & output channels, universally compatible with line-level and microphone-level audio sources to cover diverse on-site application needs
  • Independent 0 dB to +48 dB gain adjustment per input channel, flexibly matching different types of microphones and audio devices for optimal signal level
  • Precise output volume control across a -60 dB to 0 dB range, allowing fine-tuning of playback levels for different scenarios
  • Per-channel switchable 48 V phantom power, supporting condenser microphones and active audio peripherals without additional power supplies
  • IEEE 802.3af standard PoE power support, enabling single-cable transmission of both data and power; no local power adapter required, greatly simplifying on-site wiring and deployment
  • Supports 44.1 kHz and 48 kHz mainstream professional audio sampling rates, seamlessly compatible with standard Dante network audio systems
  • Flexible dual control options: intuitive configuration via professional Dante Controller software, plus convenient browser-based web UI management for quick setup without dedicated software
Overview Specifications Related Products Solutions Latest News & Cases

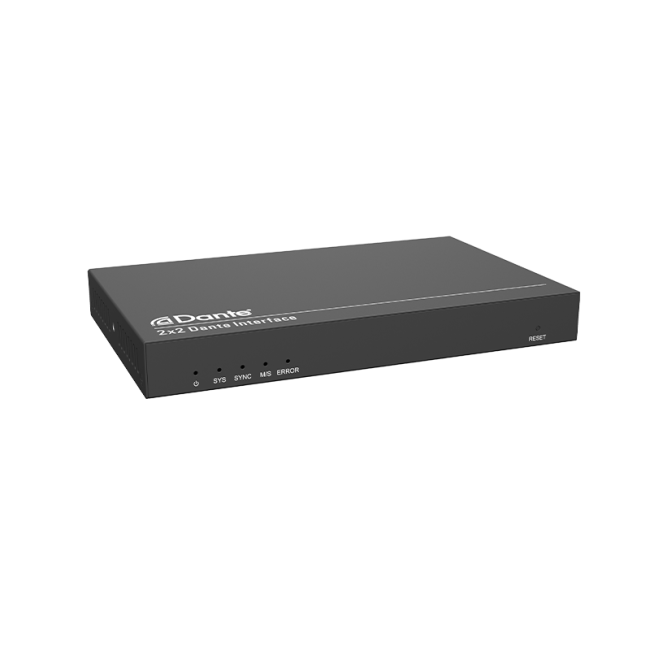

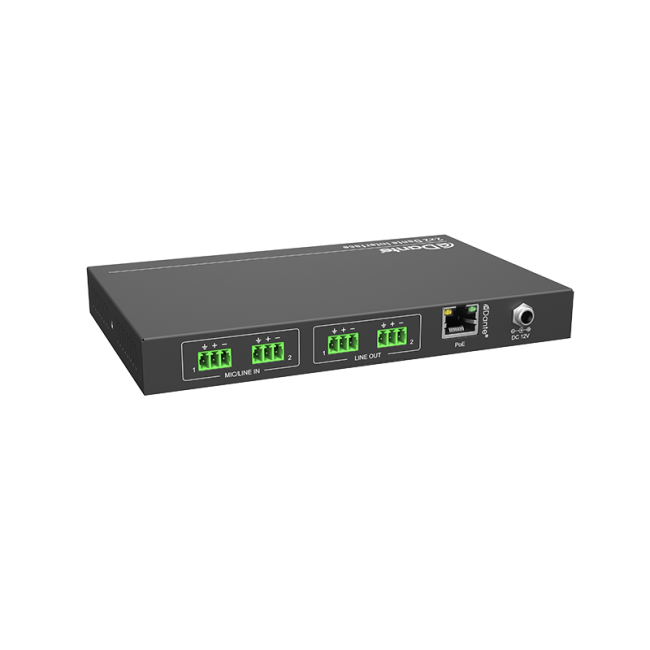

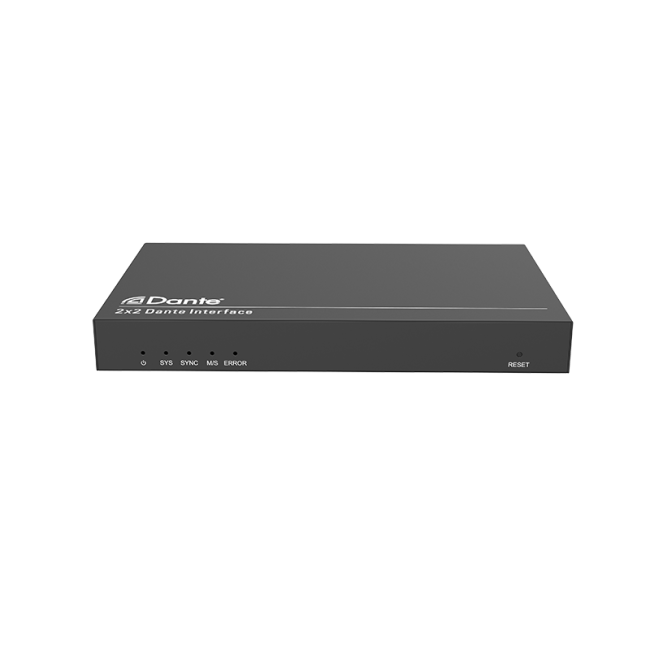

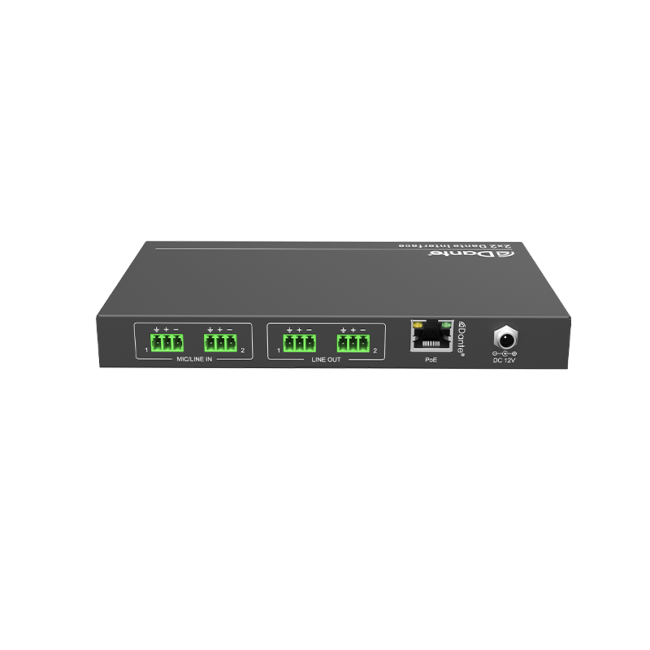

The DT2002 is a compact Dante network audio interface designed to integrate 2 input and 2 output Dante audio channels into networked AV systems. Each input channel is equipped with switchable 48V phantom power to support condenser microphones and other professional audio peripherals.


The unit complies with the IEEE 802.3af PoE standard for power delivery, and its small footprint enables flexible, close-proximity deployment near audio sources or playback endpoints. This design eliminates both the cost and signal interference risks associated with long-distance analog wiring runs.



Model

DT2002

Input

Input

(2) MIC/LINE IN

Input Connector

(2) 3-pin Green Terminal Blocks

Phantom Power

48V, software selectable for each input

Output

Output

(2) LINE OUT

Output Connector

(2) 3-pin Green Terminal Blocks

Output Type

Balanced line level with automatic muting on loss of Dante signal

Audio Performance

Gain

Input: 0 ~ +48dB, 6dB per step

Output: -60 ~ 0dB, 1dB per step

Max Level

Input: +18dBu @ 0dB input gain

Output: +18dBu @ 0dB output gain

Input Impendence

>1.8kΩ

Effective Input Noise (EIN)

-119dB @ 48dB gain

Output Noise

<-79dBu @ 0dB gain

THD

<0.05% at any gain

Sample Rate

44.1kHz or 48kHz

Control

Control Port

(1) Dante Network

Control Connector

(1) RJ45

General

External Power Supply

Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A

Operation Temperature

-10℃ ~ +55℃

Storage Temperature

-25℃ ~ +70℃

Relative Humility

10%-90%

Dimension (W*H*D)

185mm x 115mm x 22mm

Net Weight

500g
