Home Professional AudioSequence Controller & PeripheralSequence Controller 16-Channel Remote Intelligent Power Sequence Controller D6586D

AC95~240V ; 50Hz

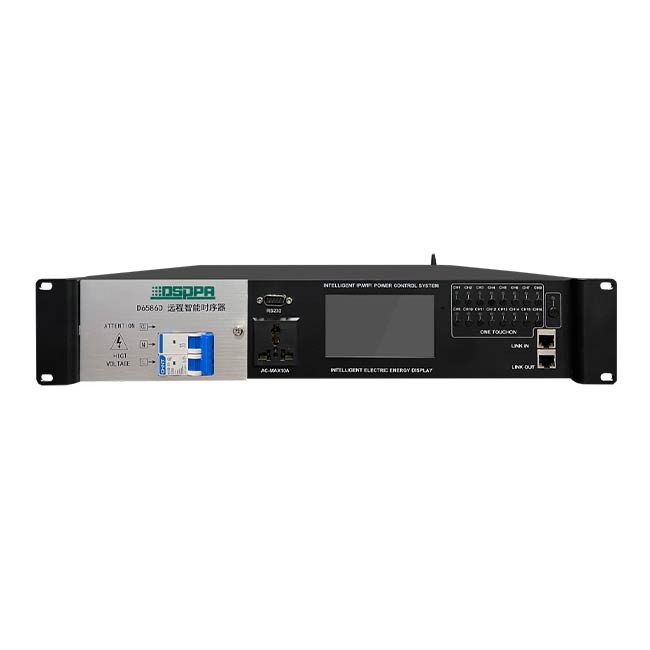

16-Channel Remote Intelligent Power Sequence Controller

D6586D
  • Industrial-grade touch LCD screen displaying current power indicator per channel, date, time, weekday, channel switch status, and timing point information; each channel supports delay on/off (1–999s) via touchscreen control.
  • Each channel supports programmable timing schedules with multiple plans, including single on/off, cycle on/off, and cyclic timed switching. Built-in high-precision clock chip with automatic network time calibration enables scheduled operation without manual intervention, facilitating device management.
  • Professional network port web interface (compatible with computer, Android, iOS, and iPad) for login, management, and control, enhancing system integration capabilities. RS-232 serial control protocol supports external central control device integration; RJ45 fixed one-in-one-out daisy-chain port requires no ID configuration, enabling system installation and sequential power-on from front to back, and power-off from back to front.
  • Universal sockets compatible with a wide range of power connectors; 16 independent power channels, built-in power filter, 2U chassis, and air switch protection, offering refined appearance and quality construction.
  • Over-current detection and alarm function for reliable equipment protection. Maximum input current: 63A; maximum output per channel: 16A; operating voltage: 95V–240V.
  • Remote centralized control: each device supports configurable IP, server IP, port, and online ID; custom naming available for each group.
  • Three operating modes: manual, cascade, and timed. Manual mode supports scenario presets.
  • Terminal block power input with 63A high-current air switch and standard 10mm² cable input.
  • Interfaces: 1 central control RS232 male connector, 1 USB power port, 1 RJ45 network port, 1 RJ45 daisy-chain input/output connector. Supports wireless Wi-Fi AP mode for web control via mobile phones, tablets, computers, and other terminal devices.
  • Web control page with password login; password changeable for flexible access.
  • Professional industrial-grade power detection program with advanced power algorithm for real-time parameter calibration, ensuring minimal error—voltage, current, power, and power factor displayed clearly.
  • Output power sockets: 16 controlled universal sockets on rear panel, adaptable to different standards (universal, European, US).
  • Socket standard: Compatible with national standards 6A and 10A, with maximum current up to 16A.
  • Switch interval: Freely configurable from 1–999s.
  • Real-time display of current, power, and voltage parameters, enabling remote and convenient power system monitoring.
  • 16-channel power sequence triggering via 8-shaped power input connector.
  • Built-in power straight connector.
  • Chassis height: 2U (88mm).
Overview Specifications Related Products Solutions Latest News & Cases

With stable quality, the 16-channel intelligent power sequence controller supports centralized control via IP network or RS-232 connection to a central control system. It integrates a daisy-chaining function with virtually no limitation on the number of units—simply connect RJ45 input and output ports in sequence to enable sequential power-on from front to back and power-off from back to front across 16×N power outlets.

The unit is also equipped with a Wi-Fi AP mode, allowing users to log in for web-based management via various Wi-Fi terminals or a wired IP connection. It additionally features an 8-shaped AC220V touch control connector and a USB power port for added convenience.


Specifications of 16-Channel Remote Intelligent Power Sequence Controller D6586D


Model

D6586D

Input Voltage / Output Voltage

AC95~240V

Output Frequency

50Hz

Maximum Current

63A

Maximum Current for Single Channel

16A

Current Detection Accuracy

+/-0.1A

Voltage Detection Accuracy

+/-1V

Maximum Current for USB Output

100mA

Output Channel

16 channels

Set Time On/Off

1-999s

Number of Timing Points and Scenarios

10 timing points and 15 scenarios

RS232

1 channel

RJ45 Straight Connector

1 in and 1 out

IP

1 channel

Weight

10kg

Product Dimensions

430×398×88mm

Package Dimensions

2U (544mm×554mm×143mm)
