Home Professional AudioAudio MixerAnalog Audio Mixer 8-12-20-Channel Professional Mixing Console CM412 CM416 CM424

20 Hz-20 kHz +1 dB,-3 dB ®+4 dBu,600 Ω (With gain control at minimum electric level)

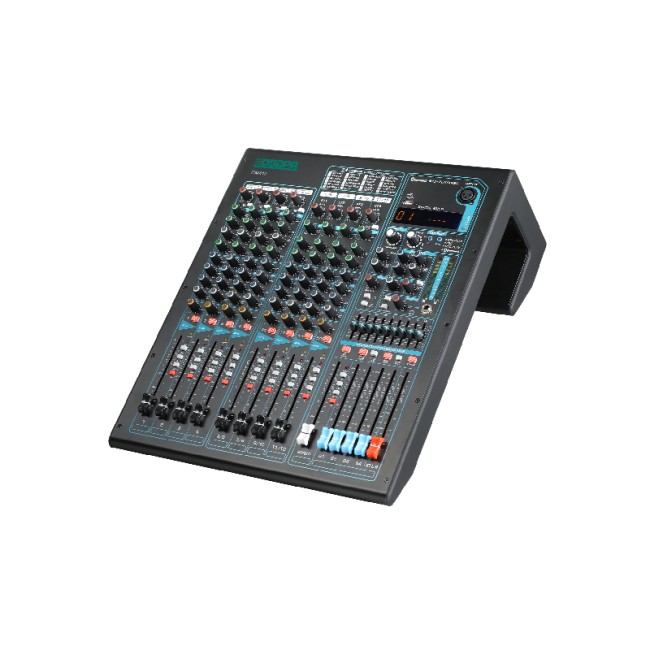

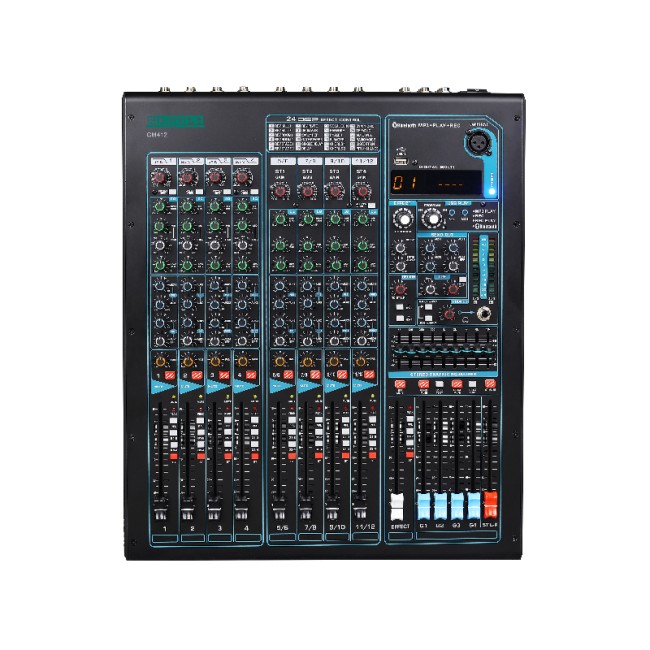

8-12-20-Channel Professional Mixing Console

CM412 CM416 CM424
  • Supports 8, 12, or 20 XLR mono input channels plus 4 stereo input channels.
  • Each channel features 3-band EQ adjustment, MUTE switch, and PFL headphone switch.
  • 4 group outputs and 4 AUX outputs (including EFF).
  • 1 RETURN and 1 monitor output.
  • Built-in 48V phantom power.
  • Built-in 24-preset DSP digital effects processor.
  • Built-in USB port for recording and music playback.
  • Built-in Bluetooth connectivity.
  • LED screen for status display.
Overview Specifications Related Products Solutions Latest News & Cases

The CM412, CM416, and CM424 professional mixing consoles offer selectable 8, 12, or 20 mic/line mono input channels respectively, plus 4 stereo input channels. They feature 24 built-in DSP digital effects, a stereo LPF low-pass filter output, a built-in USB player with MP3 playback, and built-in Bluetooth 5.0 for wireless audio reception and playback. Each channel includes an independent 48V phantom power switch. This series is designed for straightforward operation across a wide range of environments, making it an ideal choice for various installation systems and diverse applications.


Specifications of 8-12-20-Channel Professional Mixing Console CM412 CM416 CM424



General Specification

Frequency characteristics (MAIN OUT)

20 Hz-20 kHz +1 dB,-3 dB ®+4 dBu,600 Ω (With gain control at minimum electric level)

Total harmonic distortion (MAIN OUT

0.01%(THD+N) @+14 dBu,20 Hz-20 kHz,600 Ω (With gain control during maximum electric level)

Buzz and noise 1

-128dBu equivalent input noise (Channel 1 to Channel 8)



-100dBu Residual output noise(ST OUT)



-88dBu(92dB S/N) At the nominal level, the SR, GROUP master attenuator, and all channel transmit switches are set to off.



-81dBu(68dB S/N) AUX, EFFECT master control at nominal level, all channel



-64dBu(68dB S/N)ST, GROUP master attenuator and channel attenuator at nominal level (Channel 1 to Channel 8)

Crosstalk(1 kHz)

-70 dB, among every Input Channels

-70 dB, between input/output channel(CH INPUT)

Channel input equalization:±15 dB

HIGH (High)10KHz Slope

MID(Medium)2.5kHzSlope

LOW (Low)100Hz Slope

Maximum amplitude of variation

of graphical equalizer ±12 dB

Seven bands (125,250,500,1 k,2 k,4 k,8 k)

Internal digital effects

16 types of programs, parameter control

Monophony /stereo input

peak indicator light

When the postposition EQ signal ( in ST sound channel, when the postposition.

EQ signal or the postposition microphone amplifier signal) enters into In cut-off.

3 dB range of the electric level in each channel, the red indicator will be lighted up.

Virtual DC+48 V

power supply (balanced Input)

When Virtual+48 V switch is on, virtual power will be provided.

Power consumption

51 W

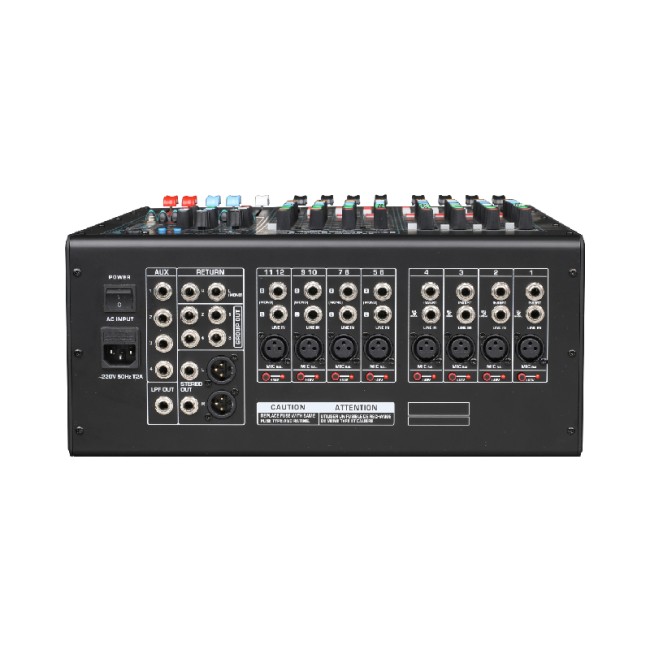

Input Specifications

Input socket

Gain

Input

Impedance

Appropriate

impedance



Sensitivity



Ratedlevel



Maximum value

before cutting off



socket specification

MIC INPUT

-60

3kΩ

50-600Ω

MIC

-80 dBu

(0.078 mV)

-60dBu

(0.775mV)

-40 dBu

(7.75mV)

XLR-3-31 Type(balance type)





-16





-36 dBu

(12.3 mV)

-16 dBu

(123 mV)

＋4dBu

(1.23V)



CH INSERT IN (CH1-8)



10kΩ

600ΩLine

-20dBu

(77.5mV)

0dBu

(0.775mV)

＋20dBu

(7.75V)

Headphone socket (TRS)

Unbalanced type(T: Output

R: Output S: Ground wire)



AUXRETURN (L,R)



10kΩ

600ΩLine

-12dBu

(195mV)

＋4dBu

(1.23V)

＋24dBu

(12.3V)

Headphone socket (TRS)

Unbalanced type(T: Hot wire

S: Ground wire)

2TR IN (L,R)



10kΩ

600ΩLine

-26 dBu

(50.1mV)

-10dBu

(316mV)

＋10dBu

(3.16V)

RCA Pin type socket




Output Specifications

Output Jack

OutputResistance

AppropriateResistance

Rated level

Maximum value

before cutting off

jack specification

ST OUT (L,R)

150Ω

600ΩLine

+4dBu(1.23v)

+24 dBu

(12.3 V)

XLR-3-32 Type (balance type)

Phone jack (TRS) Balanced type

T:Hot wire;R:Cold wire;

S: Ground wire

AUX SEND(1-2)

EFFECT SEND

150Ω

10kΩLine

+4dBu(1.23v)

+20 dBu

(7.75V)



Headphone jack (TRS)

Impedance balance type

T:Hot wire;R:Cold wire;

S: Ground wire

REC OUT (L,R)

600Ω

10kΩLine

-10dBV(316mv)

+10dBV(3.16V)

RCA Pin type jack

PHONES

100Ω

40ΩHeadphone

3mW

75mW

Stereo headphone jack
