Home Professional AudioAudio MixerDigital Audio Mixer 16-Input 10-Output Portable Digital Mixing Console CM1608

20Hz ~ 20K Hz ,±0.2dB

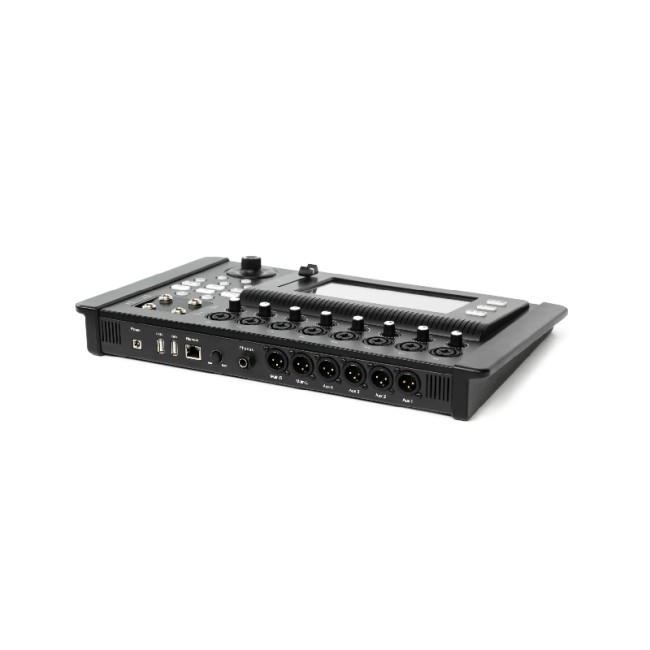

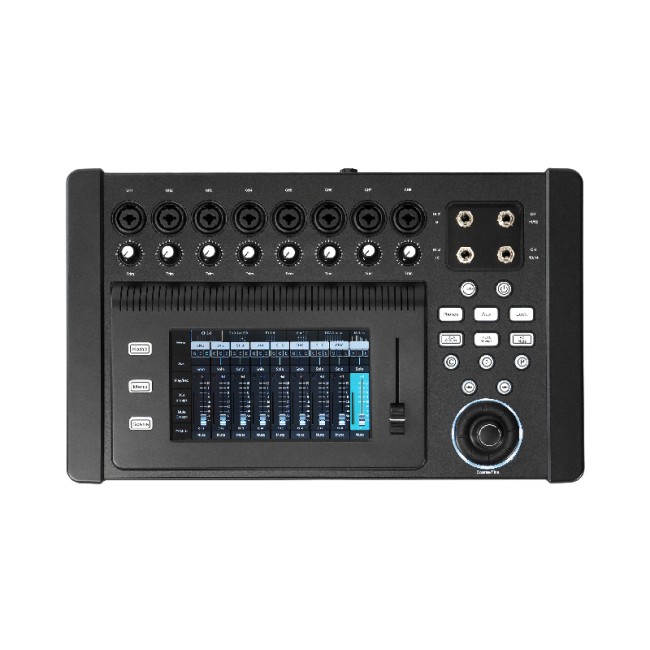

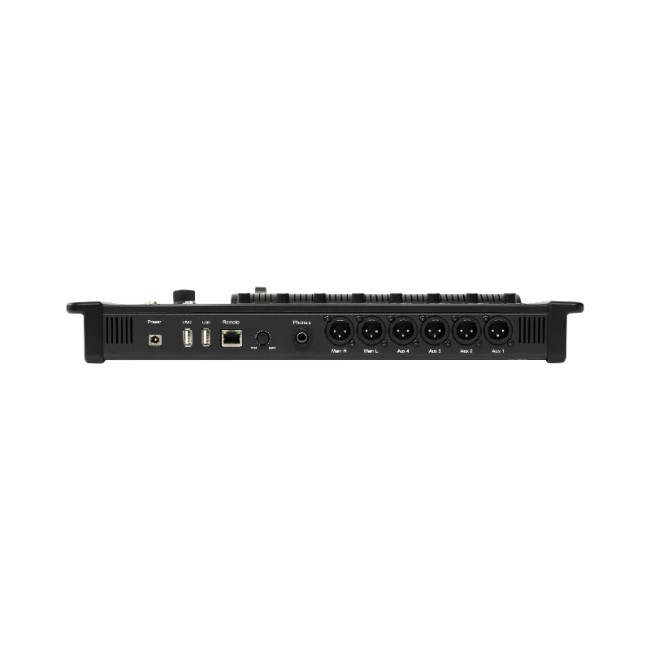

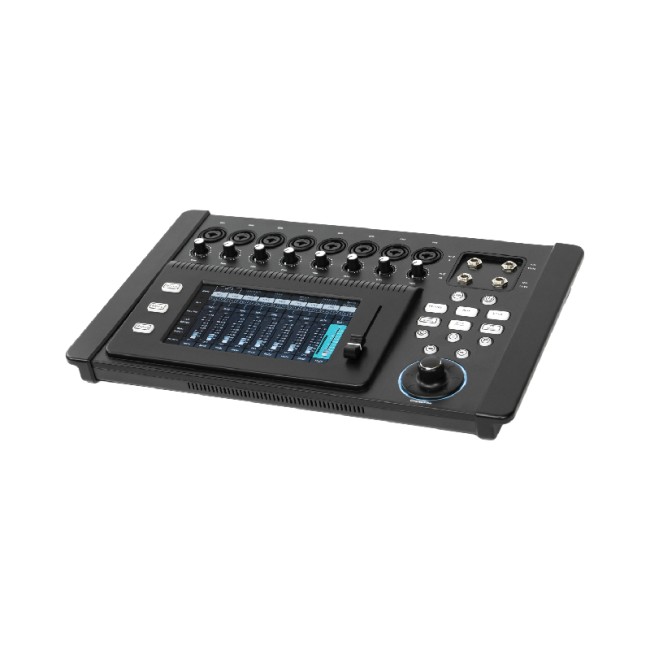

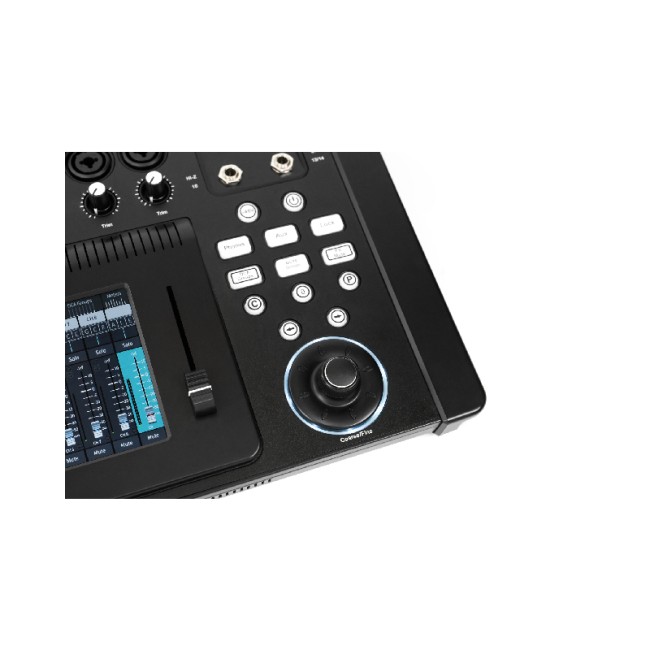

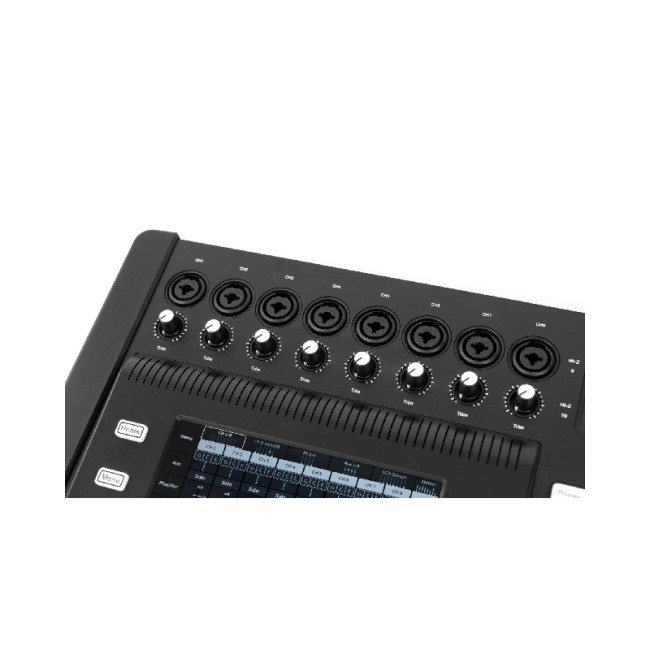

16-Input 10-Output Portable Digital Mixing Console

CM1608
  • 16-channel input configuration: 8 balanced XLR/TRS digital gain inputs, 2 stereo input pairs (4 channels), 2 high-impedance mono inputs, and 2 USB playback channels.
  • Ultra-low distortion and noise floor, with digital gain control for precise adjustment and improved system consistency.
  • 7-inch high-definition touchscreen with intuitive UI and clear navigation for easy operation.
  • Digital encoder and dedicated control keys enable fast and efficient parameter adjustments.
  • 5 built-in professional effects, including reverb, chorus, and modulation, ideal for live vocals and performances. Effects return through dedicated FX channels without occupying input channels.
  • Scene memory function supports storing up to 100 scenes. All scenes can be exported to external storage for backup and quick recall.
Overview Specifications Related Products Solutions Latest News & Cases

The CM1608 Portable Digital Mixer combines advanced digital mixing technology with an intuitive design and powerful DSP processing. Blending modern digital control with familiar traditional operation, it delivers a professional and user-friendly mixing experience.

Compact and easy to operate, the CM1608 provides professional-grade mixing effects suitable for live performances, events, and studio applications. Its streamlined interface allows even beginners to quickly get started and achieve high-quality sound results.

Equipped with powerful processing capabilities and an optimized software workflow, the mixer enables fast and precise adjustments through a clear mixing interface. The CM1608 offers a smooth, efficient operating experience, allowing users to fully benefit from the convenience and performance of a portable digital mixing solution.


Specifications of 16-Input 10-Output Portable Digital Mixing Console CM1608


Model

CM1608

Screen

7-inch high-definition touch screen, 1024 x 600 resolution

Inputs

8 balanced XLR/TRS combo digital gain microphone channels;

2 stereo TRS 6.35mm input pairs (2 channels per pair, total 4 channels);

2 high-impedance TRS 6.35mm mono input channels;

2 USB playback channels

Outputs

2 XLR main bus output channels (L/R);

4 XLR AUX output channels;

1 stereo TRS 6.35mm monitoring output pair (2 channels);

2 USB recording channels

THD & Noise

＜0.003% @ 4dBu A+C

Frequency Response(20~20KHz)

20Hz ~ 20K Hz ,±0.2dB

SamplingRate

48KHz

QuantizedBits

24bit

Signal-to-Noise Ratio

108dB

BackgroundNoise

-90dBu,A+C

Max.Level (Input)

+20dBu,Balance

Max.Level (Output)

+20dBu,Balance

PhantomPower

48V

A/DDynamic Range

110dB

D/ADynamic Range

110dB

Input to Output Dynamic Range

108dB

Input Impedance (Balanced)

2KΩ

Output Impedance (Balanced)

100Ω

Channel Isolation

70dB @1KHz

CommonModeRejectionRatio

-60dBu Type

OperatingTemperature

0℃-55℃

OperatingPower

DC 19V/2A

Power Consumption

30W

Dimension

410×250.4×69mm

Weight

2.7KG

Package Size

590x340×110mm

 Packing Weight

3.1KG

Related Digital Audio Mixer

120W × 2 / 8Ω ; 0.01% at +4dBu, 1kHz, Bandwidth 80kHz

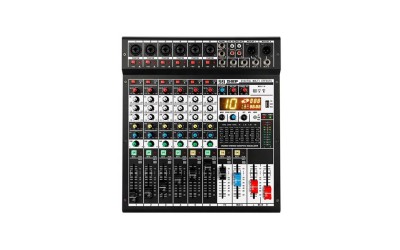

6-Channel Audio Mixer with Built-in Amplifier
