Home Professional AudioAudio MixerDigital Audio Mixer 32-Channel Digital Mixing Console CM32

108dB unweighted ; 0.005% @4dBu 1Khz 0.01% @4dBu 20~20Khz

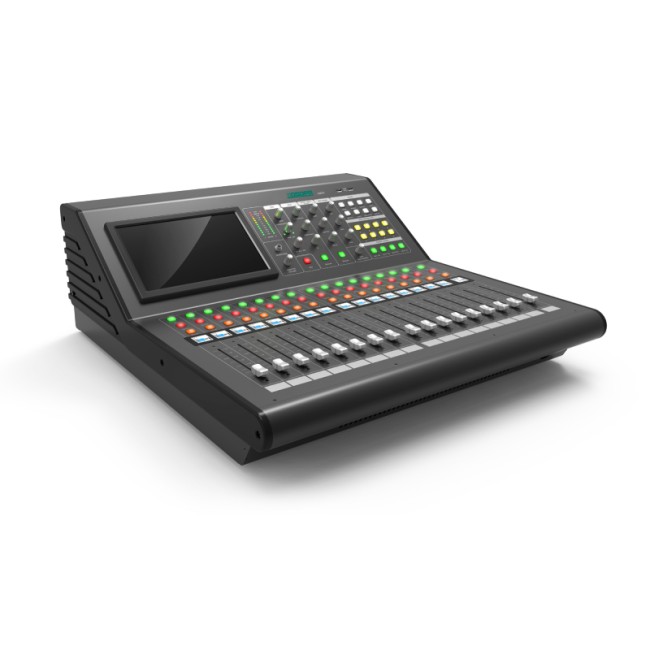

32-Channel Digital Mixing Console

CM32
  • 10.1-inch capacitive touchscreen with 1280×800 resolution.
  • 17 100mm motorized faders.
  • Switchable between Chinese and English interfaces without reboot.
  • Built-in USB recording and playback functions.
  • Supports playback of APE, FLAC, MP3, and WAV lossless audio formats.
  • USB player recognizes Chinese song titles.
  • Built-in 16-channel independent feedback suppressors.
  • 8 DCAs.
  • Supports iPad touchscreen full-featured control with real-time data synchronization.
  • Supports up to 8 terminals for simultaneous control.
  • Built-in 2 independent effect modules.
  • ARM and DSP firmware upgradeable via network or USB drive.
  • Per input channel: 4-band parametric EQ, noise gate, feedback suppressor, high/low-pass filters, compressor, and polarity inversion.
  • Per output channel: parametric EQ, high/low-pass filters, compressor, polarity inversion, and 1s delay.
  • Output channels: L/R, 10 BUS, and Headphone (L/R).
  • Selectable pre-fader or post-fader (PRE/POST) for 10 BUS mix buses.
  • 100 scene presets with export/import via USB for data backup.
  • Supports 32 PEQ mode presets.
  • Built-in signal generator: sine wave, pink noise, and white noise.
  • Channel parameter copy function for quick data duplication across identical channels.
  • Connectivity: balanced XLR inputs and outputs.
  • 8 fader groups, 8 user-defined buttons, and 4 quick mute buttons.
  • Panel lock button to prevent unintended operation.
  • Customizable channel naming.
Overview Specifications Related Products Solutions Latest News & Cases

This professional-grade 32-channel digital mixing console features an innovative design and powerful DSP capabilities, offering 32 digital gain preamplifier channels with low latency and ultra-low noise. It provides a fast mixing workflow, a user-friendly 10.1-inch touchscreen, 17 motorized faders, 2 built-in effects processors, 100 scene memories, PEQ preset storage, and USB playback and recording. Powered by a high-performance ARM processor with a Linux-based system, the console ensures reliable and secure operation.


Specifications of 32-Channel Digital Mixing Console CM32


Model

CM32

Analog Input

32CH (MIC/Line)

Analog Output

L/R+10BUS+REC+Headphone(L/R)

Noise Floor

-90dBu unweighted, AES17 (20Khz)

THD+N

Distortion

0.005% @4dBu 1Khz

0.01% @4dBu 20~20Khz

SNR

108dB unweighted

Dynamic Range

108dB unweighted

Maximum Input Level

Balanced 20dBu

Maximum Output Level

Balanced 20dBu

Frequency Response

20Hz-20KHz ±0.5dB

Screen Size

10.1″

Resolution

1280×800

Touch Control

Capacitive

Main Control CPU

Samsung 4418 quad-core Cortex™-A9

Boot Speed

36 seconds

Operating System

Linux

DSP

ADSP-21489 400Mhz

USB

Recording and playback (APE, FLAC, MP3, WAV playback formats)

DCA

Support

Chinese and English Interface

Support

Electric Faders

17

iPad Control

Support

Effect

2 effect buses (6 preset effect parameters, 24 users storage)

Feedback Suppressor

16, independent

Ethernet

Support

RS-232 Protocol

Support

USB Mouse

Support wired USB mouse

Power Supply

AC 100V-240V; 47~63Hz  100W

Dimensions (W*D*H)

610×650×230mm

Net Weight

22.1kg

Package Weight & Dimensions

39.5kg (Flight case packaging) 800×710×350mm

26.5kg (Carton packaging) 758×735×350mm
