Home Professional AudioSequence Controller & PeripheralSequence Controller Intelligent Power Controller D6720

AC220/50Hz

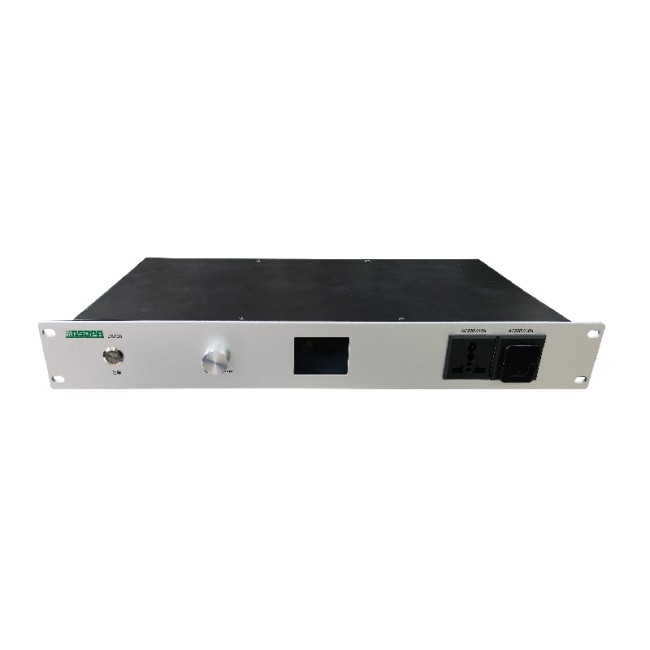

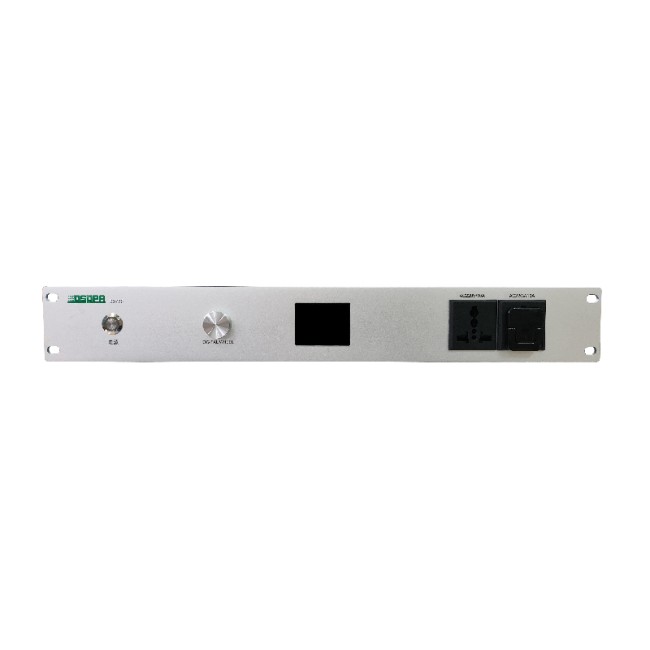

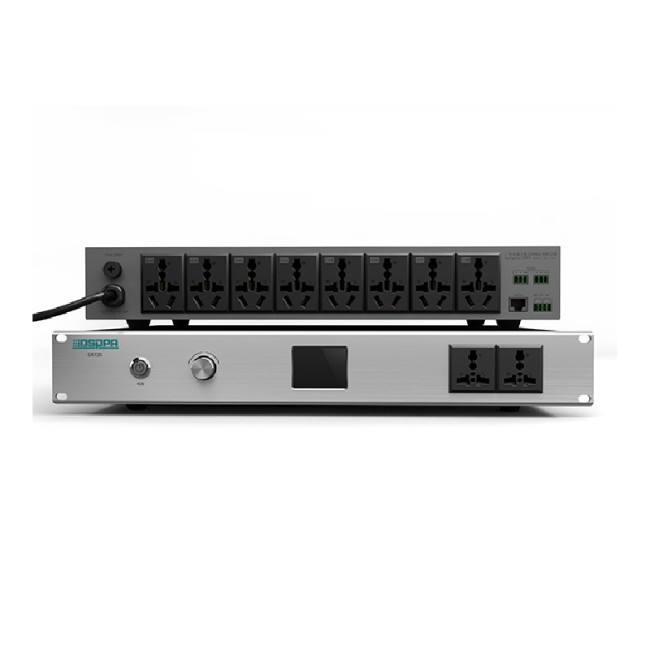

Intelligent Power Controller

D6720
  • Equipped with a 2.4-inch LCD color display and a custom-designed user interface, clearly showing power voltage status, on/off status of each power channel, date, and time.

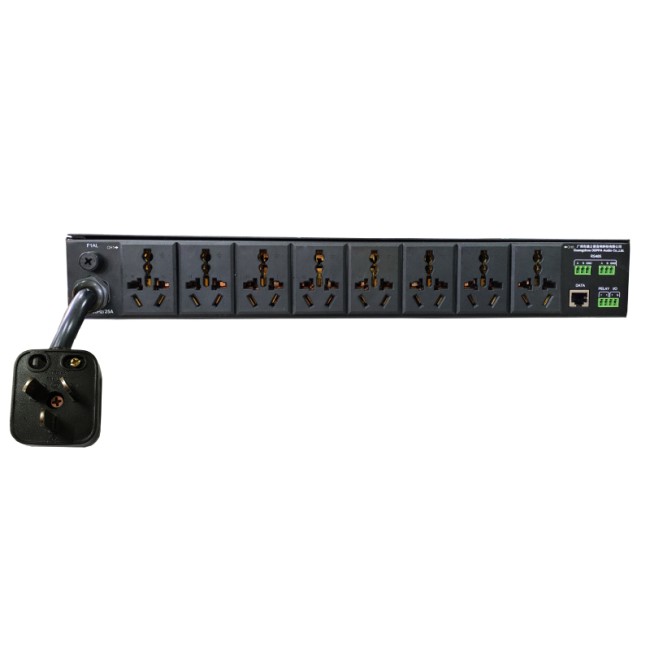

  • Provides 8 controllable 10A/16A power channels, allowing independent on/off control and customizable delay settings for each channel.
  • Front panel includes two 10A direct power outlets for temporary power supply.
  • Supports device setup and status viewing via rotary encoder.
  • Designed in a 1.5U rack-mount form factor; each channel features a universal socket compatible with various power plug standards.
  • Supports scheduling functions with timing plans available for weekly cycles or specific non-repeating time periods, enabling automatic channel on/off control.
  • Includes one RS485 serial port for seamless integration with central control systems.
  • Supports RS485 serial cascading, allowing remote centralized control of up to 16 intelligent power managers.
  • Supports device ID settings, with up to 16 assignable IDs.
  • Supports external short-circuit trigger signal control, enabling other devices to trigger the power manager’s startup, or allowing the power controller to trigger other connected devices.
  • Supports password protection for accessing the settings menu, which can be enabled or disabled as needed.
  • The intelligent power controller can be remotely switched on/off via its control panel.
  • Supports remote power control and setup operations via a 4-inch touch control panel.
  • Widely applicable in multimedia classrooms, multi-purpose halls, conference rooms, projection splicing systems, video conferencing, monitoring centers, building control systems, and management/command centers.
Overview Specifications Related Products Solutions Latest News & Cases

The D6720 Intelligent Power Controller is an innovative solution engineered for efficient and flexible power management. It offers a comprehensive suite of features, including real-time voltage monitoring, a user-friendly interface, and precise control over eight power channels. This makes it an ideal choice for integration into modern facilities requiring automated and centralized power control systems.


Specifications of Intelligent Power Controller D6720


Model

D6720

Power Input

8-channel Universal  Socket + 2-channel Direct Socket

Single-channel Maximum Load

16A

Control Methods

Panel Buttons, RS485, External Short-Circuit Signal, Touch Control Panel

Power  Capacity

Total Capacity 220V, 25A, 5500W

Input Power

AC220/50Hz

Sequence Interval

0-999s

Package Size (L×W×H mm)

535×395×130mm

Product Size (L×W×H mm)

483×240×66mm

Net Weight

4.3kg

Gross Weight

5.6kg
