Home Professional AudioActive Line Array SystemActive Line Array Speaker System Compact Active Array Loudspeaker System LA-8300 LA-212SUB

20Hz–20KHz

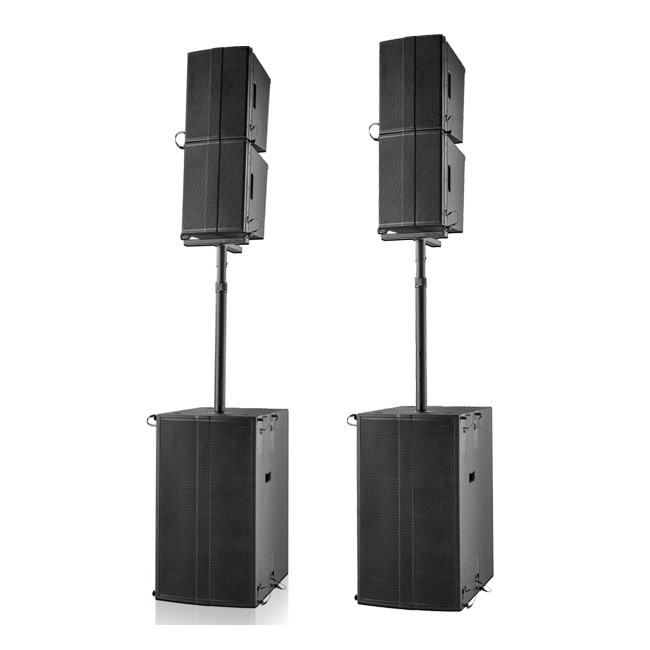

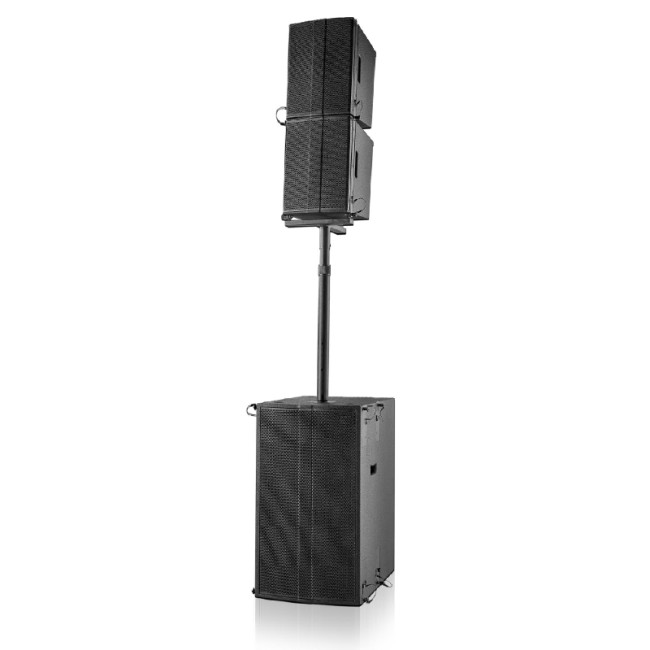

Compact Active Array Loudspeaker System

LA-8300 LA-212SUB
  • Utilizes imported neodymium magnetic drivers for superior electroacoustic performance.
  • Incorporates a built-in DSP audio processing module enabling precise system calibration and fine-tuning.
  • Employs a high-power single-channel Class-D active amplifier module for efficient power delivery.
  • Characterized by a compact footprint, lightweight construction, and high operational efficiency.
  • Designed for portability and ease of installation, facilitating rapid deployment.
  • Suitable for a wide range of applications, including churches, conference rooms, theaters, theme parks, museums, and hotels.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

The LA-8300 features eight 3-inch high-efficiency neodymium midrange drivers and eight 1-inch direct-radiating neodymium tweeters. All transducers are sourced from Lavoce, an Italian premium loudspeaker component manufacturer, delivering high midband efficiency, ample energy reserves, transparent tonal character, and crisp, articulate high-frequency response.



The system employs a compact, high-strength enclosure constructed via precision CNC machining combined with complex interlocking joinery for superior pressure resistance. The cabinet surface is finished with water-based eco-friendly paint, offering both wear resistance and an aesthetically refined appearance. The loudspeaker system is complemented by two 12-inch neodymium woofers, providing full-bodied, powerful low-frequency extension with authoritative depth.



A high-power single-channel Class-D amplifier module with integrated DSP filtering and control system enables convenient storage and recall of scene-specific presets, ensuring faithful sound reproduction and system stability across diverse application scenarios. The amplifier module is equipped with an active cooling mechanism to facilitate heat dissipation and maintain operational reliability. Professional-grade rigging hardware is incorporated, allowing effortless adjustment of the speaker's suspension angle to achieve optimal coverage based on site-specific requirements. The system is designed to work in conjunction with the LA-8300 compact line array loudspeaker.



Specifications of Compact Active Array Loudspeaker System LA-8300 LA-212SUB


Model

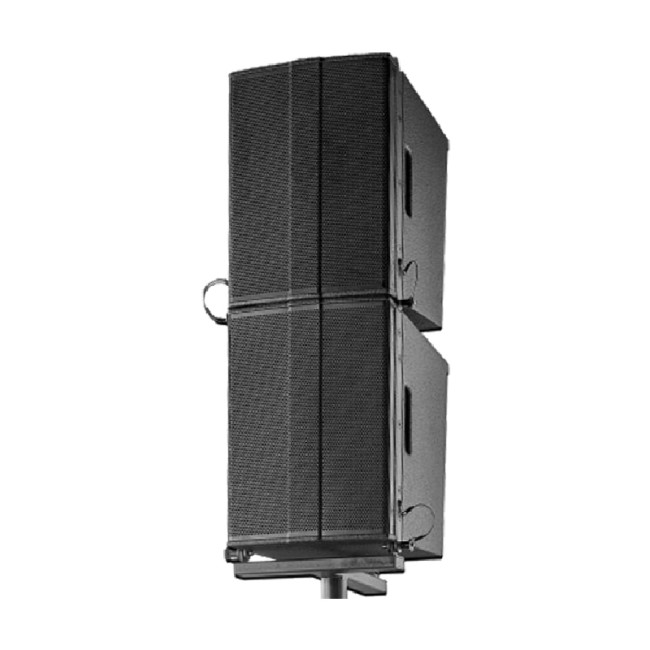

LA-8300

Unit Component

MF 8×3" neodymium magnetic unit, HF 8×1" neodymium magnetic unit, with cooling module

Horn Coverage (-6dB)

120°(H)×16°(V)

MAX. SPL. (PEAK)

124dB (continuous)\130dB (peak)

Frequency Range (±0.25dB)

20Hz–20KHz

Signal Processing

48kHz, 24-bit DSP processor, delay: input 120ms/output 20ms, filter, EQ, compressor, limiter

Amplifier Power

Class-D, 8Ω/2×300W

Speaker Power

350W

S/N Ratio

＞100dB

Damping Factor

＞300 (under the condition of 8Ω load, 400kHz)

Distortion

＜0.05% (under the condition of 20Hz~20KHz, 8Ω load, 3dB)

Gain

34dB

Signal Input/Output

XLR 3-pin female line-level input

Power Input/Output

Neutrik PowerCon (Max: 15A)

Power Supply

AC100~240V, 50/60Hz

Control

On/Off switch

Protection

Input current limiter, short circuit protection, on/off mute, DC fault protection, power limiter

Case Material/Painting

15mm selected multi-layer wood panel, black polyurea paint

Product Dimensions (H×W×D)

360mm×260mm×288mm

Net Weight

13Kg

Model

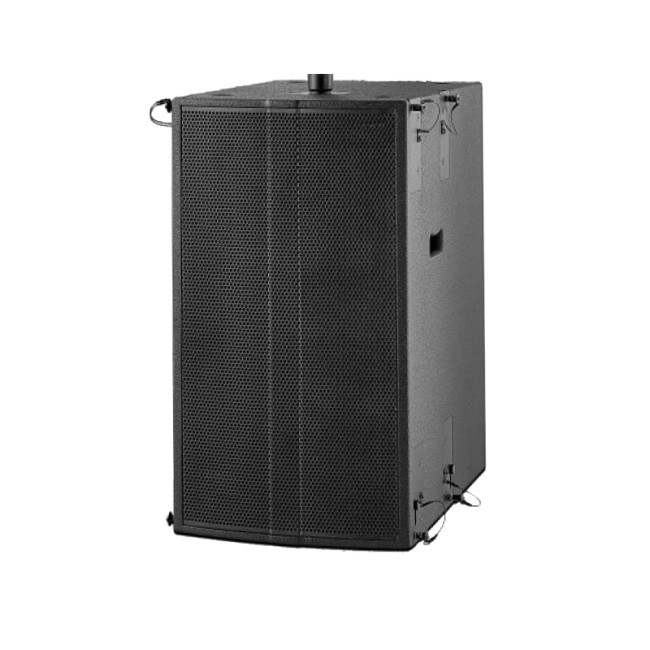

LA-212SUB

Unit Component

LF 2×12" (300mm) neodymium magnetic woofer

MAX. SPL. (PEAK）

134dB

Frequency Response (±3dB)

50Hz–300Hz

Digital Amplifier Module

DSP processor, class-D amplifier

Amplifier Channel/Power

Single channel, 1500W/8Ω

Subwoofer Power

800W

THD

＜0.1%

Input/Output

XLR (balanced)

Power Supply

AC110V~250V, 50Hz/60Hz

Product Dimensions (H×W×D)

706mm×400mm×580mm

Net Weight

38.5Kg
