Home Professional AudioActive Line Array SystemActive Line Array Speaker System 1000W Professional Active Subwoofer LA1423SA

35Hz–220Hz

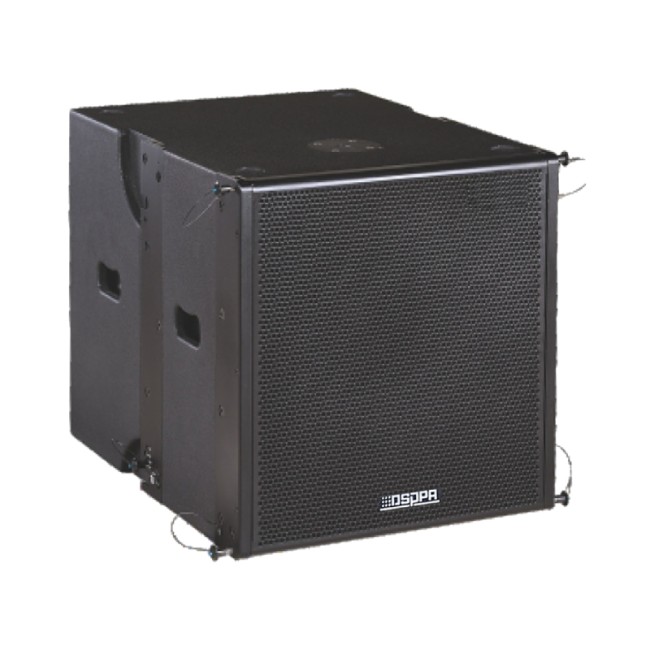

1000W Professional Active Subwoofer

LA1423SA
  • The enclosure is constructed from marine-grade plywood, ensuring high reliability and structural integrity; all metal hardware is fabricated from high-quality aluminum alloy.
  • Driven by a high-peak-capacity switch-mode power supply (SMPS) coupled with a dedicated Class-D power amplifier module.
  • Equipped with a long-throw woofer engineered to deliver authoritative low-frequency extension and high-impact bass response.
  • Optimized for mobile and portable sound reinforcement applications, facilitating rapid deployment and transport.
Overview Specifications Related Products Solutions Latest News & Cases

It is featuring an 18-inch bass driver and a Class-D amplifier module, delivering powerful and articulate low-frequency reproduction. Its extended frequency response and high peak power capacity make it ideally suited for mobile applications, ensuring dynamic and engaging audio performance in a variety of deployment scenarios.



specifications of 1000W Professional Active Subwoofer LA1423SA


Model

LA1423SA

Drive Unit

18” Bass×1

Frequency Response

35Hz–220Hz

Speaker Sensitivity (1m, 1W)

99±2dB

Max. SPL

127±2dB

Active Signal Input Impedance

20kΩ

Amplifier Power

1000W

Amplifier Input Sensitivity

0.775V

Amplifier Distortion

＜0.05%

Working Voltage

AC190V~240V/50Hz

Color

Black

Dimension (W×D×H)

582mm×660mm×520mm

Weight

49kg
