Home Professional AudioActive Line Array SystemActive Line Array Speaker System 800W Professional Active Subwoofer LA1422SA

38Hz–220Hz

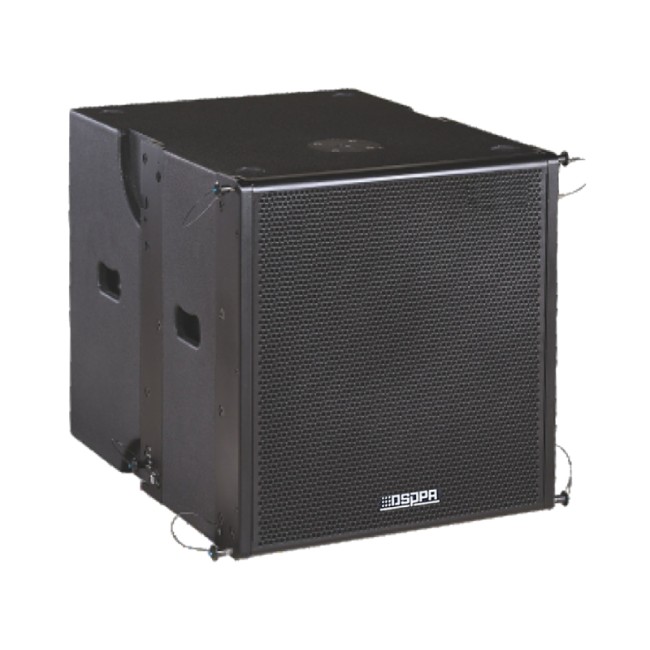

800W Professional Active Subwoofer

LA1422SA
  • Rated power: 800W
  • Driver configuration: 18-inch × 1
  • Maximum SPL: 127±2dB
  • Sensitivity: 99±2dB
  • Frequency response: 38Hz–220Hz
  • Dimensions: 500mm × 650mm × 705mm
  • Net weight: 44kg
  • Amplifier output power: 1000W
  • Power supply: AC190–240V / 50Hz
Overview Specifications Related Products Solutions Latest News & Cases

The LA1422SA is an active subwoofer featuring a high-output 18-inchwoofer with a 100mm voice coil, housed within a bass-reflex enclosure optimized through computer-aided design. The system delivers distortion-free performance at high output levels, characterized by tight, impactful low-frequency response with extended depth and minimal transient smear. The enclosure is constructed from high-density plywood and finished with a durable, waterproof textured coating. An all-aluminum suspension system supports both ground-stacked and flown configurations, making the system well suited for live performances, corporate events, and entertainment venues.



Specifications of 800W Professional Active Subwoofer LA1422SA


Model

LA1422SA

Rated Power

800W

Drive Unit

 LF18″×1

Frequency Response

38Hz–220Hz

Speaker Sensitivity (1m, 1W)

99±2dB

Max. SPL

127±2dB

Amplifier Output Power

1000W

Amplifier Input Impedance

20kΩ

Amplifier Input Sensitivity

0.775V

Amplifier Distortion

＜0.05%

Active Speaker Power Interface

Power Con

Power Supply

AC190-240V/50Hz

Color

Black

Product Dimension (W×H×D)

500mm×650mm×705mm

Weight

44kg
