In large indoor spaces, delivering clear and consistent sound is not simply a matter of installing more powerful loudspeakers. Sound must reach the intended listening area while minimizing unnecessary reflections from ceilings, walls, and other surfaces. This is particularly important in churches, auditoriums, lecture halls, and conference venues where speech intelligibility is a priority.

Digital steerable speakers use digital signal processing (DSP) to control sound directivity, allowing the main sound beam to be adjusted electronically to better match the audience area. Often designed as phased array column loudspeakers, these systems offer an alternative to conventional speakers whose coverage is primarily determined by their physical orientation and acoustic design.

Understanding how loudspeaker beam steering works, where it provides practical benefits, and how to select the right system can help integrators and consultants develop more effective sound reinforcement solutions.

What Are Digital Steerable Speakers?

Digital steerable speakers are loudspeaker systems that use multiple drivers and digital signal processing to adjust the direction of sound radiation. Rather than relying entirely on physically tilting the enclosure, they electronically control how sound waves combine to form the main sound beam.

Many digitally steerable column loudspeakers use a vertical array of drivers. By modifying the relative timing and amplitude of the signals sent to individual drivers, the system can change its vertical directivity within a designed operating range.

This approach is especially useful when speakers must remain fixed in position for architectural or installation reasons, but the sound coverage needs to be tailored to a particular seating arrangement.

Several related terms describe different aspects of this technology:

Beam steering refers to changing the direction of the main sound beam.

Digital directivity control describes the electronic adjustment of the loudspeaker's radiation pattern.

Phased array loudspeakers use multiple drivers whose combined output can be controlled through phase and amplitude relationships.

DSP-controlled loudspeakers use digital signal processing to manage audio signals and, depending on the design, control directivity and equalization.

These terms are closely related, but they are not interchangeable in every context. The actual capabilities of a loudspeaker depend on its driver configuration, processing architecture, and available control functions.

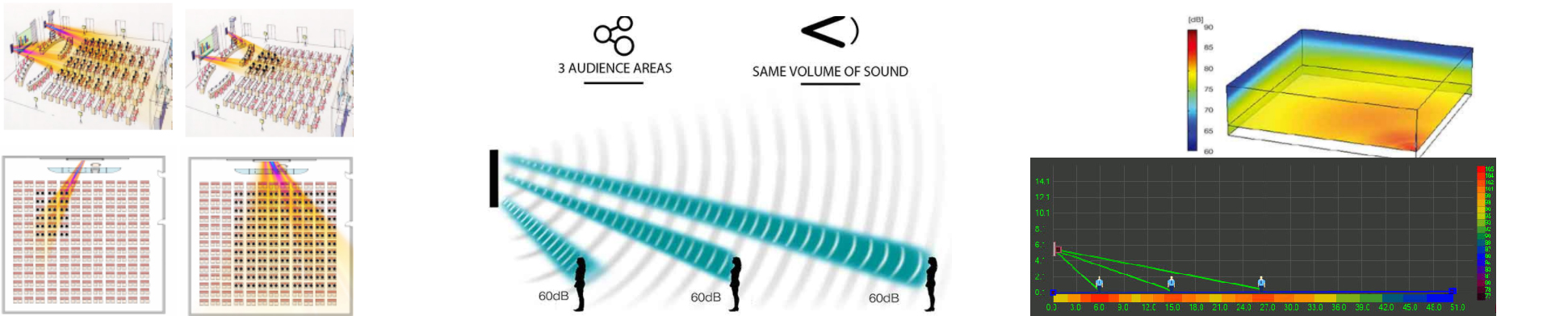

How Does Loudspeaker Beam Steering Work?

Loudspeaker beam steering relies on the interaction of sound waves generated by multiple drivers. When sound waves combine, their relative phase and amplitude influence the resulting radiation pattern.

A digital signal processor adjusts the signals sent to the drivers so that their combined output forms a main beam directed toward the intended listening area. By changing the processing parameters, the system can modify the beam's direction and coverage.

For example, a column speaker installed high on a wall may need to direct sound downward toward seated listeners rather than toward the ceiling. With electronically adjustable directivity, the installer can configure the sound beam to better match the audience area without necessarily changing the physical mounting angle.

Some advanced systems also support more complex beam configurations, allowing different audience zones to be addressed according to the system's design.

The result depends on more than the processing algorithm alone. Driver spacing, array length, operating frequency, installation height, audience distance, and room acoustics all influence how effectively the sound beam can be controlled.

Digital Beam Steering vs. Conventional Speaker Aiming

Conventional loudspeakers can be aimed by changing their physical orientation or mounting position. This remains an effective and economical approach for many applications.

Digital beam steering adds another level of control by adjusting the sound radiation electronically. This can be particularly valuable when a loudspeaker must remain in a fixed architectural position or when the audience area does not align well with the speaker's natural coverage pattern.

Consideration	Conventional Loudspeaker	Digitally Steerable Loudspeaker
Sound direction	Primarily determined by the enclosure orientation and acoustic design	Electronically adjustable within the designed operating range
Coverage adjustment	May require physical repositioning or mechanical aiming	Can often be configured through software or a control interface
Acoustic optimization	Relies on speaker placement, aiming, and room treatment	Adds digital directivity control to the design process
Installation flexibility	Depends on mounting access and physical positioning	Can reduce the need for physical repositioning for supported adjustments
System complexity	Often simpler to install and configure	Requires appropriate processing, configuration, and commissioning

Digitally steerable systems are not necessarily the best choice for every project. The decision should be based on the acoustic challenges, coverage requirements, installation constraints, and overall system budget.

Key Benefits of Digital Directivity Control

1. More Targeted Sound Coverage

In auditoriums, places of worship, and other large indoor spaces, the audience may occupy multiple seating levels or extend across a considerable distance. A fixed sound radiation pattern may not distribute audio evenly across these areas.

Adjustable sound directivity allows the main beam to be aligned more closely with the intended listening zone. This provides greater flexibility when designing coverage for sloped seating, elevated installations, and rooms with unusual geometry.

For system integrators, the objective is to deliver sufficient and consistent sound to the audience rather than simply increase overall output.

2. Support for Better Speech Intelligibility

Speech intelligibility is a major consideration in environments where listeners need to understand spoken information clearly. Examples include sermons, lectures, conference presentations, public announcements, and guided tours.

In reflective rooms, sound bouncing off ceilings and walls can overlap with direct sound and make speech harder to understand. By directing more sound toward the audience and reducing unnecessary radiation toward selected reflective surfaces, beam steering can help improve the balance between direct and reflected sound.

Some digitally steerable loudspeakers also include dedicated signal processing to support operation in acoustically challenging environments.

However, beam steering does not eliminate room reverberation. The actual improvement in speech clarity depends on the room's reverberation time, background noise, speaker placement, system tuning, and the listener's position. Acoustic treatment may still be necessary in highly reverberant spaces.

3. Flexible Adjustment in Fixed Installations

Architectural requirements often restrict where loudspeakers can be mounted. In churches, historic buildings, and public interiors, moving a speaker after installation may be difficult or undesirable.

A digitally steerable column loudspeaker can provide electronic adjustment of sound direction without necessarily requiring physical repositioning. Depending on the model, installers may use a web-based interface or dedicated software to configure directivity and other audio parameters.

This flexibility can simplify adjustments during commissioning and help the system accommodate the actual audience layout.

4. Integration with a Wider Sound Reinforcement System

A digital steerable speaker system may form part of a larger professional audio installation that includes audio matrices, microphones, amplifiers, passive extension speakers, and subwoofers.

The exact configuration depends on the product architecture. Some systems integrate amplification and processing into the loudspeaker, while others require additional external equipment.

For applications that combine speech reinforcement and background music, designers should consider directivity, frequency response, maximum sound pressure level, input compatibility, and low-frequency requirements together.

Where Are Phased Array Column Loudspeakers Used?

Digitally steerable column loudspeakers are particularly relevant to indoor spaces where speech coverage, room acoustics, or architectural constraints make conventional speaker placement more challenging.

Churches and Places of Worship

Churches and other places of worship often combine sermons, spoken announcements, music, and congregational participation. High ceilings, hard surfaces, long reverberation times, and extended seating areas can create challenges for speech reinforcement.

A steerable column loudspeaker can help direct sound toward the congregation while reducing unnecessary radiation toward selected reflective surfaces. System design should account for the building's dimensions, seating layout, mounting height, reverberation, and musical requirements.

Auditoriums and Lecture Halls

Auditoriums and lecture halls may have tiered seating, long audience areas, and speakers installed above or beside the stage. The sound system must provide adequate coverage across the seating area while supporting clear speech.

Electronically adjustable column speakers allow designers to refine vertical coverage according to the venue's geometry. They can be worth considering when conventional aiming alone cannot achieve the desired balance between direct sound and reflections.

Conference Rooms and Meeting Spaces

Conference rooms require clear speech for presentations, discussions, and remote meetings. Some rooms have reflective glass walls, hard ceilings, or layouts that limit speaker placement.

A directional column speaker system may help concentrate sound within the intended listening area. Nevertheless, the full design must also consider microphone placement, acoustic echo cancellation, background noise, and the room's overall acoustic characteristics.

Museums, Exhibition Spaces, and Public Buildings

Museums and public buildings may require intelligible announcements or localized audio while maintaining a visually unobtrusive interior.

Controlling sound directivity can help limit unnecessary sound spill into adjacent areas, depending on the loudspeaker's capabilities and the layout of the space. This makes digital directivity control a potential option for installations where both coverage and architectural integration matter.

How to Choose the Right Digital Steerable Speaker System

Choosing a digitally steerable loudspeaker involves more than comparing amplifier power or driver count. The system should match the venue's acoustic conditions, coverage requirements, and intended use.

1. Start with the Venue Layout

Review the room dimensions, ceiling height, seating arrangement, audience distance, and possible speaker mounting positions.

A floor plan or seating drawing can help establish the required coverage angle and identify areas that may be difficult to reach. For larger projects, the design should be evaluated against the actual audience geometry rather than estimated from room size alone.

2. Evaluate the Acoustic Environment

Identify reflective surfaces, reverberation characteristics, background noise, and any existing acoustic treatment.

Beam steering can help manage the direction in which sound is radiated, but it cannot compensate for every acoustic problem. In highly reverberant rooms, acoustic treatment and careful loudspeaker placement may be just as important as the choice of speaker technology.

3. Check the Available Beam Control

Review the system's adjustable vertical coverage, directivity settings, control interface, and configuration options.

Some products provide a visual representation of the radiation pattern through a software or web-based interface. Such features can make setup easier, but the resulting coverage should still be checked against the project's requirements.

4. Match Sound Pressure and Frequency Requirements

The loudspeaker must provide adequate sound pressure across the listening area without being operated beyond its intended limits.

Review the maximum SPL, frequency response, coverage pattern, audience distance, and expected program material. A system designed primarily for speech may have different requirements from one expected to reproduce music at higher levels.

5. Plan the Complete Audio Configuration

Consider whether the project requires additional loudspeakers, passive extension columns, subwoofers, audio processing, or connections to an existing PA system.

Confirm compatibility between the components before finalizing the design. If the venue needs both intelligible speech and full-range music, the low-frequency response and overall system configuration should be evaluated alongside directivity.

6. Consider Installation and Commissioning

Check how the speaker is mounted, configured, adjusted, and maintained. Consider whether installers can access the control interface and whether the system can be tuned after the venue is occupied.

For acoustically demanding projects, it is advisable to request a system recommendation based on the room dimensions, seating plan, and intended audio applications.

A Practical Example of DSP-Based Beam Control

One example of digitally steerable loudspeaker technology is the DSP1500 phased array column loudspeaker.

The system combines multiple full-range drivers with an integrated multi-channel amplifier and digital signal processing. Its directivity control allows the vertical sound beam to be adjusted, while a web-based interface supports visualization and configuration of the radiation pattern.

The system also incorporates sidelobe suppression processing and onboard FIR and IIR equalization. These functions provide additional tools for shaping sound coverage and tuning audio performance in fixed installations.

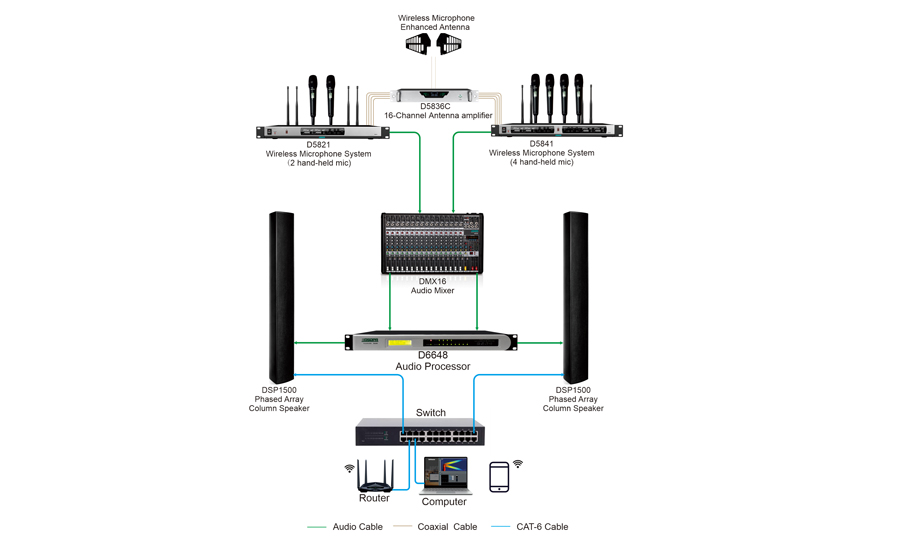

Depending on the project requirements, compatible extension speakers and a dedicated subwoofer can also be considered as part of the wider audio system.

This type of configuration illustrates how phased array column loudspeakers can apply digital beam steering to practical sound reinforcement challenges. Its suitability for a specific venue should still be evaluated against room acoustics, audience layout, required SPL, and installation conditions.

For more details, see theDSP1500 product specifications.

Frequently Asked Questions

What is the difference between beam steering and directivity control?

Beam steering refers to changing the direction of a loudspeaker's main sound beam. Directivity control is a broader term describing the adjustment or management of the loudspeaker's sound radiation pattern. Beam steering is one method of achieving directivity control.

How do digitally steerable loudspeakers improve speech intelligibility?

They can help by directing more sound toward listeners and reducing unnecessary radiation toward selected reflective surfaces. The effectiveness depends on room reverberation, background noise, speaker placement, and system configuration.

Can phased array column speakers eliminate reverberation?

No. They can help manage sound radiation, but they cannot completely eliminate reverberation within a room. Highly reflective spaces may require acoustic treatment and careful system tuning.

Are steerable column loudspeakers suitable for churches?

They can be suitable for churches where controlled speech coverage is important, particularly when high ceilings, reflective surfaces, or extended seating areas complicate conventional speaker aiming. A site-specific assessment is needed to determine the appropriate system.

Can sound directivity be adjusted after installation?

Many digitally steerable systems support electronic adjustment through software or a control interface. The available range of adjustment depends on the product, and the final configuration should be verified in the installed environment.

What should be considered when selecting a beam steering speaker system?

Key factors include venue dimensions, audience layout, mounting height, required coverage angle, room reverberation, maximum SPL, frequency response, configuration options, and compatibility with other audio equipment.

Conclusion

Digital beam steering provides sound system designers with greater flexibility in controlling how audio is distributed throughout a space. By combining multiple drivers with digital signal processing, digitally steerable loudspeakers can help target the audience area, manage unwanted reflections, and support speech intelligibility in challenging indoor environments.

The right solution depends on the venue's geometry, acoustic conditions, sound pressure requirements, and intended applications. Evaluating these factors together is essential to achieving reliable coverage and clear audio.

For a project-specific recommendation, prepare the venue dimensions, seating plan, installation constraints, and intended audio applications. These details provide a practical starting point for selecting a suitable column loudspeaker or phased array sound reinforcement system.
