70V/100V & 8Ω Inputs

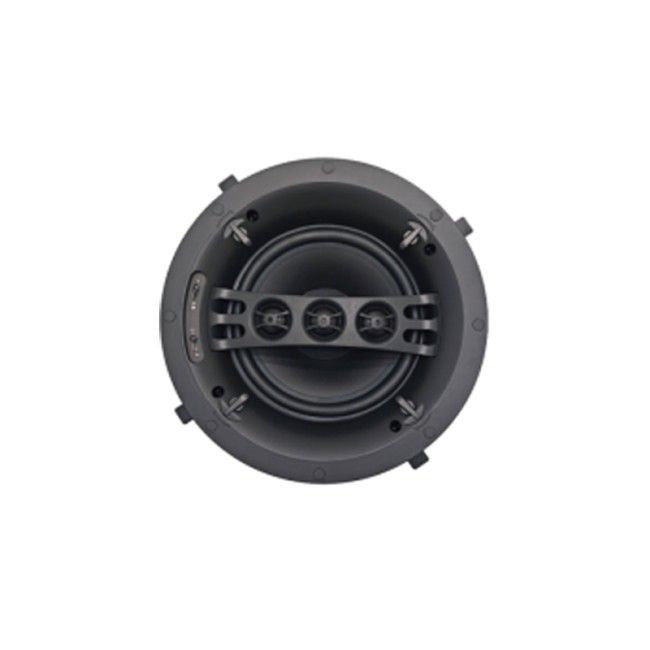

6.5-Inch / 8-Inch Three-Tweeter In-Ceiling Speaker

DSP6306 DSP8308
  • Three-tweeter design delivers clear, detailed high-frequency performance and wide sound coverage.
  • Equipped with a 6.5-inch or 8-inch woofer for balanced wide-band sound reproduction.
  • Supports 70V/100V constant-voltage and 8Ω constant-impedance inputs for flexible system integration.

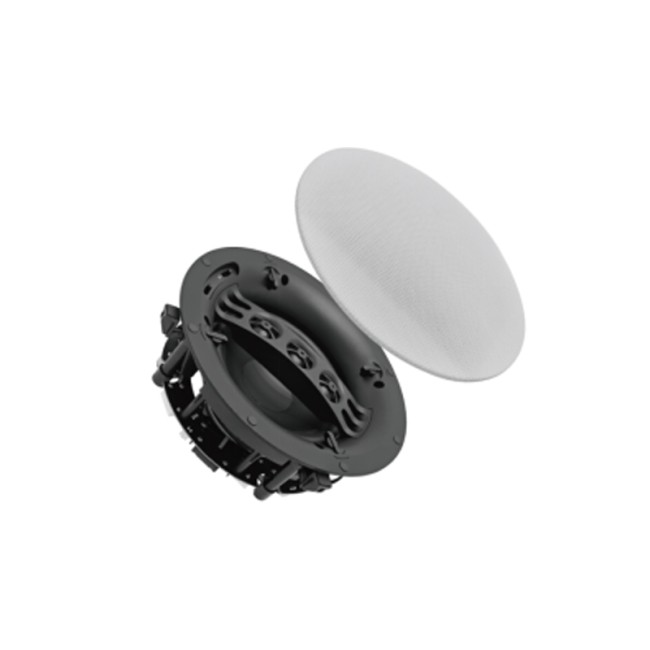

  • Quick-install design simplifies installation and improves installation efficiency.
  • Suitable for background music, public address, and voice reinforcement applications.
  • Ideal for hotels, restaurants, clubs, and other commercial spaces.
Overview Specifications Related Products Solutions Latest News & Cases

The DSP6306 and DSP8308 are in-ceiling speakers featuring a three-tweeter design for clear and balanced wide-band sound reproduction. Available with 6.5-inch and 8-inch woofers respectively, they support 70V/100V constant-voltage and 8Ω constant-impedance inputs for flexible installation in both public address and background music applications. The quick-install design makes them suitable for hotels, restaurants, clubs, commercial spaces, and other venues.



Model

DSP6306

DSP8308

Driver Units

6.5"×1, 0.75"×3

8"×1, 1"×3

Rated Power

40W

50W

Input

Constant Voltage

70V/100V

70V/100V

Constant Impedance

Frequency Response

55 Hz–20 kHz

50 Hz–20 kHz

Sensitivity

88 dB

90 dB

Maximum SPL

104 dB

107 dB

Cutout Size

204 mm

251 mm

Depth

109 mm

119 mm

Product Dimensions

231 mm × 114 mm

281 mm × 128 mm
