Home Professional AudioActive Line Array SystemActive Line Array Speaker System Compact Active Array Loudspeaker System LAM1432 LAM1432SA

65Hz – 18 kHz, 40Hz – 220Hz

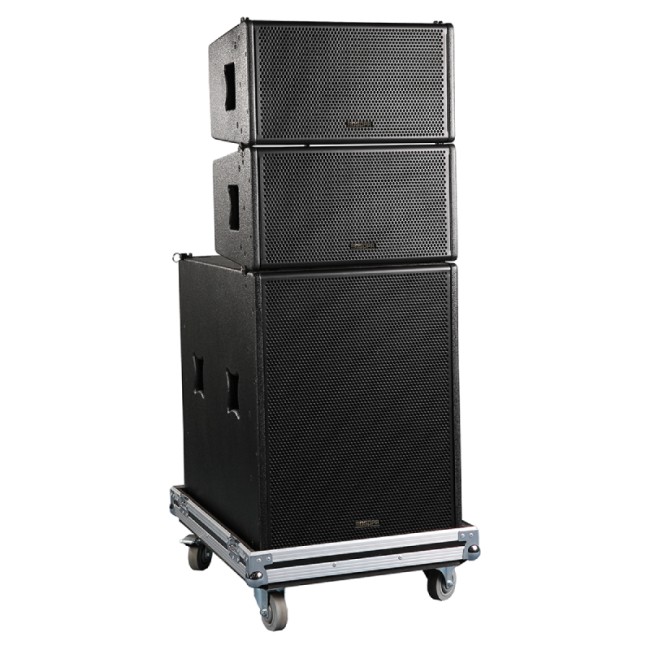

Compact Active Array Loudspeaker System

LAM1432 LAM1432SA
  • A compact line array loudspeaker system featuring an integrated digital signal processing (DSP) engine.
  • Characterized by a diminutive footprint and sleek aesthetic, supplied with a dedicated flight case for enhanced portability and rapid deployment.
  • Integrated design streamlines installation and ensures straightforward operation.
  • Enclosure incorporates wear-resistant surface treatment, complemented by all-aluminum suspension hardware for durable and reliable rigging.
  • The system is ideally suited for a wide array of applications, including small-scale mobile performances, sports arenas, theaters, nightclubs, banquet halls, and similar venues.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

The LAM1432 is a compact two-way passive loudspeaker system. The system comprises two 1.75-inch neodymium high-frequency drivers and a single 10-inch neodymium low-frequency driver, forming a configuration with substantial headroom that delivers an exceptionally high SPL-to-weight ratio. A specially designed midrange phase plug is positioned in front of the woofer to mitigate comb-filtering interference in the midband and optimize off-axis directivity. The tweeter section is coupled with a plane-wave transducer to ensure coherent wavefront propagation.



The LAM1432SA is an actively powered planar-waveguide loudspeaker system purpose-built to extend the low-frequency response of the LAM1432. This subwoofer features an 18-inch neodymium long-excursion driver. The LAM1432SA employs an all-steel rigging system, allowing for both ground-stacked and flown configurations in combination with the LAM1432. The enclosure is constructed from 13-ply plywood and finished with a durable textured coating. A built-in three-channel digital power amplifier module is integrated to simultaneously drive one LAM1432SA and two LAM1432 units. The system incorporates a one-input, three-output DSP audio processing module for precise tonal calibration, and enables remote parameter adjustment via an RJ45 network interface connecting to a PC.



It is worth noting that in this combined system, the LAM1432 utilizes all-neodymium Celestion drivers sourced from the UK, delivering clear, detailed, and natural sonic character. The LAM1432SA features an 18-inch Celestion low-frequency driver with a 100 mm voice coil and 220 mm magnetic circuit, producing powerful and stable bass response. Its built-in German-engineered amplifier module and original German DSP processor ensure precise signal processing, system stability, and wide dynamic range. Together, they form an upgraded system that delivers high-fidelity, detailed, and well-layered sound reproduction.



Specifications of Compact Active Array Loudspeaker System LAM1432 & LAM1432SA


Model

LAM1432

Unit Structure

10”MF×1, 1.75”HF×2

Frequency Response

65 Hz – 18 kHz

Sensitivity

MF: 96±2dB / HF: 104±2dB

MAX. SPL.

MF: 120±2dB / HF: 126±2dB

Continuous Power (AES)

MF: 350W / HF:120W

Rated Impedance

MF: 8Ω / HF: 16Ω

Single Speaker Directivity (H×V)

100°×10°

Color

Black

Dimensions (W×H×D)

500mm×296mm×342mm

Weight

21kg


Model

LAM1432SA

Unit Structure

18" woofer ×1

Frequency Response

40Hz – 220 Hz

Speaker Sensitivity (converted to 1m, 1W)

99±2dB

MAX. SPL.

127±2dB

Active Signal Input Impedance

20 kΩ

Amplifier Power

4×900W

Continuous Power

800W (AES)

Amplifier Input Sensitivity

0.775V

Amplifier Distortion

＜0.05%

Working Voltage

AC100V~240V50/60Hz

Color

Black

Dimensions (W×H×D)

500mm×650mm×705mm

Weight

49kg
