Home Professional AudioActive Line Array SystemActive Line Array Speaker System Compact Mobile Line Array Loudspeaker System LAM1430 LAM1430SA

65Hz–18kHz, 65Hz–18kHz

Compact Mobile Line Array Loudspeaker System

LAM1430 LAM1430SA
  • A compact line array loudspeaker system featuring an integrated digital signal processing (DSP) engine.

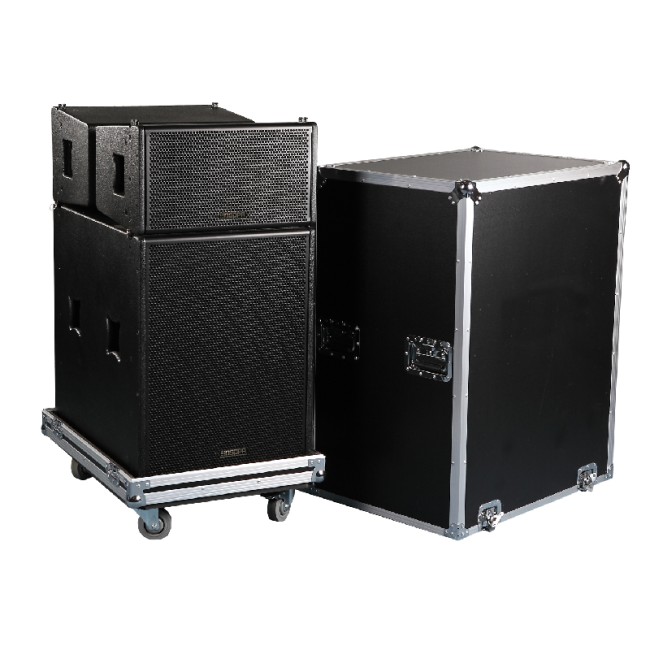

  • Characterized by its diminutive footprint and sleek aesthetic, supplied with a dedicated flight case for enhanced portability and rapid deployment.
  • Integrated design streamlines installation and ensures straightforward operation.
  • Enclosure incorporates wear-resistant surface treatment, complemented by all-aluminum suspension hardware for durable and reliable rigging.
Overview Specifications Related Products Solutions Latest News & Cases

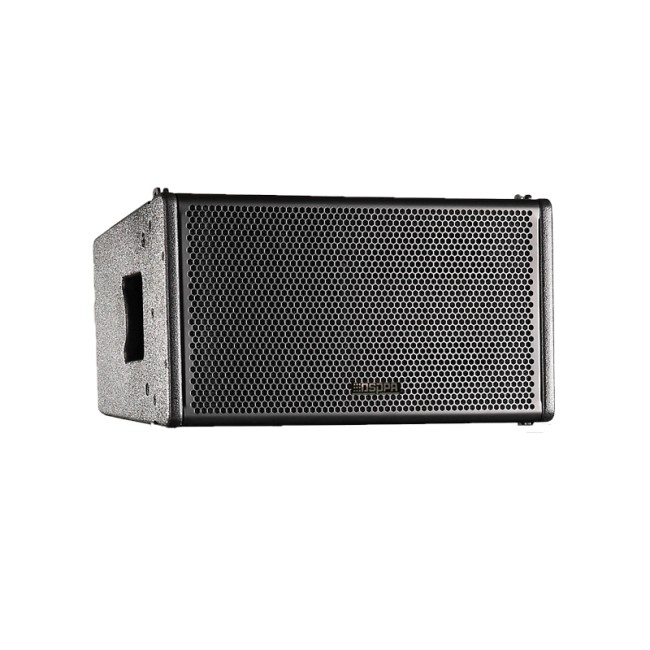

The LAM1430 is a compact two-way passive loudspeaker system engineered for high-efficiency sound reinforcement. The system comprises two 1.75-inch tweeters and a single 10-inch woofer, forming a driver configuration with substantial headroom that delivers an exceptionally high SPL-to-weight ratio. A specially designed midrange phase plug is positioned in front of the woofer to mitigate comb-filtering interference in the midband and optimize off-axis directivity. The tweeter section is coupled with a plane-wave transducer to ensure coherent wavefront propagation and consistent coverage.

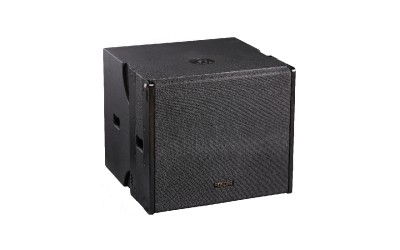

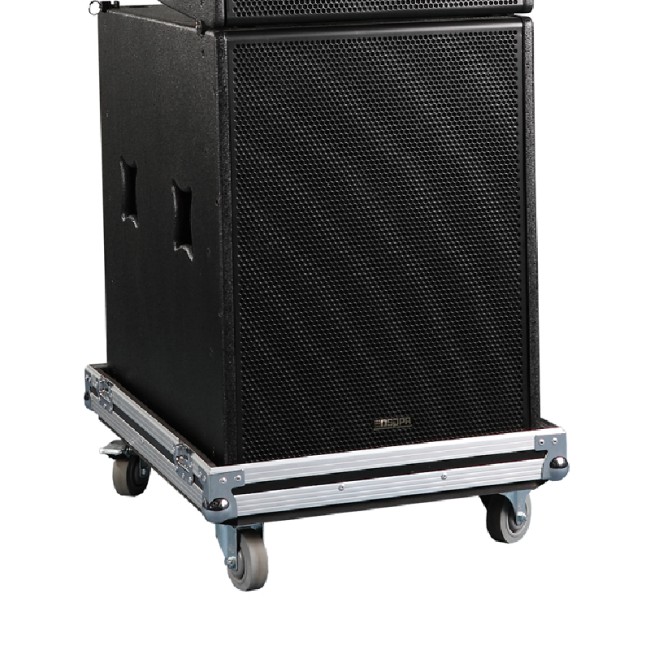

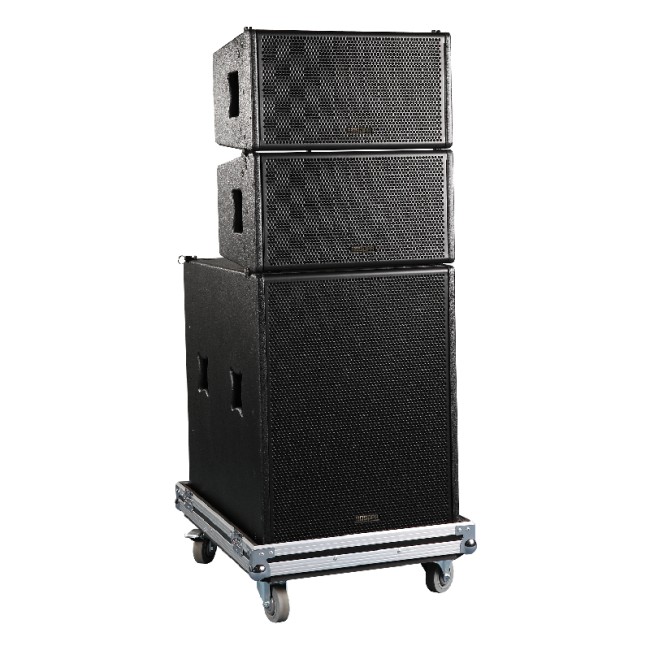

The LAM1430SA is an actively powered planar-waveguide loudspeaker system purpose-built to extend the low-frequency response of the LAM1430. This subwoofer features an 18-inch long-excursion driver with a 100mm voice coil for robust low-end output. The LAM1430SA employs an all-steel rigging system, allowing for both ground-stacked and flown configurations in combination with the LAM1430. The enclosure is constructed from 13-ply birch plywood and finished with a durable textured coating for enhanced resistance to wear and handling. An integrated digital power amplifier module is built into the LAM1430SA, capable of simultaneously driving one LAM1430SA and two LAM1430 units. The system incorporates a DSP-based audio processing module for precise tonal calibration and system optimization. Remote parameter adjustment and real-time control are enabled via an RJ45 network interface connecting to a PC.



The LAM1430 system is ideally suited for a wide array of applications, including small-scale mobile performances, sports arenas, theaters, nightclubs, banquet halls, and similar venues.



specifications of Compact Mobile Line Array Loudspeaker System LAM1430 & LAM1430SA


Model

LAM1430

Unit Structure

10”MF×1, 1.75”HF×2

Frequency Response

65Hz–18kHz

Sensitivity

MF: 96±2dB / HF: 104±2dB

MAX. SPL.

MF: 120±2dB / HF: 126±2dB

Continuous Power (AES)

MF: 350W / HF:120W

Rated Impedance

MF: 16Ω / HF: 16Ω

Single Speaker Directivity (H×V)

100°×10°

Color

Black

Dimensions (W×H×D)

500mm×296mm×342mm

Weight

21kg


Model

LAM1430SA

Unit Structure

18" woofer ×1

Frequency Response

40Hz–220Hz

Speaker Sensitivity (converted to 1m, 1W)

99±2dB

MAX. SPL.

127±2dB

Active Signal Input Impedance

20 kΩ

Amplifier Power

4x900W

Continuous Power

800W (AES)

Amplifier Input Sensitivity

0.775V

Amplifier Distortion

＜0.05%

Working Voltage

AC100~240V~50/60Hz

Color

Black

Dimensions (W×H×D)

500mm×650mm×705mm

Weight

49kg
