Home Professional AudioAudio ProcessorHot Sale Audio Processor 4 Input and 8 Output Professional Audio Processor with 4x4 Dante DP408T

-93dB(@0dBu,1kHz,A-wt)/Line

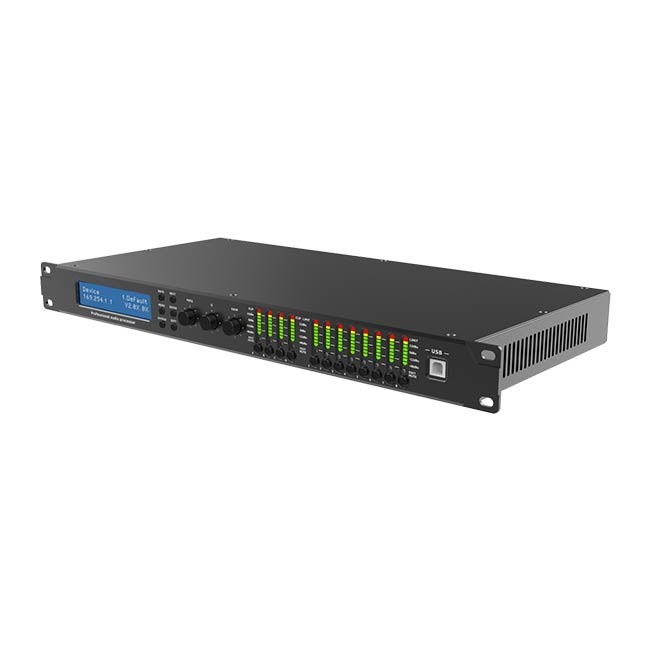

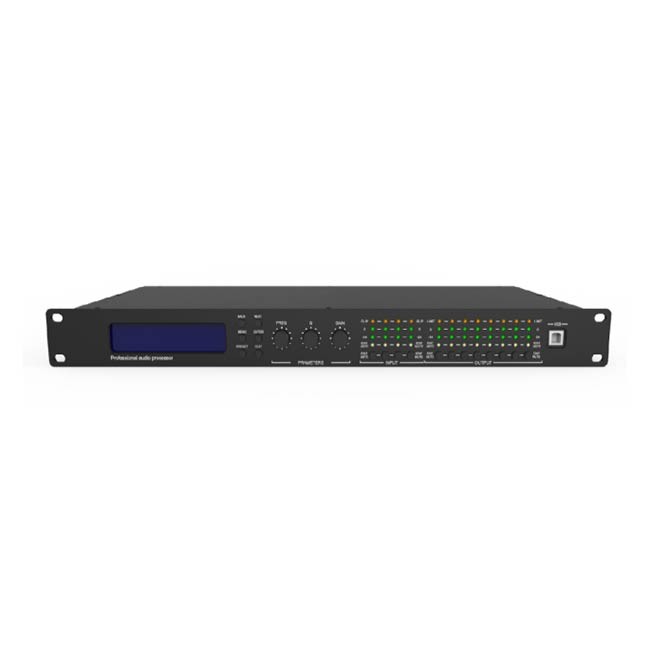

4 Input and 8 Output Professional Audio Processor with 4x4 Dante

DP408T
  • 4 analog inputs and 8 analog outputs.
  • Each input supports AES3 signal switching.
  • 4-channel Dante network audio optional.
  • High-performance DSP processing with 96kHz / 24-bit sampling rate.
  • 15-band PEQ for inputs and 10-band PEQ for outputs.
  • Supports HPF and LPF with Butterworth, Bessel, or Linkwitz-Riley characteristics. Supports LSLV and HSLV. Also supports ALL-PASS, band-pass, band-stop, phase, notch filters, and 3 types of high-pass and low-pass filters.
  • 3-band Dynamic EQ for inputs.
  • 4 × 512 Taps 48kHz FIR linear phase processing for inputs.
  • 8 × 512 Taps 48kHz FIR linear phase processing for outputs.
  • Standard FIR automatic linear phase function designer.
  • Supports preset archiving and locking for hiding setting parameters.
  • Control interfaces: USB or TCP/IP. Equipped with RS232 for central control integration.
  • User-friendly GUI software for Windows 7/8/10/11.
  • Colorful LED indicators for input and output signal status.
  • High analytical power and wide dynamic audio performance, suitable for stage, bar, and other high-end sound systems.
Overview Specifications Related Products Solutions Latest News & Cases

The DP408T is a 4-input, 8-output professional audio processor featuring high-performance DSP processing, Dynamic EQ, and FIR-based automatic linear phase correction. It supports multiple input signal formats: analog, AES3, and Dante network audio. The standard FIR designer integrated into MConsole provides automatic linear magnitude and phase adjustment, allowing users to easily configure speaker parameters.


Specifications of 4 Input and 8 Output Professional Audio Processor with 4x4 Dante DP408T


Model

DP408T

DSPProcess

Process

ADI SHARC 21489450MHz

SystemDelay

2.1ms

AD/DA

24-bit  96KHz

Analog Audio Input and Output

Input

4 Channels Balanced.

Input Interface

XLR

Input Impedance

20KΩ

MaxInputLevel

20dBu/Line

Dante in/out

4*4ChannelsOptional

Output

8ChannelsBalanced. LineLevel

Output Interface

XLR

Output Impedance

50Ω

Audio Performance Specification

Frequency Response

20Hz-20kHz(+-0.5dB)/Line

THD+N

-93dB(@0dBu,1kHz,A-wt)/Line

Ground Noise

20Hz-20kHz, A-wt, -93dBu

SNR

113dB(@16dBu,1kHz,A-wt)/Line

Connection Port andIndicator

USB

Type A-B,Free Driver

RS232

SerialPortCommunication

TCP/IP Interface

RJ-45

Indicator Light

Clip,Level,Edit,Mute

Electricaland PhysicalParameters

Supply

AC100V～240V50/60 Hz

Products Dimensions

483mmx265mmx44.5mm

Packaged Dimensions

537mmx343mmx77mm

Net Weight

3.8kg

Packaged Weight

4.2kg

OperatingTemperature

-20℃～80℃
