Home Professional AudioSequence Controller & PeripheralSequence Controller Remote Intelligent Power Sequence Controller with 3.2-Inch LED Screen D6578

AC110~240V ; 63A

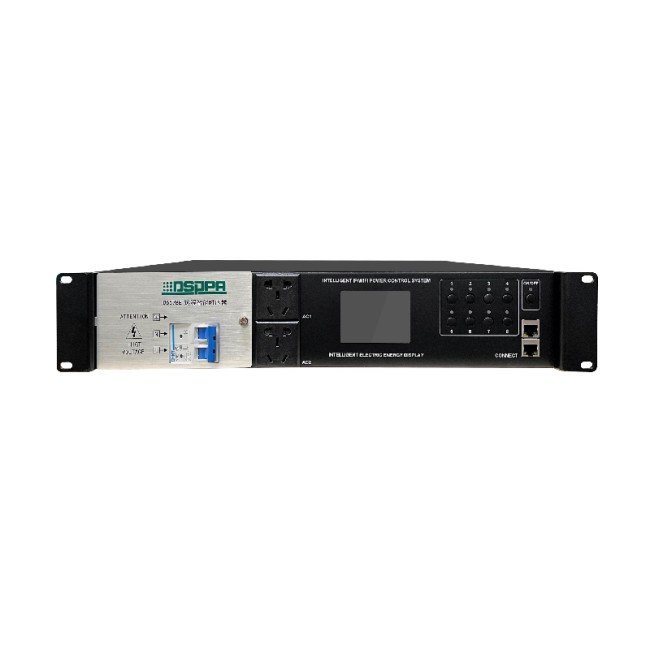

Remote Intelligent Power Sequence Controller with 3.2-Inch LED Screen

D6578
  • 2U rack-mounted design with refined appearance and high-quality construction.
  • 3.2-inch industrial-grade LCD screen displaying real-time electrical metrics per channel, date/time, weekday, switch status, mode, and scheduled points.
  • Screensaver function with customizable timeout settings.
  • Customizable on/off intervals per channel.
  • Independent control per channel and one-click sequential power on/off.
  • Built-in high-precision clock chip with automatic network time synchronization.
  • Scheduled power on/off with multiple timer configurations—no manual intervention required.
  • Real-time monitoring of voltage, power, and current, with per-channel current display.
  • Compatible with central control protocols; supports control via network port or serial port.
  • 1 short-circuit trigger output, 1 DC12V trigger output, and 1 short-circuit input.
  • Supports 220V touch-sensitive trigger input.
  • Fully isolated sampling for accurate power parameter monitoring.
  • Interfaces: DB9 RS-232, RJ45 RS-485, and RJ45 Ethernet.
  • Built-in web server for control and management via PC, smartphone, or tablet.
  • Configurable device ID with user-defined coding.
  • Supports cascading of multiple devices for centralized control.
  • 8 controllable universal sockets (compatible with 10A and 16A), 2 pass-through sockets, 2 USB 5V outputs, and 1 × 3.81mm green terminal 5V output.
  • Maximum input current: 63A; maximum output per channel: 16A; operating voltage: 110V–240V.
  • Built-in air switch protection.
  • Integrated speaker with user-configurable alarm volume.
  • Undervoltage/undercurrent and overvoltage/overcurrent warnings with auto shut-off and audible alerts.
  • Per-channel real-time current monitoring with limit setting and automatic shutdown on threshold breach.
  • Scene control: user-defined channel groupings for switching.
  • Custom naming available for each channel.
  • Temperature monitoring display.
  • Operation logs for system activity tracking.
  • Supports internet connectivity for remote control and firmware updates.
  • Built-in Wi-Fi hotspot for wireless control via direct device connection.
Overview Specifications Related Products Solutions Latest News & Cases

The multi-channel intelligent power manager delivers stable performance and supports centralized control via IP network or RS-232 connection to a central control system. It also integrates RS-485 networking functionality, enabling up to 254 units to be connected in a daisy-chain configuration through RJ45 input and output ports, with an alternative RS-485 connection available via Phoenix terminals on the rear panel. Once networked, the system supports sequential power-on/shutdown of 8×N outlets from front to back.

The device also features a built-in Wi-Fi AP mode, allowing users to log in for web-based management via various Wi-Fi terminals or a wired IP connection. Additional interfaces include one RS-232 serial port, one DC12V trigger output, one short-circuit output, one short-circuit input, one AC220V trigger input, and two standard panel-mounted AC pass-through power outlets.


Specifications of Remote Intelligent Power Sequence Controller with 3.2-Inch LED Screen D6578



Model

D6578

Input/Output Voltage

AC110~240V

Output Frequency

50Hz

Maximum Withstand Current

63A

Maximum Current for Single Channel

16A

Current Detection Accuracy

+/-0.1A

Voltage Detection Accuracy

+/-1V

Maximum Current for DC5VOutput

200mA

Output Channel

8Channels

EM Filter

Not Included

Set Time On/Off

1-120s

Timer

8Channels

Pass-Through Port

2 Channels

RS232

1Channels

RS485

1Channel

IP

1Channel

WIFI

AP Mode (Account: P2P0, Password: 12345678)

Weight

6kg

Package Dimensions

2U (550mm*300mm*150mm)
