Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker 300W Passive Line Array Full-Range Loudspeaker PL206

2×6.5" LF, 1×1.75" HF ; 150Hz–18kHz ; 300W

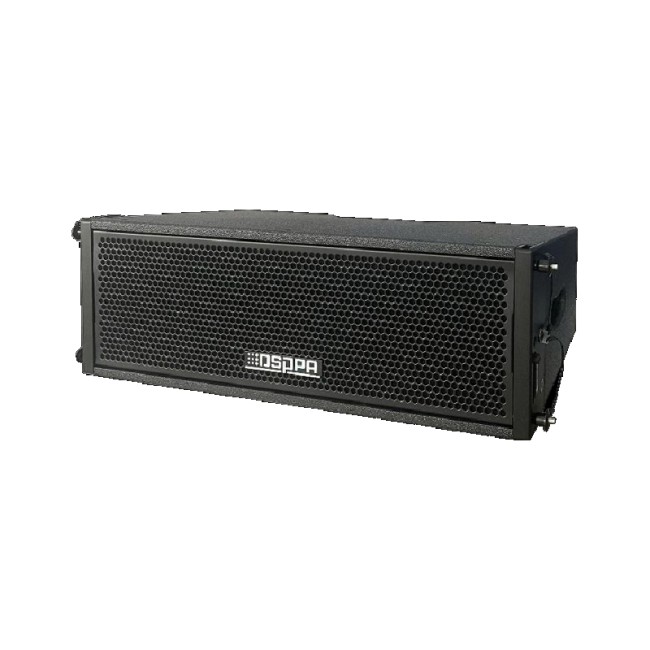

300W Passive Line Array Full-Range Loudspeaker

PL206
  • Features dual high-power 6.5-inch woofers and one 44mm compression driver, integrated with a precision-engineered crossover network for optimized acoustic performance.
  • Enclosure constructed from professional-grade high-density plywood and finished with a durable polyurea coating, making it well suited for a variety of indoor venues including auditoriums and multi-purpose halls.
  • Quick-release angle-adjustment mechanisms on both sides of the enclosure enable rapid flying or stacking of multiple units, facilitating continuous array coverage with extended throw and uniform sound distribution.
Overview Specifications Related Products Solutions Latest News & Cases

The PL206 is a compact yet high-output line array loudspeaker engineered to deliver clear and balanced sound reproduction across a wide frequency range of 150Hz to 18kHz. Featuring dual 6.5-inch low-frequency drivers and one 1.75-inch high-frequency driver, the system achieves high sensitivity and a maximum SPL of 119dB, with a rated power handling of 300W, making it well suited for indoor venues such as auditoriums and multi-purpose halls. Its rugged construction and flexible installation design ensure reliable performance across a wide range of professional applications.


Specifications of 300W Passive Line Array Full-Range Loudspeaker PL206


Model

PL206

System Configuration

2×6.5" LF, 1×1.75" HF

Frequency Response (±3dB)

150Hz–18kHz

Sensitivity

95±2dB

MAX. SPL

119±2dB

Input Impedance

8Ω

Rated Power

300W

Coverage(H×V)

120°×20°

Dimensions (H×W×D)

196×570×290mm

Net Weight

14.2kg

Related Passive Line Array Speaker

1×15" LF ; 50Hz–300Hz ; 600W

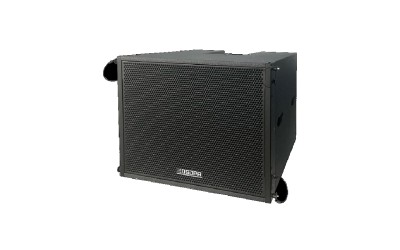

600W Professional Passive Line Array Subwoofer
