Home Professional AudioActive Line Array SystemActive Column Line Array Speaker System Professional Active Line Array Loudspeaker System DSP1280

35Hz-20KHz(±3dB)

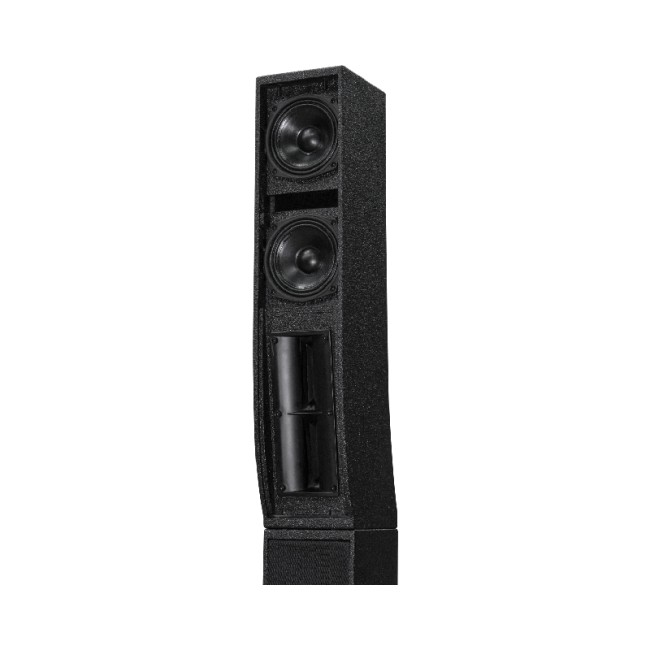

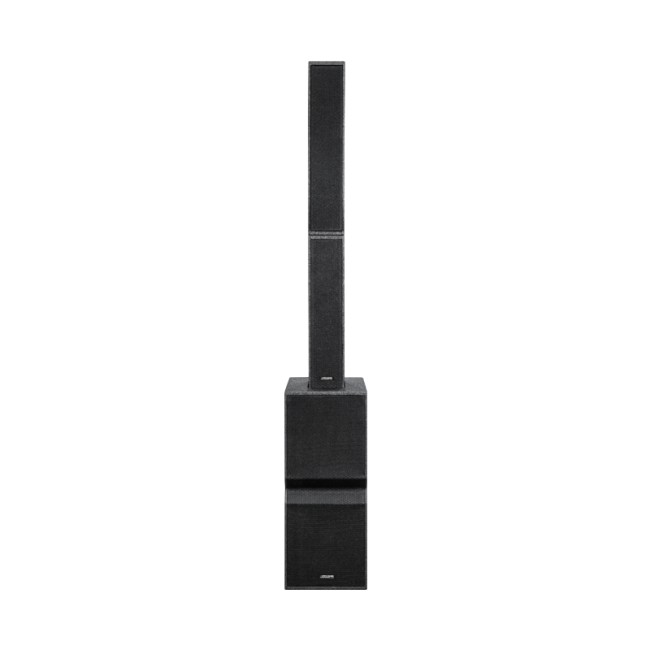

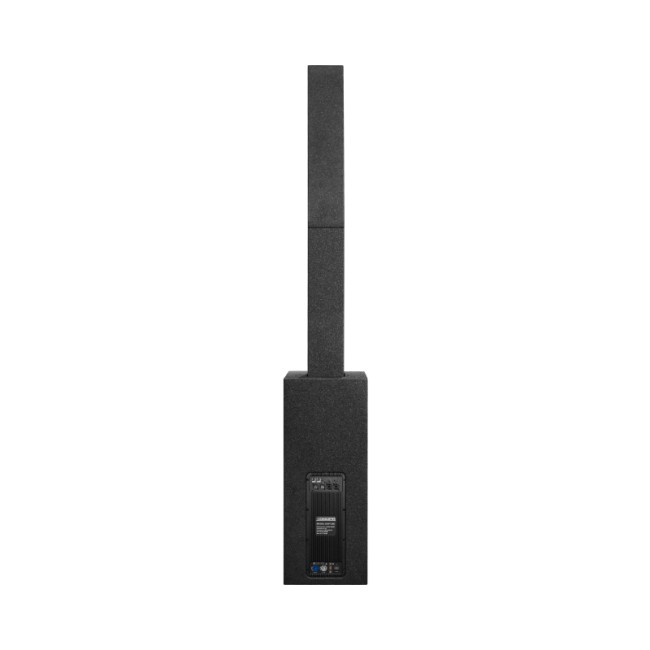

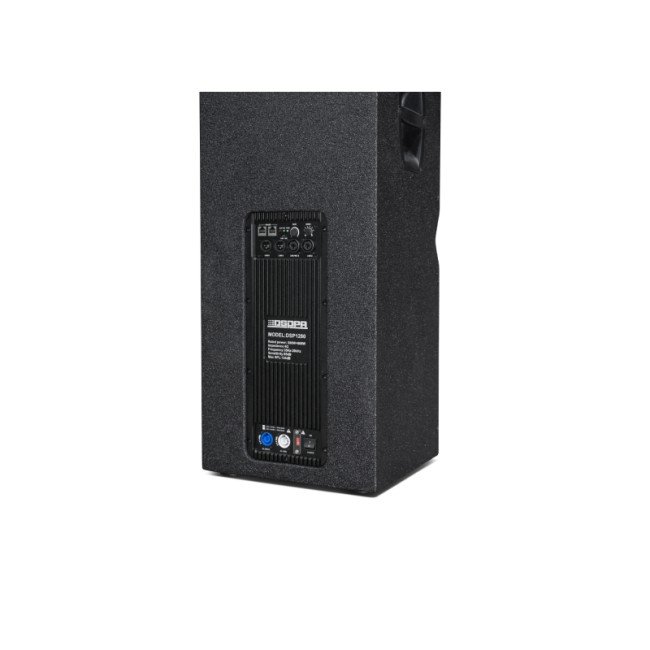

Professional Active Line Array Loudspeaker System

DSP1280
  • Modular design enables flexible speaker combinations for varied venue requirements.
  • Engineered for optimal sound coverage and even distribution across the listening area.
  • System sensitivity: 98.7 dB; Maximum SPL: 130.74 dB.
  • Total power output: up to 2400W, delivering robust headroom for any application.
  • Produces clear and highly intelligible audio, even in noisy, challenging environments.
  • Finished with advanced polyurea waterproof paint for long-lasting durability.
  • Built to resist dust, water, and moisture ingress.
  • Maintains stable, consistent performance in extreme weather and harsh operating conditions.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

Engineered for high-demand environments, the Professional Active Line Array System delivers powerful, crystal-clear audio with outstanding amplification performance—ideal for large conference rooms, outdoor stages, and school auditoriums.



Specifications of Professional Active Line Array Loudspeaker System DSP1280


Model

DSP1280

Frequency Response

35Hz-20KHz(±3dB) 1watt@1m

Sensitivity

 Full-Range Speaker: 96dB

Subwoofer: 95dB

Whole System: 98.7dB

Max.SPL

 Full-Range Speaker: 125dB

Subwoofer: 124dB

Whole System: 130.74dB

  Nominal Impedance

4 Ohm

  Nominal Power

800WFull-range Speaker, 800WSubwoofer

  Peak Power

3200W

  Dispersion H x V

140° Horizontal * 25° Vertical

  Crossover Point

Active 150Hz, Built-inMid andHigh-frequencyDrivers:1.2KHz

   HF drivers

2 ×1.75” HF drivers (44-turn voice coil tweeter)

   MF drivers

6 × 5.5"Midrange drivers (35mm voice coil)

   SUB drivers

2 × 12"Subwoofers(75mm voice coil)

  Active Power Amplifier

2×1200W

  Paint

PolyureaWaterproof andScratch-resistantPaint

Product Dimensions

Upper Column Speaker:700H × 150W × 190D (mm)

 Lower Column Speaker:650H × 150W × 170D (mm)

Subwoofer:860H × 340W × 350D (mm)

Net Weight

Upper Column Speaker:14kg

 Lower Column Speaker: 11kg

Subwoofer: 32kg
