DMA2100 / DMA220 / DMA2300 / DMA21M Smart Audio Solution for Government and Enterprise Training Rooms




  I. System Overview

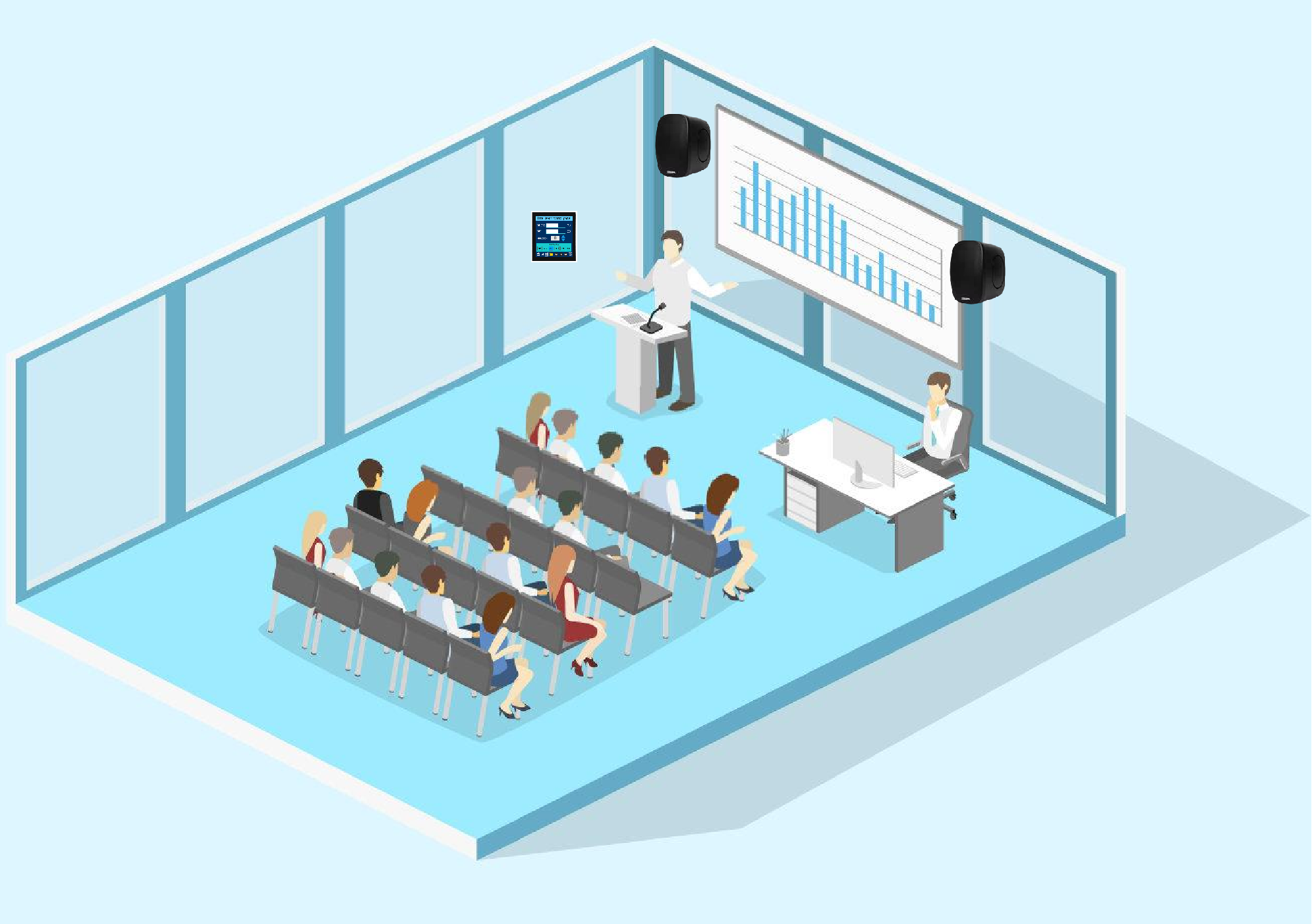

Traditional training rooms often face challenges such as fragmented audio management, high maintenance costs, complex on-site operations that disrupt training sessions, unstable audio transmission that affects teaching effectiveness, and rigid system architectures that struggle to scale with evolving business needs and new application scenarios.



Project Requirements

● HD Audio Reinforcement: Equipped with digital DSP amplifiers, the system supports multiple audio inputs and features anti-feedback and limiter functions to ensure clear and stable audio quality for lectures and multimedia playback.
● Local Control: A wall-mounted control panel enables quick source switching, volume adjustment, scene selection, and one-touch muting for simple and convenient operation.
● Remote Management: Supporting network connectivity, the system enables remote power control, status monitoring, fault alerts, and centralized volume adjustment, allowing unified intelligent management of multiple training rooms.
● Stable & Reliable: Featuring overload, short-circuit, and over-temperature protection, the system supports long-term continuous operation and is ideal for high-frequency training environments.

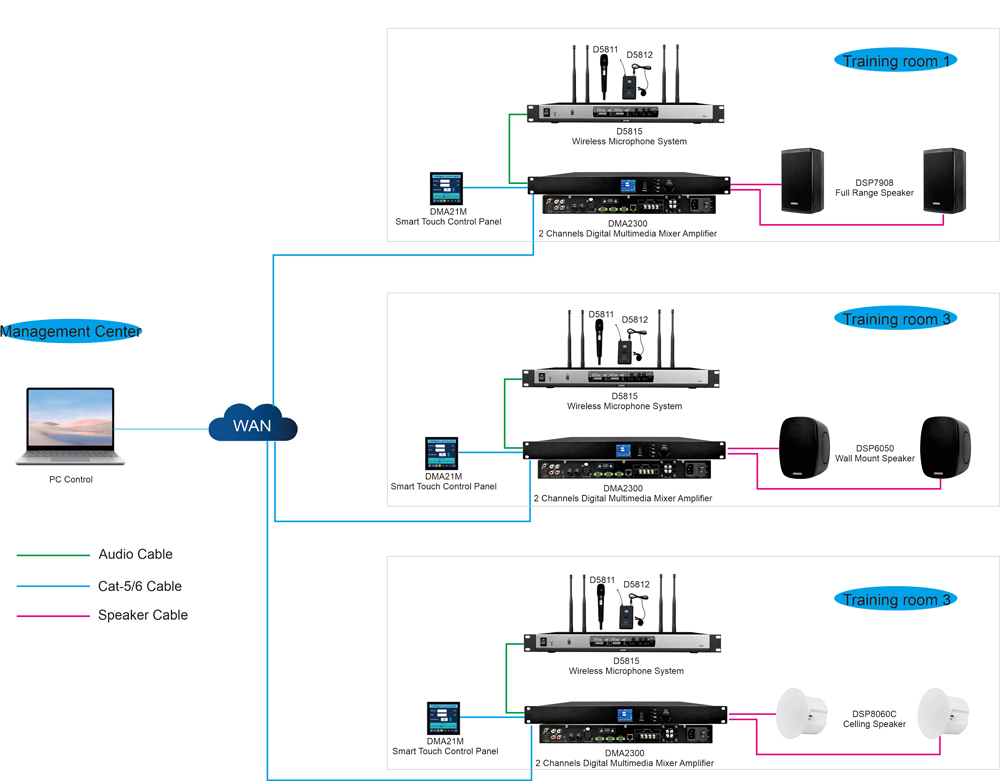

 II. DMA2100 Series Amplifier System Connection & Product List


Flexible Expansion (1...N)


● The modular architecture supports flexible deployment and allows additional training room nodes to be added according to project requirements, enabling seamless system expansion and upgrades.

● Powered by the DSPPA DMA2100 Series 2-Channel Digital Multimedia Mixer Amplifier, this solution builds a distributed network audio architecture featuring a centralized management and control center with independent audio reinforcement units in each training room. The architecture enables unified system management while ensuring independent operation, flexible control, and efficient audio management across different areas.


No.

Model

Product Name

Quantity

1

DMA2100

2x100W 2 Channels Digital Multimedia Mixer Amplifier

2PCS

2

DMA2300

2x300W 2 Channels Digital Multimedia Mixer Amplifier

1PC

3

DMA21M

Smart Touch Control Panel

3PCS

4

D5815

2-Channel UHF Wireless Receiver

3PCS

5

D5811

 Handheld Wireless Microphone

3PCS

6

D5812

Wireless Lavalier Microphone

3PCS

7

DSP7908

8" Two-way Full Range Speaker

2PCS

8

DSP6050

50W Commercial Wall Mount Speaker

2PCS

9

DSP8060C

60W Ceiling Speaker with Two Tweeter and Dome

2PCS

10

PC

Control Center

1PC


Note: This solution is for reference only. Please contact us for specific project requirements.



 Solution Overview


System Architecture:


The solution is composed of two core components: a centralized management and control center and independent audio reinforcement units deployed in each training room.




Management and Control Center


A management computer equipped with dedicated management software enables centralized monitoring and control of all training room audio devices via the LAN. It allows administrators to view device status, remotely power on/off devices, select audio sources for different zones, and adjust volume levels by zone, significantly reducing operation and maintenance costs.


Independent Audio Reinforcement Unit for Each Training Room (Standard Configuration)


● Audio Pickup Device: The D5815 Wireless Microphone System, including the D5811 Handheld Microphone and D5812 Lavalier Microphone, captures instructors' voices wirelessly and connects to the amplifier microphone input channel via an audio cable.
● Main Control Device: The DMA2300 Dual-Channel Digital DSP Mixer Amplifier integrates pre-mixing, DSP audio processing, and power amplification into a single unit. It supports multiple audio inputs, including Bluetooth, line input, and digital audio, and features built-in feedback suppression, limiter, equalization, and other advanced audio processing functions.
● Local Control Panel: The DMA21M Smart Touch Wall Control Panel connects to the amplifier via an audio control cable, allowing instructors to switch audio sources, adjust volume, change scenes, and mute the system with one touch directly in the training room, without accessing the equipment room amplifier.
● Audio Reinforcement Terminals: A variety of speakers can be flexibly configured according to different training room sizes and layouts, including the DSP7908 Full-Range Speaker, DSP6050 Wall Mount Speaker, and DSP8060C Ceiling Speaker. These speakers are connected to the amplifier’s power output terminals via dedicated speaker cables to ensure uniform sound coverage throughout the room.

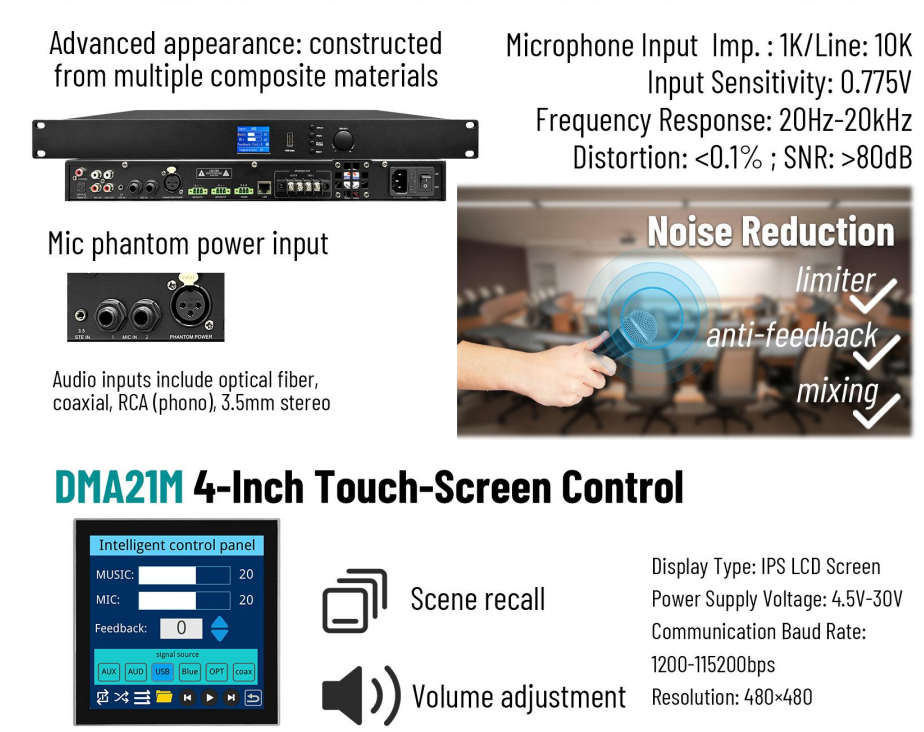

 III. Product Introduction_DMA2100 / DMA220 / DMA2300 / DMA21M





DMA2100 / DMA2200 / DMA2300

2 Channels Digital Multimedia Mixer Amplifier



Model

DMA2100

DMA2200

DMA2300

Power

2*100W

2*200W

2*300W

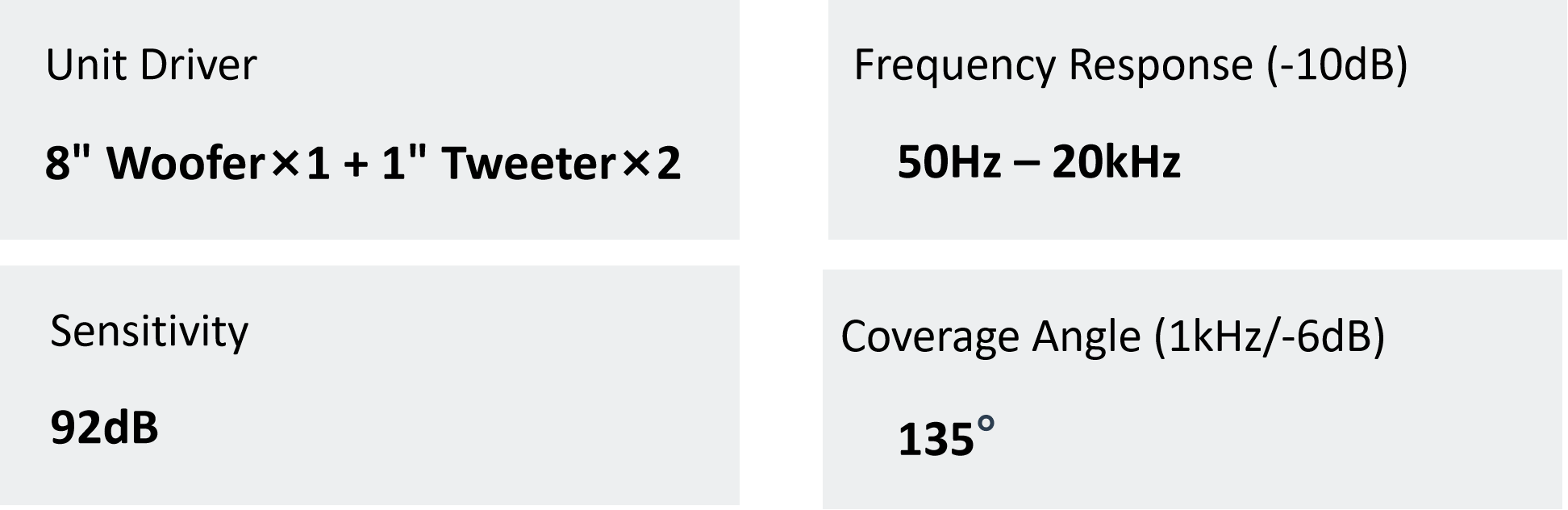

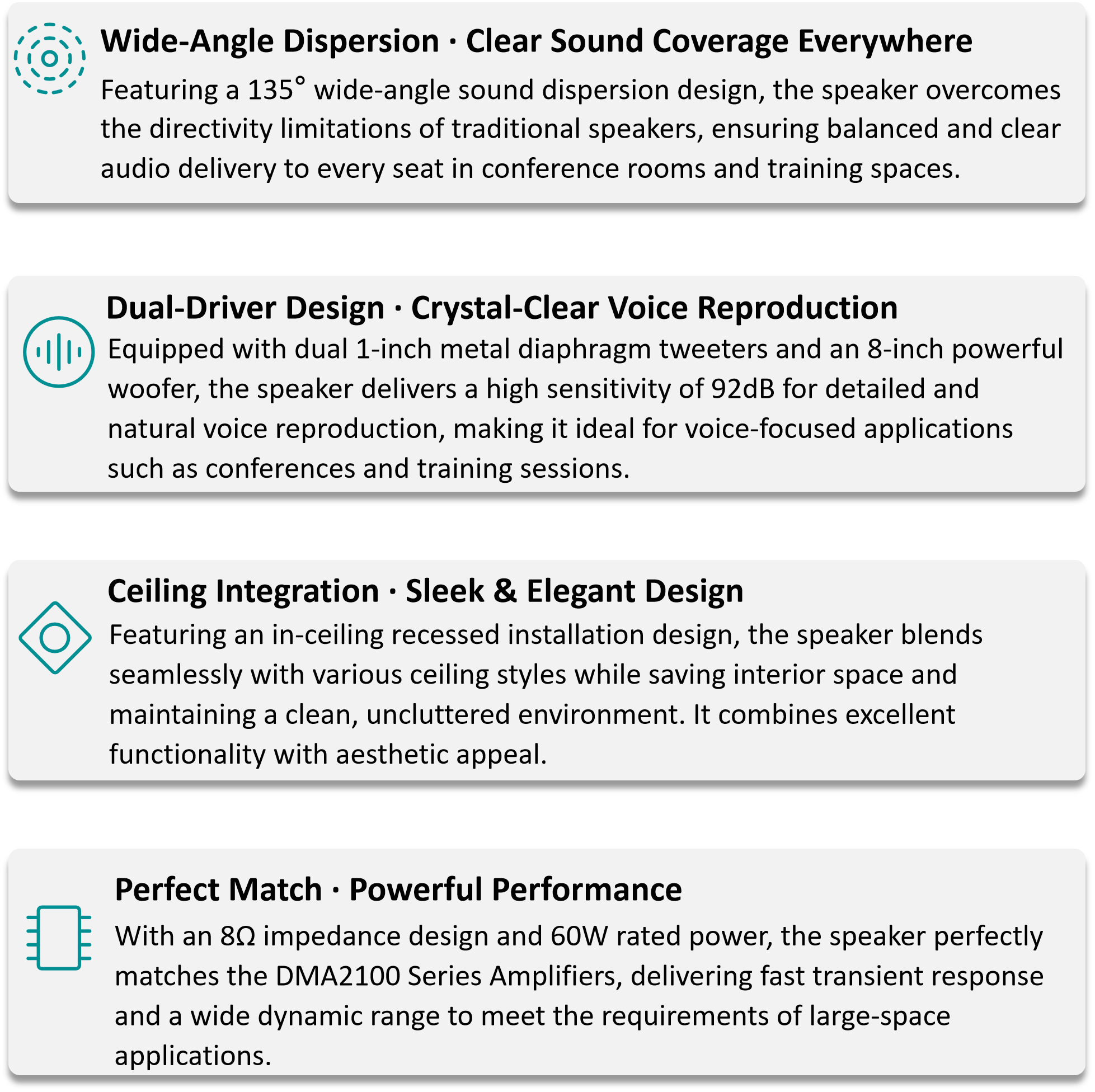

 IV. Product Introduction_DSP8060C 60W Celling Speaker

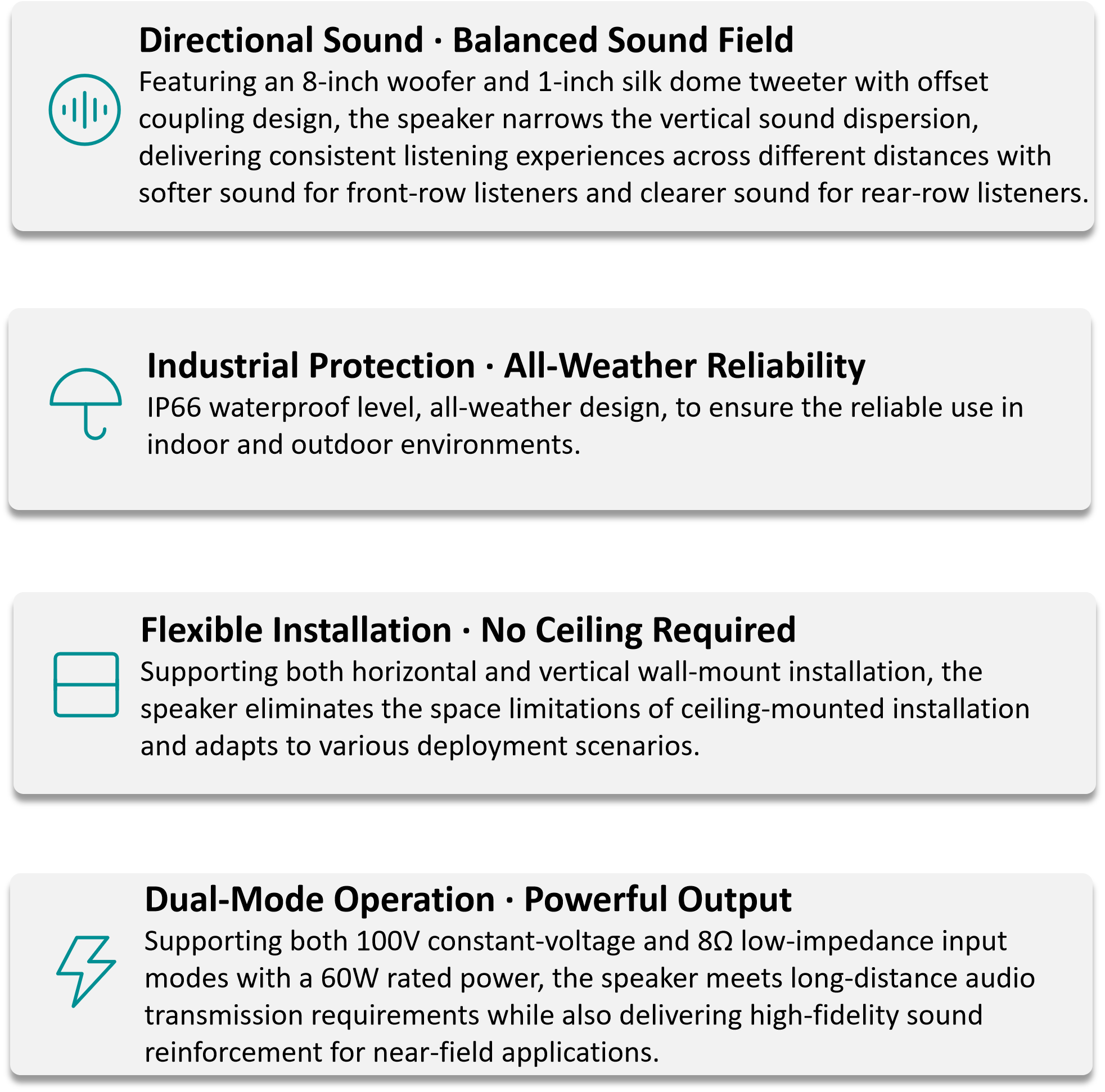

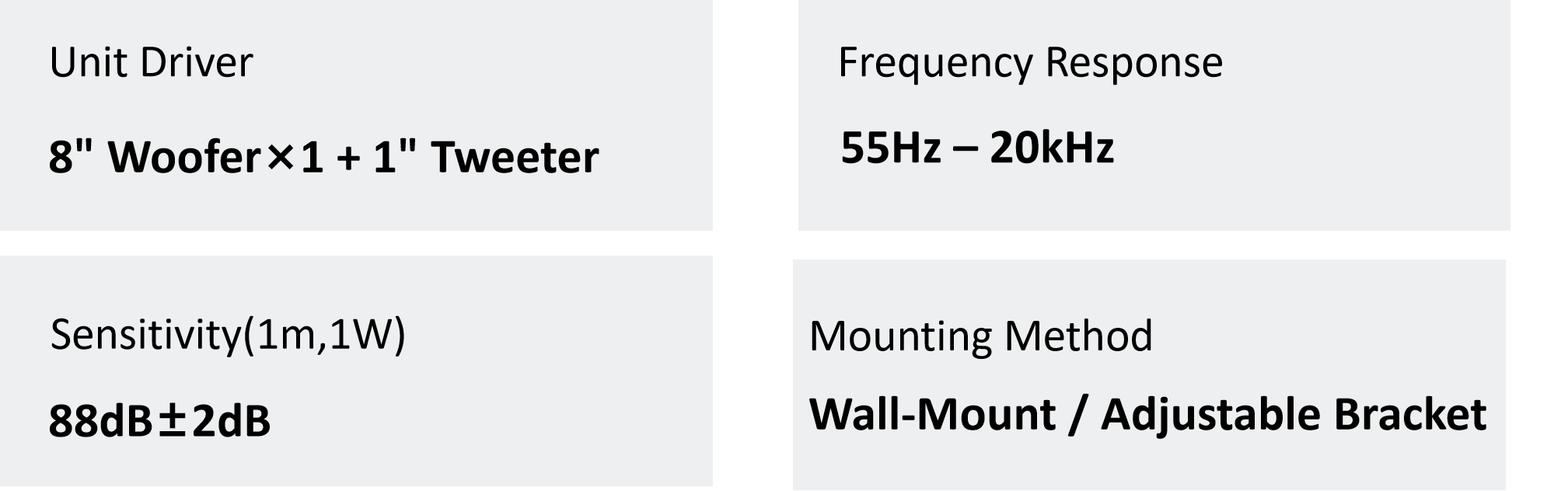

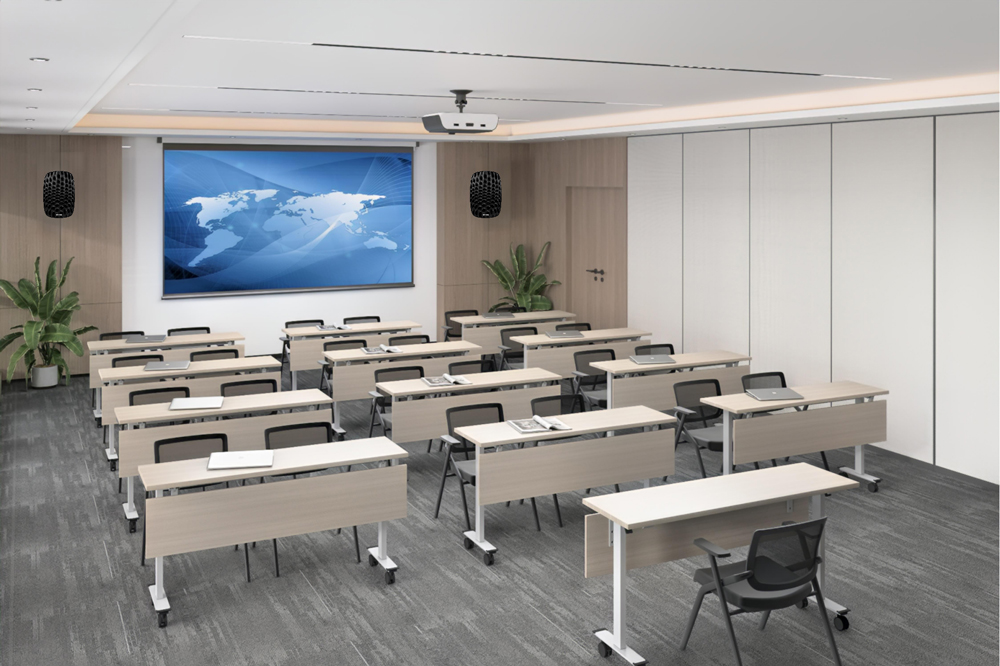

 V. Product Introduction_DSP6060 Wall Mount Speaker

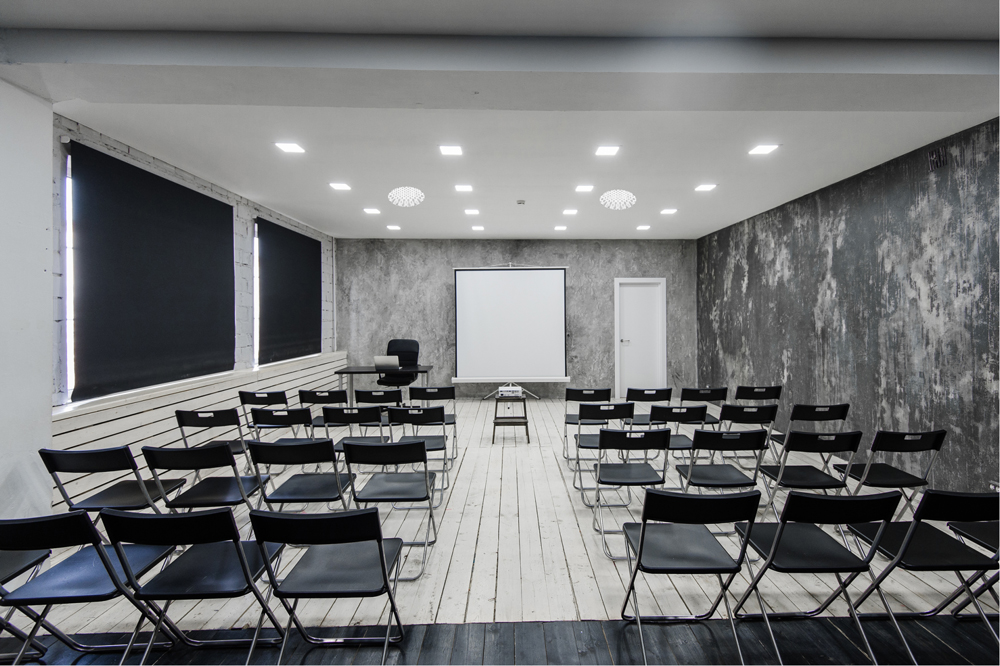

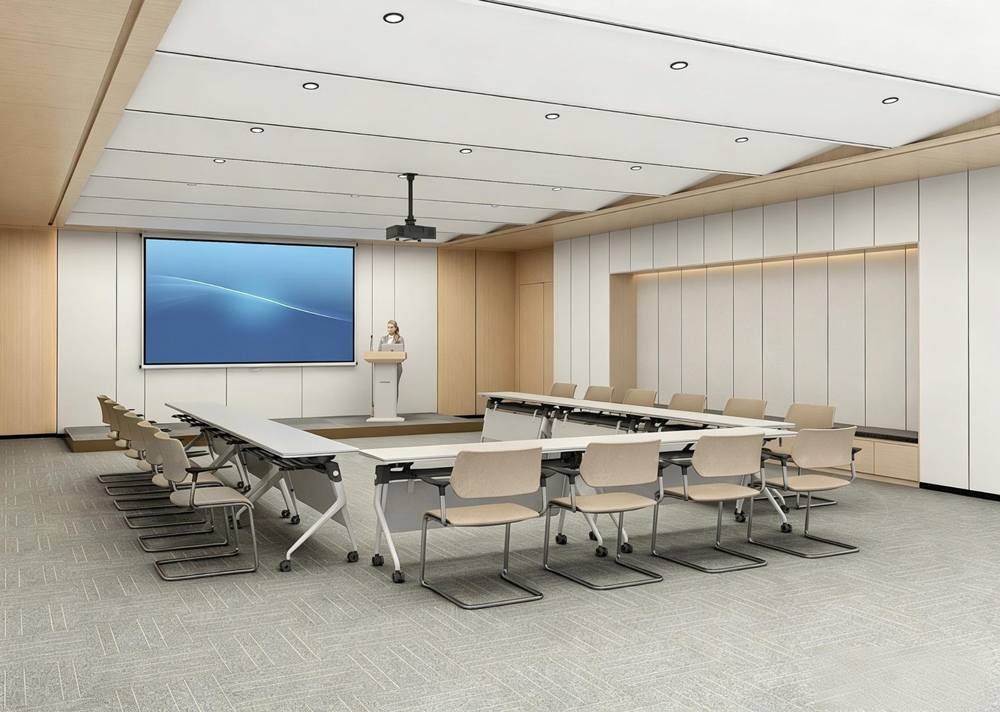

 VI. Application Scenarios




The DMA2100 Series Amplifiers, integrated with a centralized audio management system, provide reliable and high-quality sound reinforcement for various conference rooms, training spaces, and educational facilities. With unified operation and maintenance, the solution enables efficient audio management and flexible deployment across government and enterprise facilities, campuses, business parks, hotels, and residential communities.
