Home ApplicationsEducation & Training Small Line Array Speaker System for Small Lecture Halls
Overview Key Highlights Related Product List More Commercial Solutions

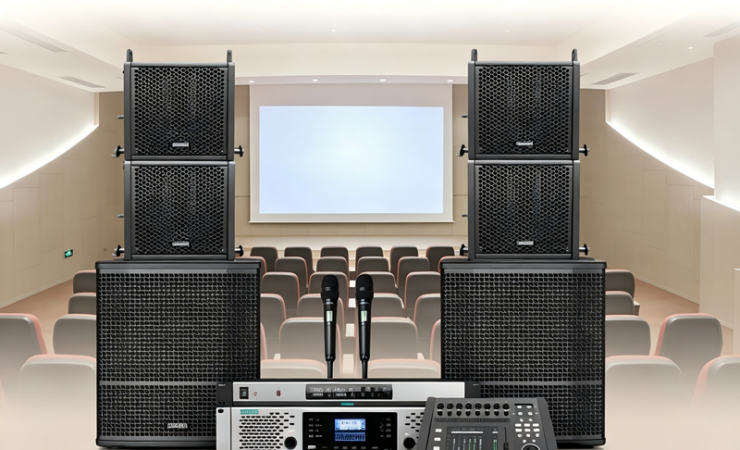

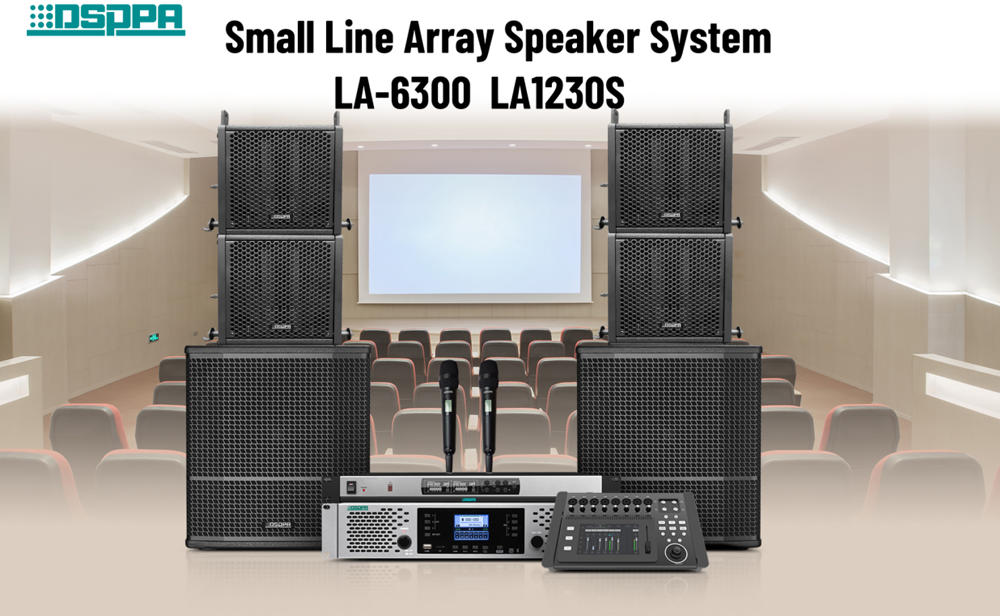

Small Line Array Speaker System for Small Lecture Halls

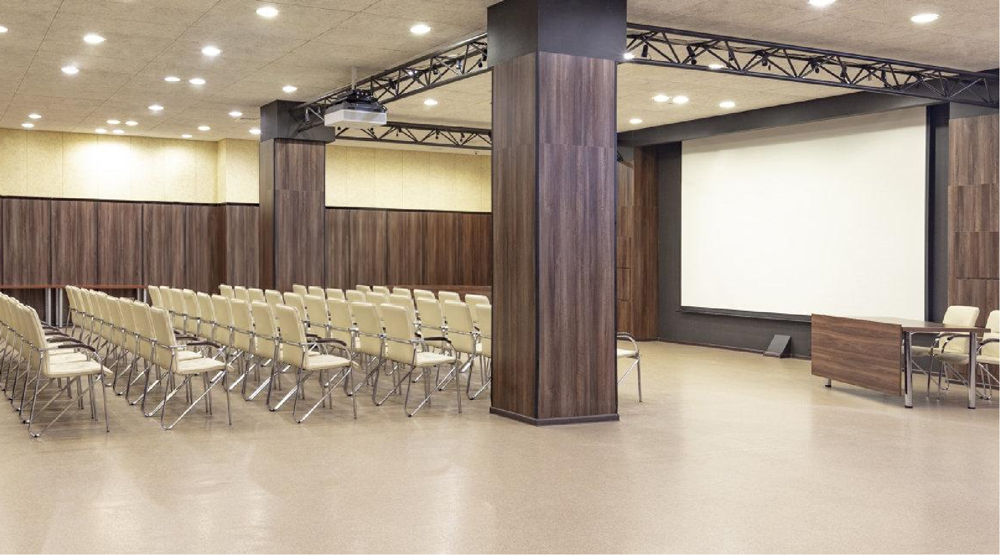

Ⅰ.  Solution Overview


For small lecture hall scenarios, the core objective of the professional sound reinforcement system is to ensure highly intelligible, distortion-free audio delivery across all seating areas, while mitigating inherent acoustic challenges including reverberation and sound distortion.To reach this target, the system must feature uniform sound field coverage, premium electroacoustic performance, and adaptive compatibility with the venue’s architectural acoustic environment. Targeting these core requirements, this document presents a rigorously engineered, venue-specific solution.



Project Requirements

● Uniform sound coverage: Customized to the lecture hall’s dimensions, the system delivers consistent sound across all areas for a uniform listening experience at every seat.
● High directionality:Precisely controlled sound propagation direction minimizes sound wave reflections and acoustic interference.
● High sound pressure level: Delivers sufficient SPL output to meet the volume requirements of most small lecture halls.
● Minimal reflections and echoes: Significantly reduces sound reflections and echoes to improve speech clarity and intelligibility.

● Ease of use: Supports quick setup with an intuitive interface and full user manual for straightforward daily operation.


 Ⅱ. Small Lecture Hall Configuration

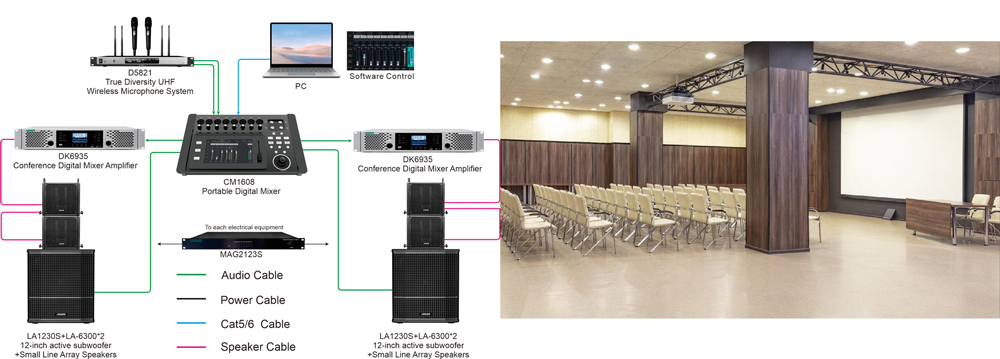

Small Lecture Hall Configuration

● Small lecture hall: 18m (L) × 7m (W) × 3m (H); rectangular stage with 3m depth and 7m width.
● System components: Microphone system + professional sound reinforcement system.
● System functions: Handheld wireless microphones support mobile audio amplification, with a mixing console for audio source mixing and adjustment. Active line array full-range speakers paired with subwoofers deliver wide sound coverage, suitable for both speech and musical performances.

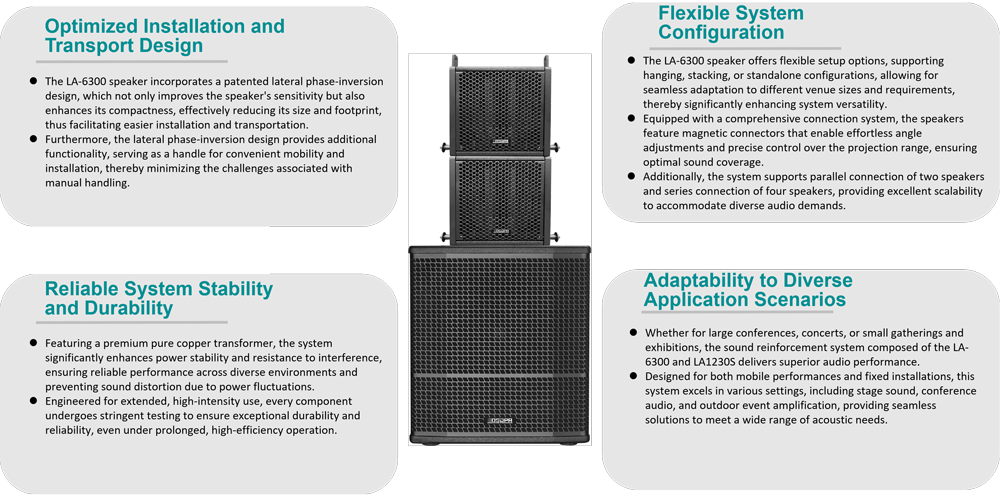

 Ⅲ. System Advantages

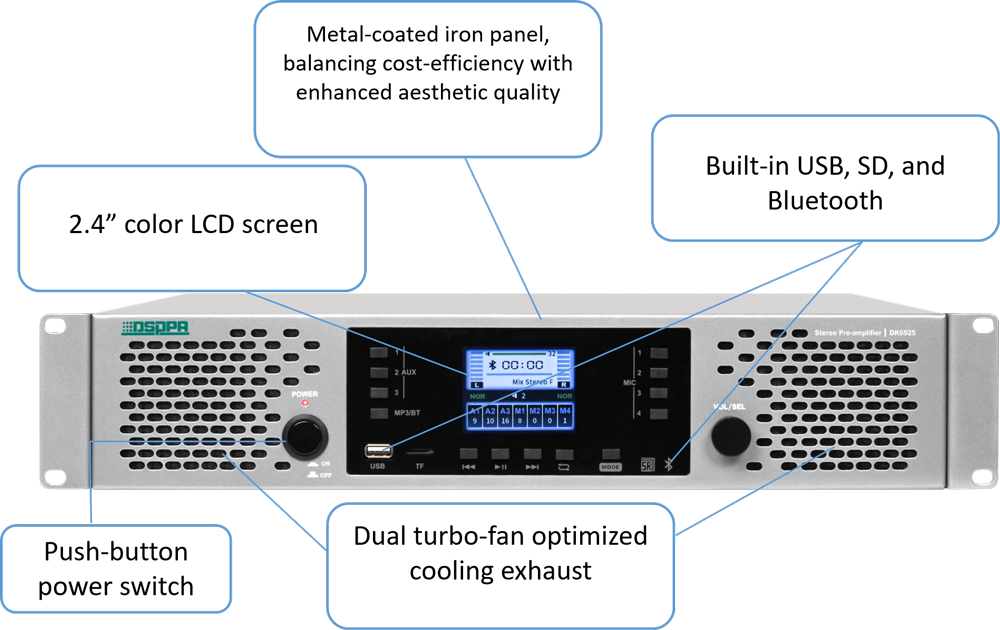

 Ⅳ. Features -- DK69 Series Amplifiers



Features


● Available in multiple power options: 2×150W/8Ω, 2×250W/8Ω, 2×350W/8Ω, 2×500W/8Ω, 2×650W/8Ω. All models in the digital amplifier series support 4-ohm loads.
● The unit employs a rotary encoder as the primary operating control, and is fitted with an independent volume adjustment button for each audio channel to enable convenient and precise level tuning. Its intuitive, streamlined interface design effectively reduces the probability of operational errors.
● A built-in media player with visual track display is integrated, supporting standard playback controls including previous track, next track, pause and repeat mode.
● The rear panel is equipped with 2 balanced microphone inputs and 2×6.35mm microphone inputs, each with independent volume control. The microphone processing section includes professional reverb effect processing, a 7-band digital equalizer for fine acoustic tuning, and a dedicated microphone feedback suppression function.
● The amplifier provides 3 audio channels, each with independent volume control, 7-band digital equalizer adjustment and built-in preset sound effect modes. One stereo audio output channel is reserved for system expansion and cascading.
● Include 1 stereo audio output channel.

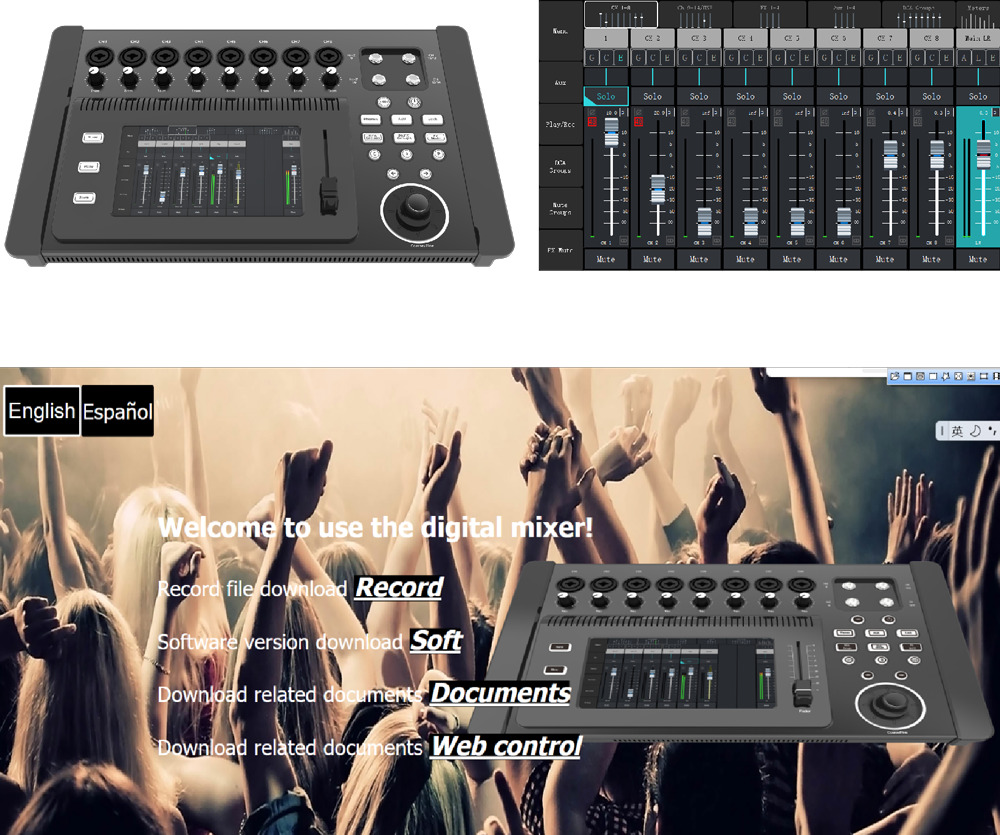

 Ⅴ. Features -- CM1608 Digital Mixing Console



● 8 XLR/TRS balanced microphone inputs, 4 stereo TRS balanced line inputs, with USB playback and recording channels.
● 2 stereo TRS balanced line inputs, plus USB channels supporting audio playback and recording.
● Outputs: 2 Main L/R balanced outputs, 4 AUX balanced outputs.
● 5 integrated effects processors covering delay, chorus, reverb, pitch shift and more; 4 independent effect channels with customizable presets to suit various music styles.
● 4 effect channels, each supporting different presets.
● Versatile effects: Multiple audio effect options to meet the needs of various music styles.
● Cross-platform compatibility with Windows, Linux, MacOS, Android and iOS.
● Language support: Available in English, Spanish, Simplified Chinese and Traditional Chinese.
Compact, lightweight and highly portable, ideal for rapid deployment across diverse application scenarios.

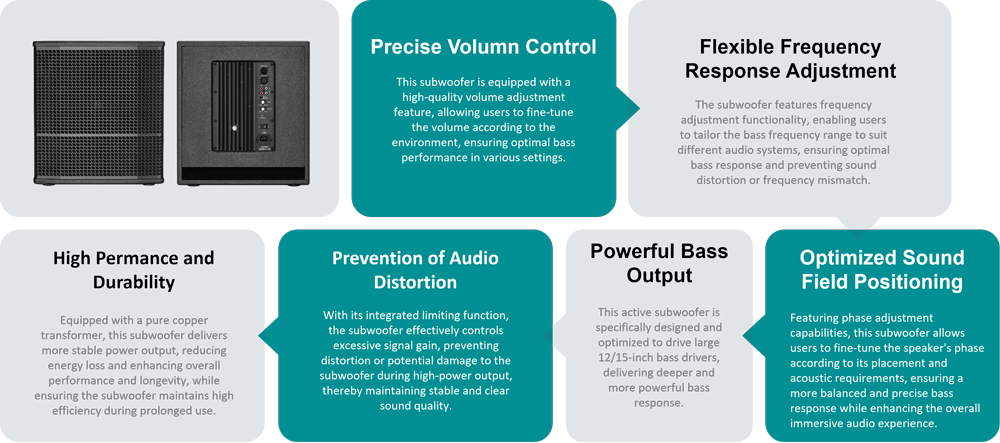

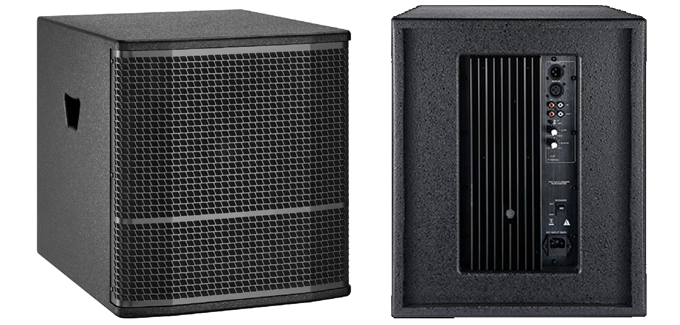

 Ⅵ. Features -- LA1230S Active Subwoofer

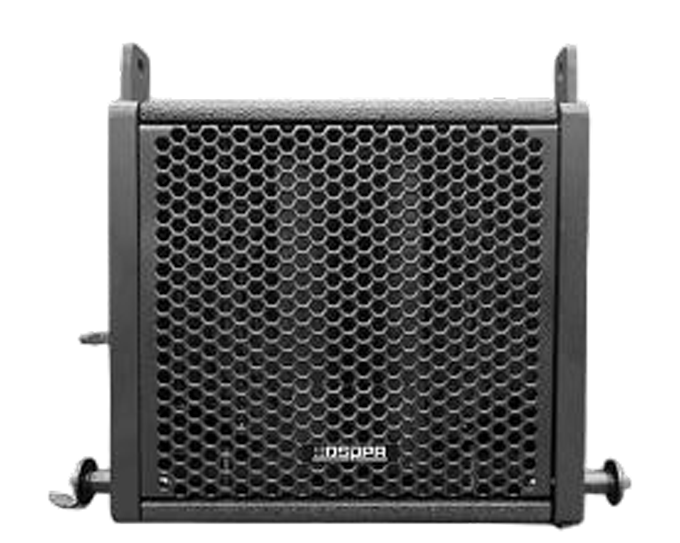

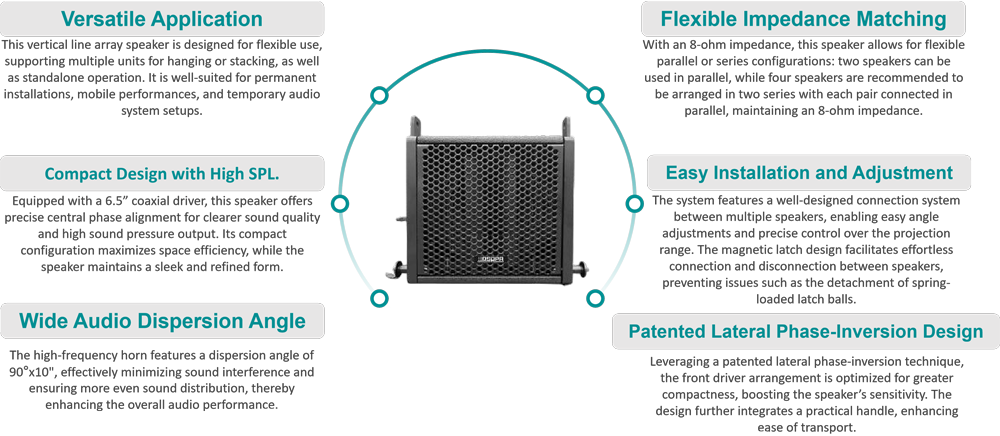

 Ⅶ. Features -- LA-6300 Small Line Array Speaker

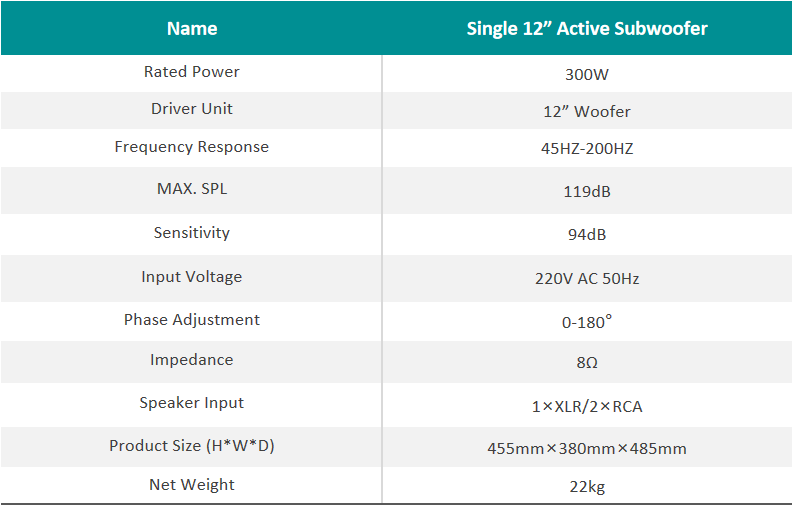

 Ⅷ. Specifications - LA1230S/LA-6300








 Ⅸ. Application Scenarios

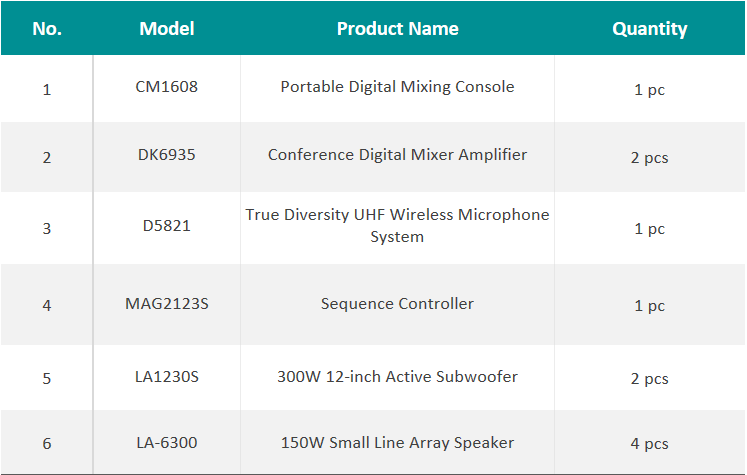

List of Products Related to the Above Solution

120Hz-15KHz (±3dB)

True Diversity UHF Wireless Microphone System with Dual-Channel PLL (1 Receiver + 2 Handheld Microphones)

D5821

16-Input / 10-Output

6-Input 10-Output Portable Digital Mixing Console

CM1608
