Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker 400W Passive Array Full Range Loudspeaker LA1428N

8” Bass×2, 1.75” Treble×1 ; 70Hz-20kHz ; 400W (AES)

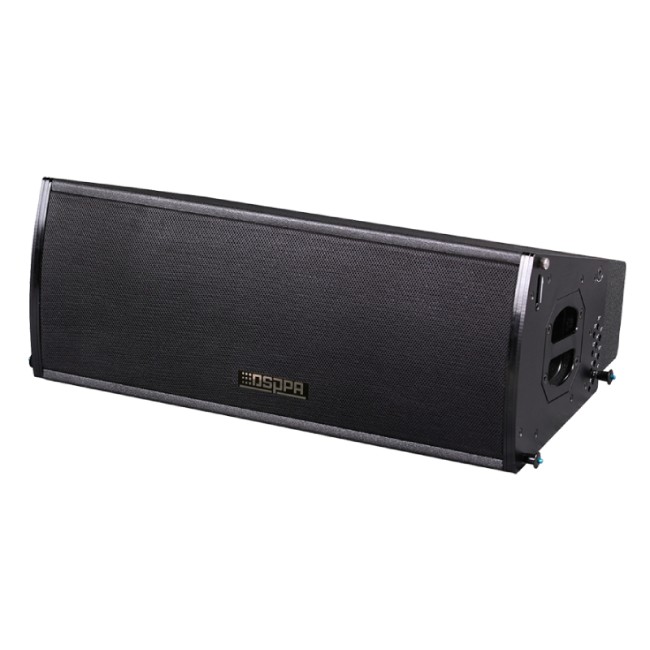

400W Passive Array Full Range Loudspeaker

LA1428N
  • This system is a mini line array configuration engineered for high power output and high sound pressure level capability.
  • The enclosure is constructed from marine-grade plywood, ensuring high reliability and structural integrity; all metal hardware is fabricated from high-quality aluminum alloy.
  • All-weather design, optimized for mobile and portable applications.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

Engineered for versatile applications, the LA1428N Passive Array Full-Range Loudspeaker delivers a clear frequency response spanning 70Hz to 20kHz with impressive sensitivity, all housed within a rugged, all-weather enclosure featuring high-quality aluminum alloy hardware for reliable performance in mobile and portable scenarios.


Specifications of400W Passive Array Full Range LoudspeakerLA1428N


Model

LA1428N

Drive Unit

8” Bass×2, 1.75” Treble×1

Frequency Response

70Hz-20kHz

Speaker Sensitivity (1m, 1W)

98±2dB

Max. SPL

124±2dB

Rated Power

400W (AES)

Rated Impedance

16Ω

Directivity (H×V)

120°× 20°

Color

Black

Dimension

643mm×385mm×232mm

Net Weight

16kg
