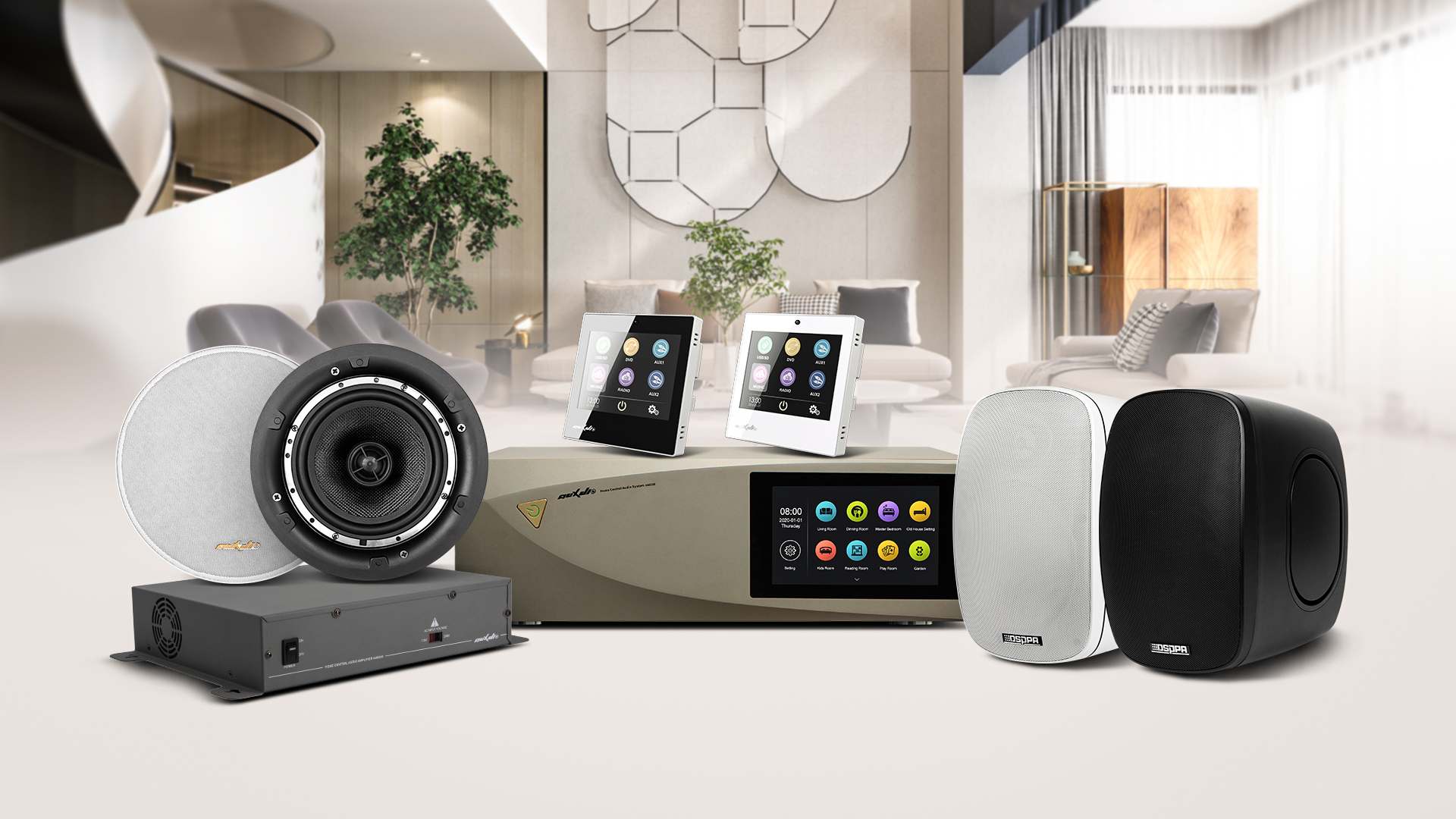

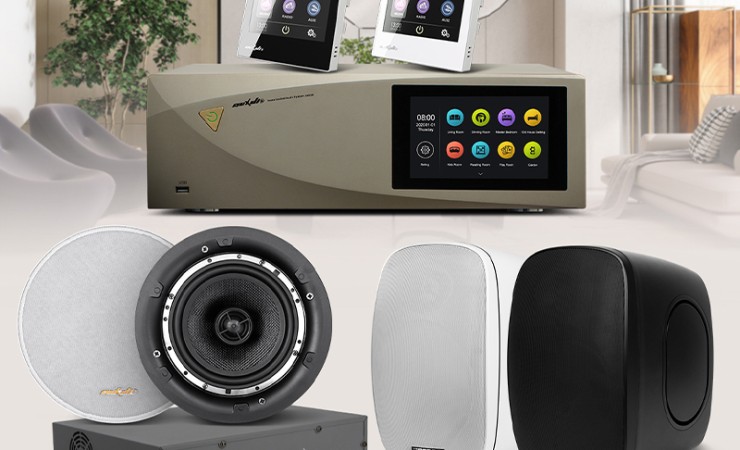

AM8328 Multi-Room Audio System Solution for Villas


  I. Solution Overview




The AM8328 Multi-Room Audio System is an advanced whole-home background music solution designed for luxury villas and high-end residential environments. It delivers a personalized listening experience by allowing each room to play different music independently according to individual preferences. Combining modern smart audio technologies, the AM8328 supports scheduled playback, online music streaming, and multiple audio sources, providing far more than conventional home audio functionality. The system enhances everyday living with convenient, flexible, and immersive whole-home music enjoyment.




Project Requirements


● Independent Zone Control: Each room can independently control its audio source and volume, creating a personalized listening experience.
● High-Quality Sound Performance: Premium audio quality is ensured through carefully matched loudspeakers and amplification equipment.
● Easy Operation: The system is designed with an intuitive user interface, making it simple for every family member to use.
● Wide Source Compatibility: Supports multiple audio sources, including online music streaming, CD players, Bluetooth devices, and more.



  II. AM8328 Smart Home Audio Solution for Villas



Solution Description:


● Central Control System: DSPPA AM8328 Main Unit + AM8300 Expansion Amplifiers
Serving as the core of the entire system, the AM8328 directly supports up to 8 speaker zones. By adding AM8300 expansion amplifiers, the system can be expanded to support up to 72 independent zones, enabling flexible multi-zone management throughout the property. Using standard Ethernet cabling for signal transmission, the system efficiently distributes and amplifies audio across the entire villa.
● Multi-Zone Control: BM828RII Wall Control Panels
Up to 10 BM828RII wall-mounted control panels can be connected in a daisy-chain configuration through the expansion amplifiers. Each room can independently adjust volume and select audio sources locally, providing convenient and intuitive zone-by-zone control.
● Wireless Control via Mobile App
The dedicated mobile app enables convenient wireless system management, including: Remote system configuration, Audio source selection, and Global volume adjustment. This allows users to control the entire system anytime and anywhere within the network, eliminating the limitations of physical control panels.

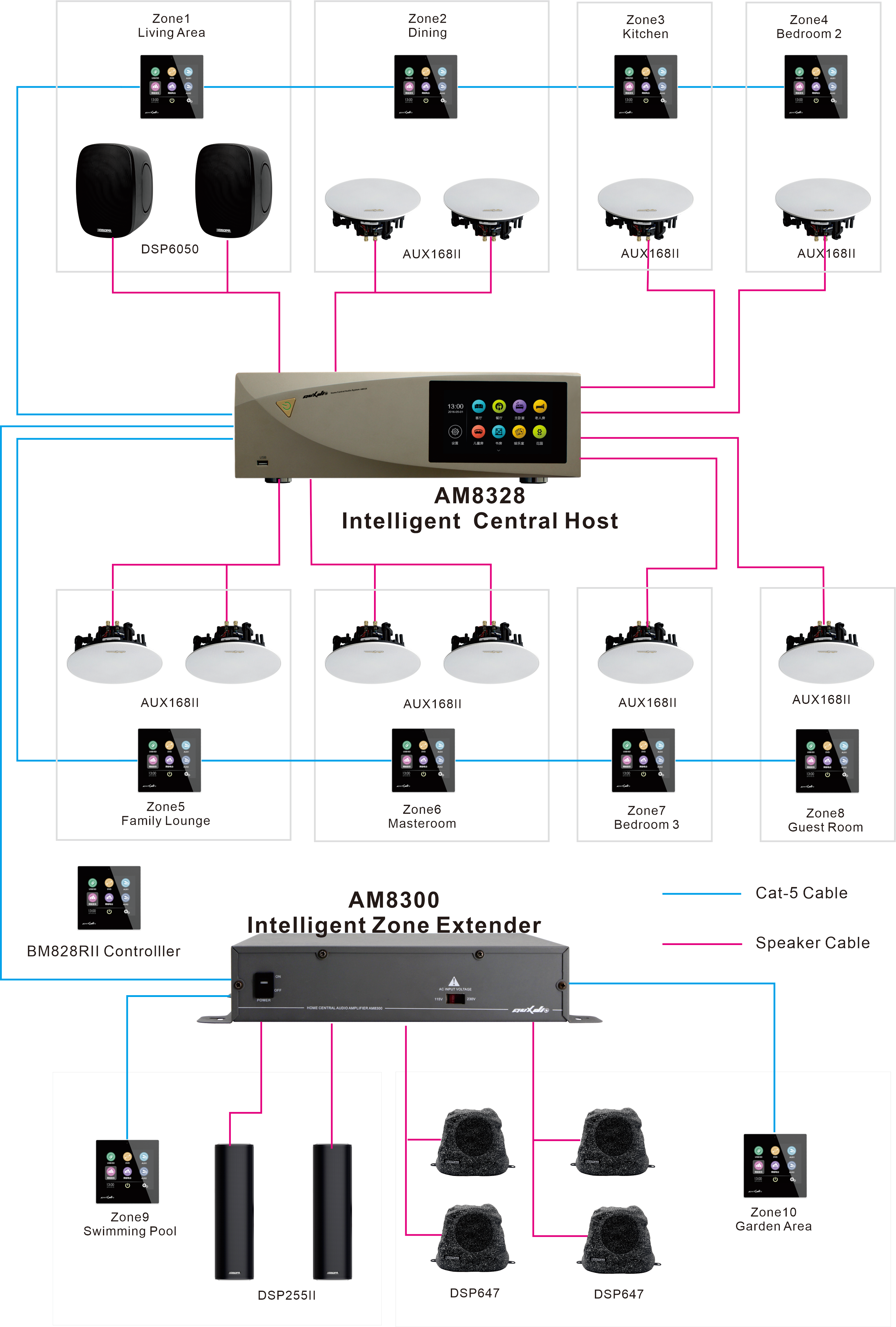

● Optimized Speaker Configuration

The system adopts different speaker types for different application areas to achieve optimal sound performance and interior aesthetics. Living rooms and courtyards: Wall-mounted speakers for powerful coverage in large spaces. Indoor private areas: Coaxial ceiling speakers for discreet installation and balanced sound. Outdoor areas: Landscape speakers and weatherproof column speakers designed for reliable outdoor performance. Each speaker is carefully matched with the appropriate amplifier power, delivering excellent sound quality while maintaining the architectural aesthetics of the villa.

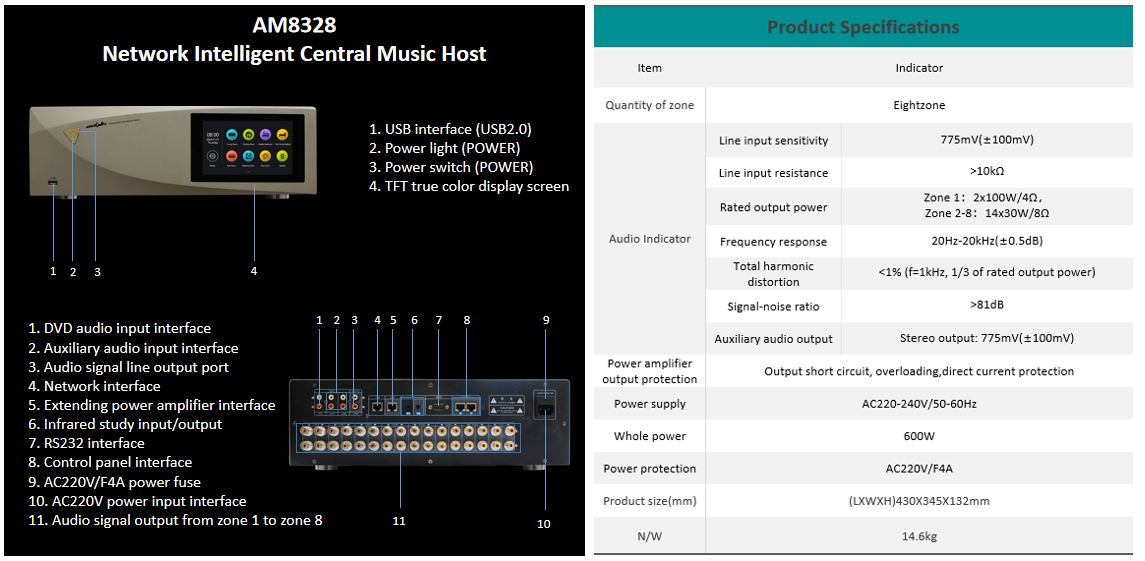

  III. Network Intelligent Central Music Host AM8328

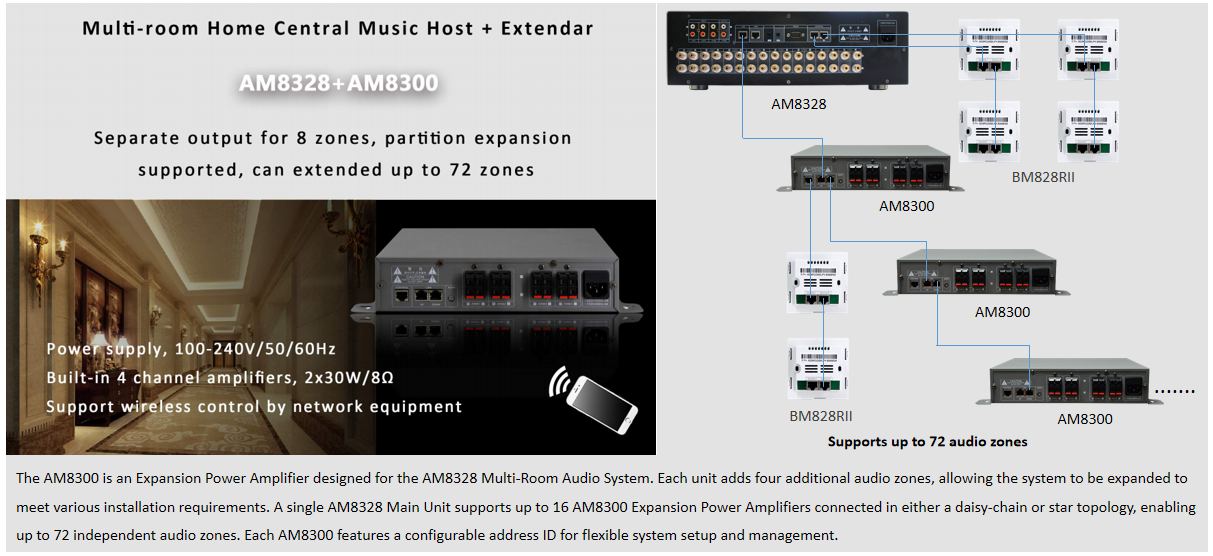

  IV. Expansion Power Amplifier AM8300

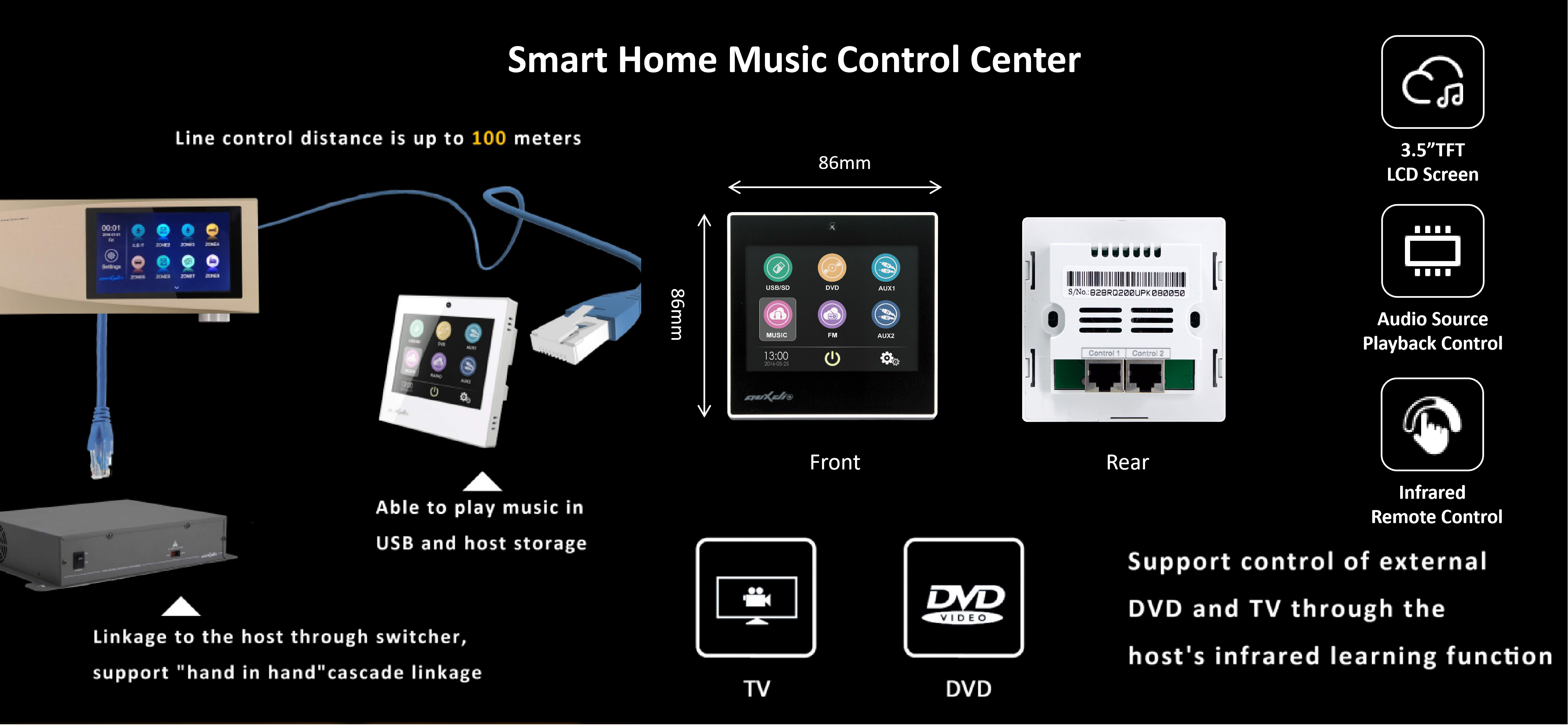

  V. Room Controller BM828RII

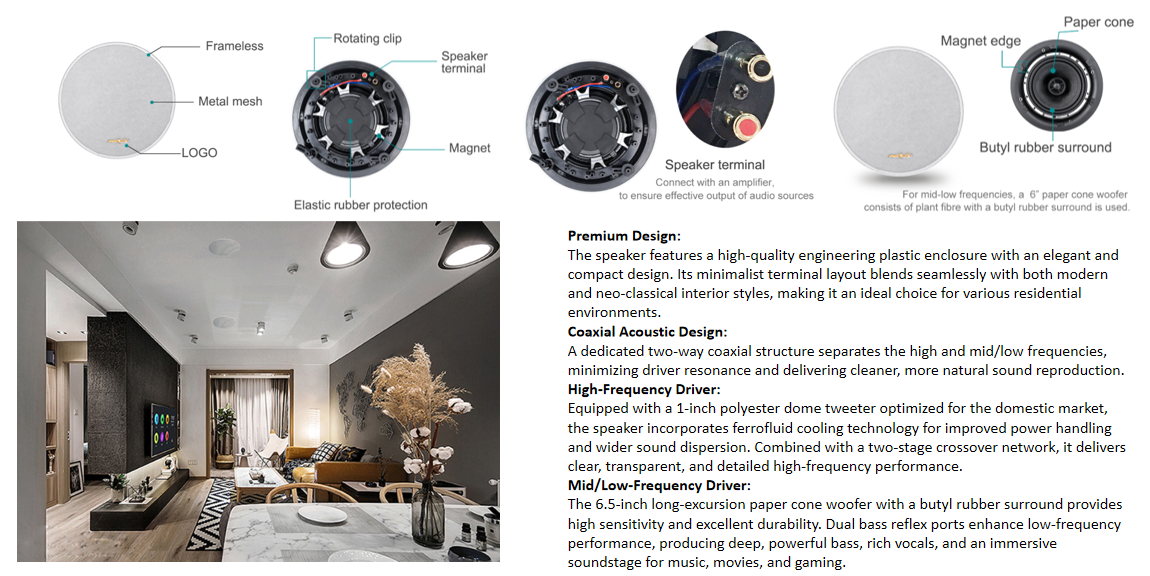

 VI. AUX168II 20W Coaxial Ceiling Speaker

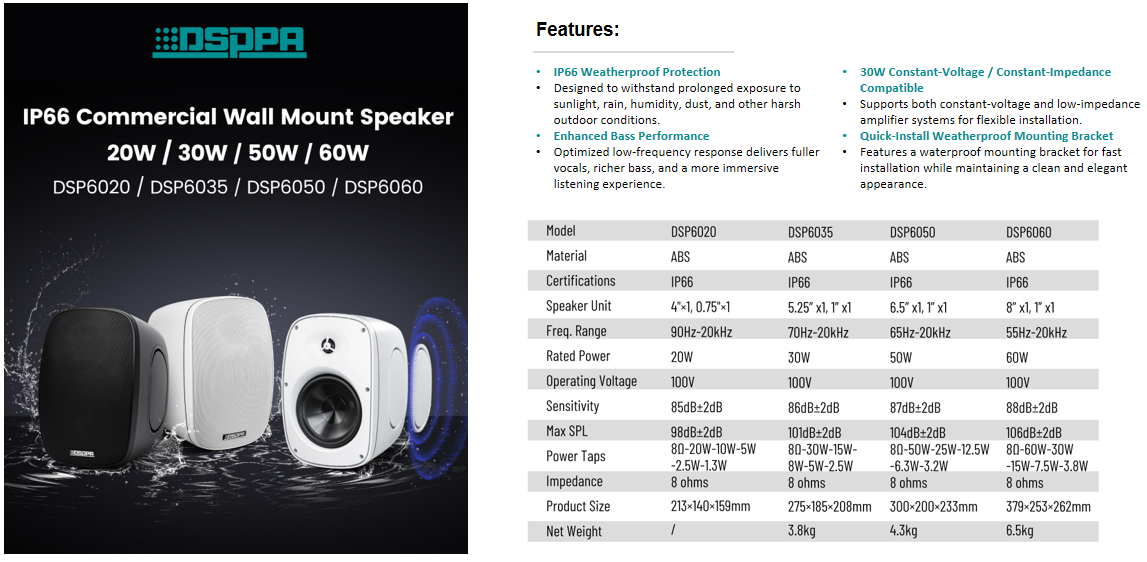

  VII. DSP6020 Series Wall Mount Speaker




  VIII. Application Scenarios

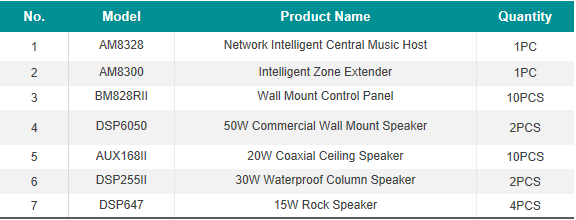

List of Products Related to the Above Solution
