Home ApplicationsHouses of Worship DMA2240 / DMA2500_2-Channel Digital Multimedia Mixer Amplifier System Solution for Mosques
Overview Key Highlights Related Product List More Commercial Solutions

DMA2240 / DMA2500_2-Channel Digital Multimedia Mixer Amplifier System Solution for Mosques



 I. System Overview


As demand for mosque audio systems grows, a core challenge in system design and installation is delivering high-quality sound and stable transmission across all areas of the venue. Mosque solutions require both premium voice clarity and full-coverage, multi-directional sound to suit the unique needs of religious activities. With customizable audio performance, flexible configuration and enhanced output capacity, the DSPPA DMA2240 amplifier series has become the preferred choice for mosque audio systems.



Project Requirements


● Even Coverage: Delivers clear audio to every corner of the prayer hall with consistent sound distribution.
● Speech Intelligibility: Ensures crystal-clear voice transmission, so every word of Quran recitation is distinctly audible to all worshippers.
● Multi-Zone Independent Control: Supports dividing the mosque into multiple broadcast zones, with independent control over each zone’s power, volume and audio source.
● Integrated Prayer Timing and Calls: Features an automatic prayer timer that plays scheduled audio precisely at set times each day.

● Ease of Operation: Designed for simple operation and maintenance, allowing staff to manage equipment and resolve issues efficiently.

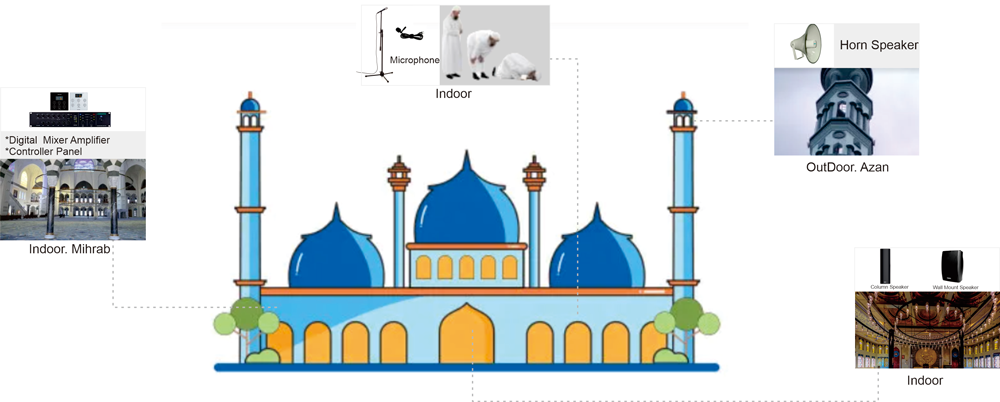

 II. Audio System Configuration for Small to Medium-Sized Mosques

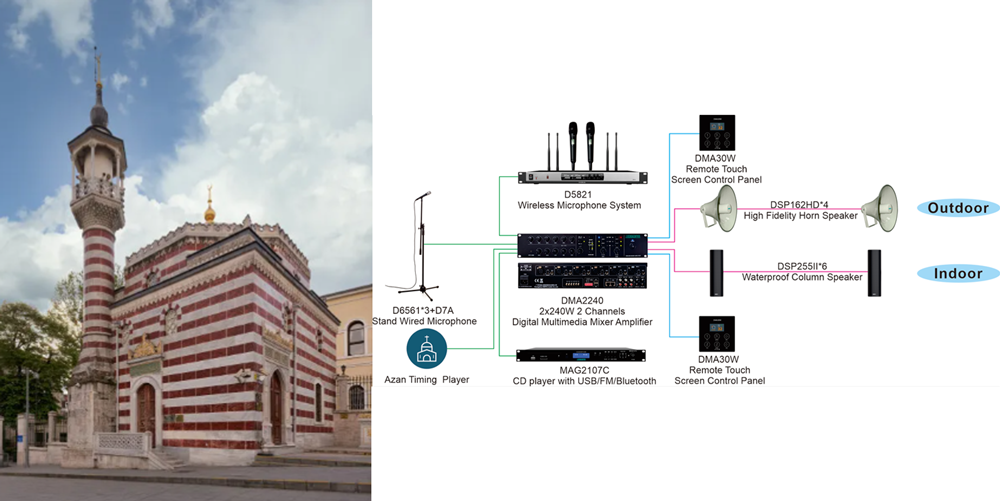

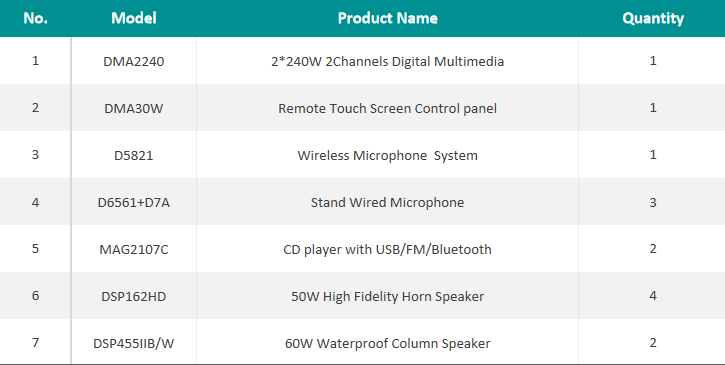

 Small Mosque_Product List & System Diagram




Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.

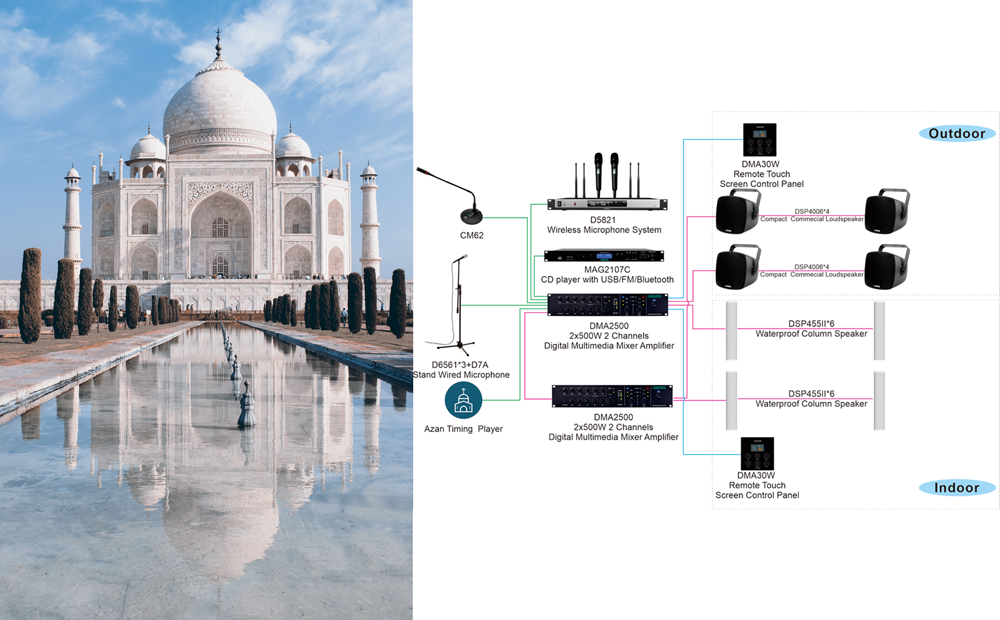

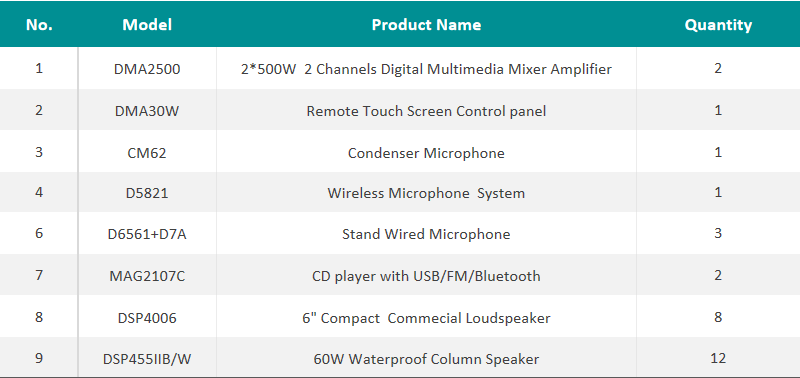

 Medium-Sized Mosque_Product List & System Diagram




Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.

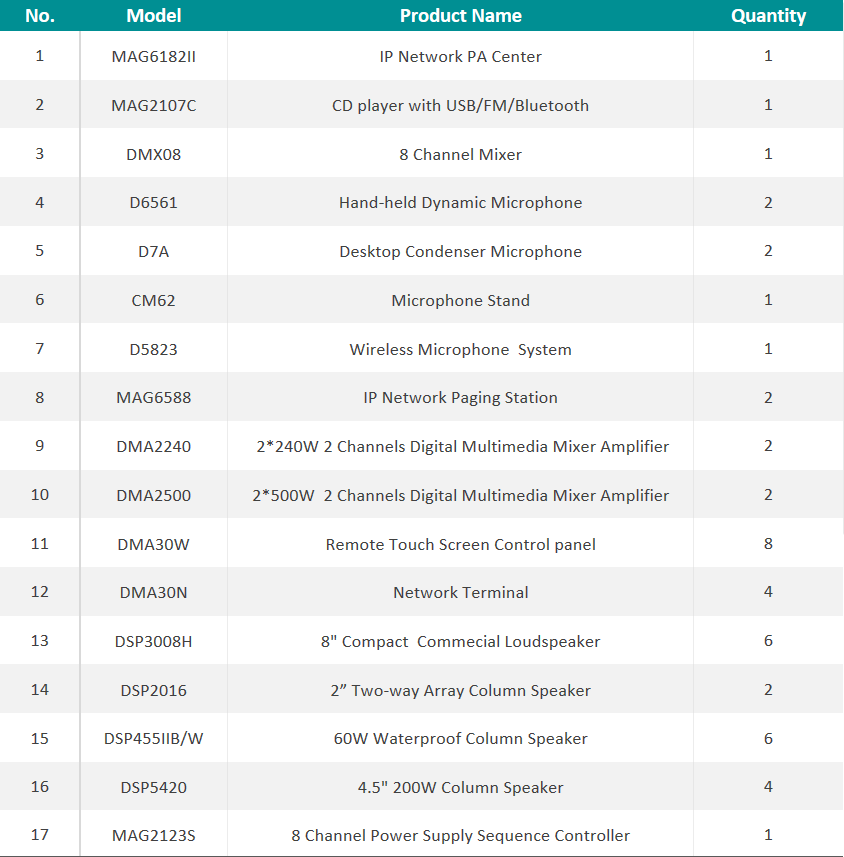

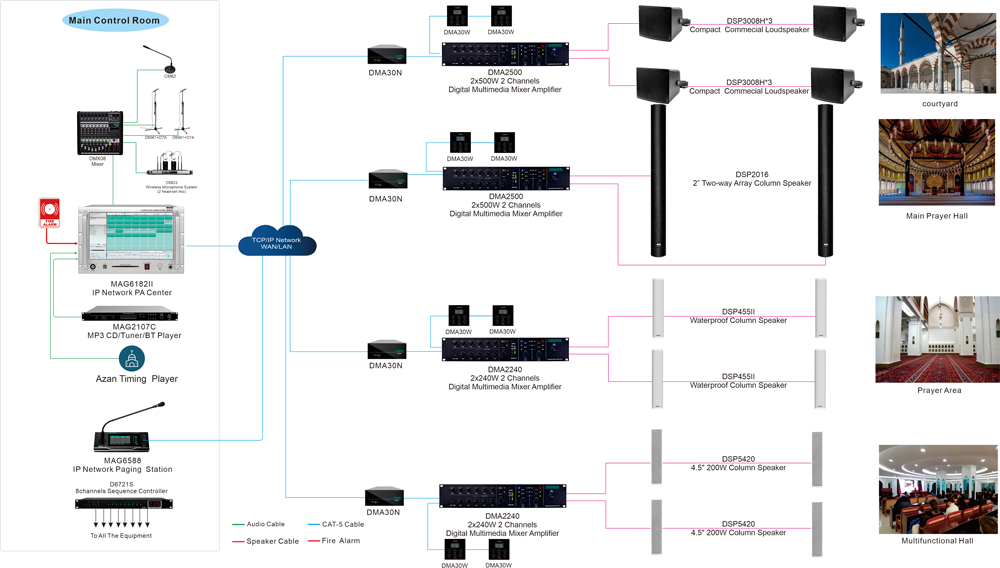

 III. Large Mosque Audio Solution (with MAG6000 Network PA System)




Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.


Powerful Compatibility and System Integration (with MAG6000 Network PA System)


Connecting the DMA30N decoder to the MAG6000 network PA system effectively resolves reliability and management efficiency challenges in mosque broadcasting. It upgrades the DMA2240/DMA2250 from standalone audio devices to a networked platform with centralized management, remote O&M and unlimited scalability.

Integrated into the MAG6000 system, the DMA30N playback terminal supports audio decoding, scheduled playback, offline playback and remote control, making it ideal for multi-floor deployment in large mosques.

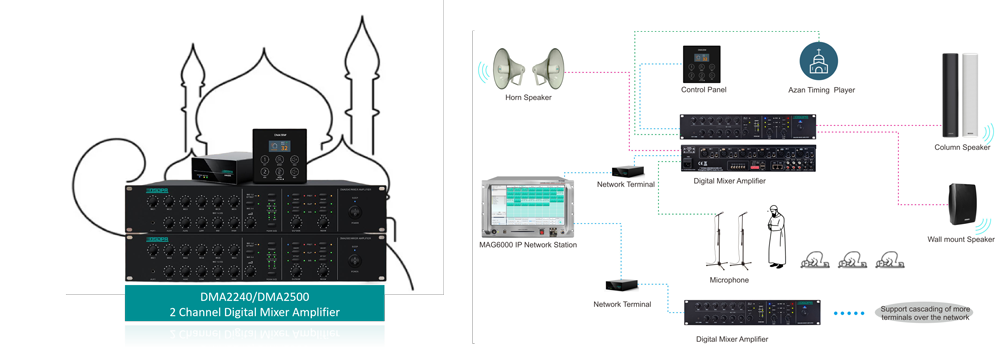

 IV. Mosque Audio System



 V. Product Overview

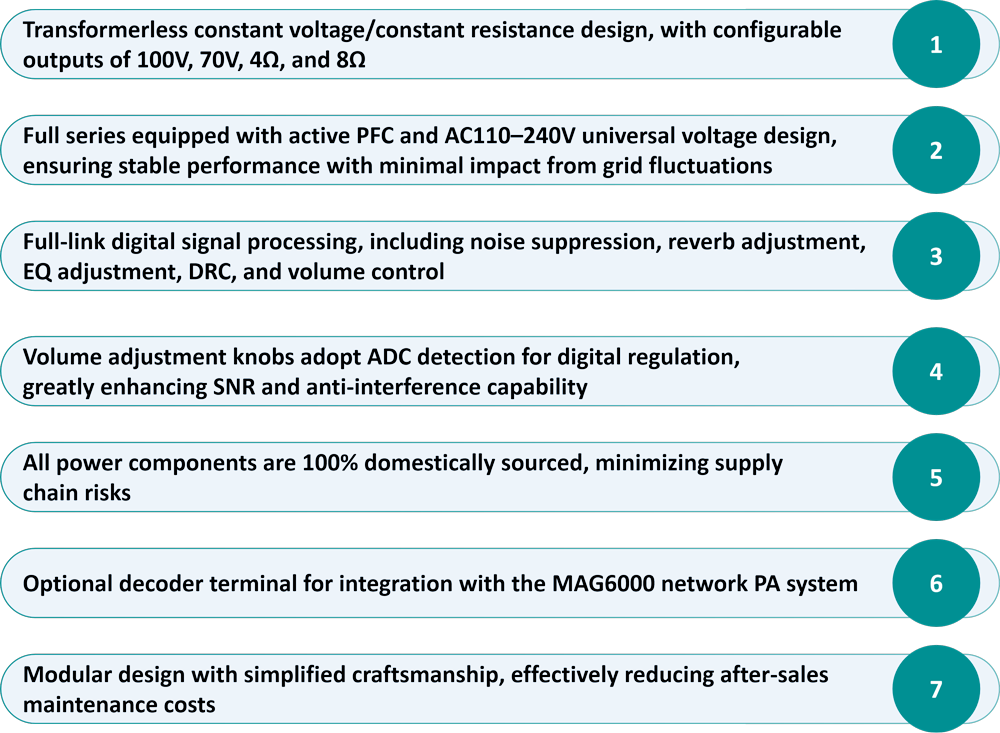

 VI. Technical Features

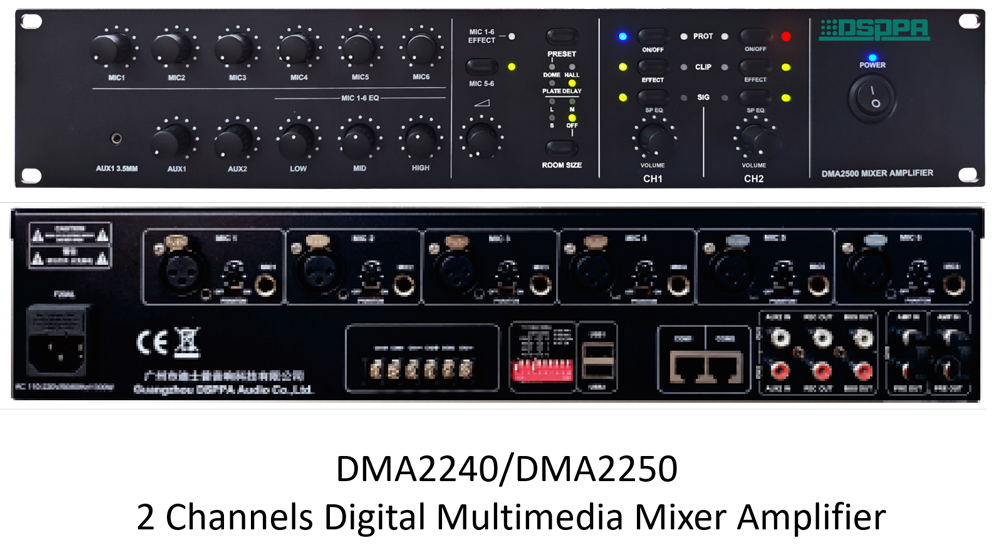

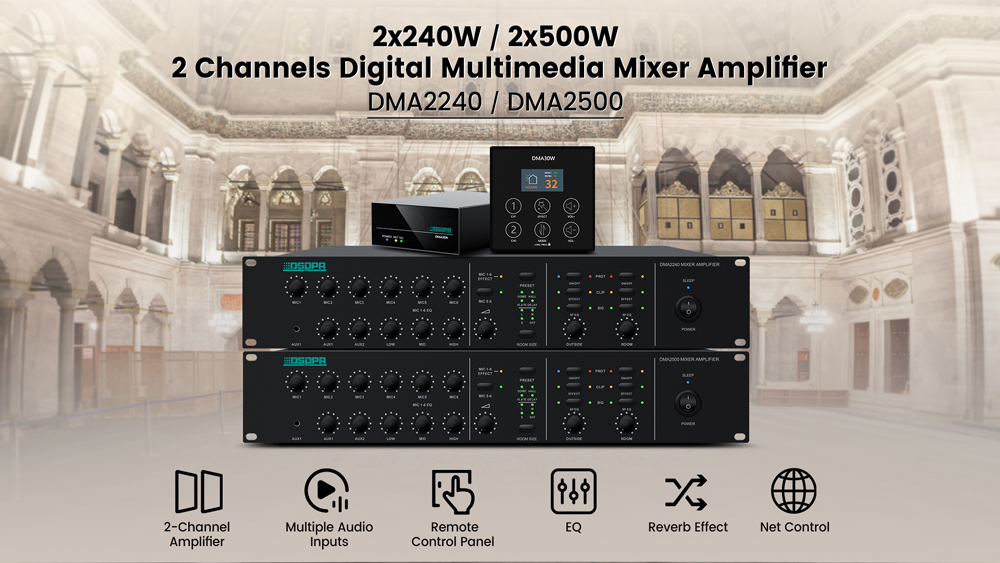

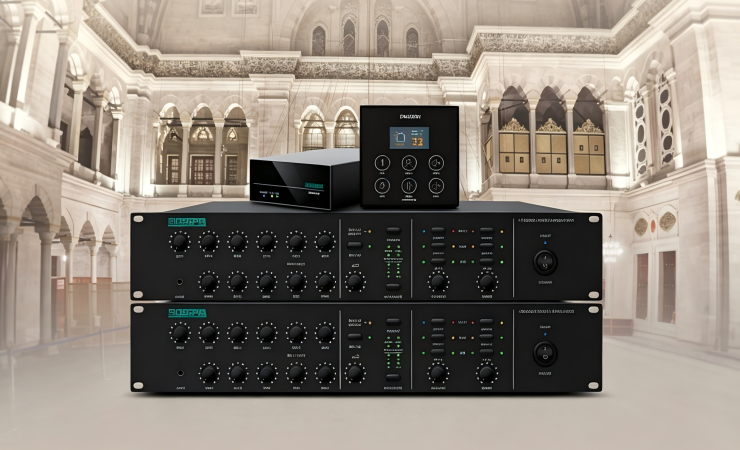

 VII. Product Introduction - DMA2240 DMA2500_2-Channel Digital Mixer Amplifier



Features:


● Rated power: 2 model options: 2×240W / 2×500W
● 2 channels, each configurable for 70V/100V constant-voltage or 8Ω constant-impedance output
● 6×XLR balanced inputs, each with 48V phantom power
● independent EQ adjustment for channels 1–6
● 1×3.5mm audio input (front panel)
● 2-channel RCA line input & output
● Supports up to 6 remote control panels
● front-panel EFFECT adjustment
● compatible with DMA30N network terminal

● AC 110V–240V wide-range input

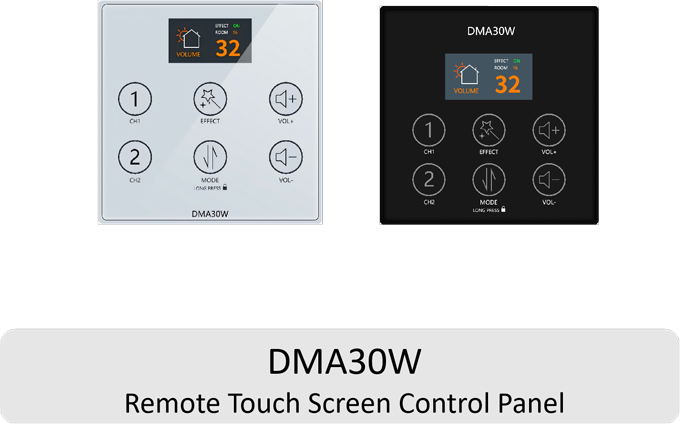

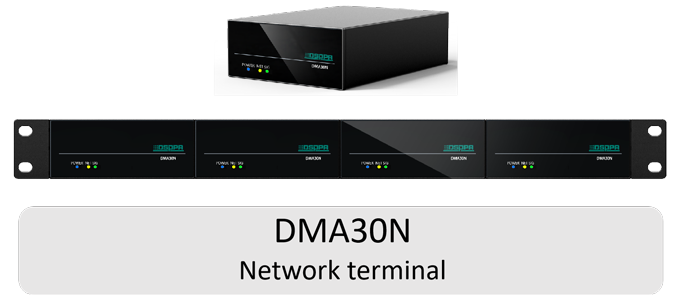

 VIII. Product Introduction - DMA30W, DMA30N



● Supports adjustment of zone volume, zone power on/off, and EFFECT enable/disable.
● Three modes — OUTSIDE, ROOM, and OUTSIDE + ROOM — can be set via DIP switches on the paired remote touch panel.
● Allows tuning of EFFECT reverb depth; offers 3 preset reverb time modes plus 1 fully custom mode.

● Controlled by an independent panel button. Activates horn mode when enabled, and switches to standard constant-voltage speaker mode when disabled.



● 1 illuminated RJ45 port for LAN connection
● Dual RJ45 audio & data bus for RS485 host communication and analog audio transmission, supporting DMA30W cascading
● Single port supports up to 3 cascaded devices with stable 300m transmission; 1 device per port supports up to 600m maximum distance. Only 1 DMA30N is permitted per bus.
● 1 RCA jack for 1-channel line output
● MAG6000 system access for network decoding & playback; offline scheduled playback; fire alarm linkage dry contact output
● Enables offline scheduled playback capabilities.
● Provides dry contact output for fire-fighting linkage alarm (EMC).
● DC 48V bus power supply, with support for external DC 24–48V input (external power takes priority). External DC power adapter sold separately.

● Supports device management, IP configuration and terminal firmware upgrade via standard PC network management software.

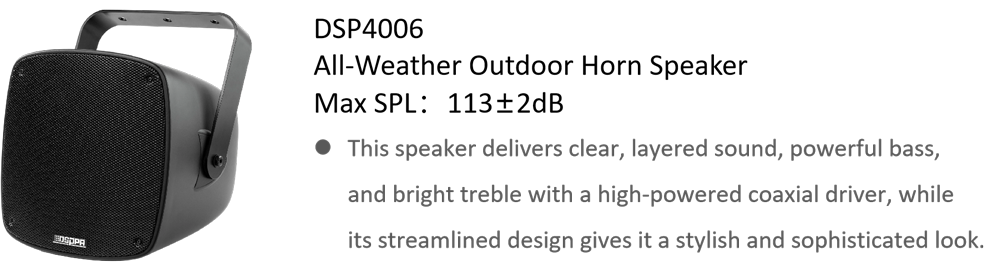

 IX. Outdoor Speakers






 X. Indoor Speakers

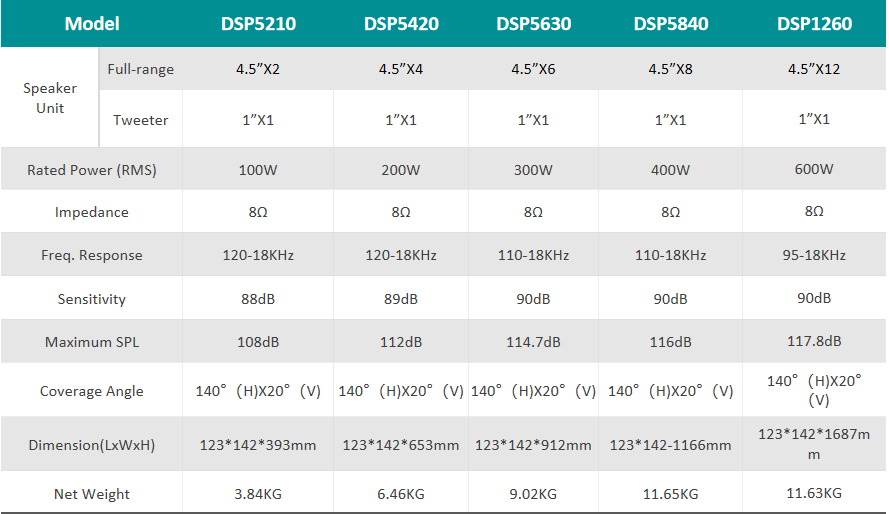

Product Description


● High Sensitivity, Low Distortion Design: Features a 4.5-inch paper cone woofer and 1-inch tweeter for natural, smooth sound; delivers clear, balanced audio with enhanced directivity and focused sound energy.
● Aluminum Alloy Enclosure: Closed, one-piece structure for stability and durability, reducing noise; streamlined metal grille provides a clean and elegant appearance.

● Applications: Suitable for small to medium-sized venues such as restaurants, tea houses, stations, school plazas, office buildings, medium conference rooms, home theaters, and churches.



 XI. Application Scenarios


List of Products Related to the Above Solution

NEW

2x500W

2x500W Digital Multimedia Mixer Amplifier

DMA2500
NEW

2x240W

2x240W Digital Multimedia Mixer Amplifier

DMA2240

AC110-120V/60Hz/35W AC220-240V/50Hz/35W

1U Multi-Channel Audio Player with CD/USB/FM/Bluetooth

MAG2107C
