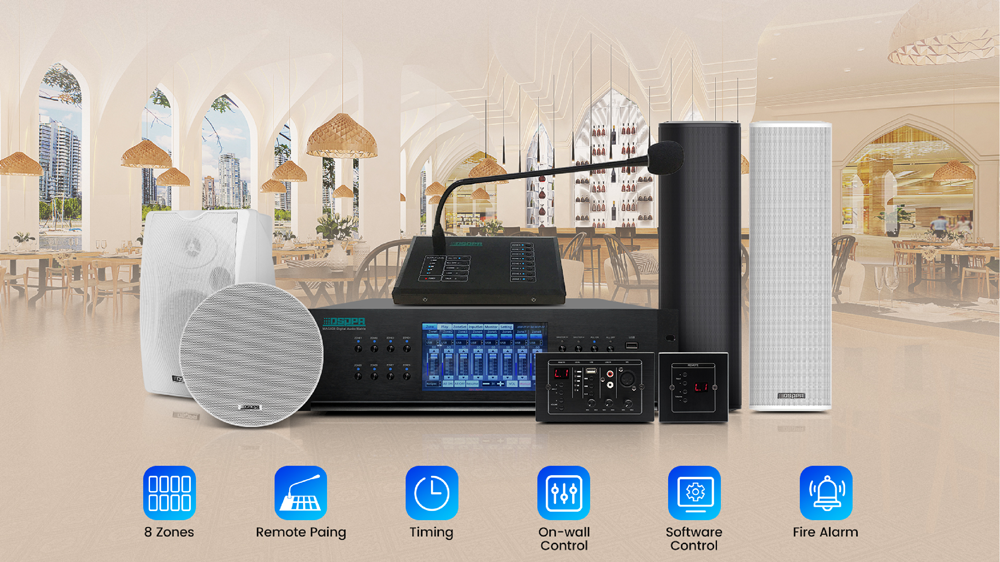

MAG808 Digital Audio Matrix PA System for Restaurants

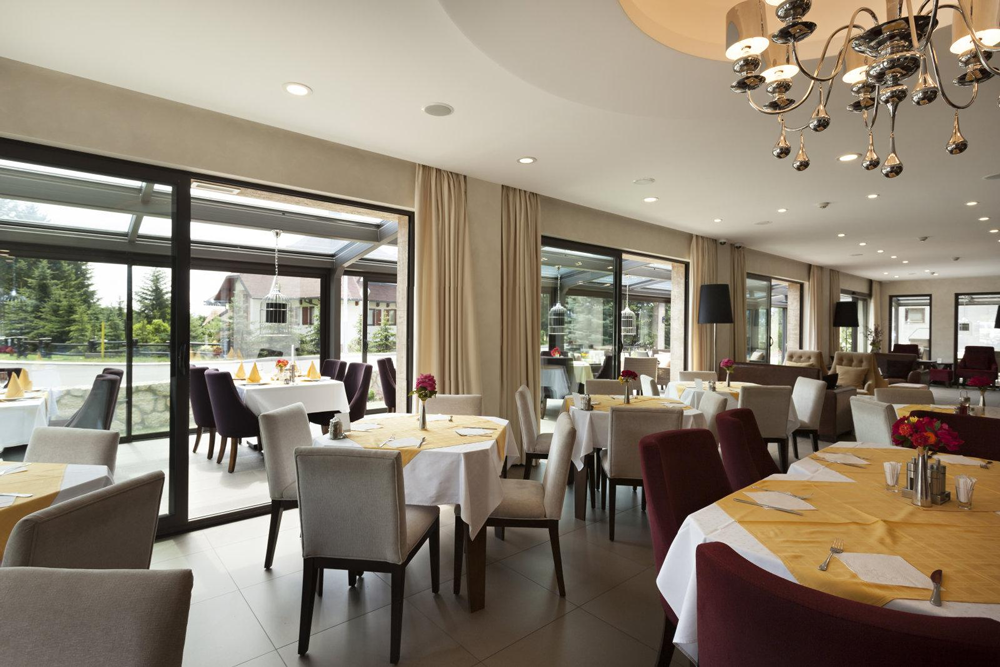

 Solution Overview


In modern restaurant operations, audio systems are not only used for background music but also play a vital role in broadcasting announcements, making notifications, and supporting speeches or entertainment during special events. An audio matrix PA system allows audio signals from multiple input devices (such as speakers, microphones, and televisions) to be flexibly distributed to multiple output zones. This significantly enhances the efficiency and flexibility of audio management. The system enables personalized audio distribution tailored to the needs of different areas, delivering a diverse and customized audio experience.

The MAG808 Intelligent Audio Matrix Public Address System, independently designed by DSPPA, allows simultaneous playback of different music in multiple zones for various occasions, with remote control via dedicated software.



Design Requirements


● Multi-Channel Audio Processing: Supports multiple audio input and output sources, enabling flexible configuration of audio signals for playback in different zones.
● High-Quality Audio: Provides clear, distortion-free audio transmission, supporting high-quality digital audio to ensure excellent broadcasting performance.
● Remote Control and Management: The system should offer remote management capabilities, allowing configuration and monitoring via computers or mobile devices to ensure timely broadcasting in the required areas.
● Emergency Broadcasting Function: The system must include an emergency broadcasting feature to deliver emergency alerts through all or specific audio devices during critical situations.
● Zone Control: Enables precise audio distribution and adjustment based on the specific needs of different restaurant zones.

● Automation and Scheduling: Allows scheduled broadcasts based on preset times, such as background music or timed announcements.

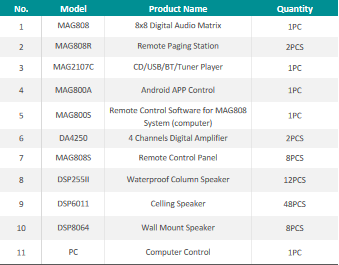

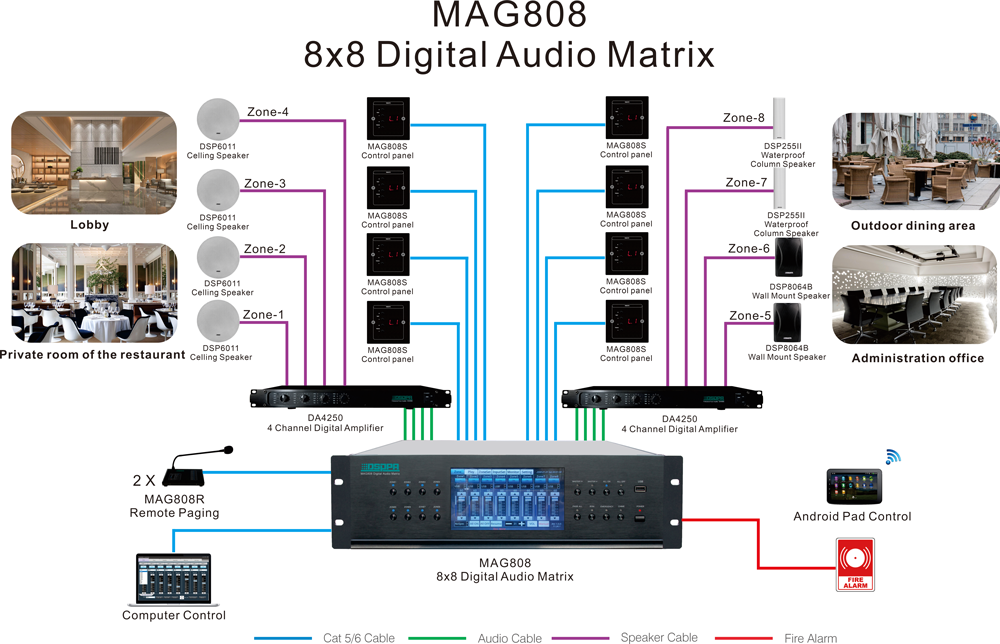

 Restaurant Configuration


Configuration for Medium to Large Restaurants

● For medium to large-sized restaurants, which include multiple floors such as outdoor dining areas, bar counters, dining zones, private rooms, kitchens, and management offices.
● The system supports USB or Bluetooth connectivity to enable background music playback.
● It caters to needs for calls, alarms, and evacuation measures, as well as emergency arrangements.

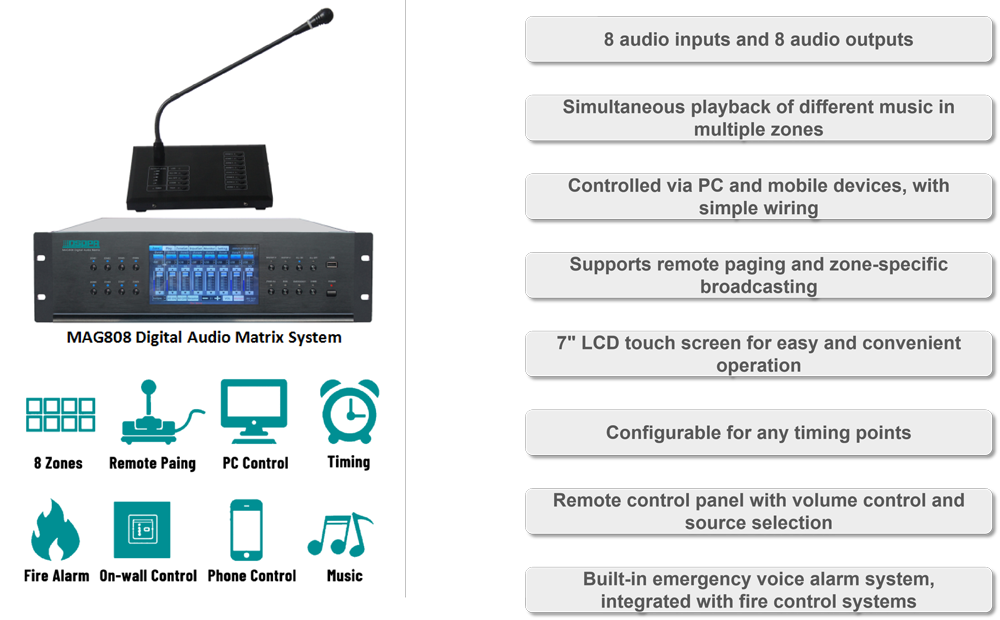

 MAG808 System Features and Highlights



 MAG808 System Product Introduction

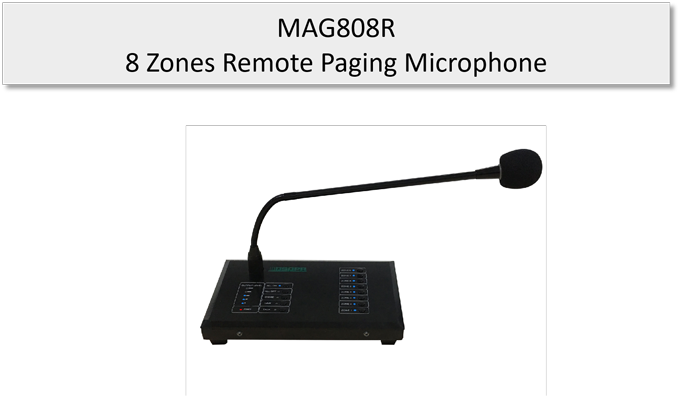

Features:

● 8 zones control
● Priority of each unit can be set (with 4 different levels)
● Clear signal level indication
● Built-in 2 types of chime signal for paging
● Adjustable volume of MIC and chime
● RJ45 interface, support the cascade linkage

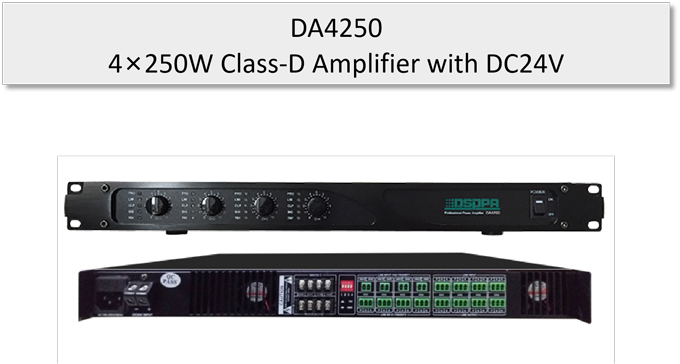

Features:

● 4-channel amplifiers within one 1U & 19" case
● Four audio inputs and Four channel speaker outputs
● 5-unit LED for status
● 70V/100V output switcher, you can select the speaker output for each channel.
● Industrial design for audio project, long term & stable use
● The amplifier will turn into DC power mode when AC power fails. Smoothly change without shutting down.


 MAG808 System Product Introduction

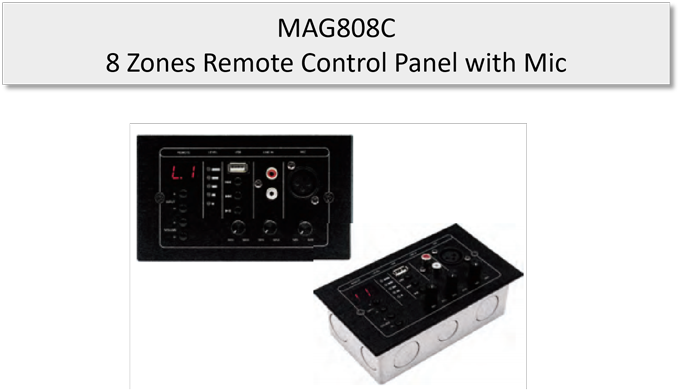

Features:

● RJ45 port power and control interface
● Balanced audio input and output
● Clear audio signal level indicator
● Independent volume control and audio source selection for each zone
● MP3 via USB input with independent volume control
● 1 line input and 1 MIC input with independent volume control
● Bottom box size: 144x80x45mm

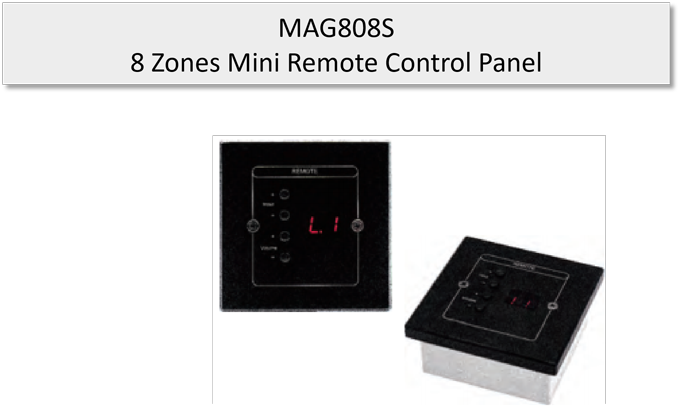

Features:

● RJ45 port power and control interface
● Balanced audio input and output
● Independent volume control and audio source selection for each zone
● 86 case for in wall installation
● Bottom box size: 86x86x33mm

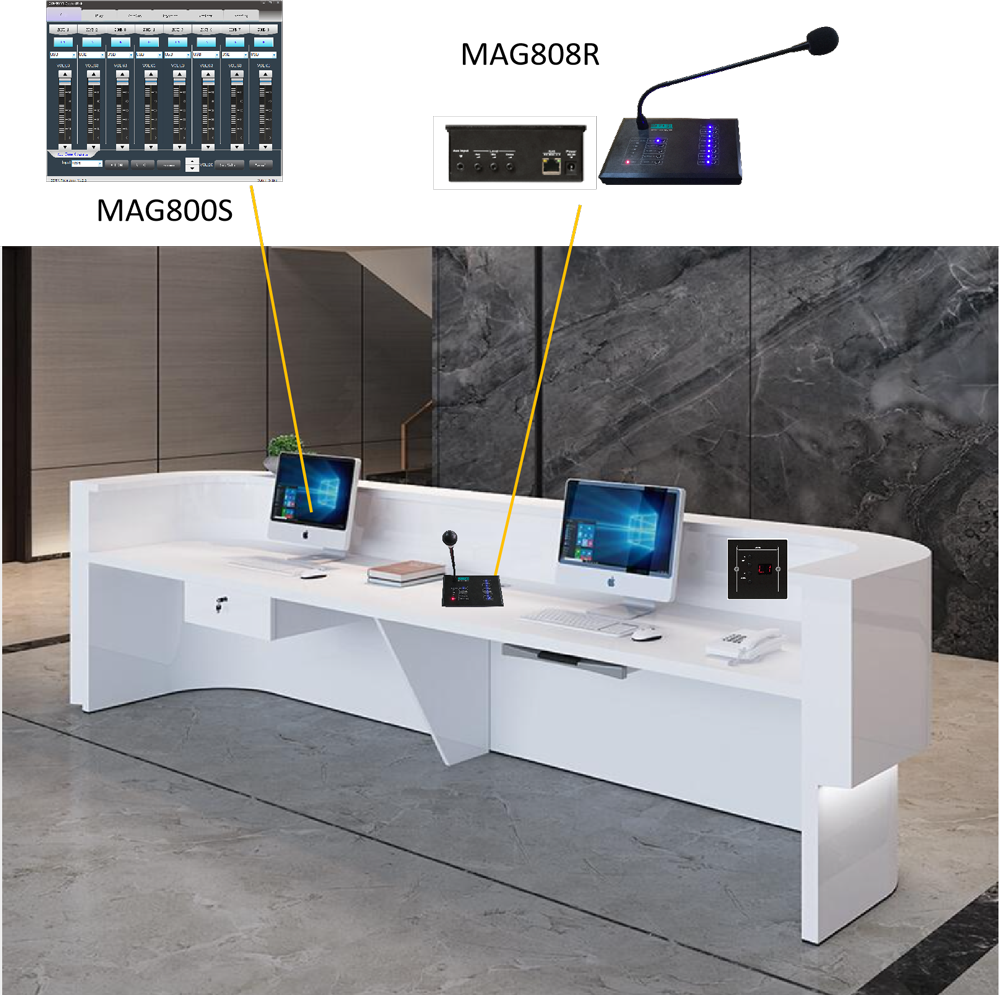

 Restaurant Service Counter – Equipment Features and Installation Effect



Solution Features


● Using the MAG808R paging microphone, notifications and messages such as welcome greetings, order reminders, and promotional offers can be broadcast to customers, helping to enhance customer satisfaction and loyalty.

● By installing the MAG800S control software on the service counter’s computer, staff can remotely control the system, adjust the volume in different zones, and play relaxing background music. This creates a pleasant dining atmosphere for customers while masking noise within the restaurant, enhancing both the dining experience and staff focus.

● In the event of an emergency, such as a fire or earthquake, the restaurant can quickly issue emergency broadcasts through the matrix PA system, facilitating the swift evacuation of customers and coordination of rescue efforts.

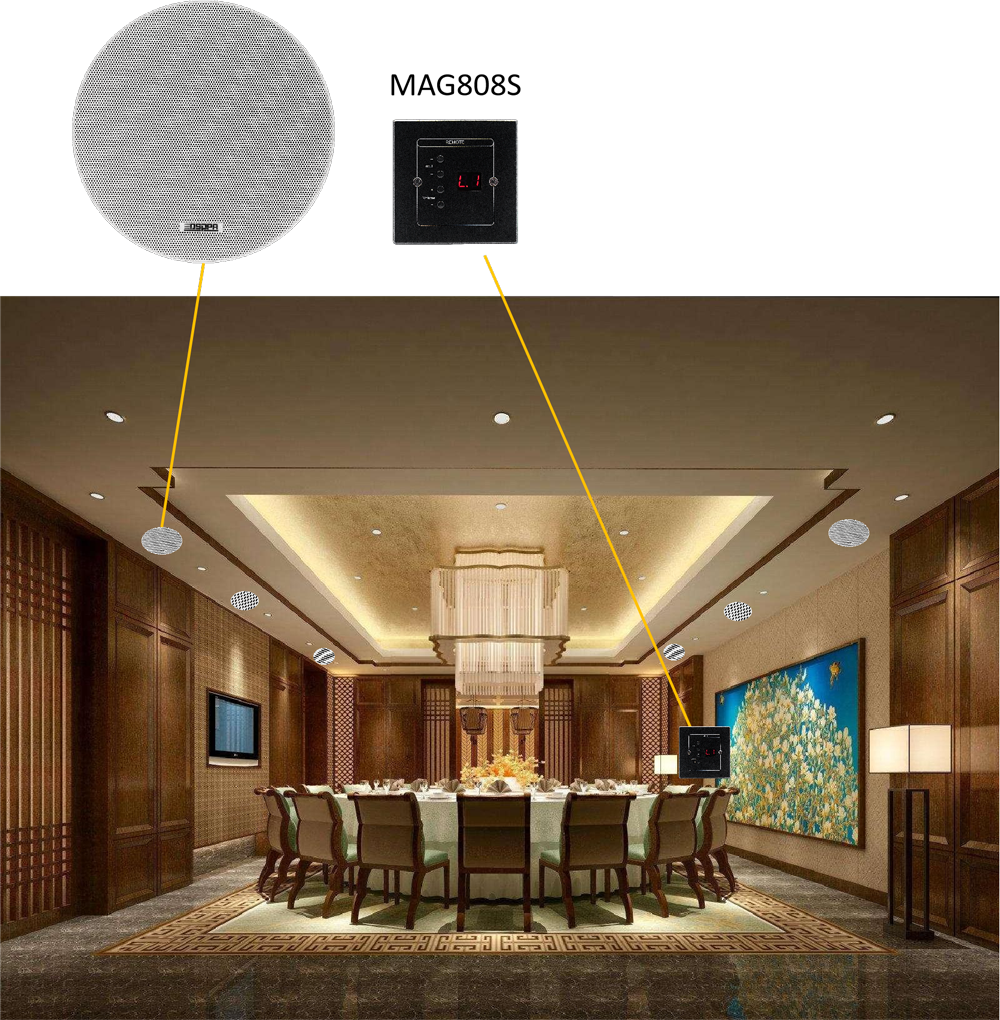

 Restaurant Private Rooms – Equipment Features and Installation Effect



Solution Features


● Customers can use the MAG808S to play music and adjust the volume, creating a comfortable dining environment.

● The system also supports centralized management for unified background music playback, improving overall service quality.

● The restaurant employs ceiling speakers (DSP6011), which distribute sound evenly throughout the area, effectively avoiding the sound blind spots often associated with wall-mounted speakers and ensuring more consistent audio quality. Additionally, these speakers can broadcast notifications and messages to customers, helping them receive timely assistance when needed.


 Outdoor Dinning Area – Equipment Features and Installation Effect


Solution Features

● The DSP255II can be installed in spacious outdoor dining areas, where the column speakers provide enhanced speech clarity in open spaces. They minimize the impact of external noise on music playback, ensuring clear and precise broadcast content and effective sound transmission.

● Equipped with a 3-inch gray polypropylene cone full-range bass driver and a 2-inch tweeter, the DSP255II boasts a wide frequency response, with clear bass and bright, crisp treble.

● Featuring a waterproof design, it is versatile for both indoor and outdoor use.

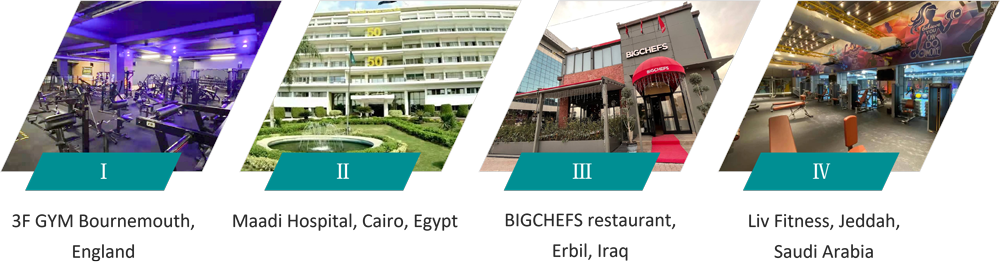

 System Case Examples



Find more cases at www.dsppatech.com

 Application Scenarios


List of Products Related to the Above Solution

HOT

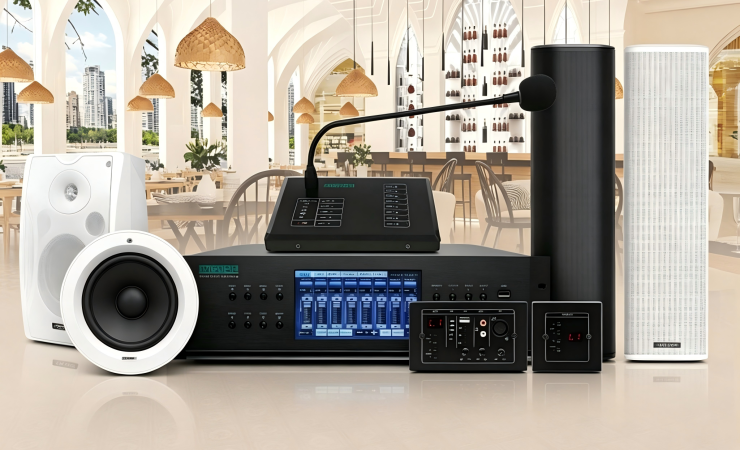

8x8 Audio Matrix

8x8 Digital Audio Matrix System Main Unit

MAG808
