Home ProductsCommercial SpeakerCommercial Column Speaker 100W 3" Commercial Surface-Mount Column Speaker DSP4310

100W 3”×4 8Ω

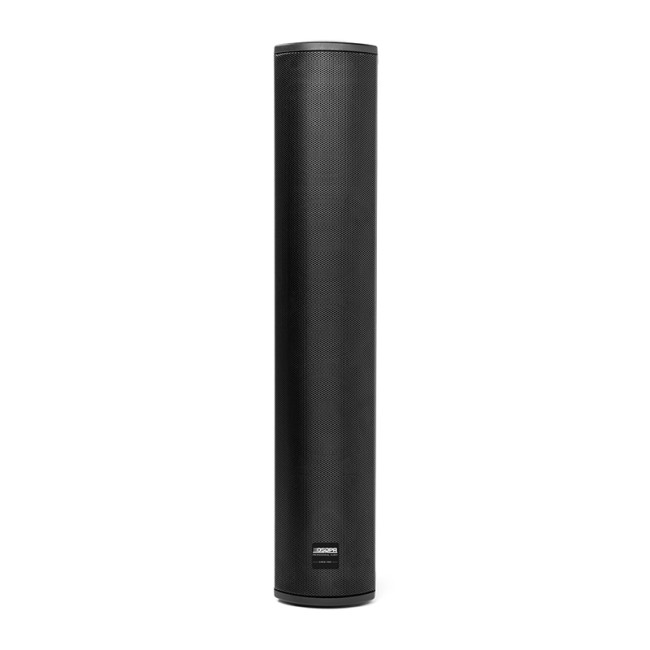

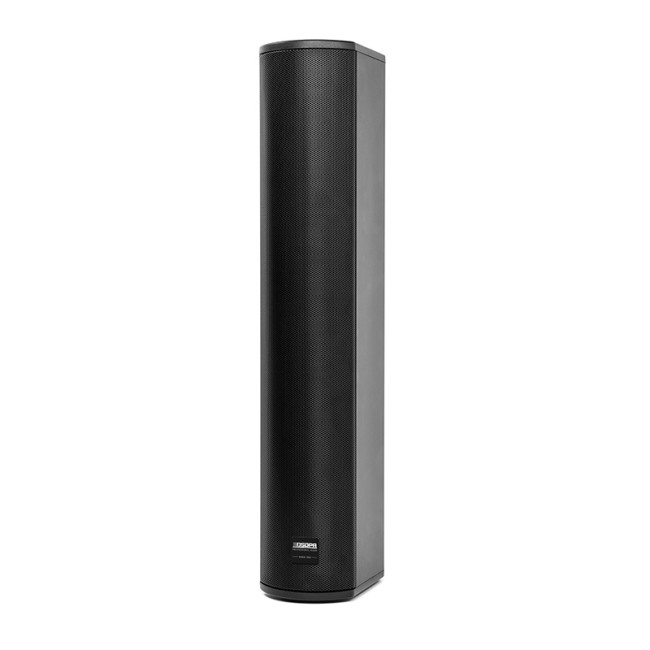

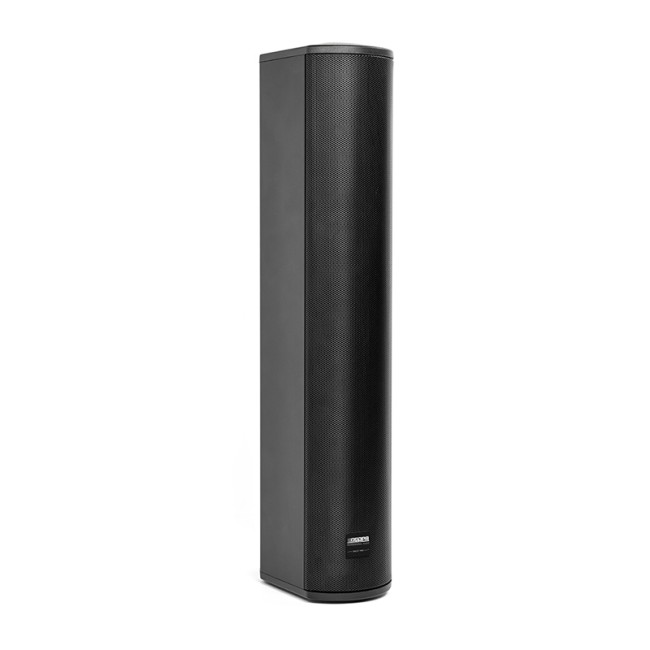

100W 3" Commercial Surface-Mount Column Speaker

DSP4310
  • Multiple power options: Available in 100W, 200W, and 300W models to suit different sound reinforcement requirements.
  • High-performance drivers: DSP4310 features 4 × 3" full-range drivers + 1 × 1" tweeter
  • Clear and focused sound: Linear acoustic design delivers strong directivity, high clarity, and a well-balanced frequency response.

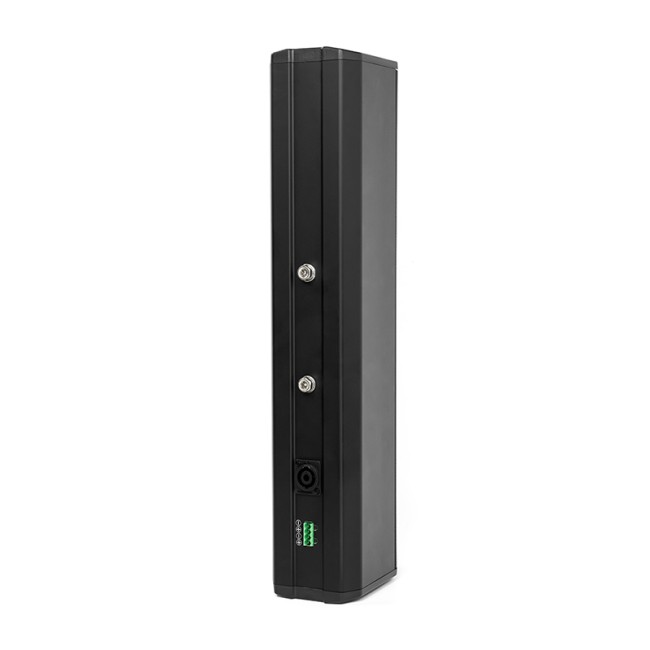

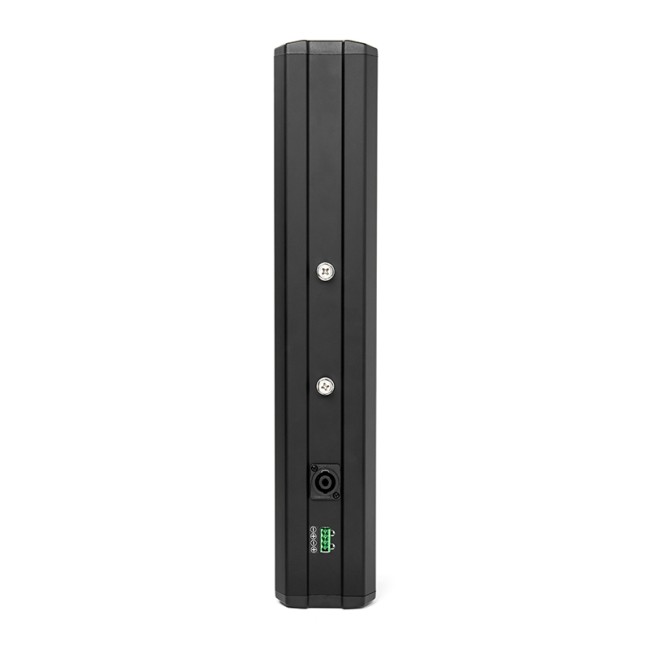

  • Durable construction: Aluminum alloy enclosure with ABS top and bottom caps, plus a tightly fitted metal grille, ensures long-lasting reliability.
  • Wide coverage angle: 140° horizontal × 20° vertical dispersion provides even sound distribution throughout the listening area.
  • Versatile applications: Ideal for conference rooms, schools, public transport stations, restaurants, and houses of worship.
Overview Specifications Brochure Related Products Solutions Latest News & Cases

The DSP4310 100W 3” Commercial Surface-Mount Column Speaker is a compact and efficient wall-mounted PA solution designed for clear voice reproduction and reliable sound coverage in commercial environments. Featuring high-performance 3-inch drivers, it delivers excellent speech intelligibility and balanced audio output, making it ideal for background music and public address applications. Its slim surface-mount design ensures easy installation and seamless integration into modern architectural spaces.

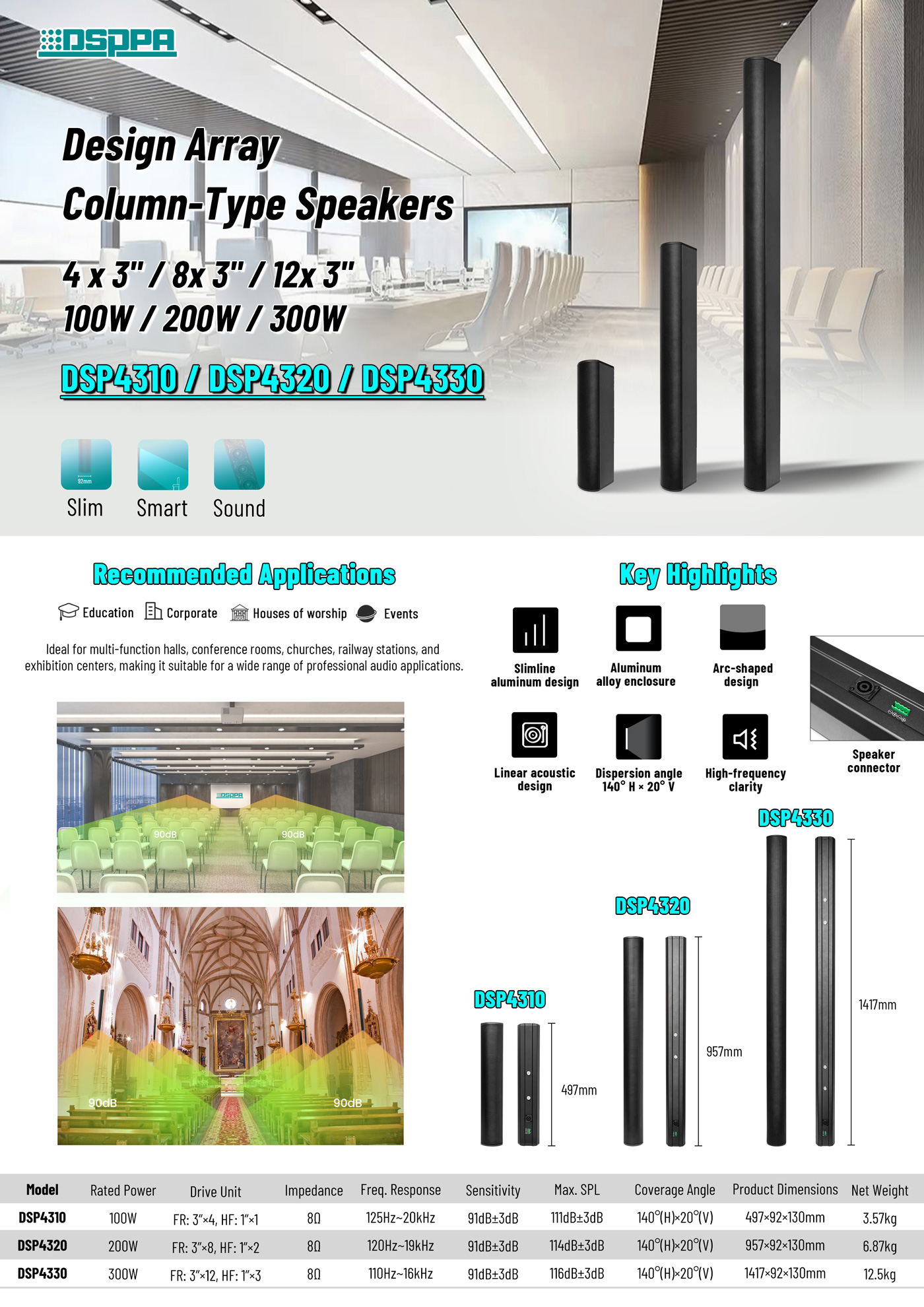

Specifications of 100W 3" Commercial Surface-Mount Column Speaker DSP4310


Model

DSP4310

DSP4320

DSP4330

Drive Unit


FR: 3”×4
HF: 1”×1



FR:3”×8
HF: 1”×2



FR:3”×12
HF: 1”×3


Rated Power

100W

200W

300W

Impedance

8Ω

8Ω

8Ω

Frequency Response

125Hz~20kHz

120Hz~19kHz

110Hz~16kHz

Sensitivity

91dB±3dB

91dB±3dB

91dB±3dB

Max. SPL

111dB±3dB

114dB±3dB

116dB±3dB

Coverage Angle

140°(H)×20°(V)

140°(H)×20°(V)

140°(H)×20°(V)

Product Dimensions

497×92×130mm

957×92×130mm

1417×92×130mm

Net Weight

3.57kg

6.87kg

12.5kg
