Home Professional AudioAudio ProcessorClassical Audio Processor 16 Input/Output Digital Audio Processor with DSP D6642H D6643H D6644H

120dB ; ≤0.002% @1kHz, +4dBu

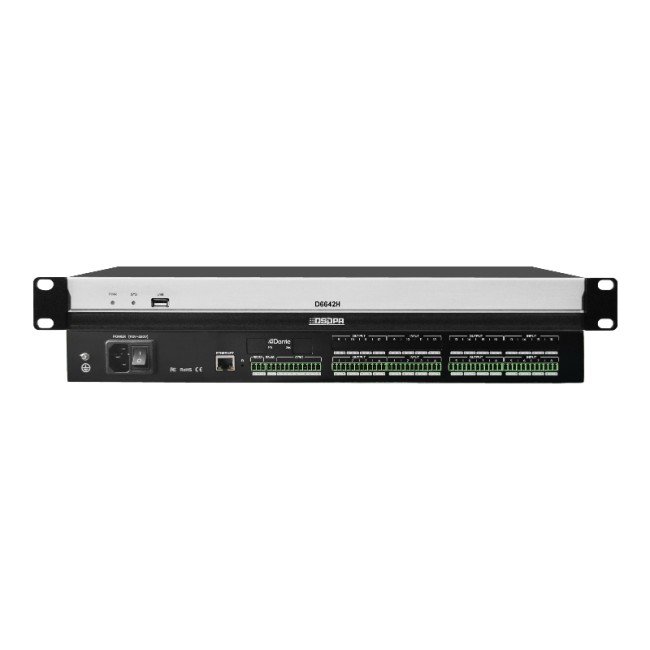

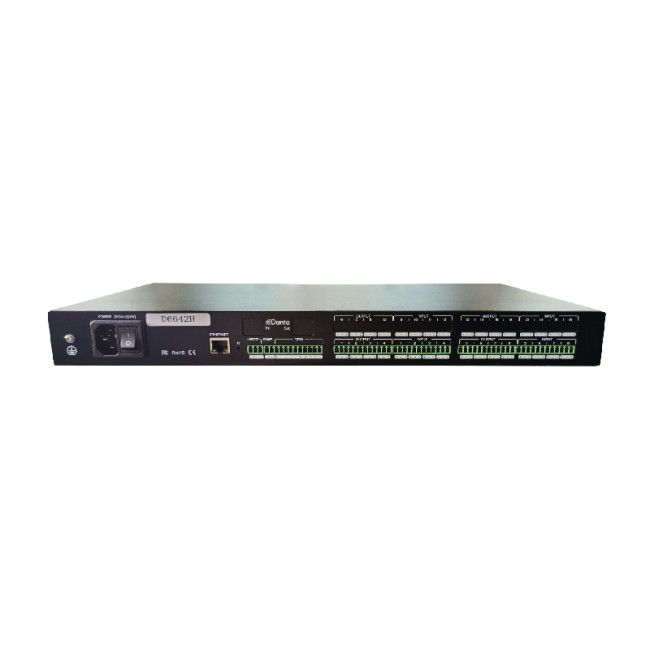

16 Input/Output Digital Audio Processor with DSP

D6642H D6643H D6644H
  • 24-bit/48kHz sampling frequency, high-performance A/D and D/A converters, and a 32-bit floating-point DSP processor; full-featured matrix mixing delivers excellent and clear sound quality.
  • High-precision input sensitivity adjustment with 21 levels, 3dB steps; maximum input gain up to 60dB.
  • Efficient algorithm processing: AFC, AEC, ANS, AUTOMIXER, EQ, GATE, AGC, and more.
  • Rich interface expansion: 8-channel configurable GPIO with support for external input levels of 3.3V to 24V; USB interface for recording, playback, and scene storage; RS-485 for automatic camera tracking to simplify video conferencing setup; RS-232 bidirectional serial control for integration with video matrix, cameras, and other devices.
  • Multi-scene preset support with user-friendly software interface.
  • Fast operation via web-based control, compatible with Android and iOS systems.
  • 1 USB recording channel.
Overview Specifications Related Products Solutions Latest News & Cases

The device supports up to 16 input/output analog channels and 1 extended USB recording/playback channel. It is equipped with a high-quality 21-stage preamplifier circuit, a DSP processing bus architecture, and features multiple functions including echo cancellation and noise reduction to restore high-quality sound. It is primarily applied in a variety of large venues such as theaters, concert halls, remote video conferencing rooms, sports venues, churches, conference centers, and theme parks. Its operation is straightforward and intelligent.


Specifications of 16 Input/Output Digital Audio Processor with DSP D6642H D6643H D6644H


Model

D6642H D6643H D6644H

Maximum Number of Inputs

16

Maximum Number of Outputs

16

Number of 232 Serial Port

1

Number of 485 Serial Port

1

Number of GPIO

8, freely configurable I/O

Number of RJ45

1

Number of USB

1, support recording and broadcasting

Maximum Analog Gain

-60dB

Phantom Power

48V

Input-output Quantization

48KHz/24bit

A/D Dynamic Range

120dB

Input CMRR

80 dB @ +24dBu  @60Hz

Input Impedance

20kΩ balance, 10kΩ unbalance

Maximum Input

24dBu

D/A Dynamic Range

120dB

Channel Isolation

100dB

Frequency Response

20～20kHz (±0.25dB)

THD (THD+N)

≤0.002% @1kHz, +4dBu

Output Impedance

100 Ω balance, 50 unbalance

Maximum Output

24dBu

Working Power

AC110V-220V/50Hz

Working Temperature

0~40℃

Package Dimensions (mm)

567×377×98

Machine Dimensions (mm)

483×270×44

Gross Weight

3.2kg

Net Weight

2.15kg
