Home Professional AudioAudio ProcessorClassical Audio Processor 4×8 Analog Professional Audio Processor D6648

118dB ; ≤0.005% (+4dBu 1kHz)

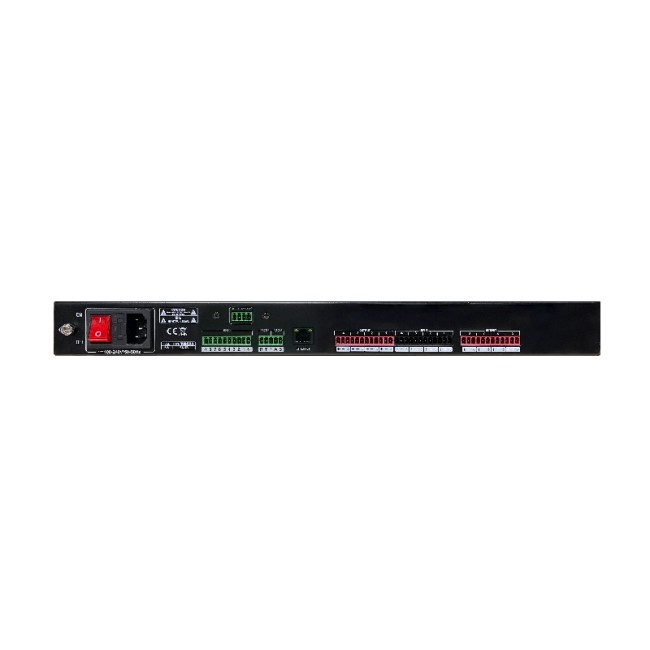

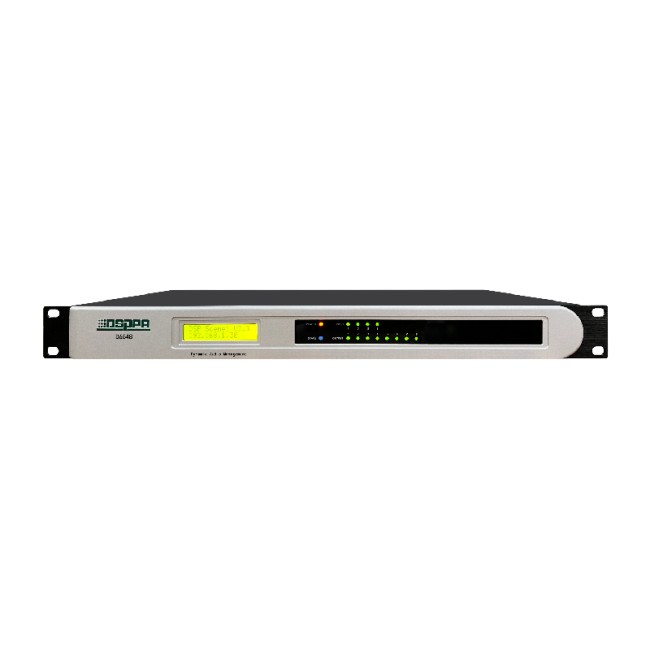

4×8 Analog Professional Audio Processor

D6648
  • 24-bit/48kHz sampling frequency, high-performance AD/DA converters, and a 40-bit floating-point DSP processor.
  • High-precision input sensitivity adjustment with 14 levels, 3dB steps, and a maximum input gain of 42dB.
  • Full-featured matrix mixing function, delivering exceptional clarity with comprehensive processing including EQ, GATE, COMP, LIMIT, and AGC.
  • GPIO supports 8-channel scene switching for quick operation, with RS232 and RS485 central control commands.
  • 60 scene presets with a user-friendly interface, supporting fast switching between Chinese and English.
  • TCP/IP control protocol for PC connection, enabling web-based quick control and parameter adjustment.
Overview Specifications Related Products Solutions Latest News & Cases

This series of devices supports 4×8 analog channels with a high-quality 14-stage preamplifier circuit and a DSP processing bus architecture to deliver high-fidelity sound reproduction. It is widely applicable to large venues such as theaters, concert halls, remote video conferencing rooms, stadiums, churches, conference centers, and theme parks, meeting diverse sound reinforcement requirements. The device is designed for straightforward operation and features intelligent control functions.


Specifications of 4×8 Analog Professional Audio Processor D6648


Model

D6648

Input/Output

4×8

Input/Output Type

Analog

Signal Processor

40-bit floating-point DSP 400MHz

Bit Depth

24-bit

Sampling Frequency

48kHz

Input Impedance

＜10KΩ

Output Impedance

200Ω

A/D Dynamic Range

118dB

D/A Dynamic Range

118dB

Max Input Level

+18dBu

Max Output Level

+18dBu

Transmission Delay

4.1ms

Output Channel Delay

0ms～1500ms (Step:0.02ms)

THD+N

≤0.005% (+4dBu 1kHz)

Frequency Response

20Hz～20kHz ±0.3dB

CMRR

≥55dB

Crosstalk

≤-100dB

SNR

≥111dB (20–20KHz)

Dynamic Range

≥111dB (20–20KHz)

Noise Floor

≤-93dBu (20–20KHz)

Connection Type

TCP/IP, RS232, RS485

Preset

60

Size

482×253×44mm

Net/Gross Weight

3.3kg / 3.8kg
